Availability note: Hoshizaki identifies KM-161BAJ as discontinued and replaced by KM-161BAK. Confirm supplier stock, authorization to sell, parts support, and warranty eligibility before publication.

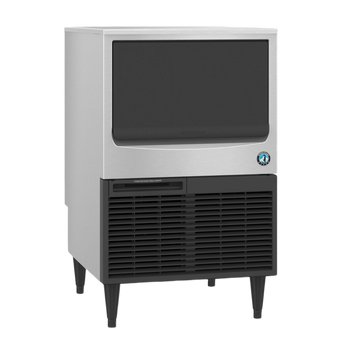

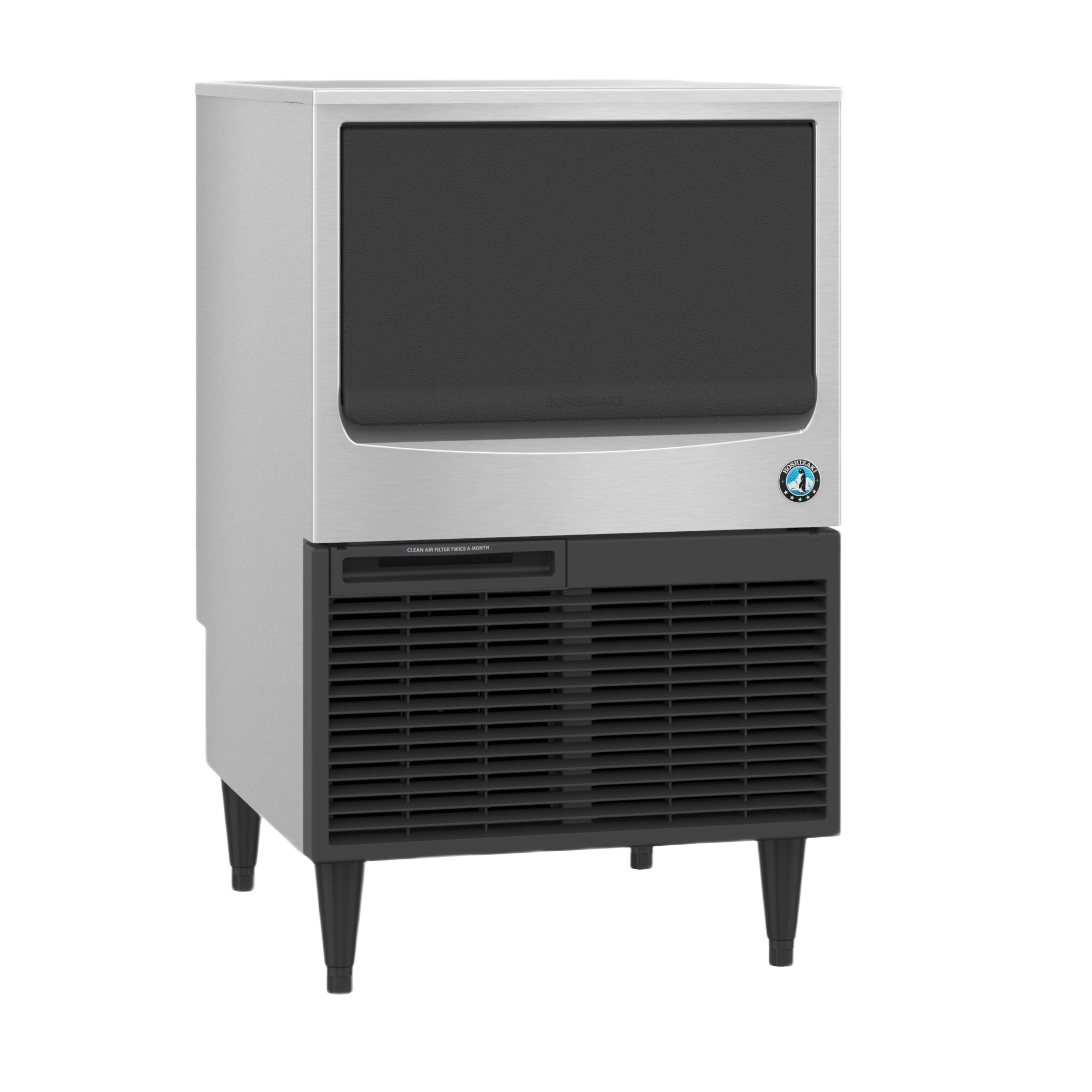

The Hoshizaki KM-161BAJ undercounter crescent cube ice maker delivers higher self-contained capacity for beverage operations that need more production and storage than a compact 24-inch unit. It produces up to 163 lb of ice per 24 hours and stores up to 78 lb in its 2.6-cubic-foot bin. The 23-3/4-inch-wide, 28-inch-deep cabinet places a substantial reserve of ice close to the point of service.

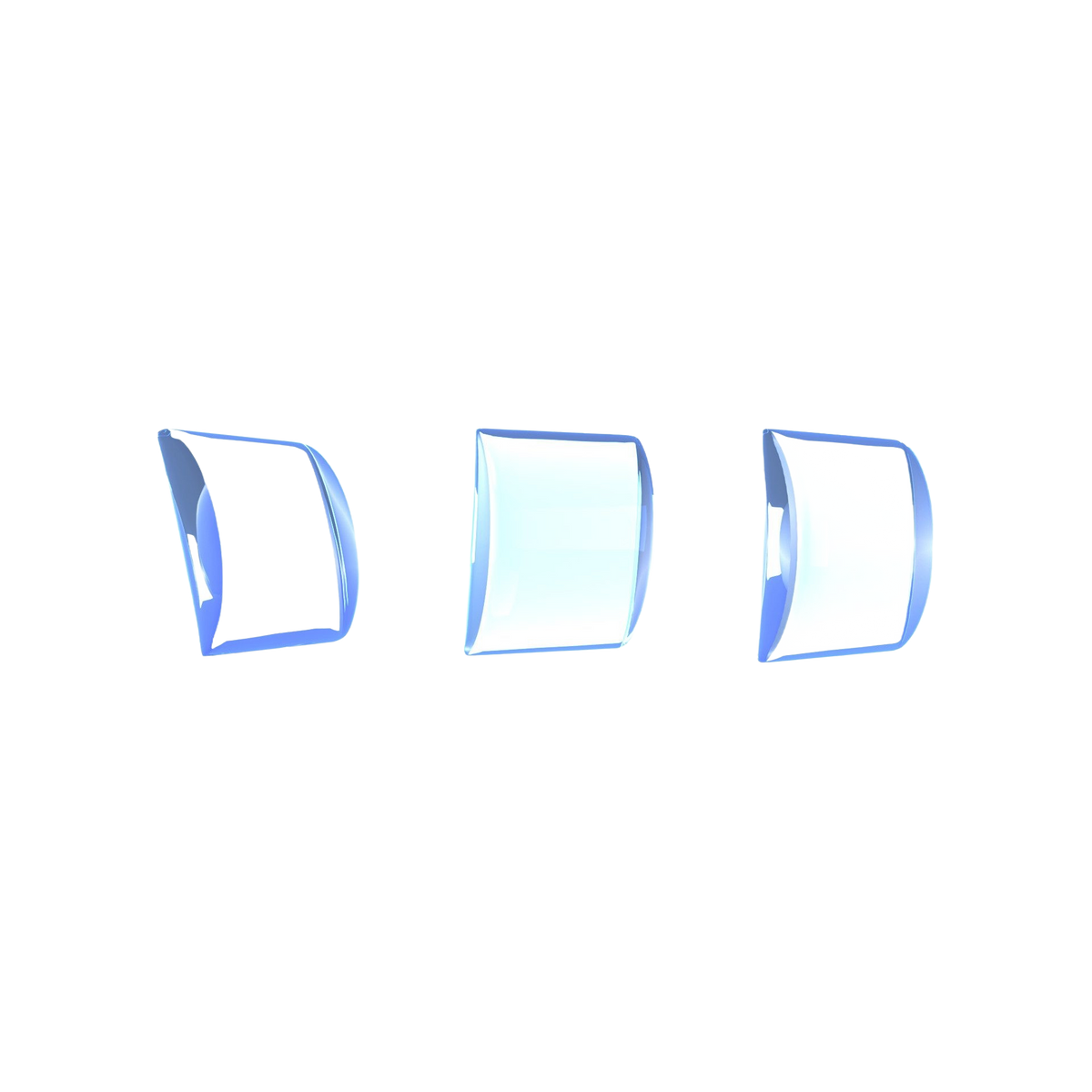

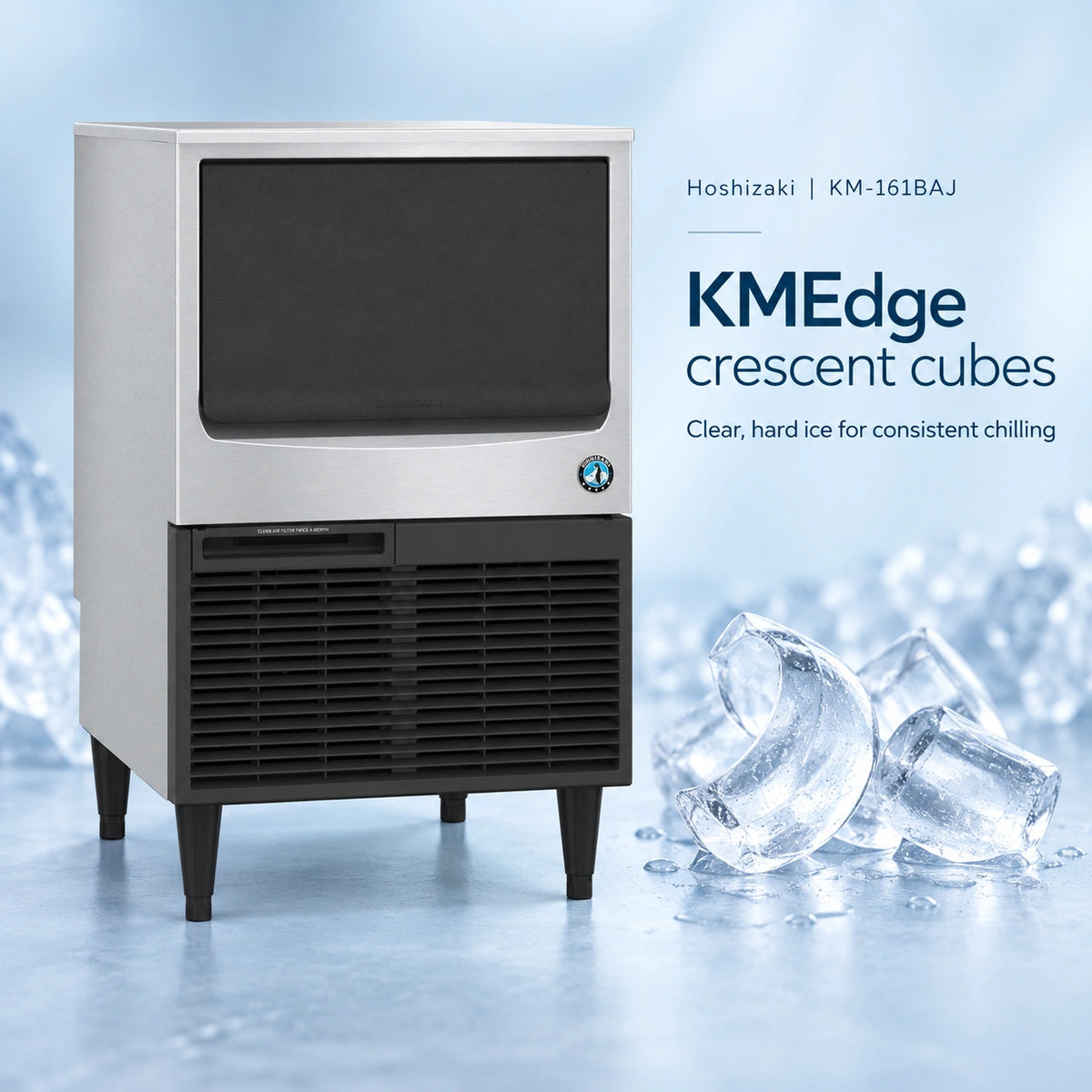

Its KMEdge crescent cubes measure approximately 1-1/2 x 1-1/8 x 1/2 inch. The clear, hard crescent shape fits smoothly into beverage glasses and provides consistent chilling and displacement. Hoshizaki's stainless steel evaporator freezes ice on both sides, and the CycleSaver design reduces the number of operating cycles needed to produce a given volume of ice.
Front-in/front-out airflow supports built-in positioning under appropriate clearances, while the removable air filter makes condenser care accessible from the front. The stainless steel exterior, slide-in bin door, cleanable inlet-water screen, EverCheck alert system, and ADA-compliant bin opening are designed for day-to-day commercial use. An ice scoop is included.

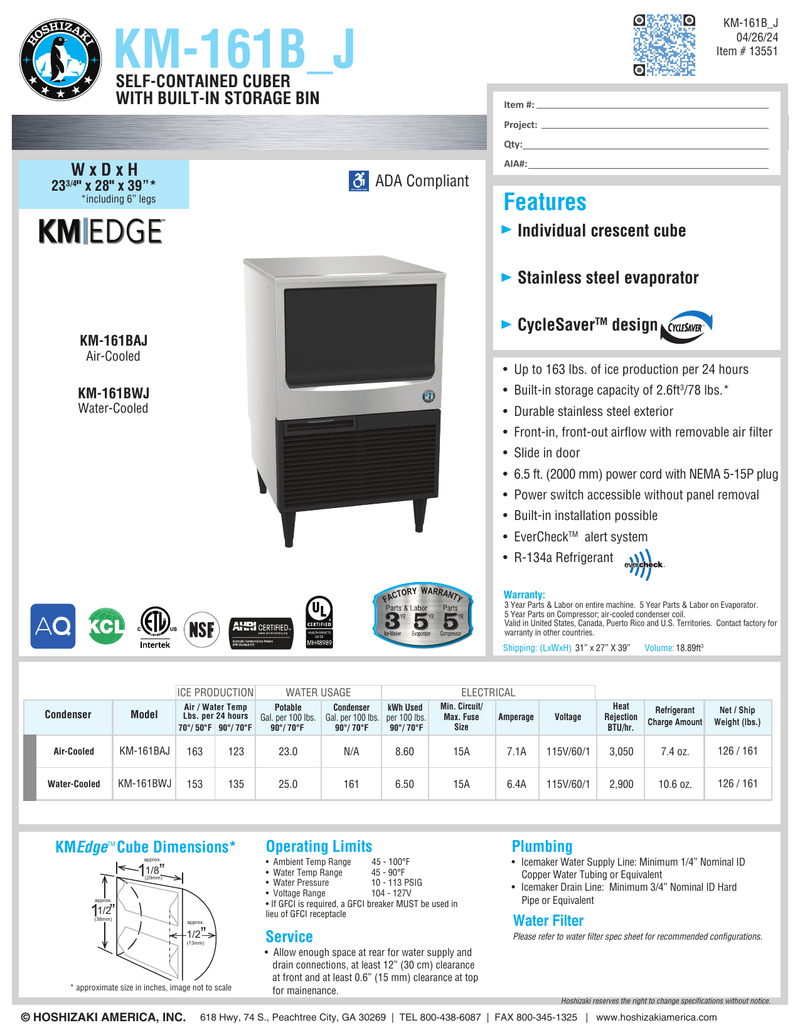

At AHRI conditions of 90°F air and 70°F water, the specification sheet lists approximately 123 lb per day, compared with the 163 lb maximum at 70°F air and 50°F water. This R-134a model should be sized using the more realistic condition for the site. Because it has been discontinued, buyers and data-entry staff should confirm remaining inventory and warranty terms before offering it online; the official replacement is KM-161BAK.
Key Features

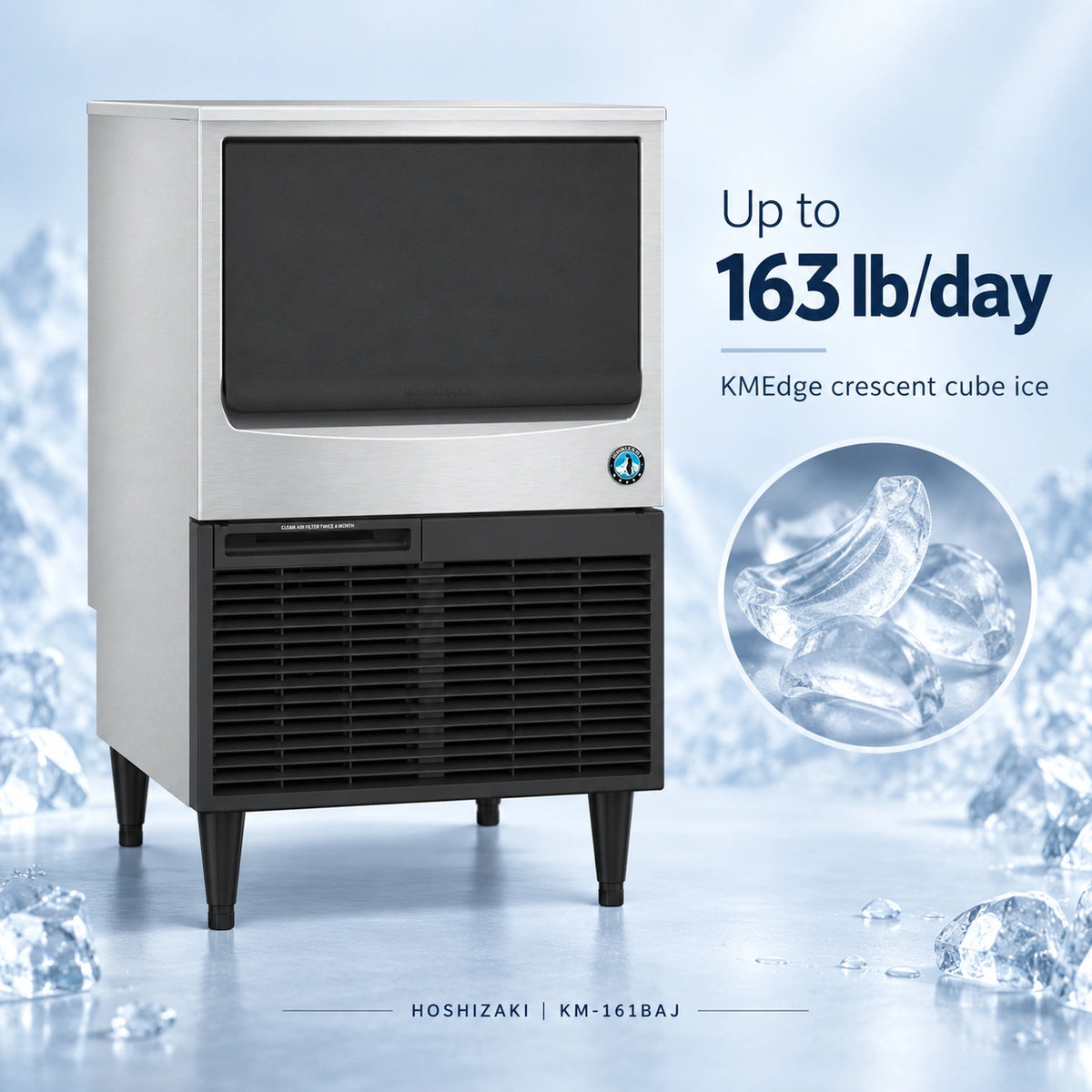

- Produces up to 163 lb/day of KMEdge crescent cube ice

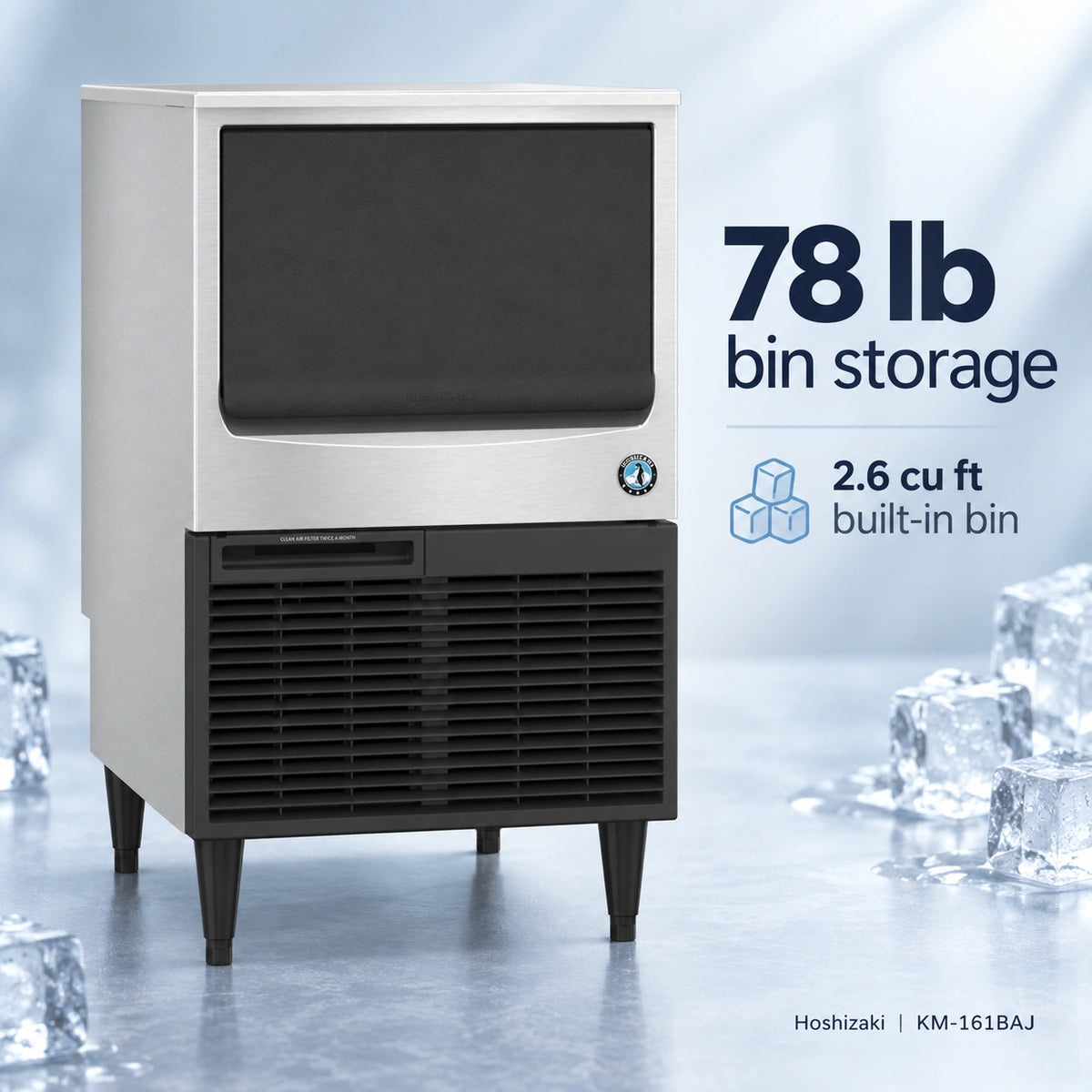

- Built-in bin stores up to 78 lb / 2.6 cu ft

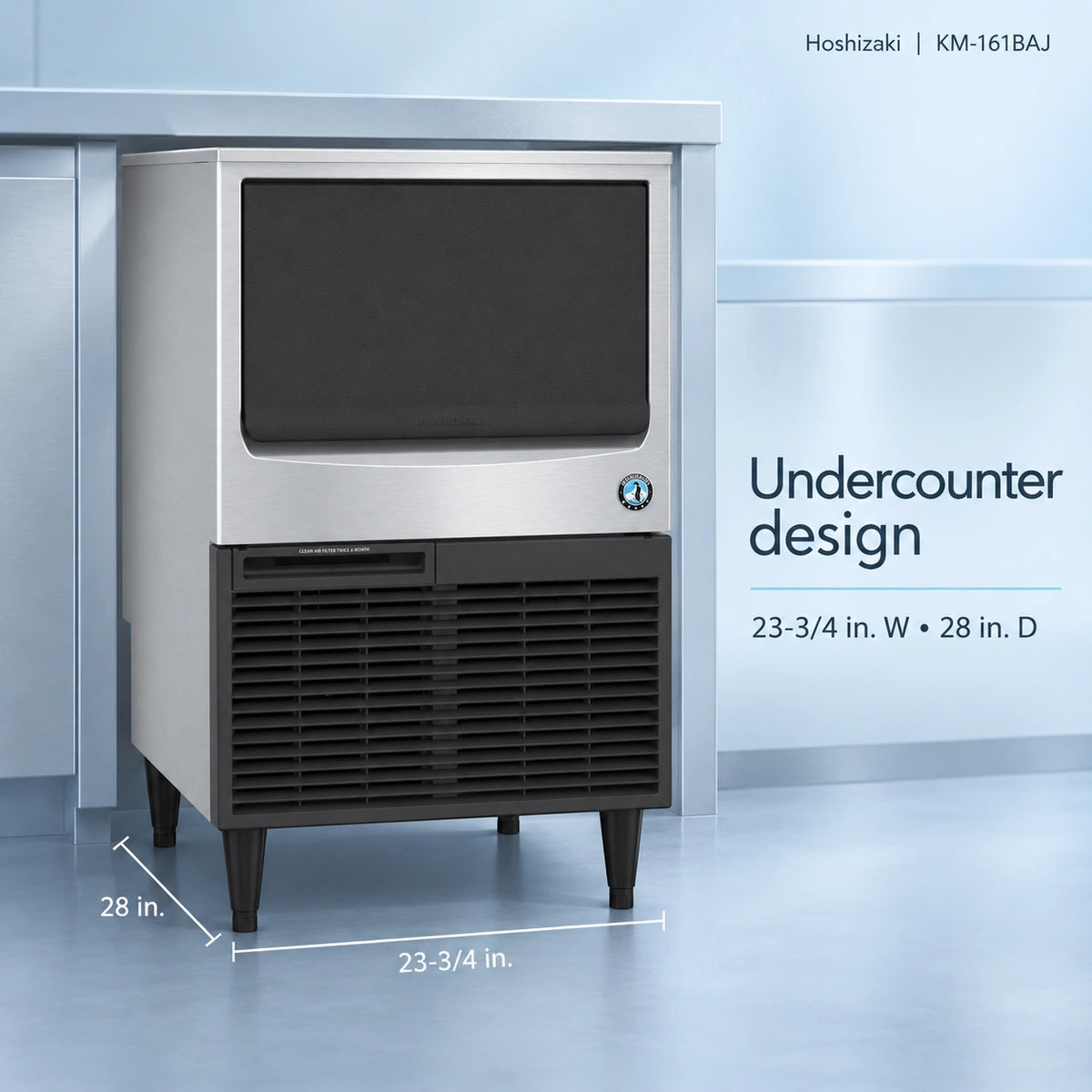

- 23-3/4-inch width with deeper 28-inch cabinet
- Double-sided stainless steel evaporator
- CycleSaver design and EverCheck alert system
- Front-in/front-out airflow
- Removable air filter and cleanable inlet-water screen
- Slide-in door helps conserve aisle space
- ADA-compliant bin opening
- Stainless steel exterior
- Ice scoop included
Best For
Busy bars, cafés, restaurants, office dining areas, hospitality stations, and institutional beverage service needing higher undercounter production and a larger built-in reserve of crescent ice.
Full Specifications
| Brand | Hoshizaki |
|---|---|
| Model | KM-161BAJ |
| Lifecycle | Discontinued; official replacement KM-161BAK |
| Type | Self-contained undercounter crescent cube ice maker |
| Ice Type | KMEdge crescent cube, approximately 1-1/2 x 1-1/8 x 1/2 inch |
| Cooling | Air-cooled; front-in/front-out airflow |
| Maximum Production | Up to 163 lb/24 hr at 70°F air / 50°F water |
| AHRI Production | Approximately 123 lb/24 hr at 90°F air / 70°F water |
| Built-in Storage | 78 lb / 2.6 cu ft |
| Dimensions (W x D x H) | 23-3/4 x 28 x 39 inches, including 6-inch legs |
| Net / Shipping Weight | 126 lb / 161 lb |
| Electrical | 115V / 60Hz / 1 phase; 7.1A; 15A maximum circuit; NEMA 5-15 plug; 6.5 ft cord |
| Refrigerant | R-134a, 7.4 oz |
| Energy Use | 8.6 kWh per 100 lb at 90°F air / 70°F water |
| Potable Water Use | 23 gal per 100 lb at 90°F air / 70°F water |
| Heat Rejection | 3,050 BTU/hr |
| Water Inlet | 1/2-inch FPT; minimum 1/4-inch supply line |
| Drain | 3/4-inch FPT; minimum 3/4-inch drain line |
| Operating Range | 45-100°F air; 45-90°F water; 10-113 PSIG; 104-127V |
Warranty
- Entire machine: 3 years parts and labor
- Evaporator: 5 years parts and labor
- Compressor and air-cooled condenser coil: 5 years parts
Installation and Maintenance Notes
- This model is discontinued; confirm warranty coverage and availability before publishing or accepting orders.
- Provide rear connection space, approximately 12 inches at the front, and 0.6 inch at the top.
- Account for the 28-inch cabinet depth when checking counter projection and service access.
- H9320-51 is the listed filter option; choose treatment based on incoming-water analysis.
- Clean the air filter and water system on a regular schedule and follow current Hoshizaki sanitation instructions.
