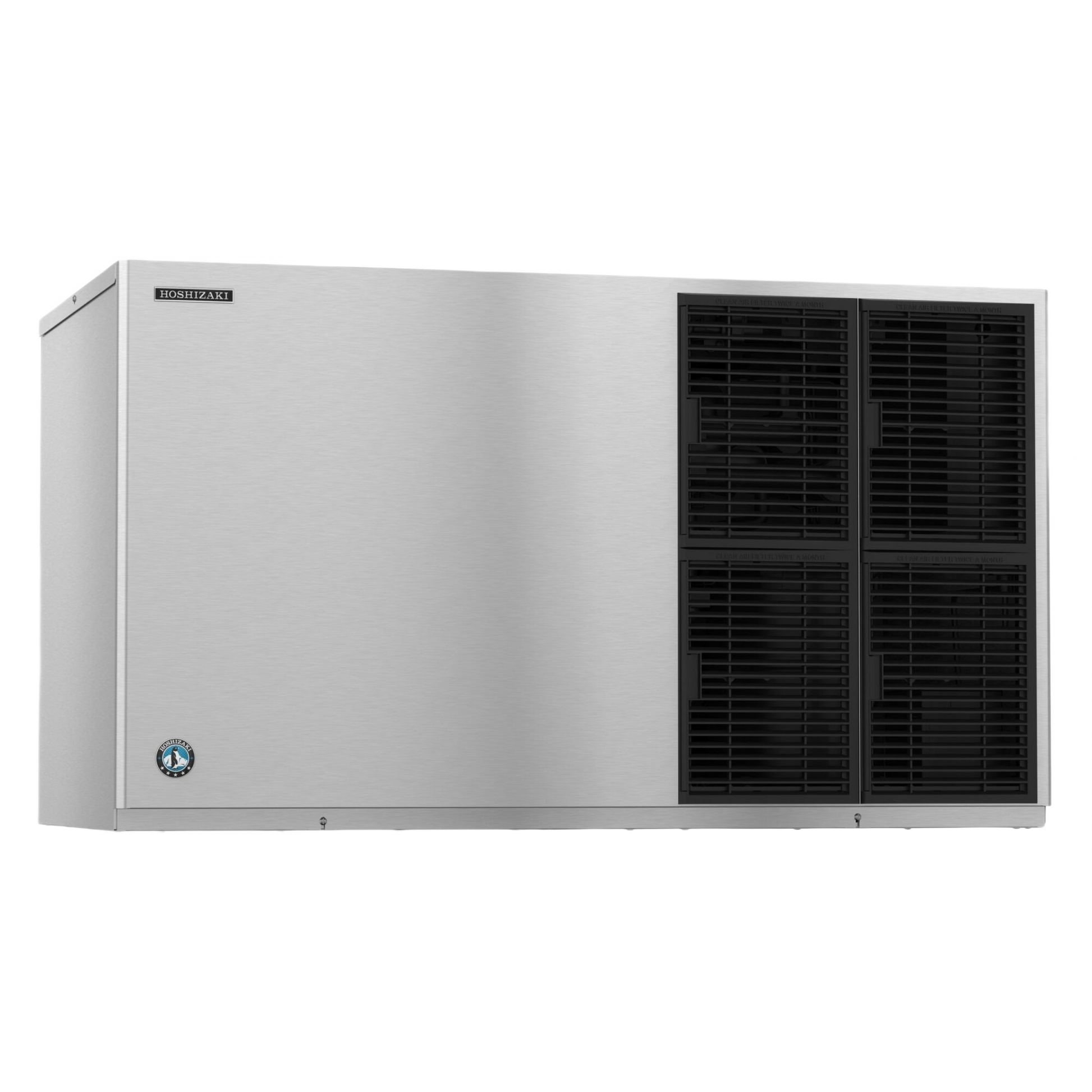

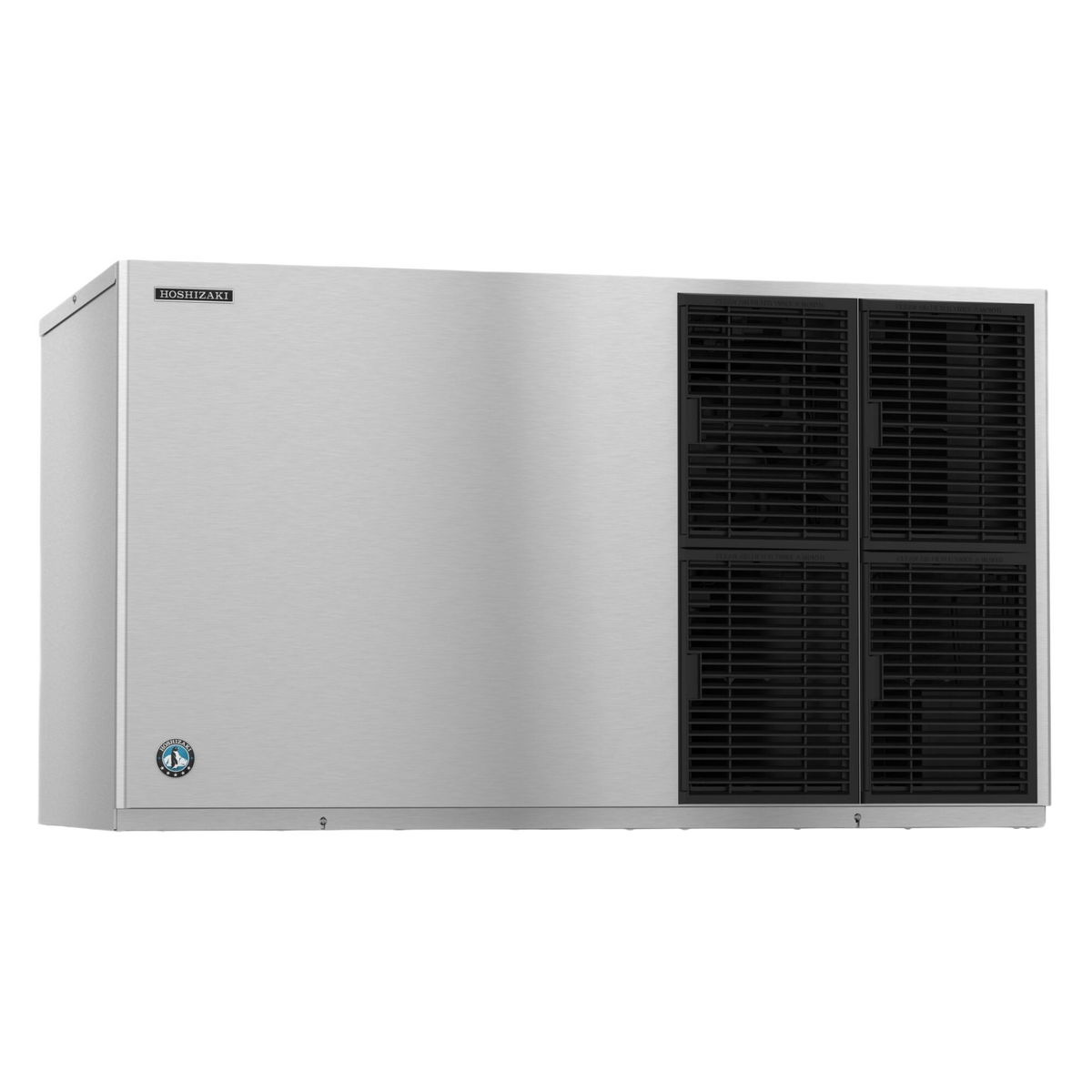

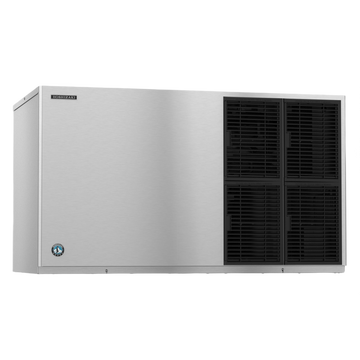

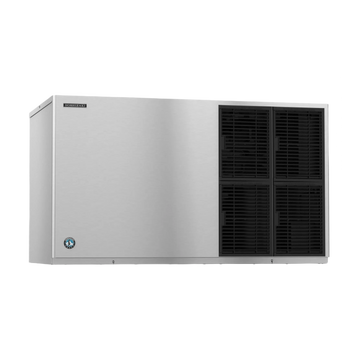

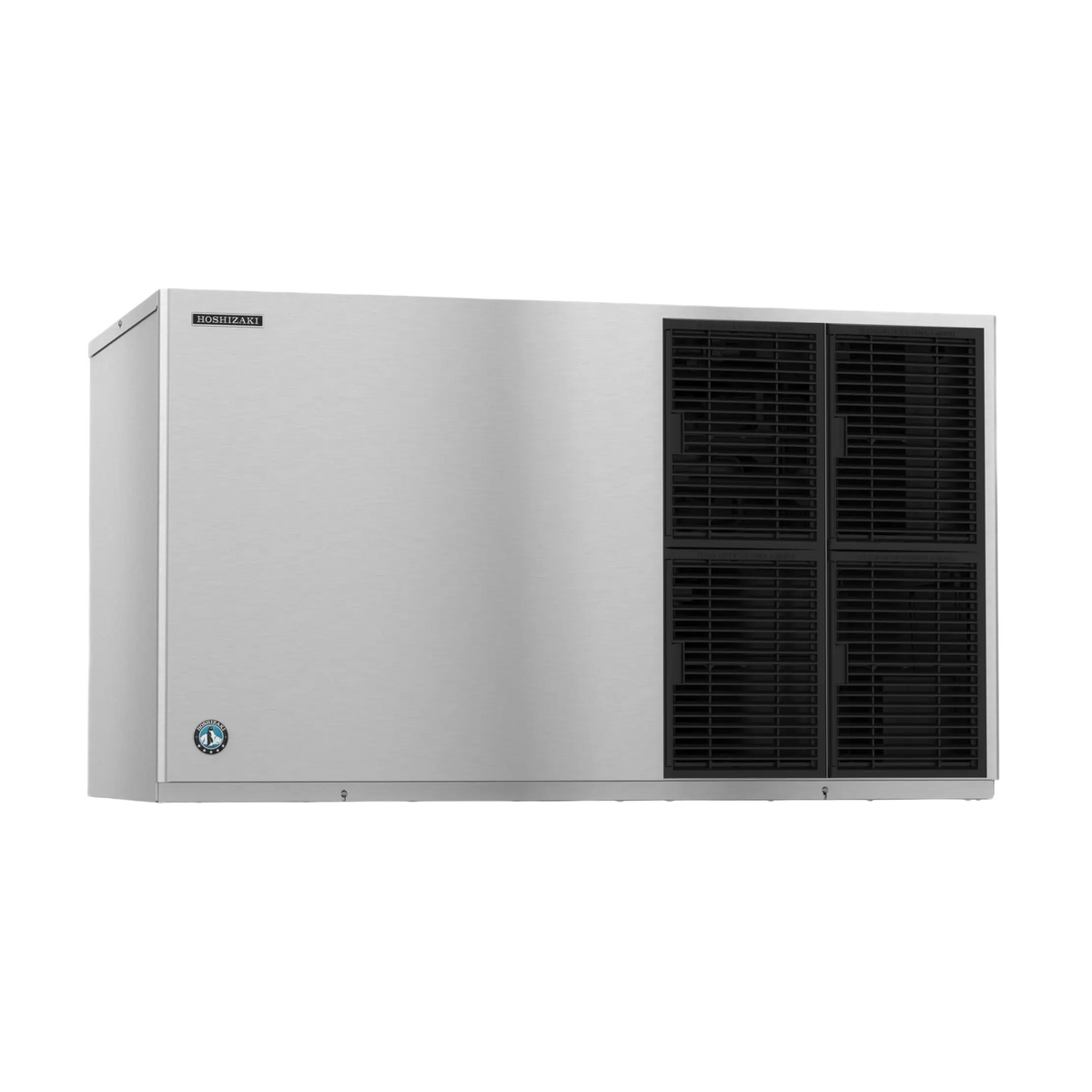

Hoshizaki KM-1601SAJ - Stackable High-Output Crescent Cube Ice Machine Head
The Hoshizaki KM-1601SAJ is an air-cooled modular crescent cube ice maker built for demanding commercial service. It produces up to 1,538 lb of individual crescent cube ice per 24 hours at 70°F air and 50°F water, with approximately 1,340 lb per day at the AHRI condition of 90°F air and 70°F water. As a modular head, it installs on a compatible Hoshizaki bin or dispenser so operators can choose the storage capacity and serving format that fit the operation.
The stainless steel double-sided evaporator forms individual crescent cubes for reliable beverage cooling. CycleSaver® technology supports efficient freeze and harvest cycles, while the ultrasonic bin control senses storage level and can be adjusted on site. EverCheck™ self-diagnostics help operators and technicians identify equipment status, and CleanAssist simplifies scheduled cleaning.
A durable stainless exterior, snap-fit parts and removable air filters help simplify service in busy kitchens. The cabinet is designed for stacking; two machines can provide up to 3,342 lb per day of combined output. This 208-230V single-phase model uses R-404A refrigerant. A compatible storage bin or dispenser, top kit where required, potable water line and gravity drain are selected separately.
Key Features
- Up to 1,538 lb/day at 70°F air/50°F water
- Approximately 1,340 lb/day at 90°F air/70°F water
- Individual crescent cubes formed on a stainless steel evaporator
- Modular head for compatible Hoshizaki bins and dispensers
- Stackable design supports up to 3,342 lb/day with two units
- Ultrasonic bin control, CycleSaver® and EverCheck™
- CleanAssist cleaning cycle and removable air filters
- 208-230V single-phase power and R-404A refrigerant
Best For
High-volume restaurants, hotels, healthcare, stadiums, catering operations and beverage programs that need a scalable modular crescent cube ice maker with dependable daily output.

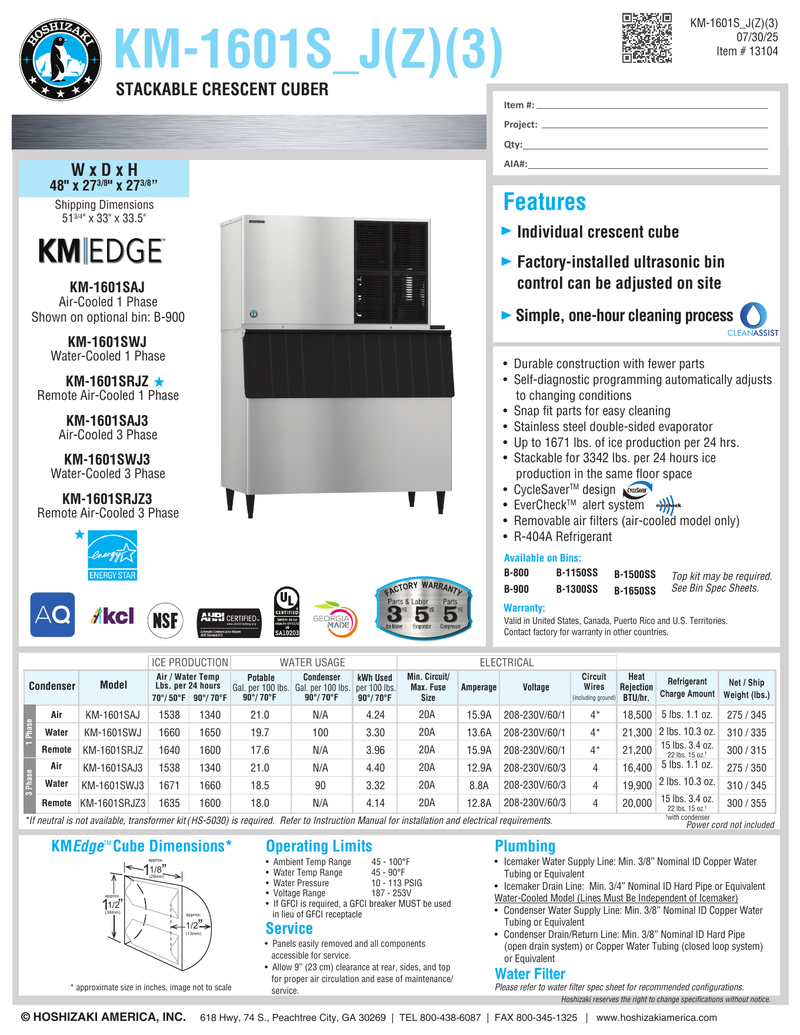

Full Specifications
| Brand | Hoshizaki |
| Model | KM-1601SAJ |
| Type | Modular commercial ice machine head |
| Ice Type | Individual crescent cube |
| Cooling | Air-cooled |
| Maximum Production | 1,538 lb/24 hr at 70°F air/50°F water |
| AHRI Production | 1,340 lb/24 hr at 90°F air/70°F water |
| Dimensions | 48 in. W × 27-3/8 in. D × 27-3/8 in. H |
| Electrical | 208-230V / 60Hz / 1 phase; 20A maximum fuse; 15.9A |
| Energy Use | 4.24 kWh per 100 lb at 90°F/70°F |
| Potable Water Use | 21.0 gal per 100 lb |
| Heat Rejection | 18,500 BTU/hr |
| Refrigerant | R-404A; 5 lb 1.1 oz charge |
| Water Inlet / Drain | Minimum 3/8-in. ID water line / minimum 3/4-in. hard-pipe drain |
| Operating Temperatures | Air 45-100°F; water 45-90°F |
| Water Pressure | 10-113 PSIG |
| Net / Shipping Weight | 275 lb / 345 lb |
| Bin Compatibility | B-800, B-900, B-1150SS, B-1300SS, B-1500SS and B-1650SS; top kit may be required |
Warranty
- 3 years parts and labor on the entire machine
- 5 years parts and labor on the evaporator
- 5 years parts on the compressor and air-cooled condenser coil
Installation and Maintenance Notes
- Use a compatible Hoshizaki storage bin or dispenser; storage is not included.
- Allow clearance for airflow and service access.
- Provide potable cold water and an independent gravity drain.
- Clean the air filters and perform the CleanAssist procedure on schedule.
- Production varies with ambient air, incoming water, pressure and site conditions.
