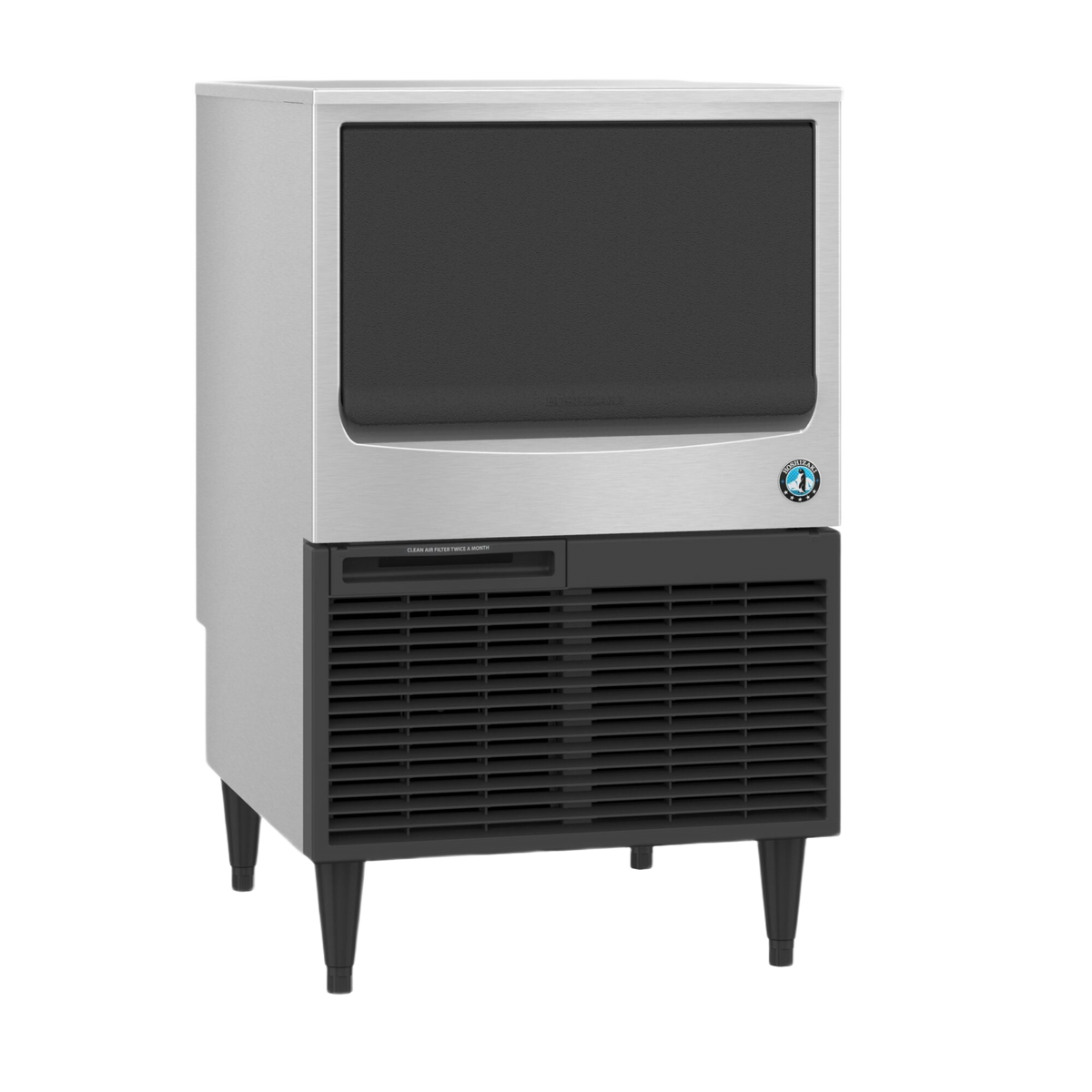

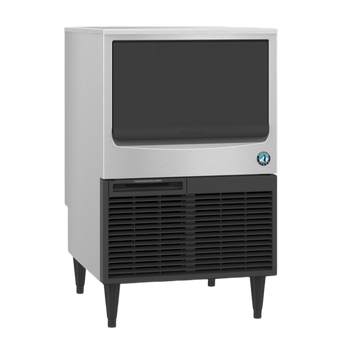

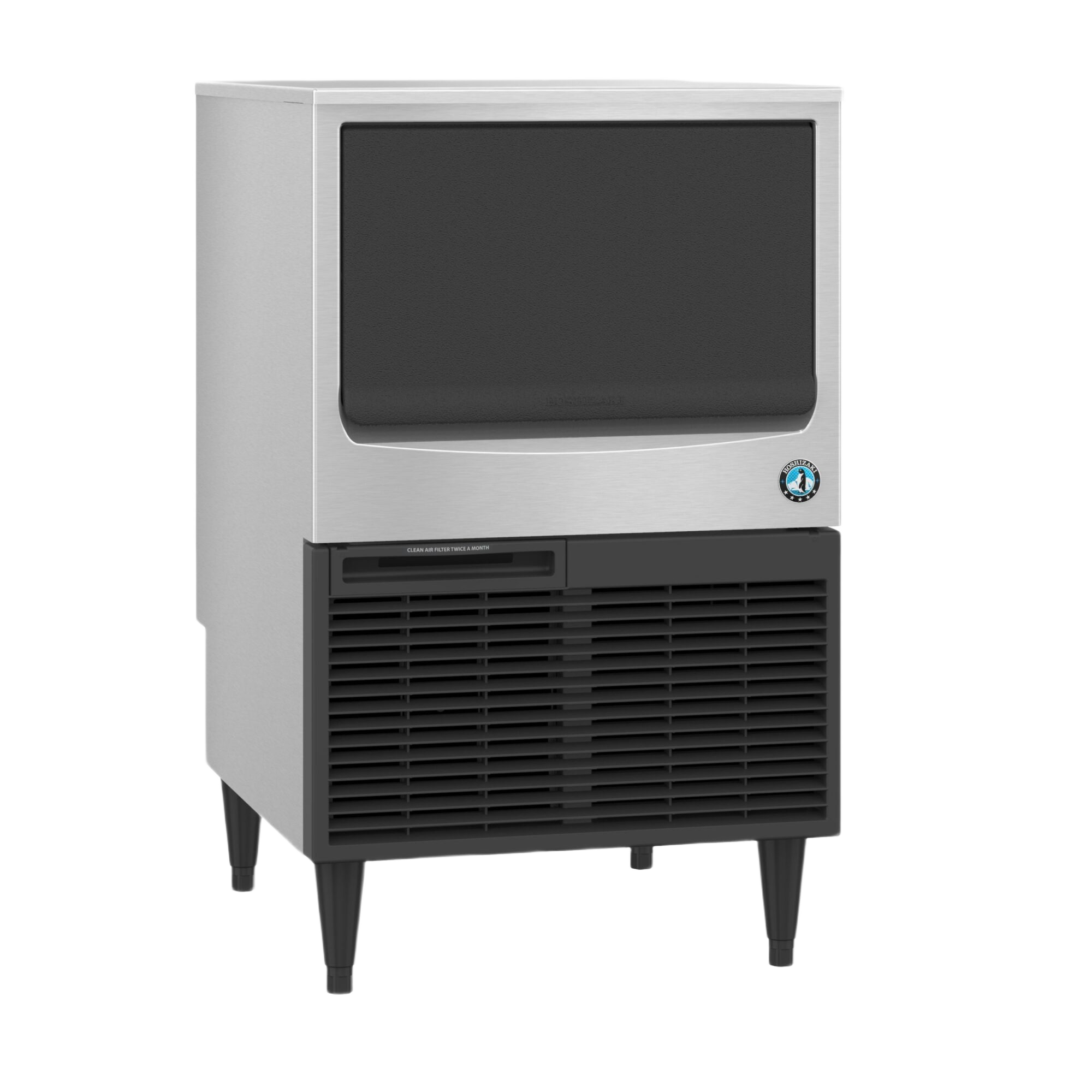

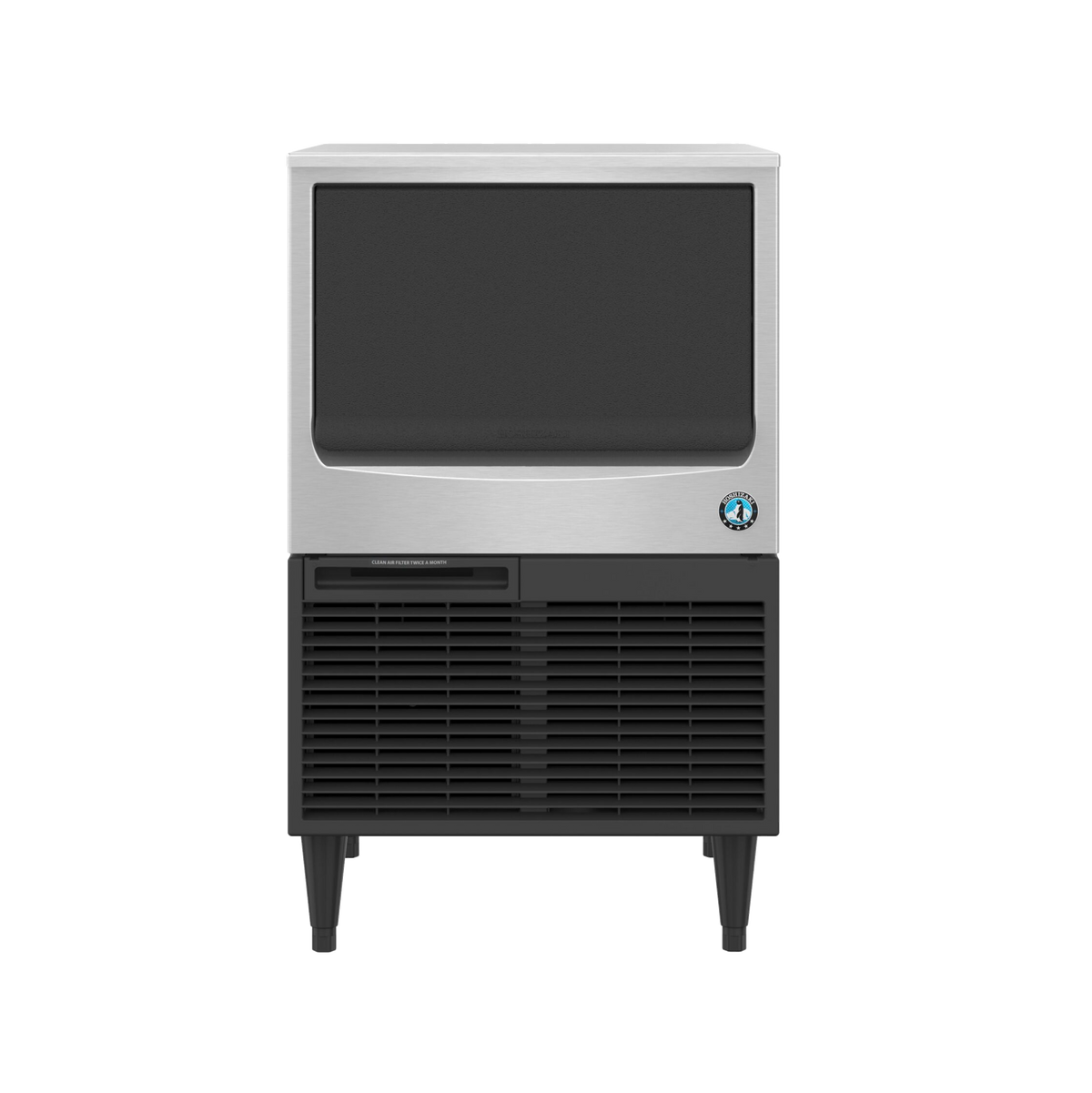

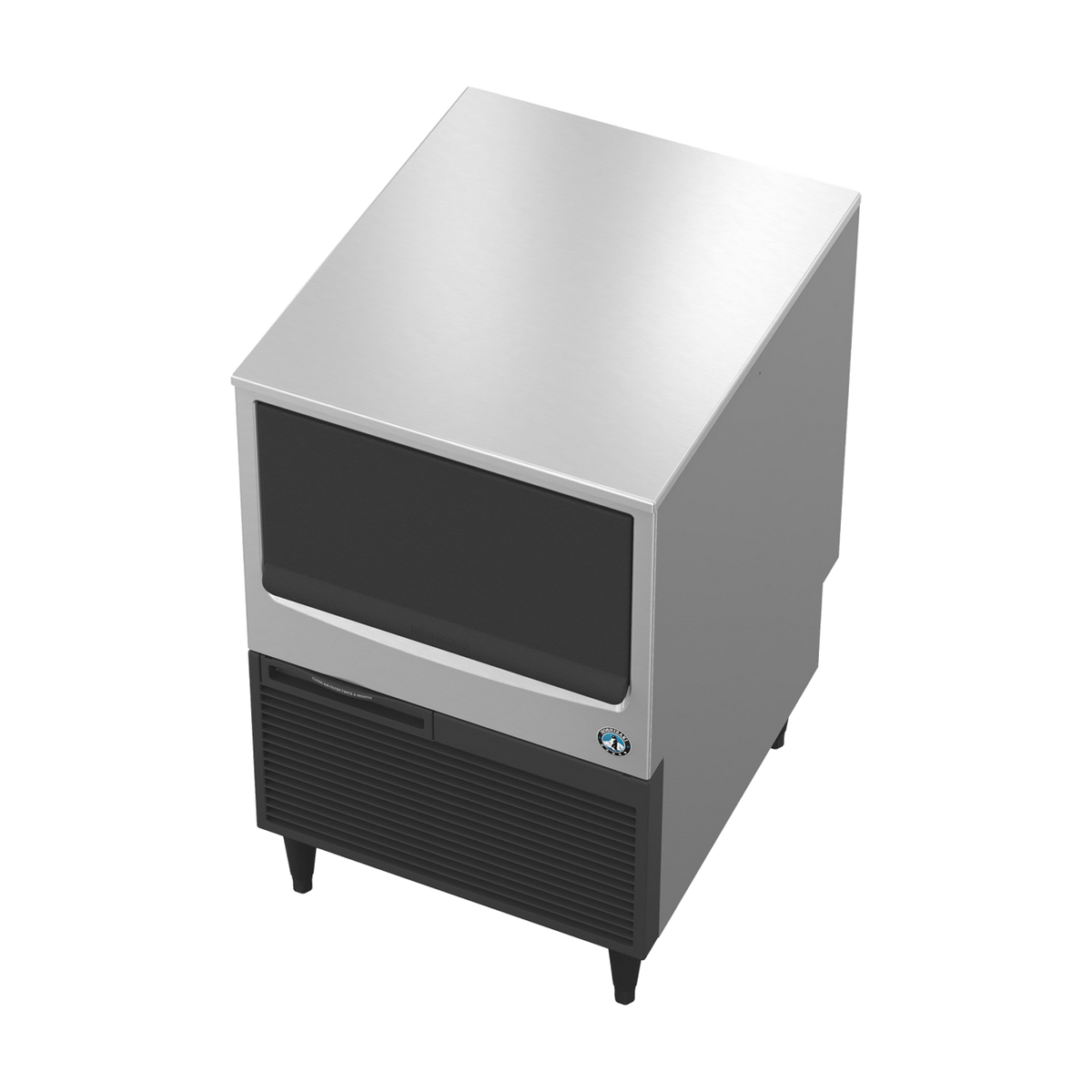

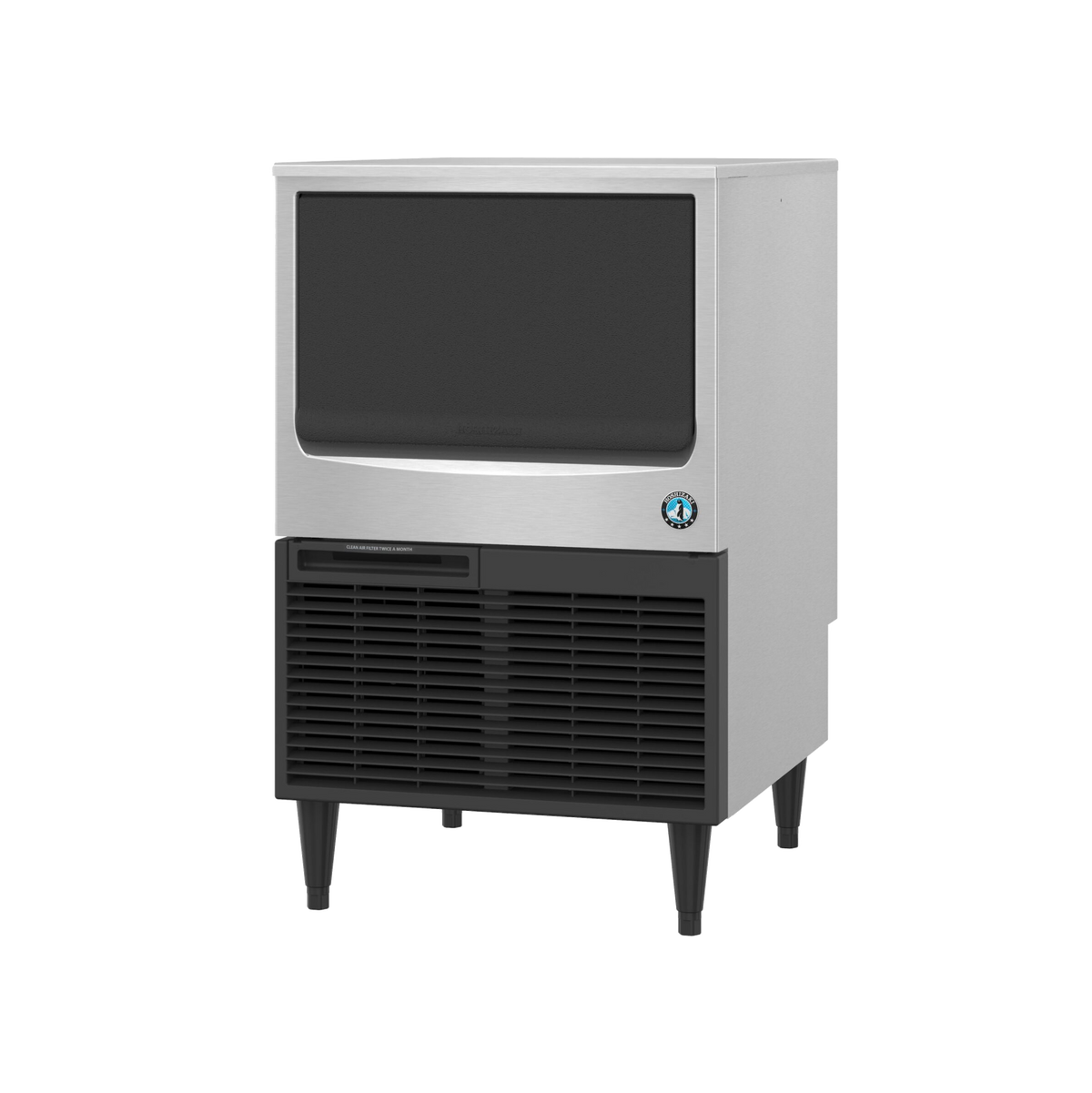

Hoshizaki KM-116BAJ Undercounter Crescent Cube Ice Maker - 125 lb/Day with 53 lb Bin, Air-Cooled
Price Match Guarantee
-
Estimated Delivery: 7-10 Business Days
Hoshizaki KM-116BAJ Undercounter Crescent Cube Ice Maker - 125 lb/Day with 53 lb Bin, Air-Cooled
Hoshizaki KM-116BAJ Undercounter Crescent Cube Ice Maker - 125 lb/Day with 53 lb Bin, Air-Cooled Description
Hoshizaki KM-116BAJ Undercounter Crescent Cube Ice Maker - 125 lb/Day with 53 lb Bin, Air-Cooled Commercial Description
Hoshizaki KM-116BAJ Undercounter Crescent Cube Ice Maker - 125 lb/Day with Built-In 53 lb Bin
Availability note: Hoshizaki identifies KM-116BAJ as discontinued and replaced by KM-116BAK. Confirm remaining supplier inventory, sell-through authorization, parts support, and warranty eligibility before publishing.
The Hoshizaki KM-116BAJ undercounter crescent cube ice maker combines commercial ice production and storage in a compact 24-inch-class cabinet. It produces up to 125 lb of ice per 24 hours and holds up to 53 lb in its 1.8-cubic-foot built-in bin, supplying beverage stations, cafés, bars, break rooms, and small restaurants without a separate storage bin.

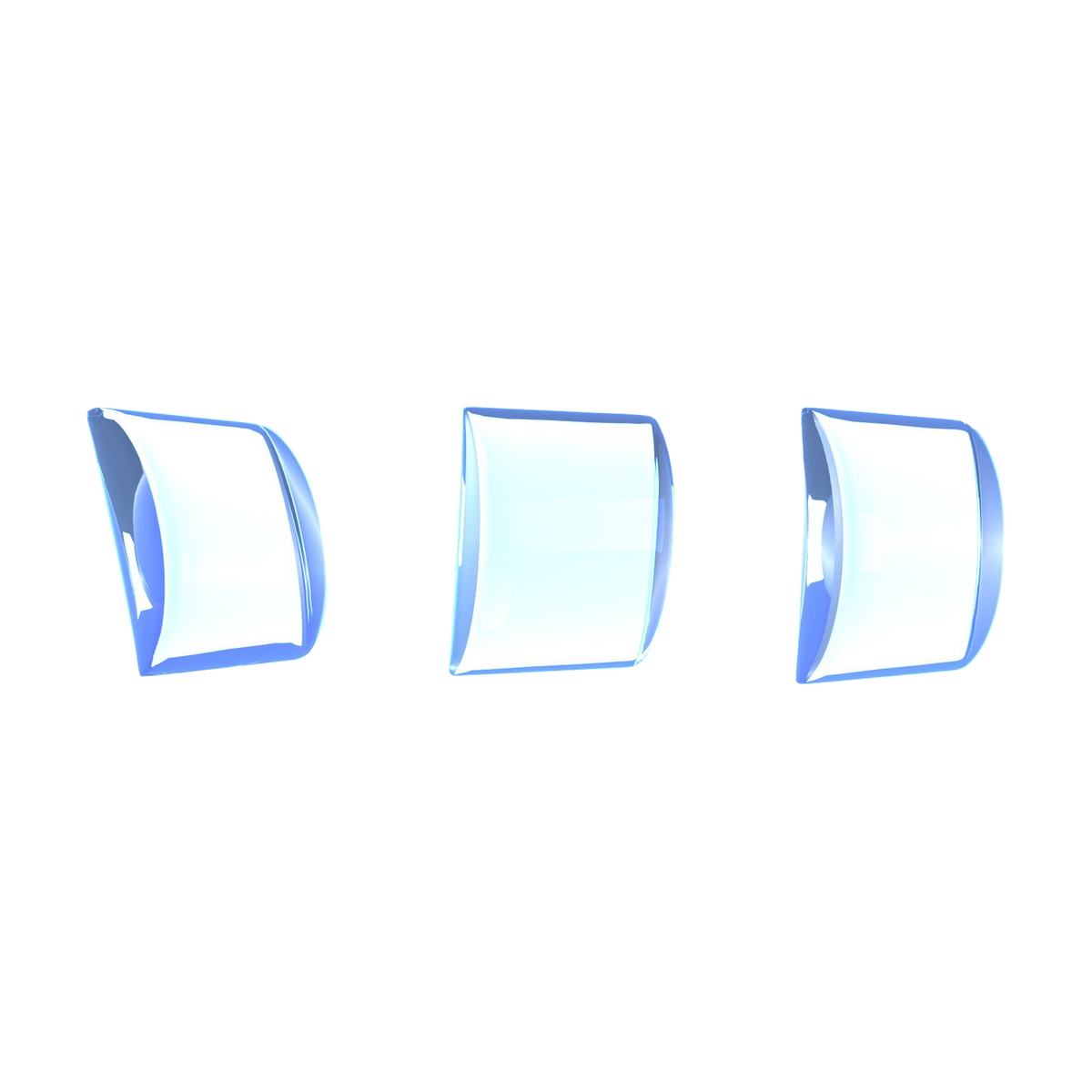

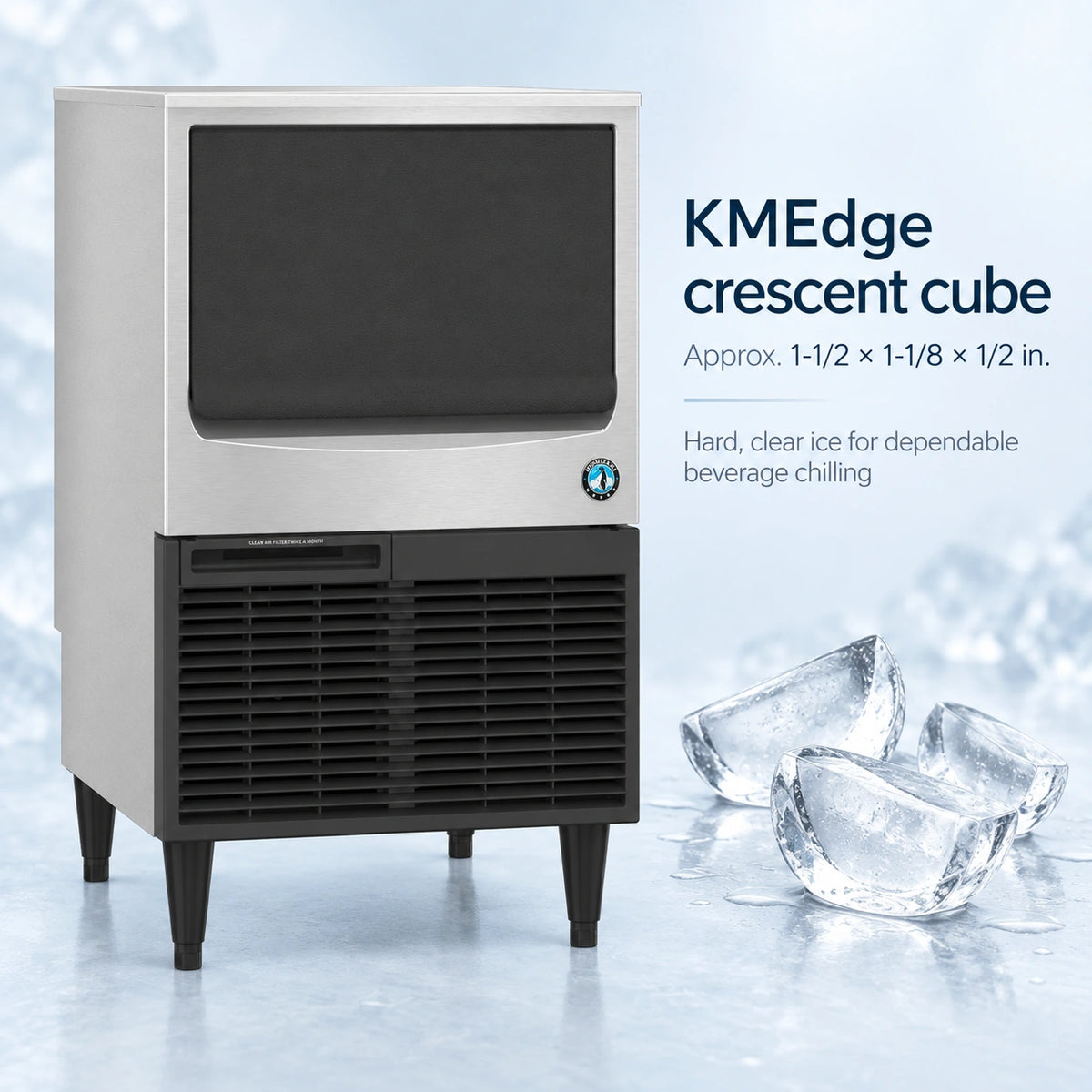

Hoshizaki's KMEdge crescent cube measures approximately 1-1/2 x 1-1/8 x 1/2 inch. Its hard, clear shape offers good displacement in glasses and consistent beverage chilling. The double-sided stainless steel evaporator design freezes ice on both sides, while Hoshizaki's CycleSaver approach is engineered to reduce the number of harvest cycles required to make a given quantity of ice.

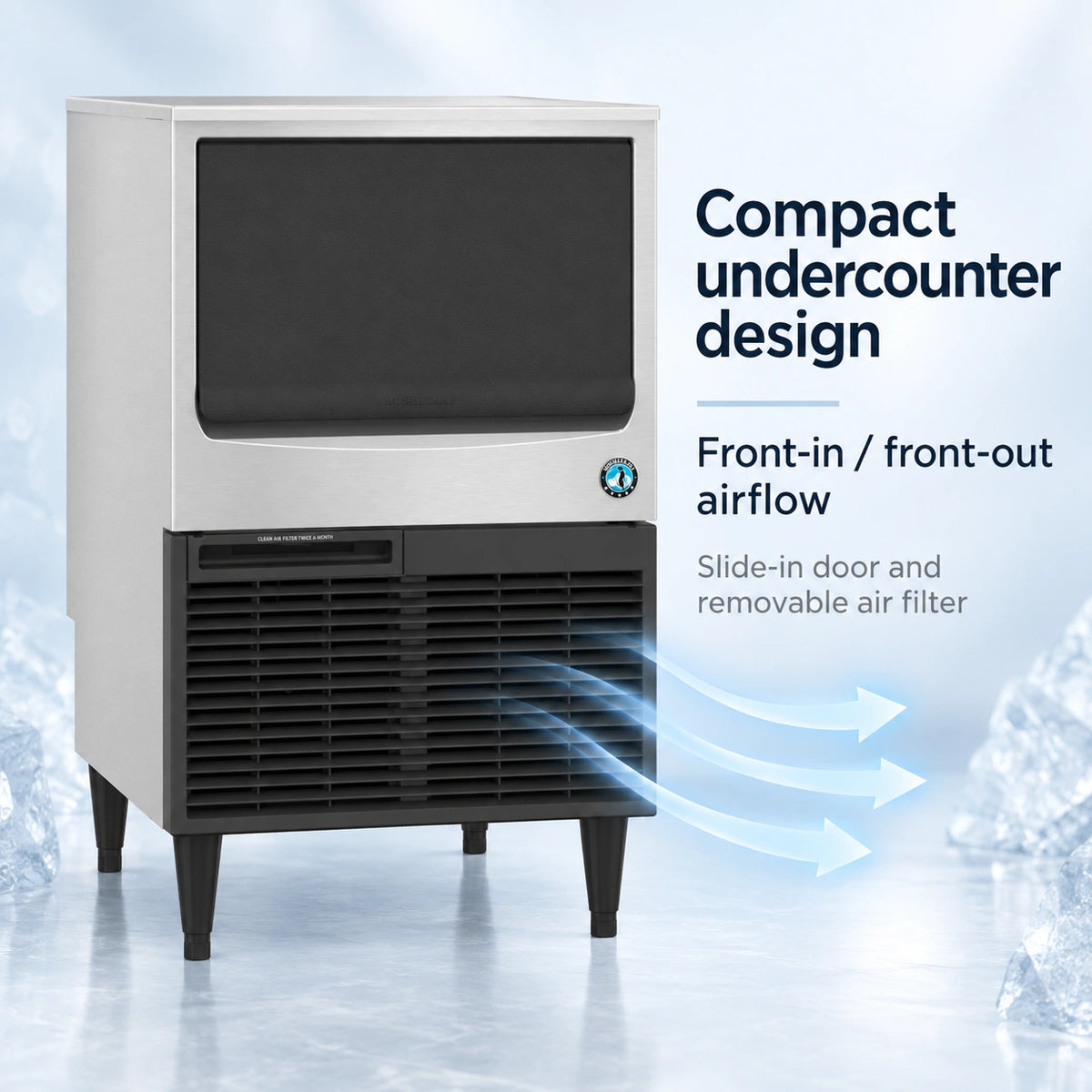

The stainless steel cabinet uses front-in/front-out airflow and a removable air filter, allowing zero side clearance where the full installation instructions permit. A slide-in door remains out of the service aisle, while the ADA-compliant bin opening improves access to stored ice. EverCheck monitoring helps communicate operating conditions, and a cleanable inlet-water screen supports routine upkeep.
At 90°F air and 70°F water, production is approximately 100 lb per day, below the 125 lb maximum measured at 70°F air and 50°F water. The machine uses R-134a refrigerant and connects to a standard 115V dedicated circuit. If gravity drainage is unavailable, the optional HS-5061 drain pump may be used where allowed by the current installation instructions.
Key Features

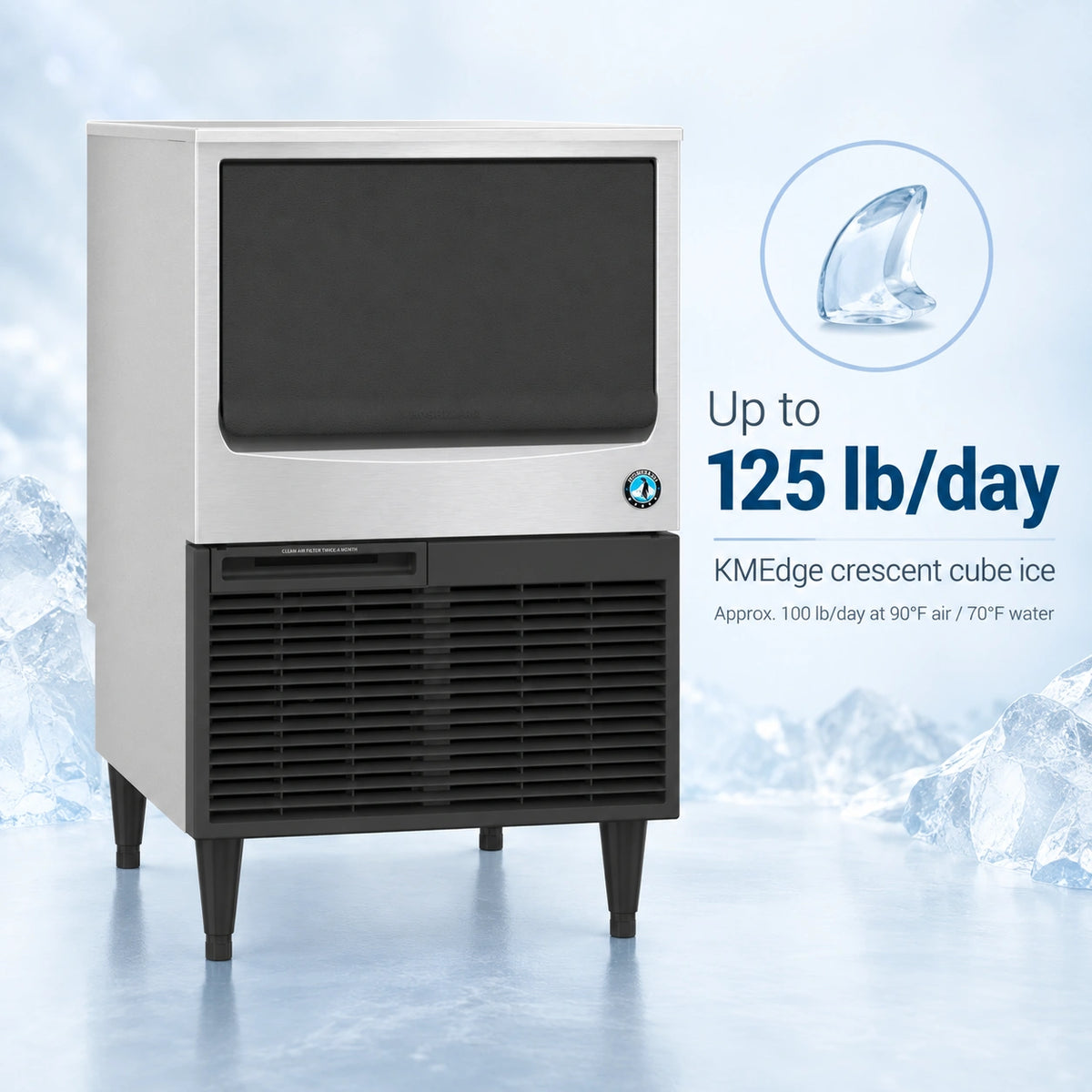

- Produces up to 125 lb/day of KMEdge crescent cube ice

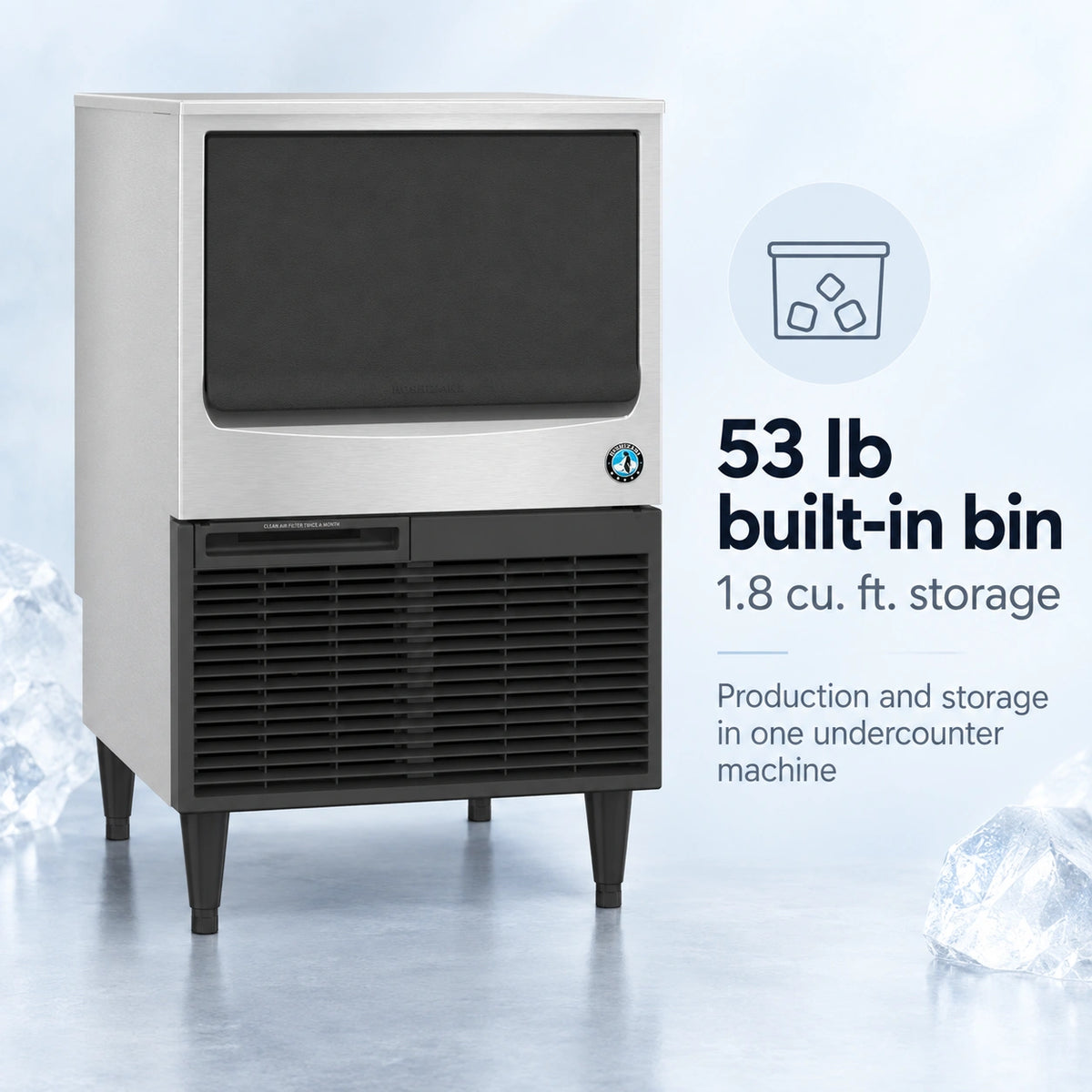

- Built-in bin stores up to 53 lb / 1.8 cu ft
- Approximately 24-inch-wide undercounter cabinet
- Double-sided stainless steel evaporator
- CycleSaver design supports efficient ice production
- EverCheck alert system
- Front-in/front-out airflow and removable air filter
- Slide-in door saves aisle space
- ADA-compliant bin opening
- Durable stainless steel exterior
- Ice scoop included
Best For
Small restaurants, cafés, coffee shops, bars, office break rooms, hospitality service, and compact beverage stations needing a self-contained supply of clear crescent ice.

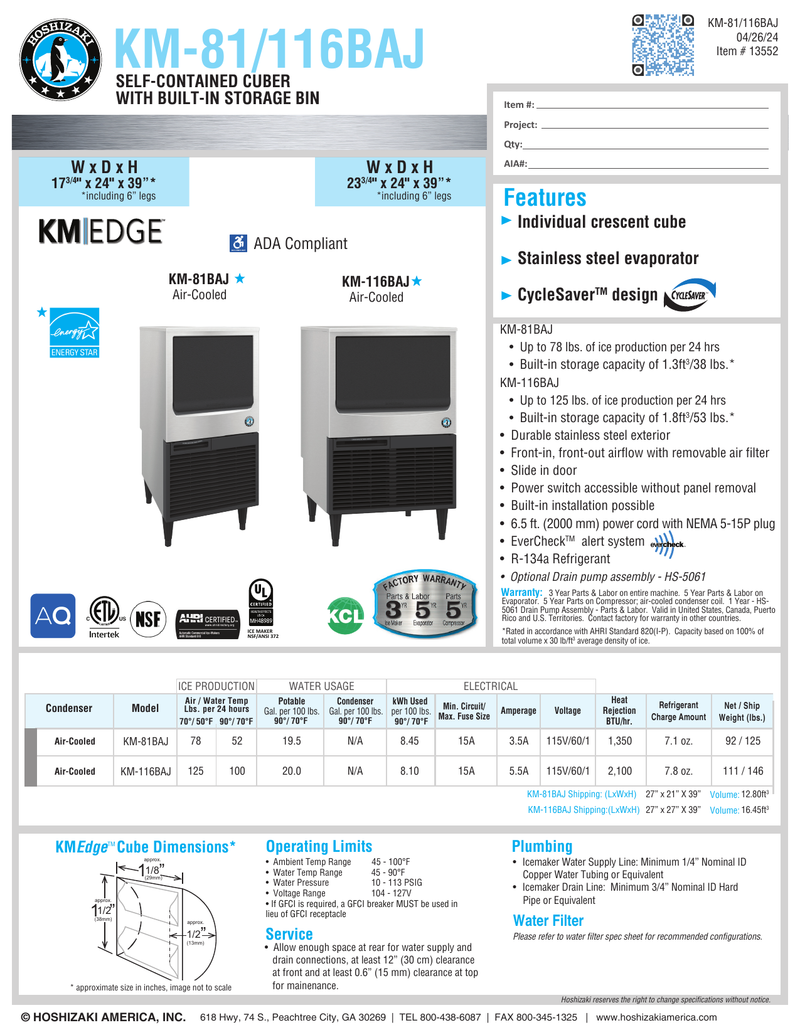

Full Specifications
| Brand | Hoshizaki |
|---|---|
| Model | KM-116BAJ |
| Lifecycle | Discontinued; official replacement KM-116BAK |
| Type | Self-contained undercounter crescent cube ice maker |
| Ice Type | KMEdge crescent cube, approximately 1-1/2 x 1-1/8 x 1/2 inch |
| Cooling | Air-cooled; front-in/front-out airflow |
| Maximum Production | Up to 125 lb/24 hr at 70°F air / 50°F water |
| AHRI Production | Approximately 100 lb/24 hr at 90°F air / 70°F water |
| Built-in Storage | 53 lb / 1.8 cu ft |
| Dimensions (W x D x H) | 23-3/4 x 24 x 39 inches, including 6-inch legs |
| Net / Shipping Weight | 111 lb / 146 lb |
| Electrical | 115V / 60Hz / 1 phase; 5.5A; 15A maximum circuit; NEMA 5-15 plug; 6.5 ft cord |
| Refrigerant | R-134a, 7.8 oz |
| Energy Use | 8.1 kWh per 100 lb at 90°F air / 70°F water |
| Potable Water Use | 20 gal per 100 lb at 90°F air / 70°F water |
| Heat Rejection | 2,100 BTU/hr |
| Water Inlet | 1/2-inch FPT; minimum 1/4-inch supply line |
| Drain | 3/4-inch FPT; minimum 3/4-inch drain line |
| Operating Range | 45-100°F air; 45-90°F water; 10-113 PSIG; 104-127V |
Warranty
- Entire machine: 3 years parts and labor
- Evaporator: 5 years parts and labor
- Compressor and air-cooled condenser coil: 5 years parts
- Optional HS-5061 drain pump: 1 year parts and labor
Installation and Maintenance Notes
- This is a discontinued model; verify warranty applicability to remaining inventory before making storefront promises.
- Provide rear space for water and drain connections, approximately 12 inches at the front, and 0.6 inch at the top.
- Optional HS-5061 drain pump is available when suitable gravity drainage cannot be provided.
- H9320-51 is the listed filtration option; match treatment to local water analysis.
- Regularly clean the removable air filter and sanitize and descale the water system.
