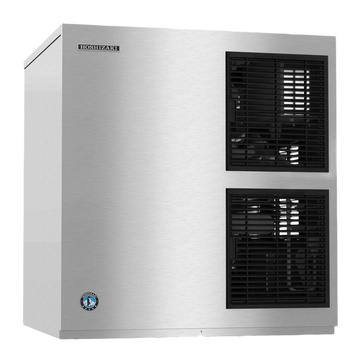

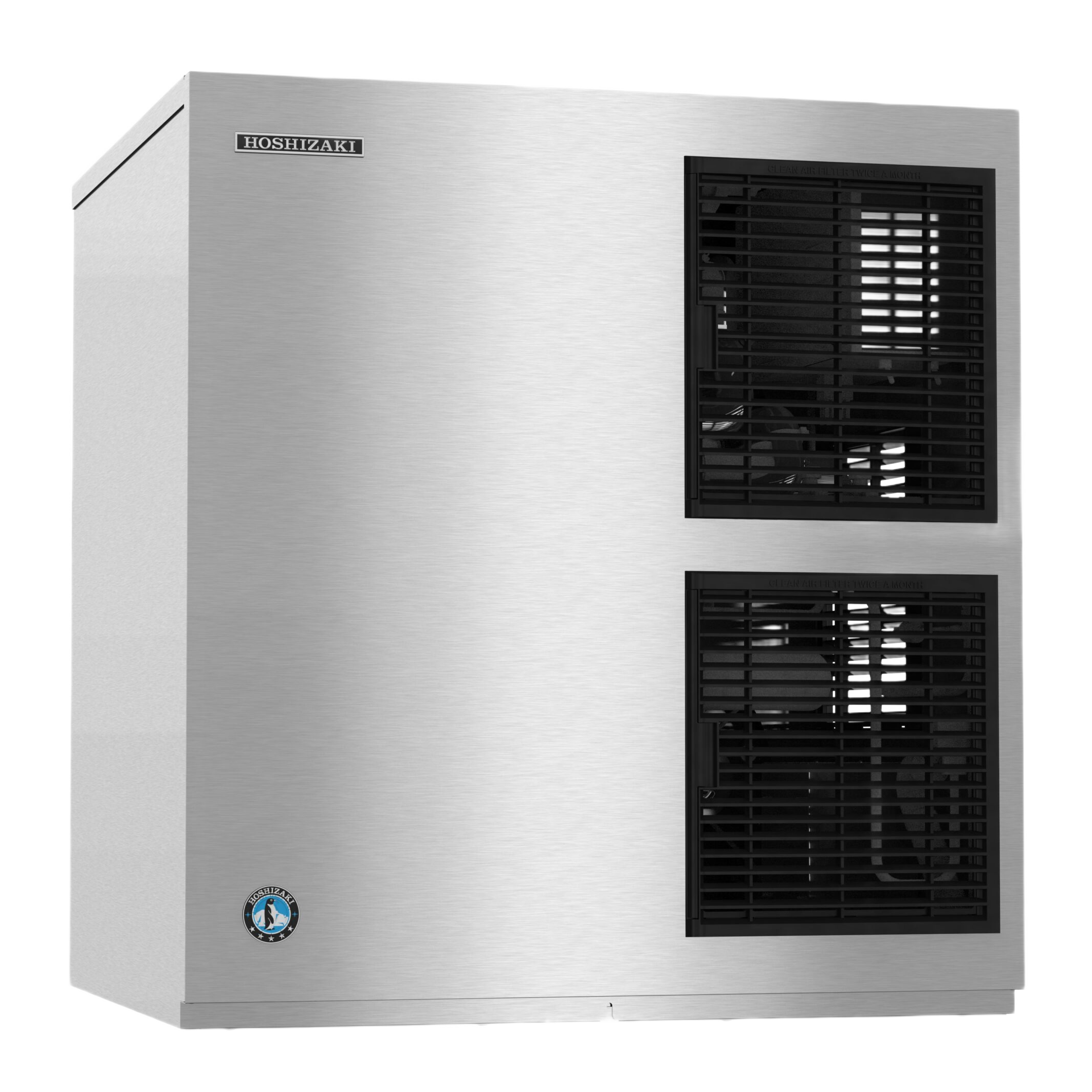

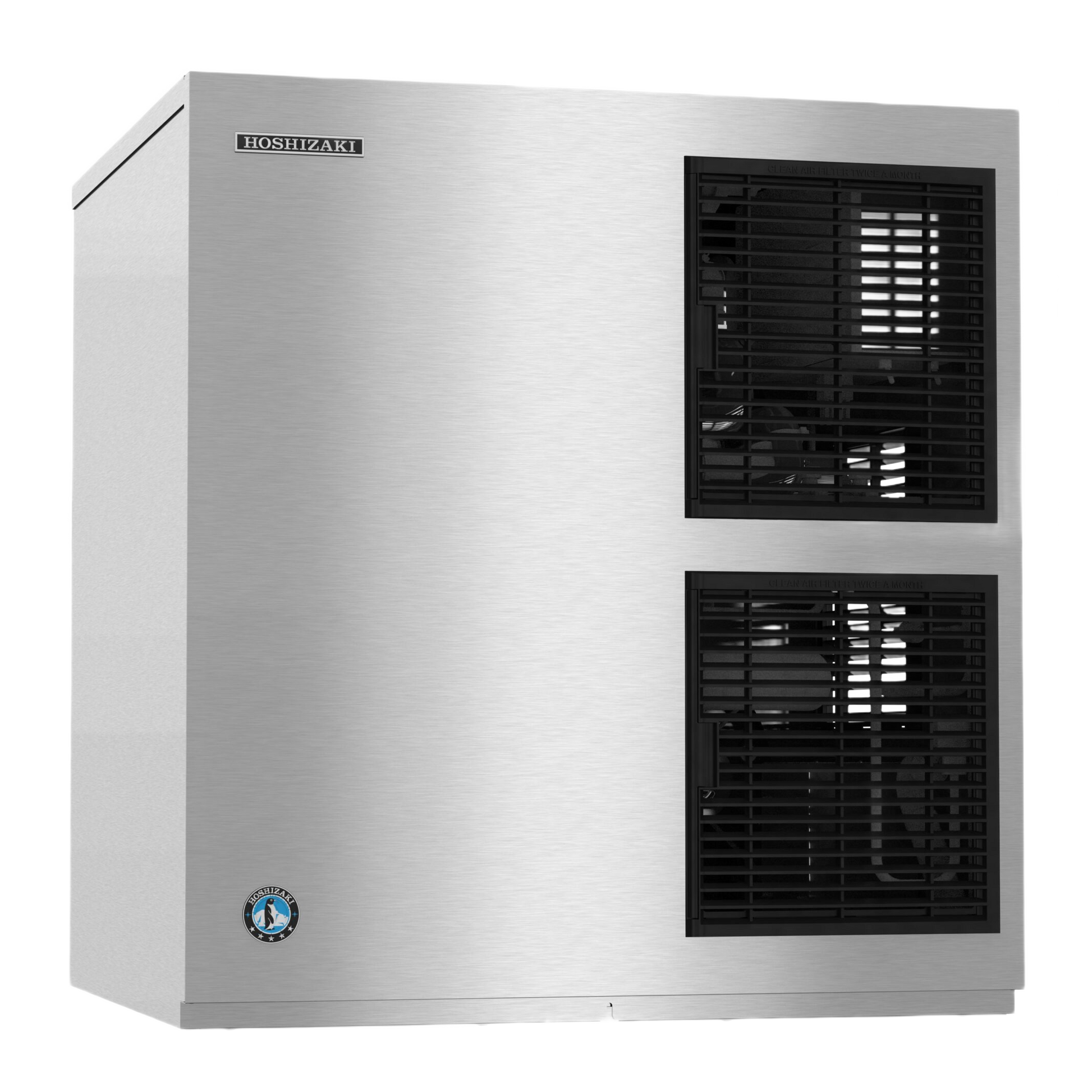

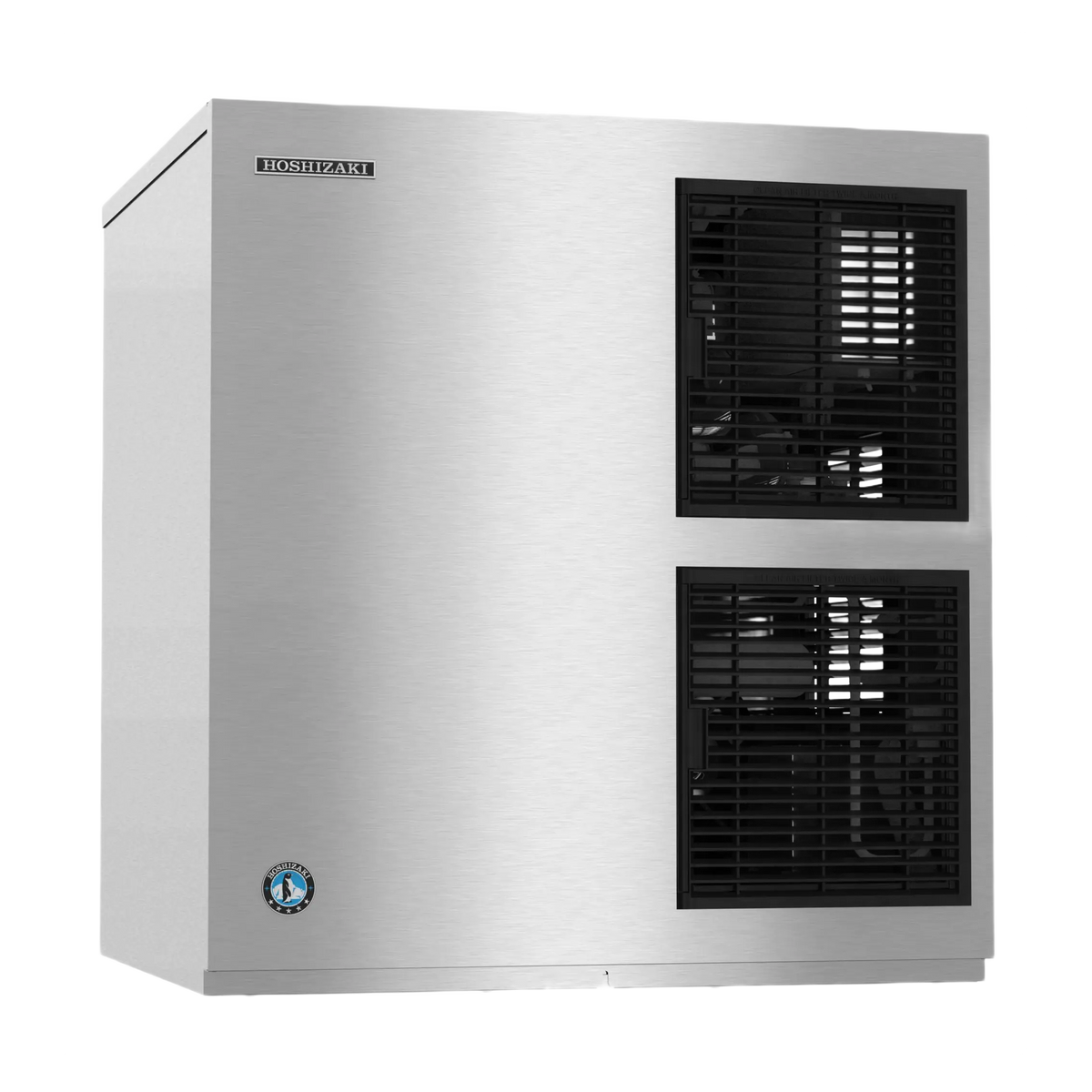

Hoshizaki KM-1130MAK2 — 1,181 lb/Day Air-Cooled Crescent Cube Ice Ice Machine Head

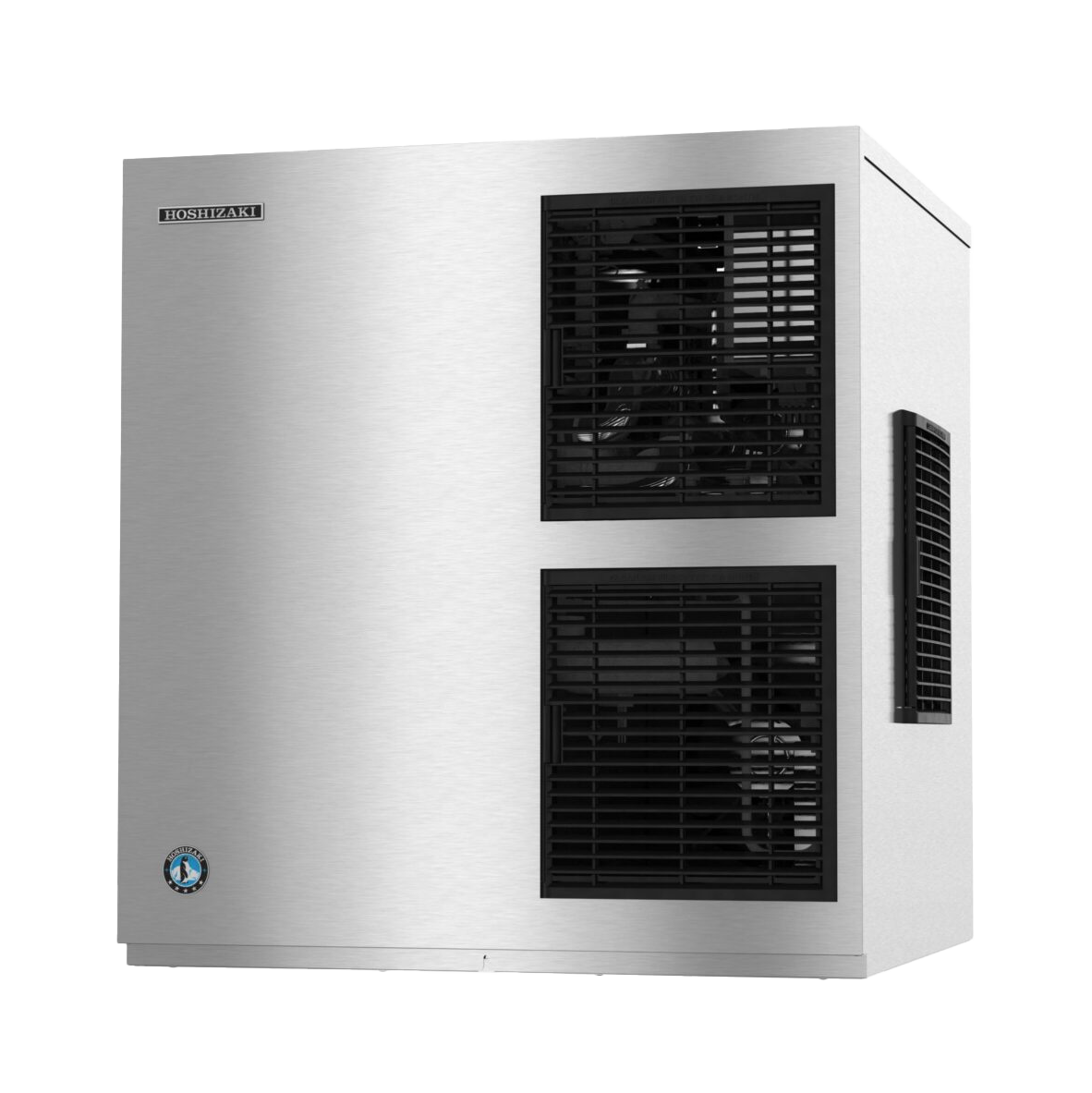

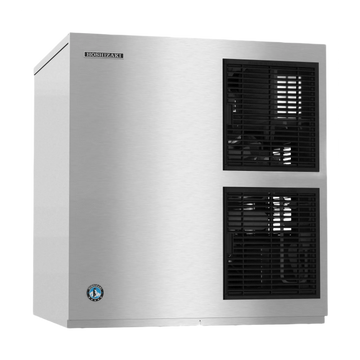

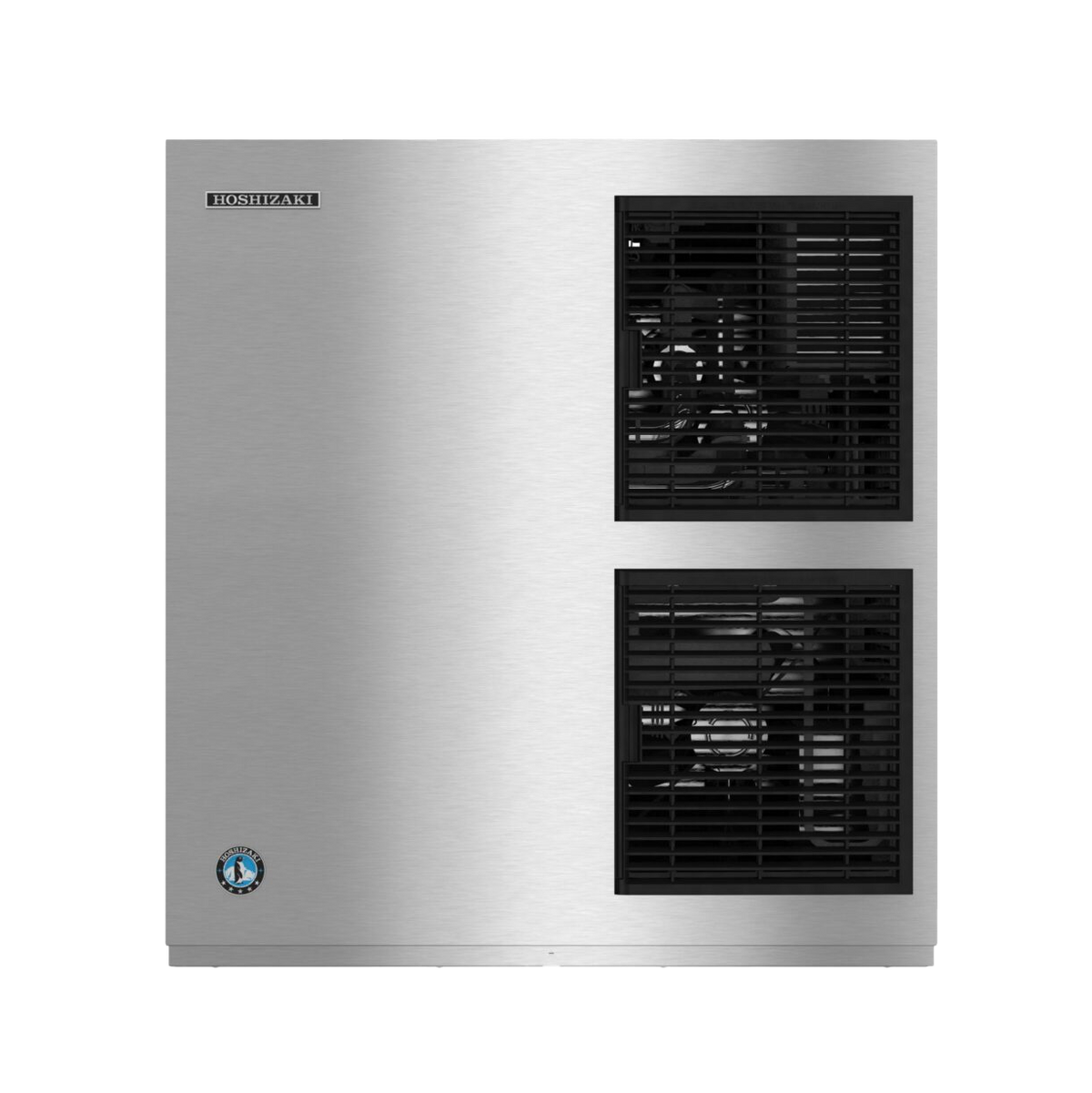

The Hoshizaki KM-1130MAK2 is a commercial air-cooled modular ice machine designed for reliable high-volume service. It produces up to 1,181 lb of crescent cube ice ice per 24 hours at 70°F air and 50°F water, with approximately 1,080 lb per day at 90°F air and 70°F water. As a modular head, it mounts on a compatible Hoshizaki storage bin or dispenser.

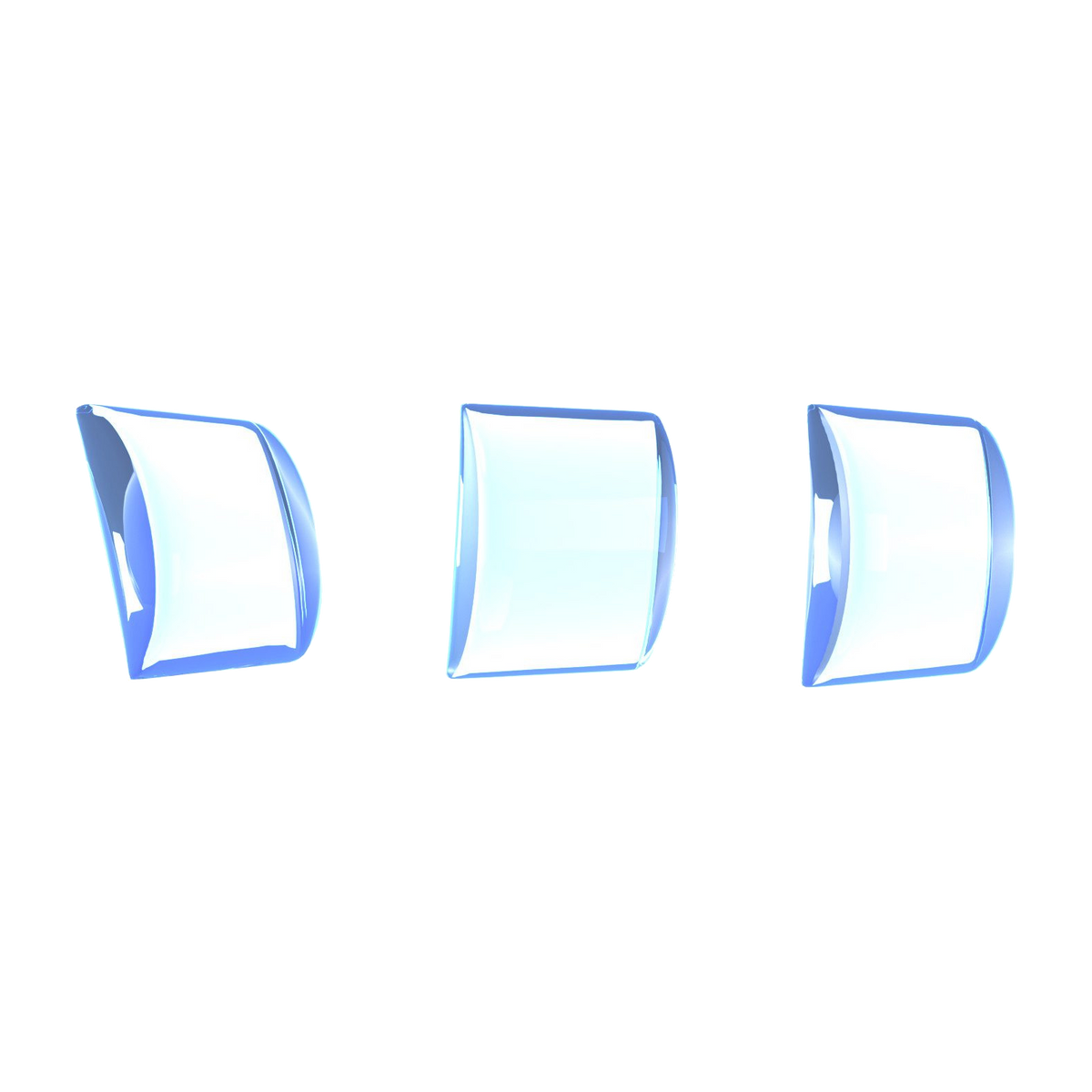

A stainless steel evaporator forms consistent crescent cube ice ice. CycleSaver®, ultrasonic bin control, EverCheck™ diagnostics and CleanAssist support efficient operation and practical maintenance. The durable stainless exterior and removable air filters suit busy commercial kitchens.
This 30-inch cabinet uses 208-230V single-phase power and R-448A refrigerant. Select a compatible bin or dispenser, top kit, potable water connection and gravity drain separately. Production varies with operating conditions.
Key Features
- Up to 1,181 lb/day at 70°F air/50°F water
- Approximately 1,080 lb/day at 90°F air/70°F water
- Consistent crescent cube ice ice from stainless evaporator

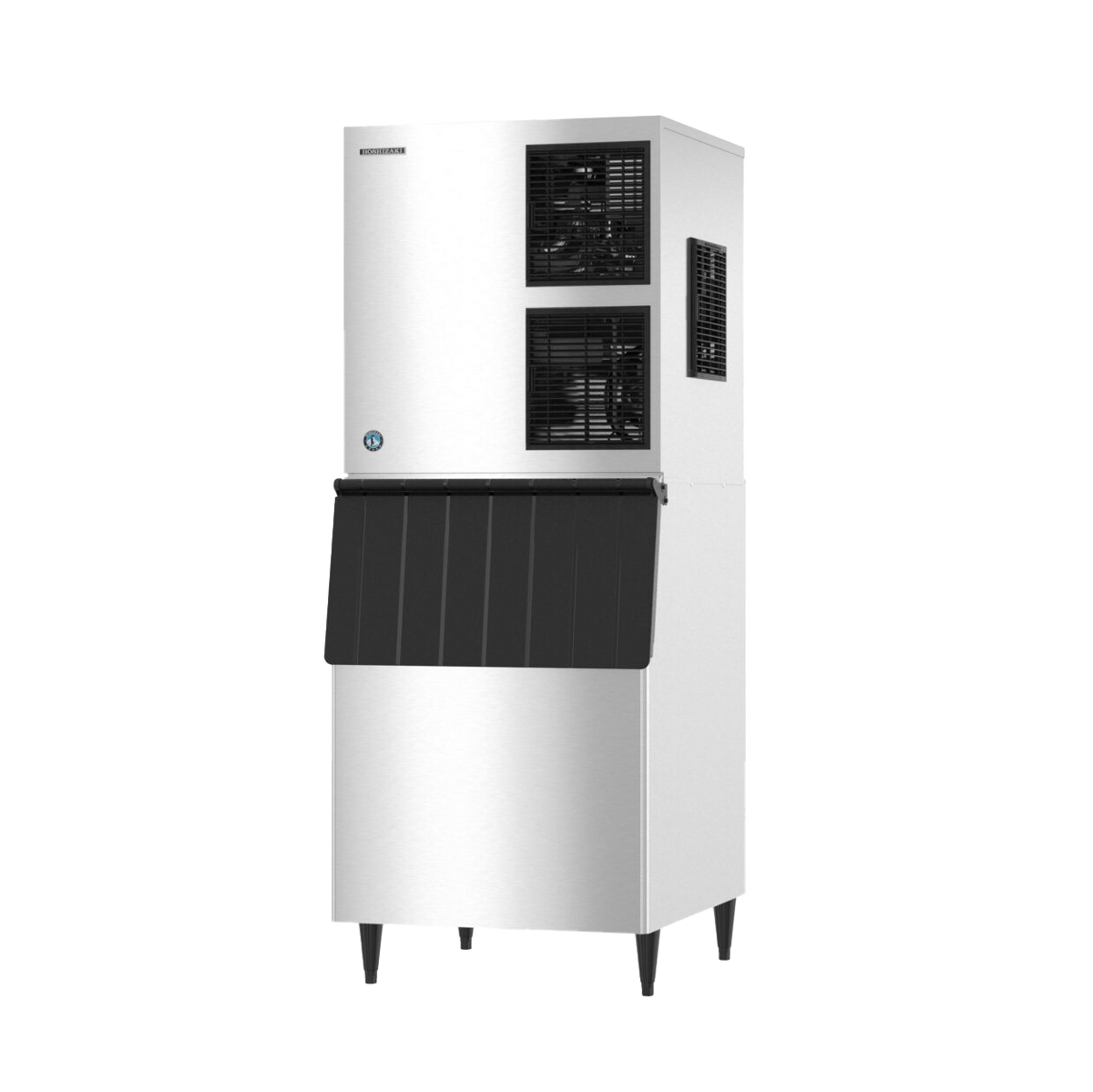

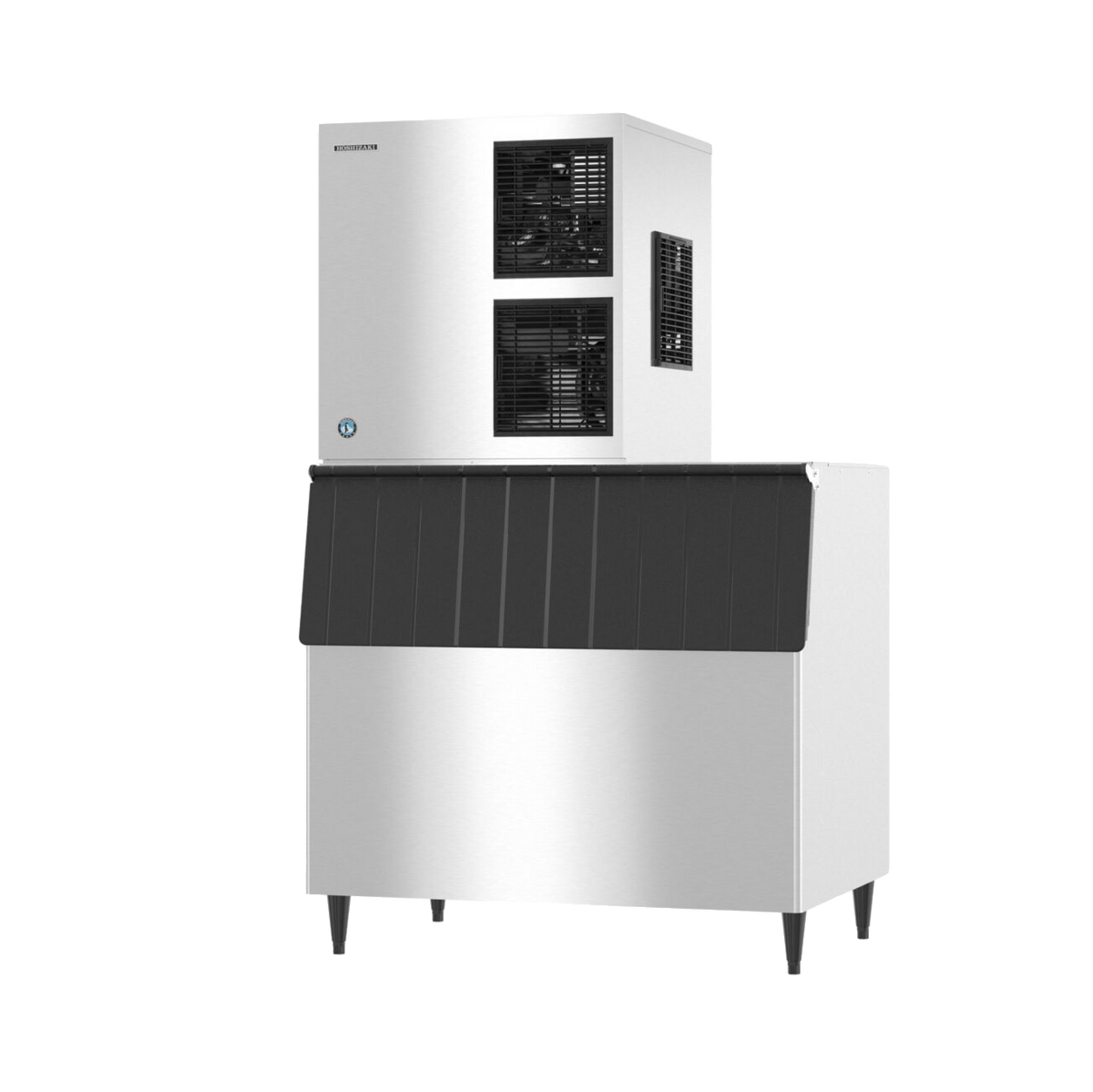

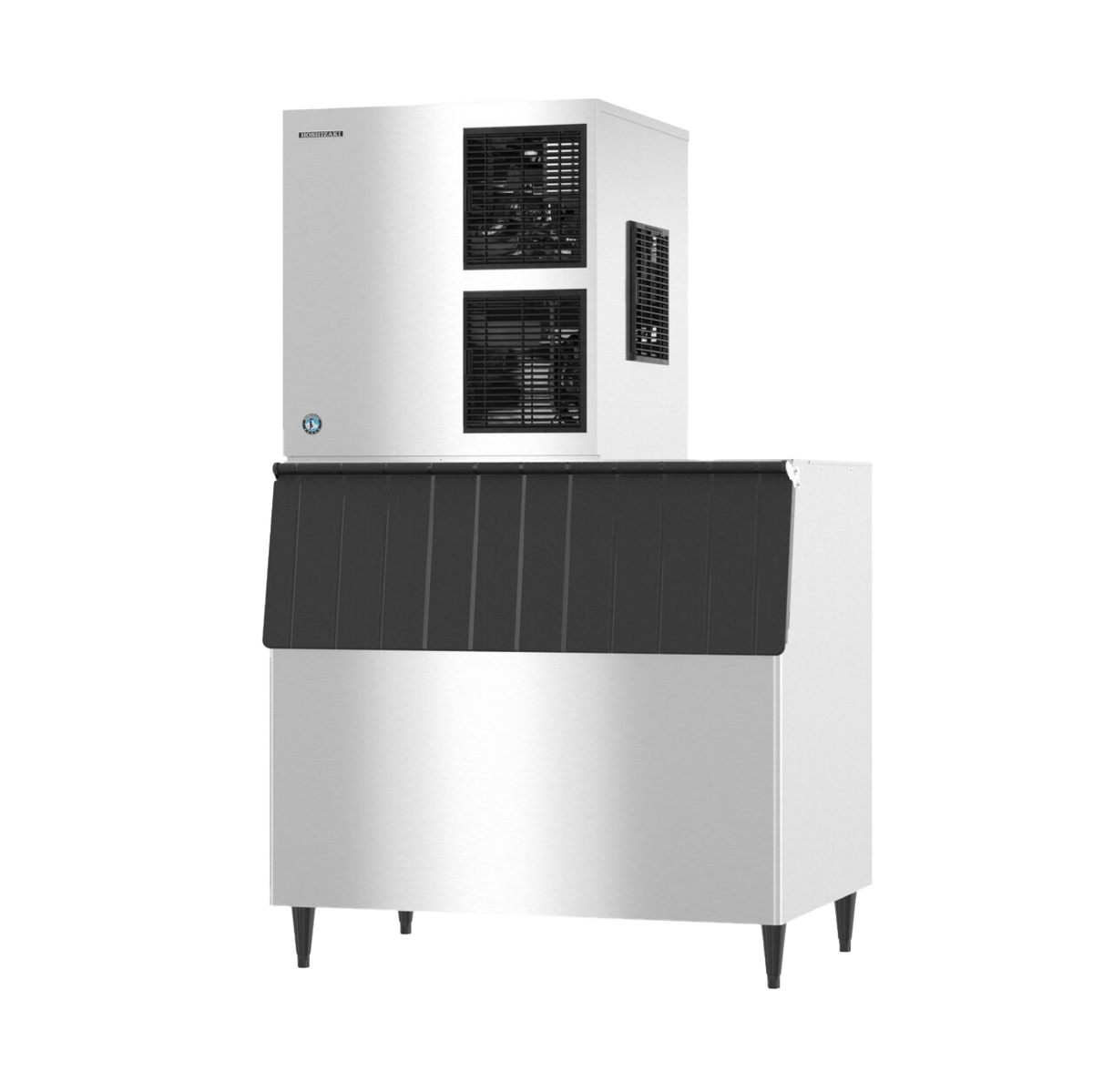

- Modular head for compatible Hoshizaki bins and dispensers
- CycleSaver®, EverCheck™ and CleanAssist service features
- Durable stainless cabinet with removable air filters
- 208-230V single-phase; R-448A refrigerant
Best For
Restaurants, hotels, healthcare, catering, stadium concessions and beverage programs needing dependable modular crescent cube ice ice production.

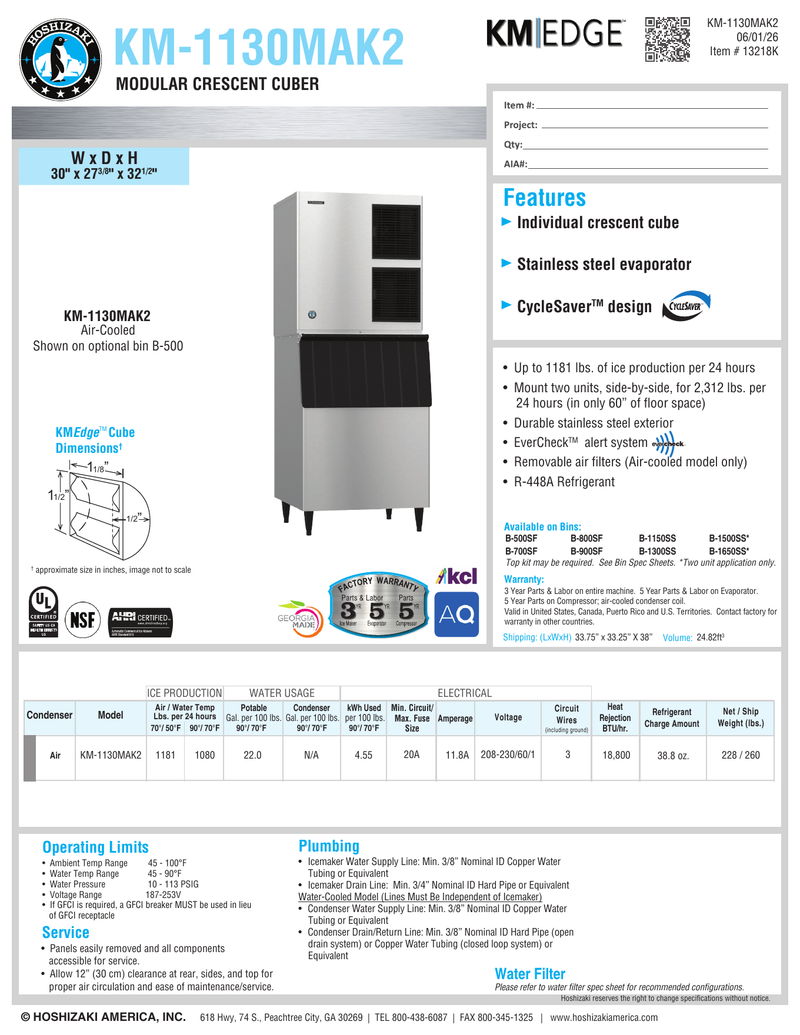

Full Specifications
| Brand | Hoshizaki |
|---|---|
| Model | KM-1130MAK2 |
| Type | Modular commercial ice machine head |
| Ice Type | Crescent Cube Ice |
| Cooling | Air-cooled |
| Maximum Production | 1,181 lb/24 hr at 70°F air/50°F water |
| AHRI Production | 1,080 lb/24 hr at 90°F air/70°F water |
| Cabinet Width | 30 in. |
| Electrical | 208-230V / 60Hz / 1 phase |
| Energy Use | 4.55 kWh per 100 lb |
| Water Use | 22.0 gal per 100 lb |
| Heat Rejection | 18,800 BTU/hr |
| Refrigerant | R-448A |
| Net / Shipping Weight | 228 lb / 260 lb |
Warranty
- 3 years parts and labor on the entire machine
- 5 years parts and labor on the evaporator
- 5 years parts on the compressor and condenser system
Installation and Maintenance Notes
- Install on a compatible bin or dispenser with required clearance.
- Connect potable cold water and a separate gravity drain to local code.
- Keep filters clean and follow the Hoshizaki cleaning schedule.
