ITV IQN 700 R290 — High-Volume Modular Nugget Ice for Busy Operations

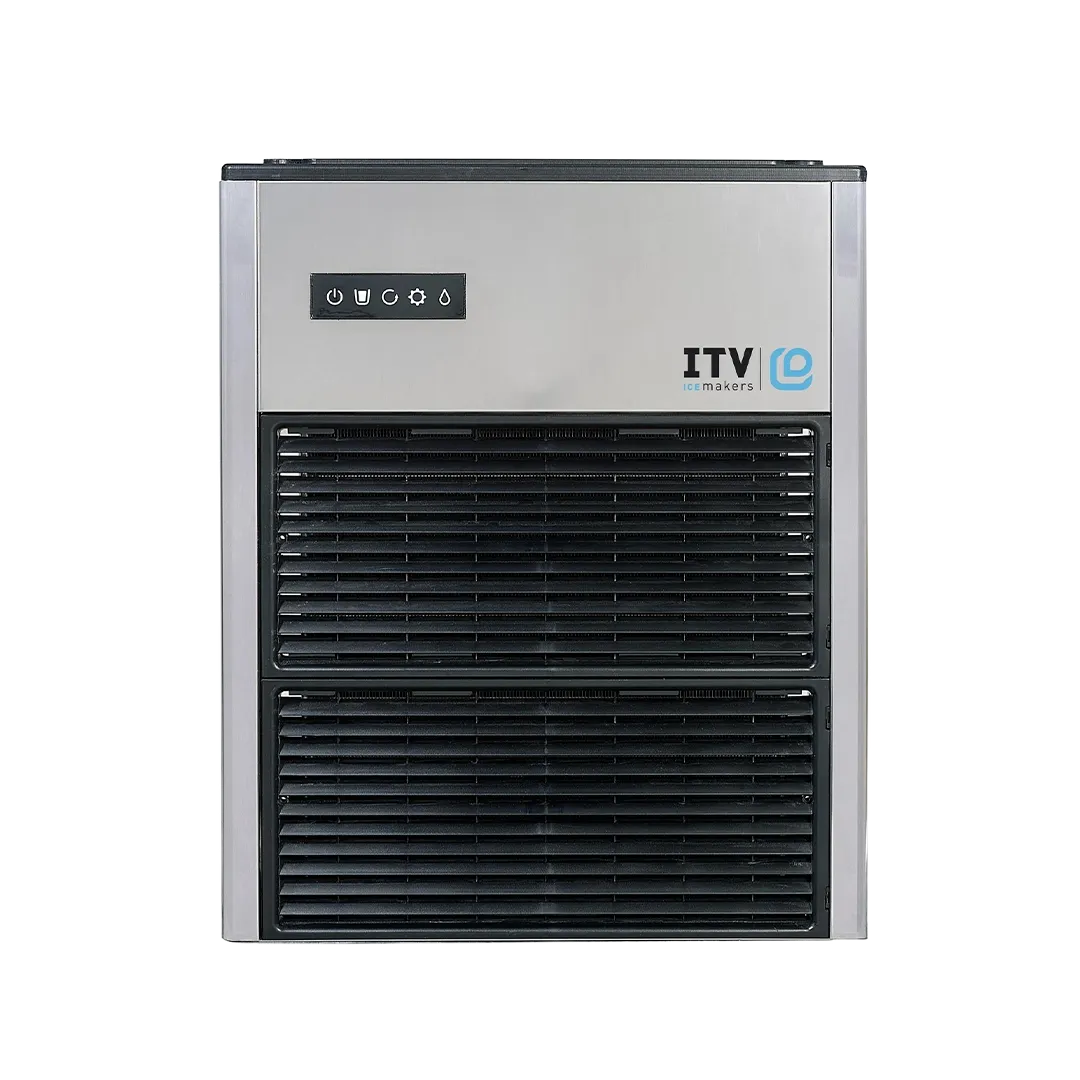

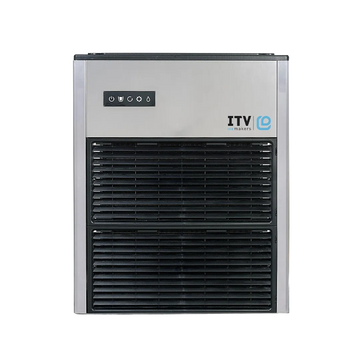

The ITV IQN 700 R290 is an air-cooled, modular nugget ice machine head that produces up to 714 lb (324 kg) of nugget ice every 24 hours. Nugget ice — the soft, chewable "good-chewing" ice with an 85% ice hardness factor — cools fast, absorbs flavor, and is the ice of choice for sodas, smoothies, blended drinks, and healthcare settings. Because the IQN 700 is a modular head with no bin of its own, it pairs with a separate ITV storage bin or dispenser, so you can size storage to your demand and stack capacity as you grow.
Ice is produced by a stainless steel auger built to maximize lifespan, driven by a powerful gear motor and fed by a high-efficiency evaporator for lower energy consumption and higher output. The I-Check smart system continuously controls and detects operating parameters and faults, and a front LED display surfaces quick diagnostics at a glance. An Optical Pinpoint control system precisely sets the ice stock level, while electronic control and a lighted on/off front-panel switch keep daily operation simple.
Durability and serviceability are built in. The STIF structure and AISI 304 stainless steel body stand up to demanding environments, while EASI delivers easy access for service and installation. Front-to-front air flow supports tight installations, and low-GWP R290 natural refrigerant keeps energy use and environmental impact low. In areas with hard water, ITV recommends installing an anti-scale filter and cleaning periodically.
💡The IQN 700 is a head-only unit — pair it with a compatible ITV storage bin (such as the S500, S750, S900, or S1050) or an SCS/SCD dispenser to complete the system. Need a smaller, self-contained option? See the ITV IQN 200C.
Key Features
- Produces up to 714 lb (324 kg)/day of soft, chewable nugget ice

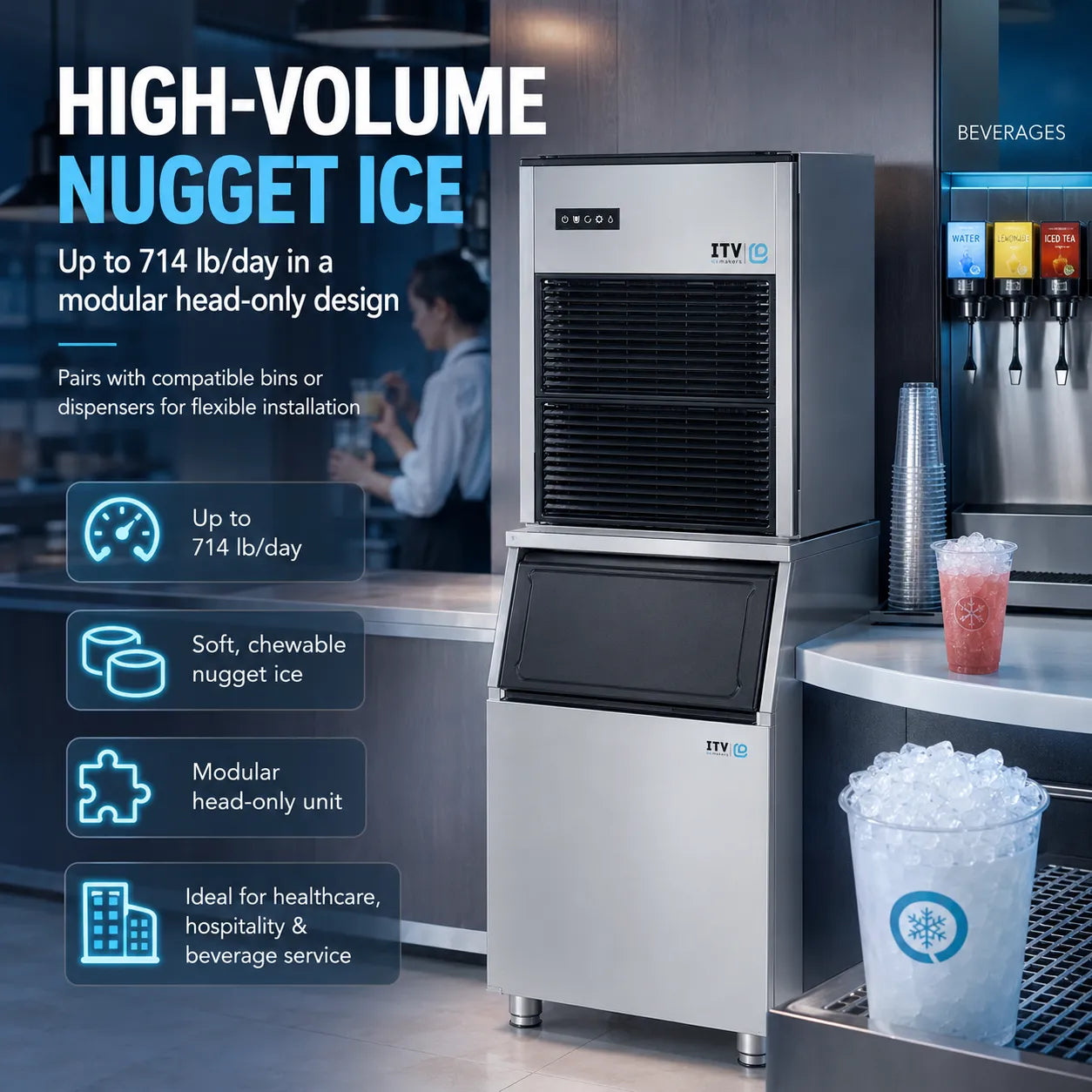

- Modular head — pairs with a separate storage bin or dispenser
- Soft, chewable nugget ice with 85% ice hardness factor

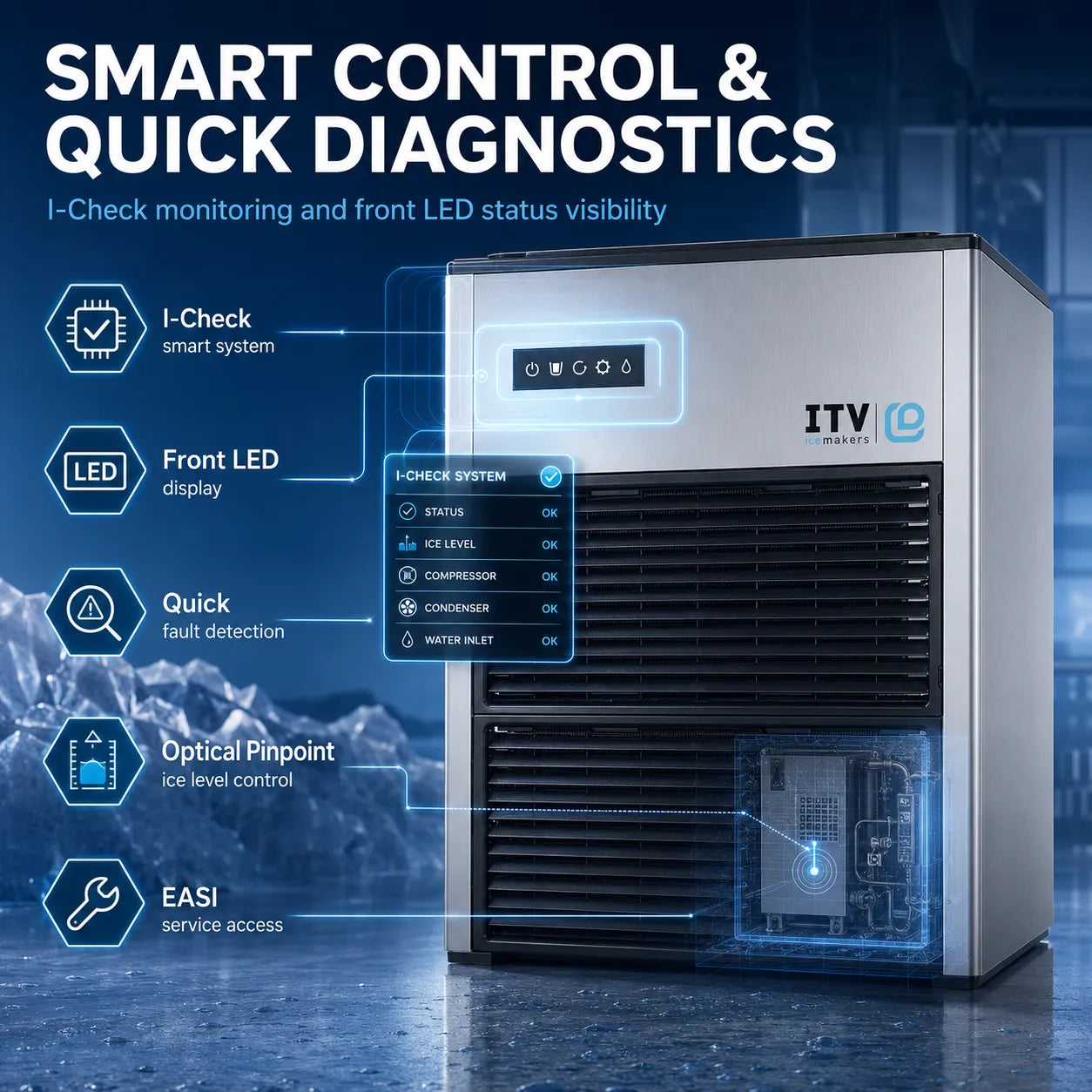

- I-Check smart system controls and detects parameters and faults
- Front LED display for quick diagnostics

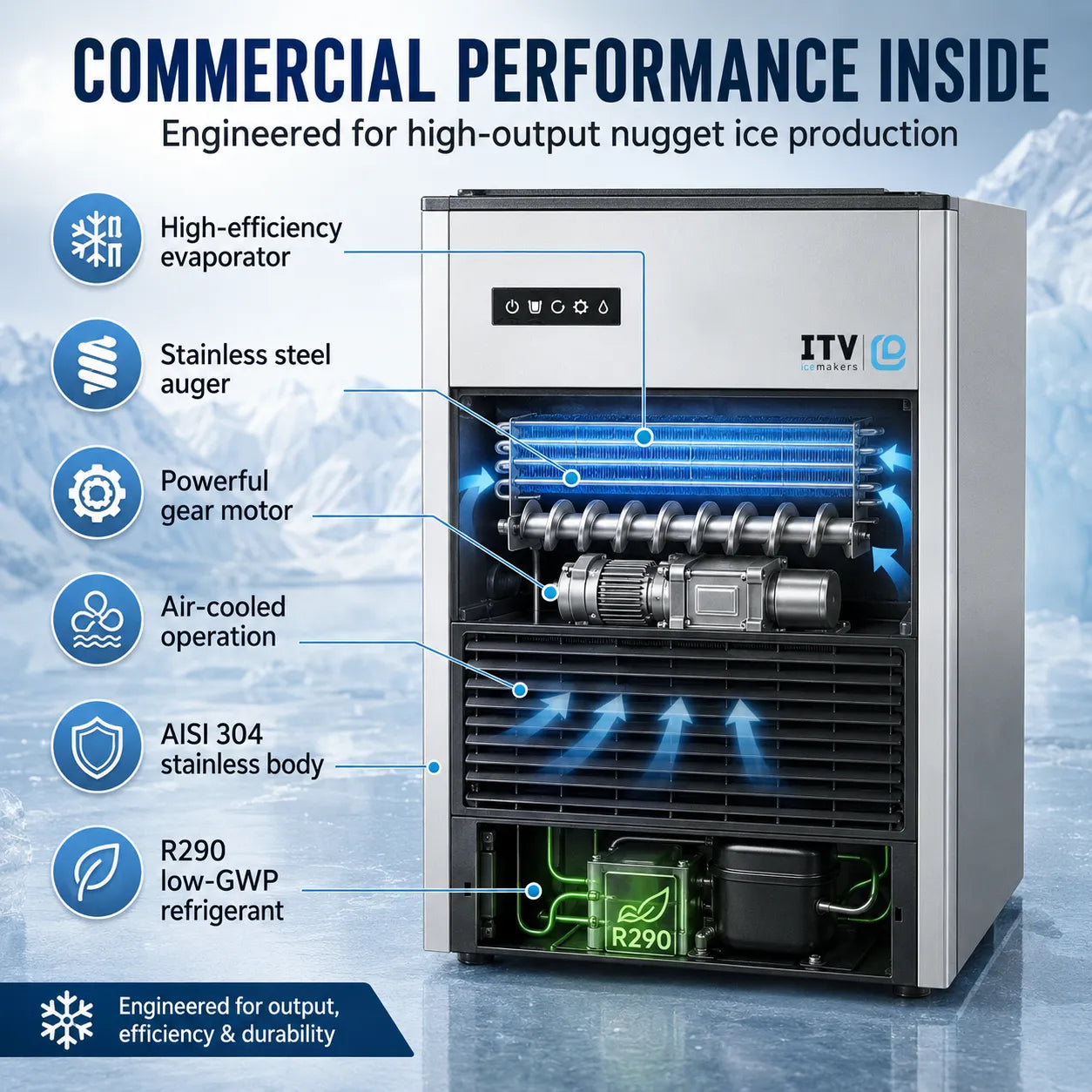

- Stainless steel auger built to maximize lifespan
- High-efficiency evaporator — lower energy use, higher production
- Powerful gear motor
- Optical Pinpoint control system sets ice stock level
- Electronic control with lighted on/off front-panel switch
- STIF structure and AISI 304 stainless steel body
- EASI — easy access for service and installation
- R290 natural refrigerant — very low GWP and reduced energy use
- ENERGY STAR qualified; NSF and ETL (cETLus) listed
- 115V / 60Hz single-phase
Best For
High-volume operations that need plenty of soft, chewable nugget ice — hospitals and healthcare facilities, full-service restaurants and bars, hotels, convenience stores, concession and beverage stations, and any business that wants to size ice storage independently with a modular head-and-bin setup.

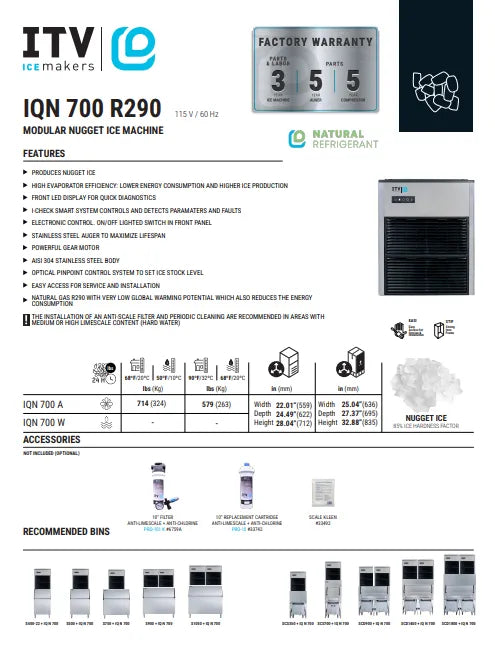

Full Specifications
| Specification | Detail |
|---|---|
| Brand | ITV Ice Makers |
| Model | IQN 700 A R290 |
| Item # | 10504N |
| Type | Modular nugget (granular) ice machine head — requires separate bin |
| Ice Type | Nugget ice, 85% ice hardness factor |
| Cooling | Air-cooled |
| Refrigerant | R290 (natural gas, low GWP) |
| Daily Production | Up to 714 lb (324 kg)/day (nominal, 50°F air / 68°F water) |
| Production – ASHRAE conditions | 579 lb (263 kg)/day (90°F air / 70°F water) |
| Production range | ~423–720 lb (192–327 kg)/day depending on ambient & water temperature |
| Storage Bin | Not included — modular head requires a separate bin or dispenser |
| Cabinet Dimensions (W×D×H) | 22.01" × 24.49" × 28.04" (559 × 622 × 712 mm) |
| Shipping/Crated Dimensions (W×D×H) | 25.04" × 27.37" × 32.88" (636 × 695 × 835 mm) |
| Net Weight | 185 lb (84 kg) |
| Shipping Weight | 205 lb (93 kg) |
| Electrical | 115V / 60Hz / 1-phase (±10%) |
| Power consumption | 3,023 W (ASHRAE) / 1,060 W at 109°F |
| Energy use | 4.7 kWh / 100 lb (90°F/70°F) |
| Heat rejection | 3,910 BTU/h (1,146 W) |
| Wiring / Fuse | 16 AWG (1.5 mm²), 3-conductor / 20 A fuse |
| Water Usage | 12 gal / 100 lb (≈13.5 L/h) |
| Water Inlet | 3/8" FPT |
| Drain | 3/4" FPT |
| Water Supply Pressure | 14.5 psi (1 bar) – 87 psi (6 bar) |
| Operating Ambient Temp | 50°F – 109°F (10°C – 43°C) |
| Operating Water Temp | 41°F – 100°F (5°C – 38°C) |
| Certifications | ENERGY STAR, NSF, ETL (cETLus / Intertek) |
| Build Class | Tropicalized (T-Class), AISI 304 stainless steel |
Warranty
- Ice machine: 3 years parts & labor
- Auger: 5 years parts
- Compressor: 5 years parts
Accessories
- Recommended bins/dispensers (sold separately): S400-22, S500, S750, S900, S1050; SCS350, SCS700; SCD900, SCD1400, SCD1800
- Optional water filtration: PRO-101 K 10" anti-limescale + anti-chlorine filter (#6759A); PRO-10 10" replacement cartridge (#33742)
- Optional cleaner: Scale Kleen (#33492)
