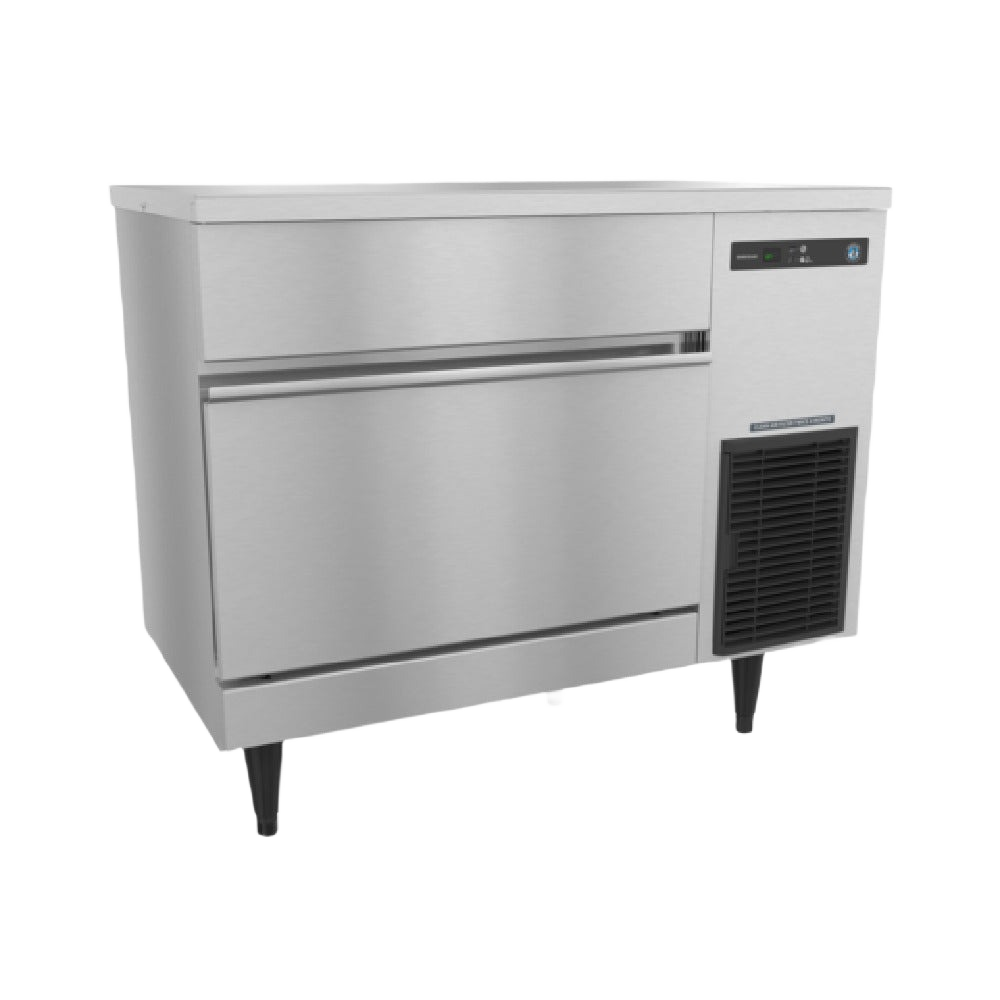

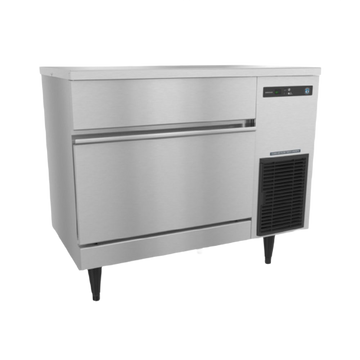

Hoshizaki IM-200BAK Undercounter Square Cube Ice Maker - 186 lb/Day of Clear Individual Cubes

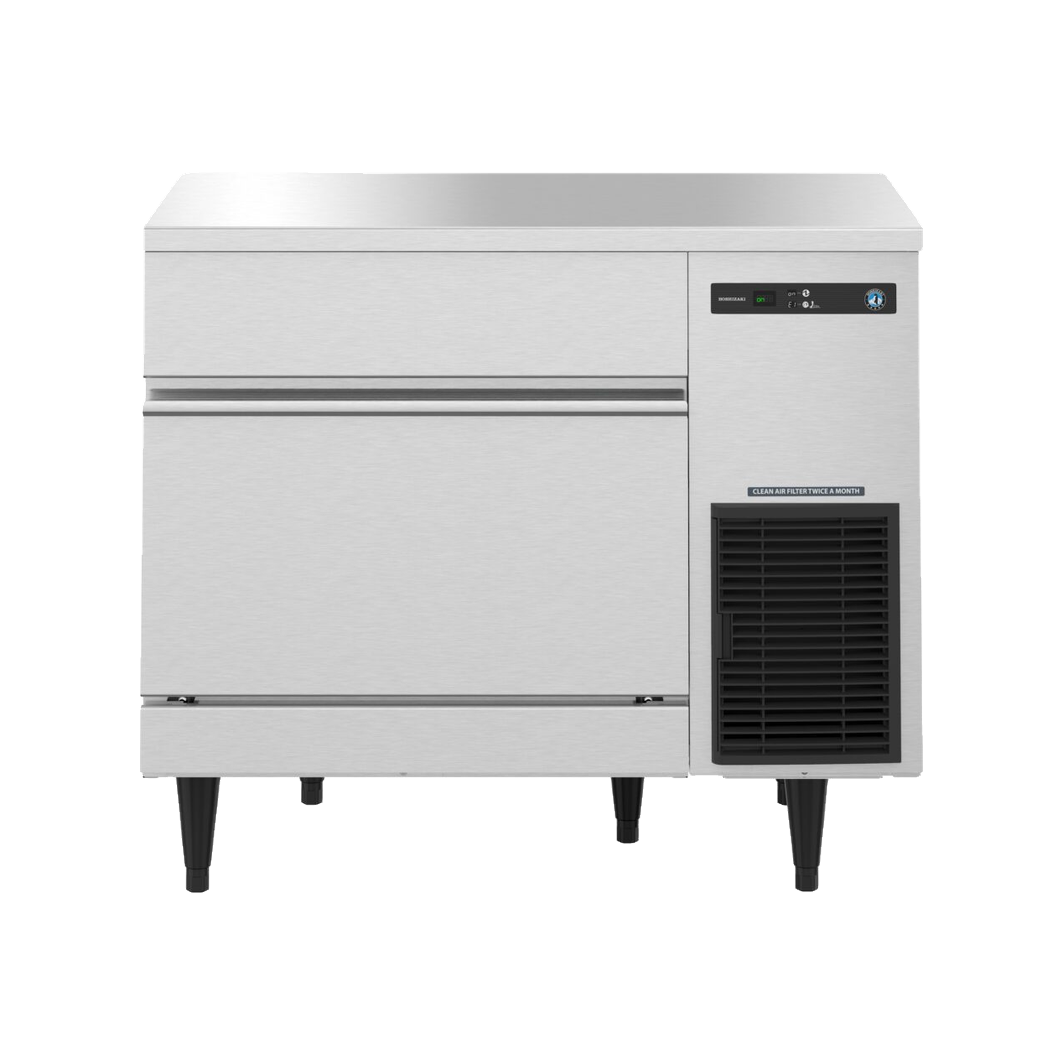

The Hoshizaki IM-200BAK undercounter square cube ice maker is built for bars, restaurants, hotels, and beverage programs that need high production and a premium cube from one self-contained cabinet. It makes up to 186 lb of ice per 24 hours and stores up to 75 lb in its 2.5-cubic-foot built-in bin. The 39-1/2-inch-wide stainless steel body places substantial ice capacity directly beneath the service counter.
Rather than forming a connected slab, the IM system uses a dedicated jet spray to build each approximately 1 x 1-1/4 x 1-inch cube individually. The result is clear, solid, consistently shaped square ice with fewer cloudy areas and an upscale appearance. These dense cubes melt slowly in cocktails, spirits, soft drinks, and table water, helping preserve flavor and presentation through longer service.
Operational features include the EverCheck alert system, a removable air filter, and durable stainless steel construction. The air-cooled system uses R290 refrigerant and includes an ice scoop plus five adjustable 6-inch legs. The machine is ENERGY STAR qualified, making it a practical match for operators who want premium ice without giving up attention to utility consumption.
At the AHRI rating condition of 90°F air and 70°F water, expected production is approximately 150 lb per day. Because hot rooms and warm inlet water reduce output, buyers should size the machine to real operating conditions. The published installation clearances are also specific: the machine needs right-side and rear space, plus an approved combination of left-side and top clearance for ventilation and service.
Key Features

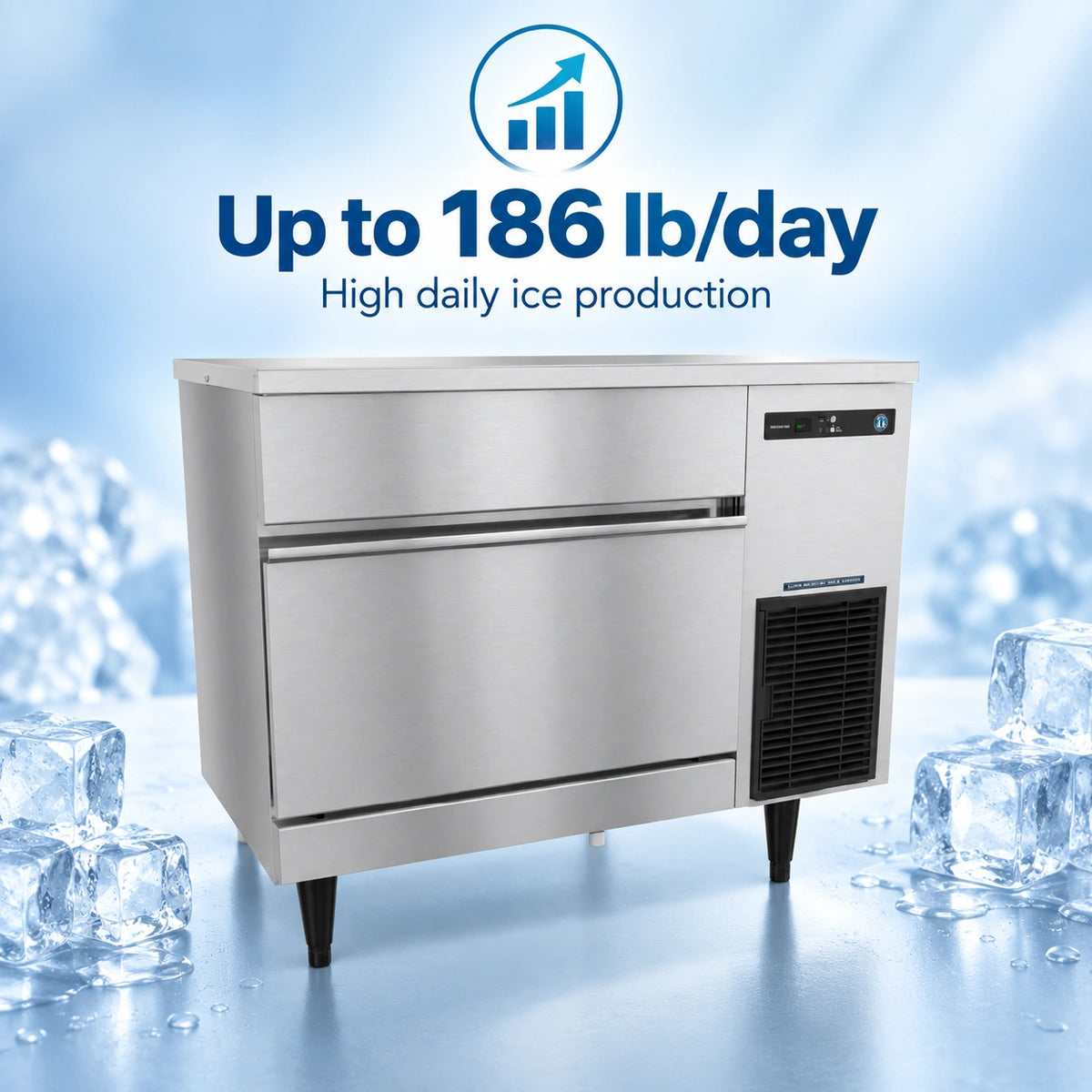

- Produces up to 186 lb/day of clear individual square cubes

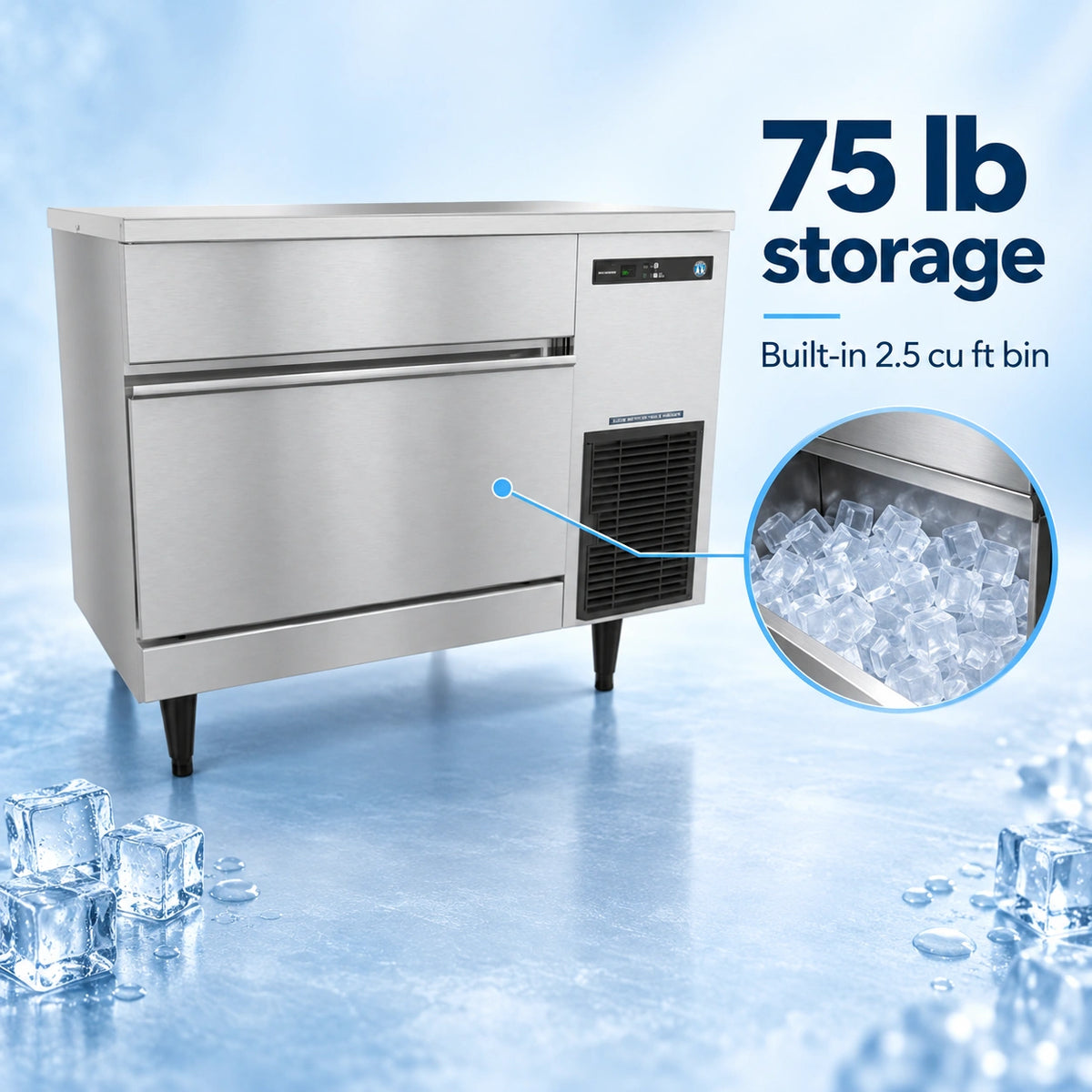

- Built-in 2.5 cu ft bin holds up to 75 lb

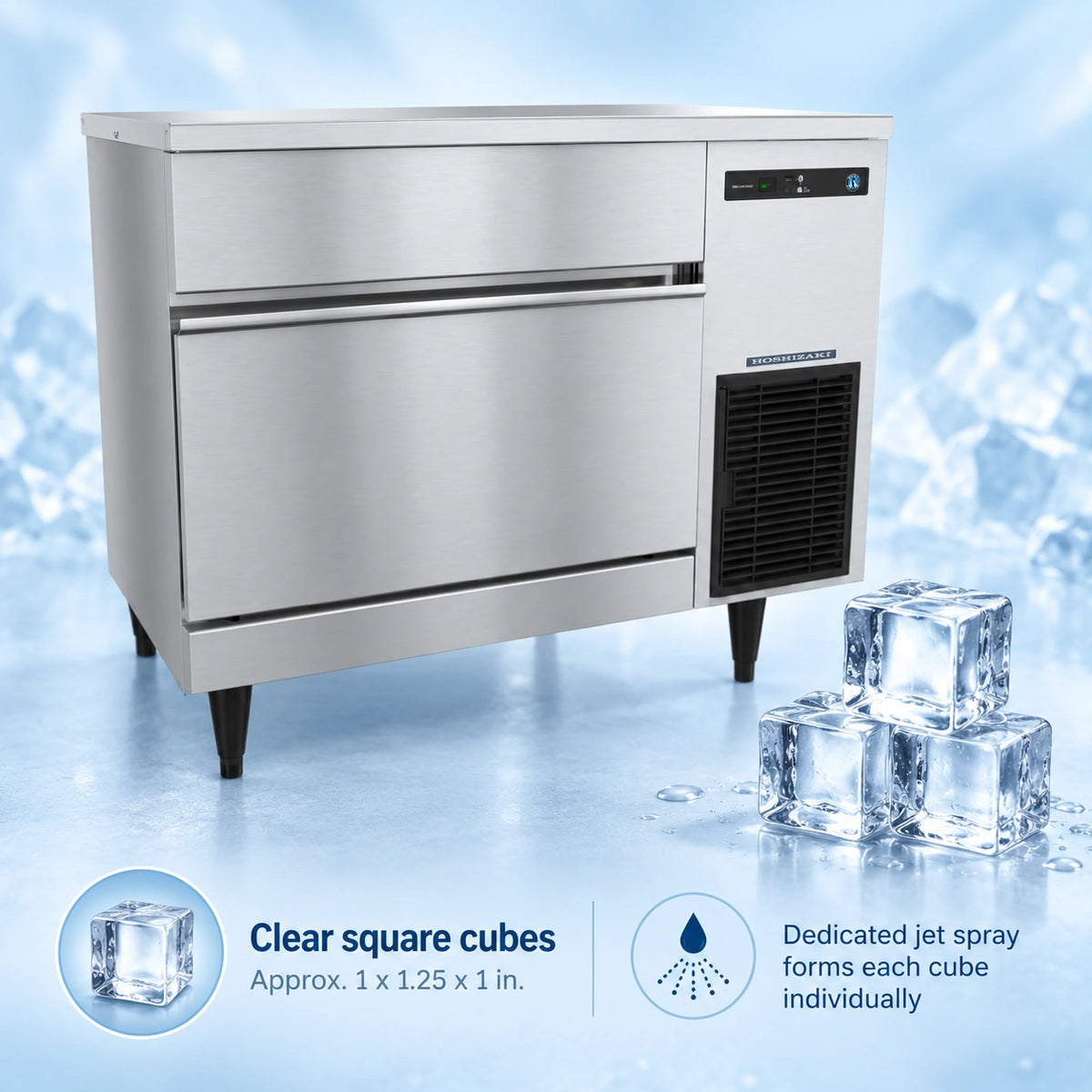

- Dedicated jet spray forms each cube individually

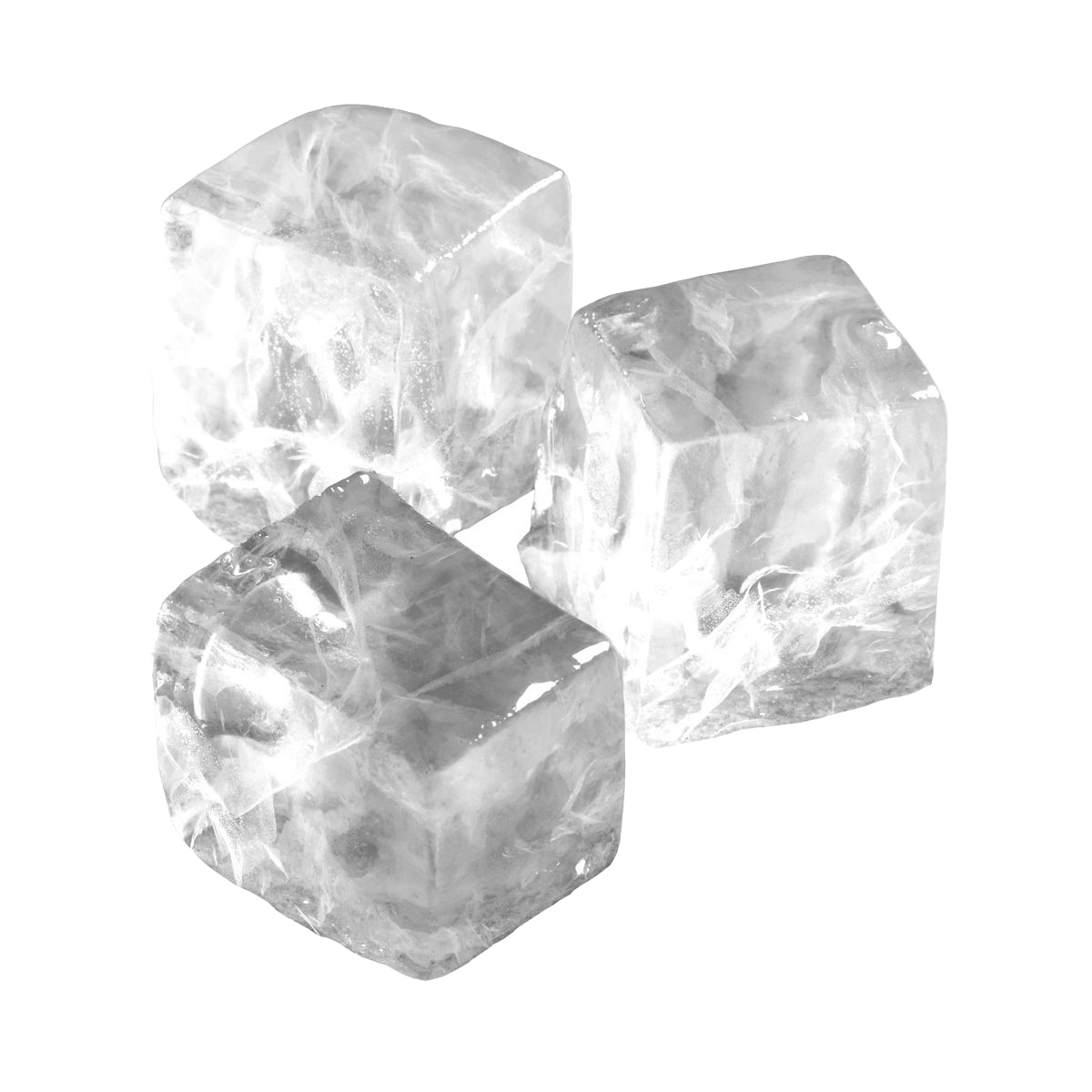

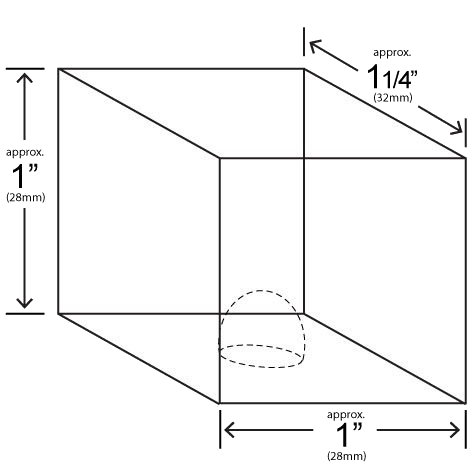

- Approximate cube size: 1 x 1-1/4 x 1 inch

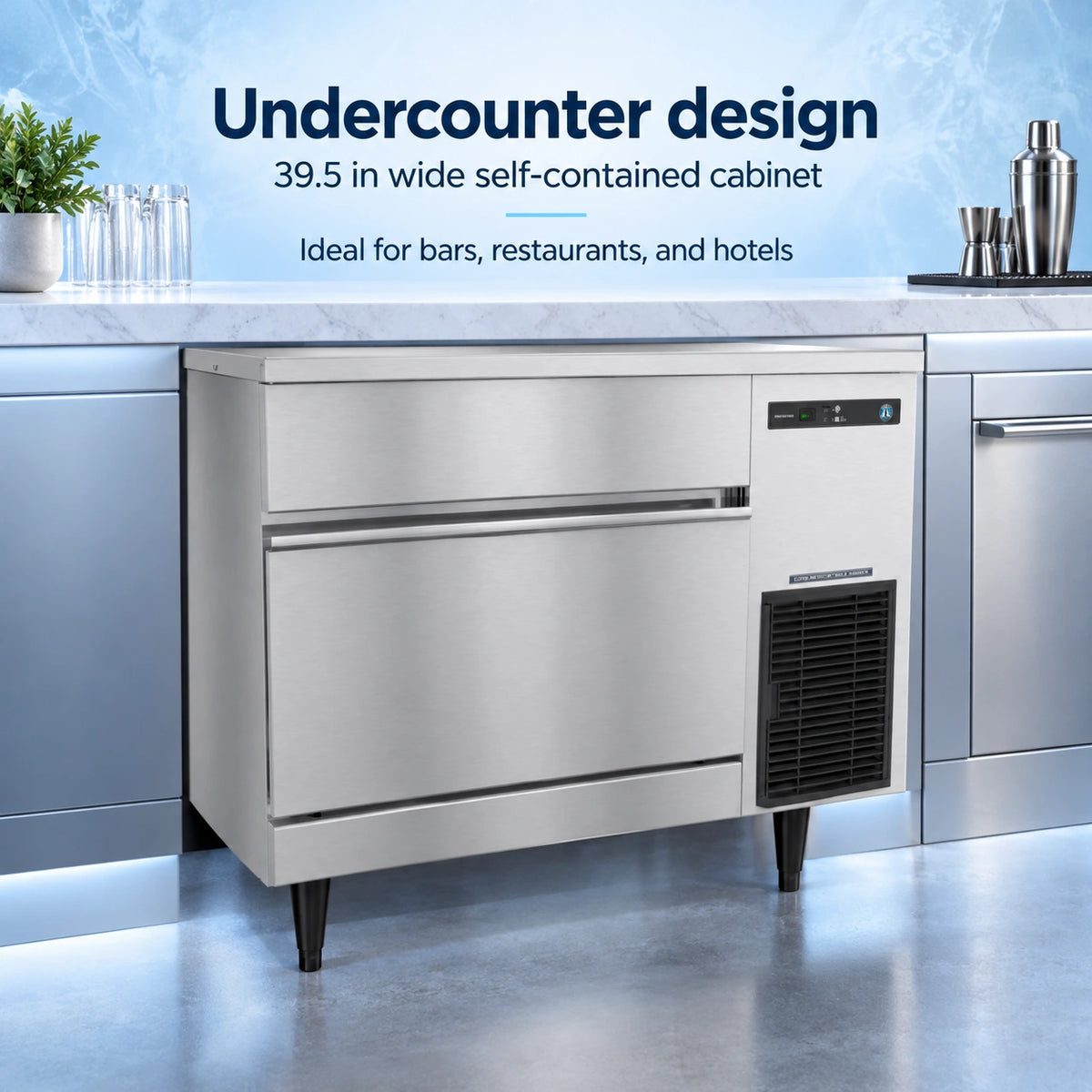

- 39-1/2-inch-wide self-contained undercounter configuration
- EverCheck alert system helps communicate operating status
- Removable air filter supports routine condenser maintenance
- Stainless steel exterior
- R290 natural refrigerant
- ENERGY STAR qualified
- Ice scoop and five 6-inch legs included
Best For
Cocktail bars, restaurants, hotels, banquet service, lounges, and premium beverage programs that require a high volume of clear slow-melting square cubes with built-in storage.

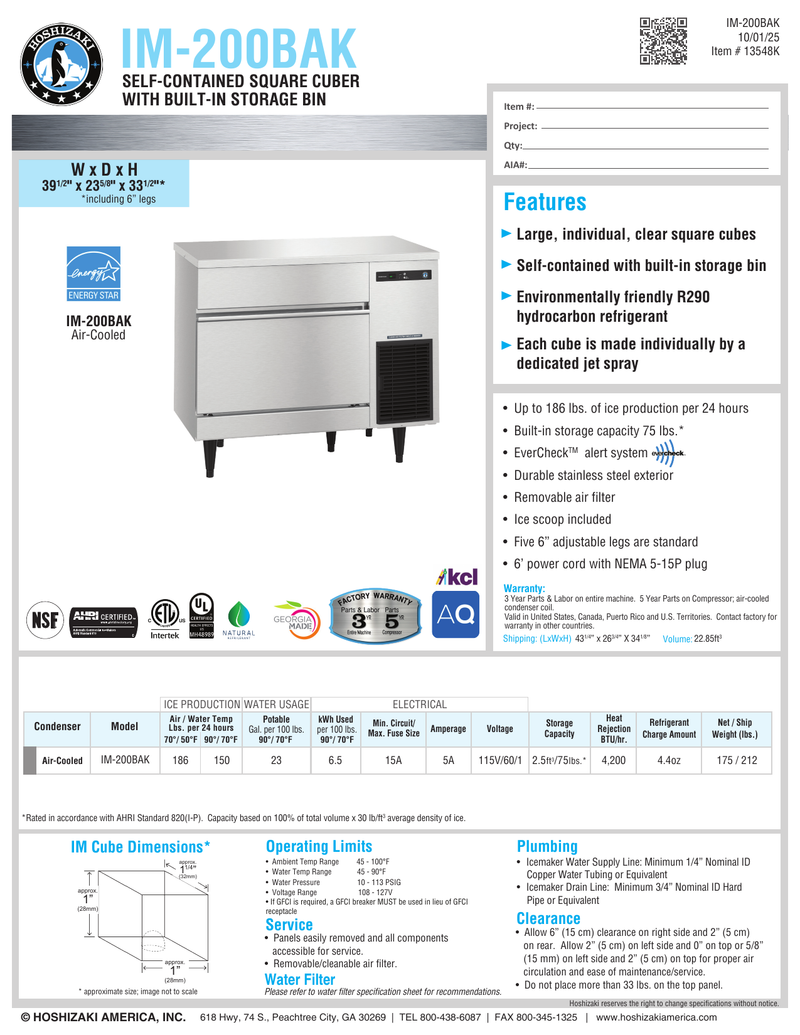

Full Specifications
| Brand | Hoshizaki |
|---|---|
| Model | IM-200BAK |
| Type | Self-contained undercounter square cube ice maker |
| Ice Type | Individual clear square cube, approximately 1 x 1-1/4 x 1 inch |
| Cooling | Air-cooled |
| Maximum Production | Up to 186 lb/24 hr at 70°F air / 50°F water |
| AHRI Production | Approximately 150 lb/24 hr at 90°F air / 70°F water |
| Built-in Storage | 75 lb / 2.5 cu ft |
| Dimensions (W x D x H) | 39-1/2 x 23-5/8 x 33-1/2 inches, including 6-inch legs |
| Net / Shipping Weight | 175 lb / 212 lb |
| Electrical | 115V / 60Hz / 1 phase; 5A; 15A maximum circuit; NEMA 5-15 plug; 6 ft cord |
| Refrigerant | R290, 4.4 oz |
| Energy Use | 6.5 kWh per 100 lb at 90°F air / 70°F water |
| Potable Water Use | 23 gal per 100 lb at 90°F air / 70°F water |
| Heat Rejection | 4,200 BTU/hr |
| Water Inlet | 1/2-inch FPT; minimum 1/4-inch supply line |
| Drain | 3/4-inch FPT; minimum 3/4-inch drain line |
| Operating Range | 45-100°F air; 45-90°F water; 10-113 PSIG; 108-127V |
Warranty
- Entire machine: 3 years parts and labor
- Compressor: 5 years parts
- Air-cooled condenser coil: 5 years parts
Installation and Maintenance Notes
- Provide 6 inches at the right and 2 inches at the rear. Use either 2 inches left/0 inches top or 5/8 inch left/2 inches top, according to the specification sheet.
- Do not place more than 33 lb on top of the unit.
- Size drainage and water supply as specified, and confirm local code requirements.
- Remove and clean the air filter regularly; water filtration and scheduled sanitation help protect ice quality.
