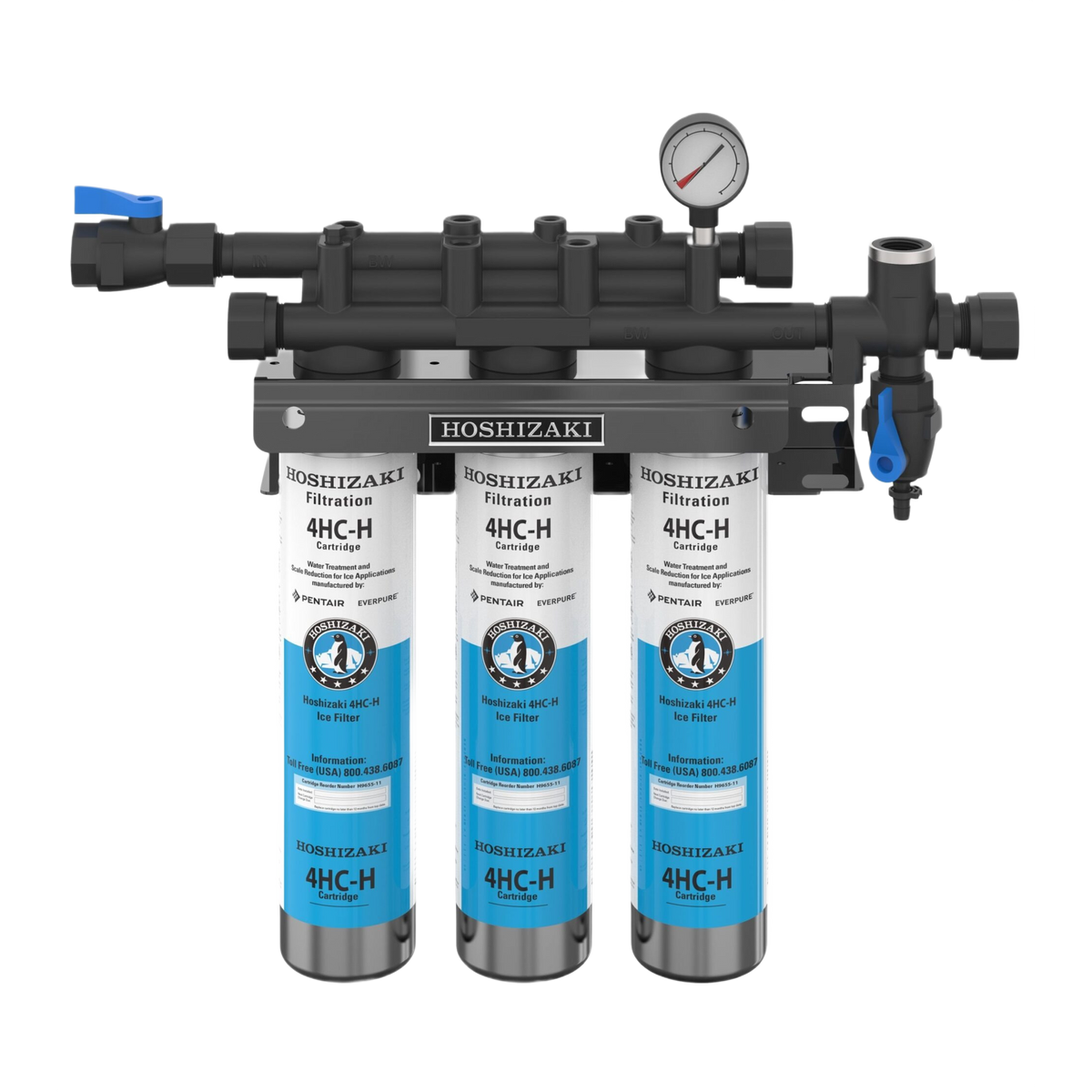

Hoshizaki H9320-53 Triple Water Filtration System - 6 GPM, 63,000 Gallon Capacity Description
Hoshizaki H9320-53 - Triple 6 GPM Water Filtration for Listed High-Volume KM Ice Machines
The Hoshizaki H9320-53 is a triple-configuration water filtration system with a 6 GPM maximum flow rate and a 63,000-gallon rated capacity. It uses three 4HC-H filter cartridges and is listed in Hoshizaki's equipment matrix for high-output KM cubers, including specified KM-1301, KM-1340, KM-1601, KM-1900, KM-2200, KM-2600, KMH-2100 and KMS-2000 models.
The system is rated NSF Class I, Standard 42 for chlorine taste and odor reduction and for mechanical filtration. Hoshizaki states 95.6% removal of particles one micron and larger, 97.3% average chlorine reduction, and one-micron nominal filtration. These functions help reduce dirt, rust, chlorine taste and odor and lime-scale buildup that can contribute to equipment maintenance.
The triple configuration is 19.15 in. high, including the manifold and cartridges. It has a 3/4-in. MNPT inlet and 3/4-in. FNPT outlet, a 10-125 psi working-pressure range and a 35°F-100°F operating-temperature range. The H9320-53 is supplied as a manifold-and-cartridge system.
Key Features
- Triple-cartridge filtration configuration
- 6 GPM maximum flow rate
- 63,000 gallon rated capacity
- Three Hoshizaki 4HC-H filter cartridges
- NSF Class I, Standard 42 rated for stated taste, odor and mechanical-filtration functions
- 1-micron nominal filtration
- 97.3% average chlorine reduction stated by Hoshizaki
- 3/4-in. MNPT inlet and 3/4-in. FNPT outlet
Best For
Listed high-output Hoshizaki KM cube ice machines in commercial applications that need a 6 GPM triple filtration system with 63,000-gallon rated capacity.
Full Specifications
| Brand | Hoshizaki |
| Model | H9320-53 |
| Type | Triple commercial water filtration system |
| Filter Cartridges | Three 4HC-H cartridges |
| Maximum Flow Rate | 6 GPM |
| Rated Capacity | 63,000 gal |
| Filtration Rating | 1 micron nominal |
| Working Pressure | 10-125 psi |
| Operating Temperature | 35°F-100°F |
| Connections | 3/4-in. MNPT inlet / 3/4-in. FNPT outlet |
| Height | 19.15 in., including manifold and cartridges |
| Certification | NSF Class I, Standard 42 for stated functions |
Warranty
- One year on replaceable elements.
- One year on the entire system.
Installation and Maintenance Notes
- Hoshizaki lists the H9320-53 for specified high-output KM cubers; replace cartridges according to the equipment maintenance schedule and water conditions.
