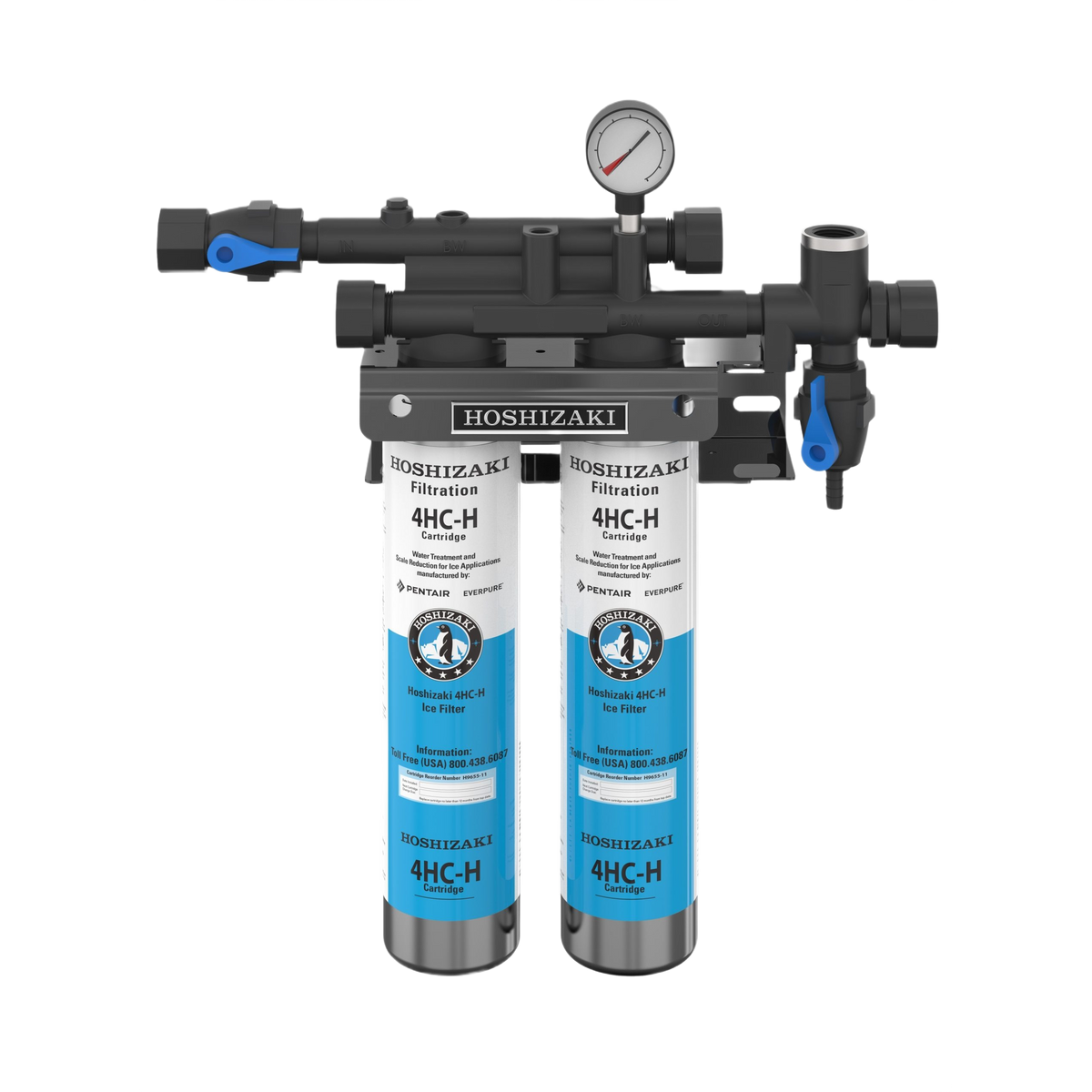

Hoshizaki H9320-52 Twin Water Filtration System - 4 GPM, 42,000 Gallon Capacity Description
Hoshizaki H9320-52 Twin Water Filtration System - 4 GPM Protection for High-Volume Ice Equipment
The Hoshizaki H9320-52 twin water filtration system supplies treated water to compatible high-volume commercial ice equipment at up to 4 gallons per minute. Its twin-cartridge design has a rated service capacity of 42,000 gallons, giving operators a practical way to address sediment, chlorine taste and odor, and fine particles before water reaches the ice machine.
The system uses two Hoshizaki 4HC-H replacement cartridges and carries a nominal 1-micron filtration rating. Hoshizaki's performance information lists an average chlorine reduction of 97.3 percent, Class I particulate performance under NSF/ANSI Standard 42, and 95.6 percent reduction of particles measuring one micron or larger. Cleaner incoming water can improve beverage taste and ice appearance while helping protect water-contact components from suspended debris.
A stainless steel head and mounting manifold support commercial installation. The twin assembly is intended for selected high-capacity Hoshizaki KM cubers and compatible equipment, including applications in the approximately 900- to 1,301-lb/day class identified by Hoshizaki. It is not the manufacturer's recommended choice for flaker applications, so compatibility should always be checked against the exact equipment model before purchase.
Filter life depends heavily on inlet-water quality and usage. In locations with visible sediment or unusually dirty water, Hoshizaki recommends adding the E-20 prefilter to twin and triple systems to help extend cartridge life. Replacement should follow rated capacity, flow reduction, water-quality changes, or the maintenance interval required by the installation—whichever occurs first.
Key Features
- 4 GPM rated flow for demanding commercial applications
- 42,000-gallon rated capacity
- Twin-cartridge configuration with two 4HC-H filter elements
- Nominal 1-micron filtration
- Reduces chlorine taste and odor and fine particulate matter
- NSF/ANSI Standard 42 Class I particulate performance
- Stainless steel head and commercial mounting assembly
- 3/4-inch inlet and outlet connections support higher flow
- Individual replacement cartridge: H9655-11
- Six-pack replacement cartridge case: H9655-06
Best For
Compatible high-volume Hoshizaki cube ice machines in restaurants, hotels, healthcare facilities, institutional kitchens, foodservice operations, and other sites that need 4 GPM flow and higher filter capacity.

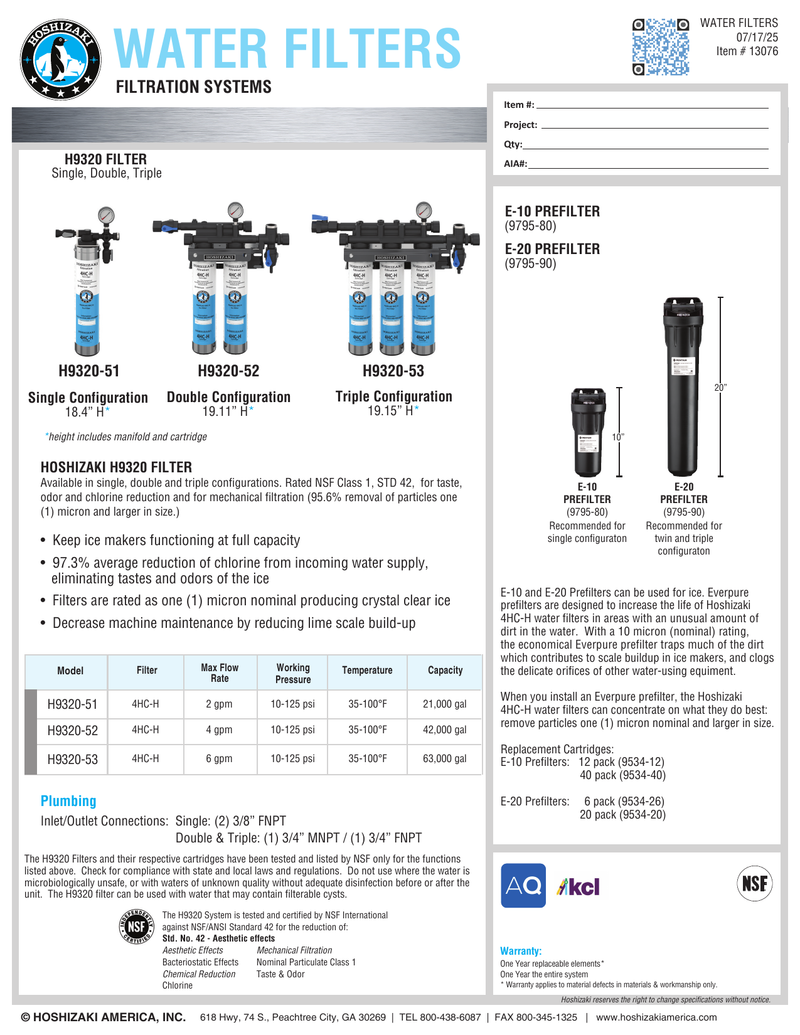

Full Specifications
| Brand | Hoshizaki |
|---|---|
| Model | H9320-52 |
| Type | Twin commercial water filtration system |
| Cartridges | Two 4HC-H elements |
| Rated Flow | 4 GPM |
| Rated Capacity | 42,000 gallons |
| Filtration Rating | 1 micron nominal |
| Chlorine Reduction | 97.3% average, per Hoshizaki performance data |
| Particle Reduction | 95.6% for particles 1 micron and larger |
| Certifications | NSF/ANSI Standard 42, Class I particulate performance |
| Dimensions (W x D x H) | 13 x 15 x 26 inches |
| Shipping Weight | 12 lb |
| Inlet | 3/4-inch MNPT |
| Outlet | 3/4-inch FNPT |
| Operating Pressure | 10-125 PSI |
| Operating Water Temperature | 35-100°F |
| Replacement Elements | H9655-11 individual; H9655-06 six-pack; two required per service change |
| Recommended Prefilter | E-20 / 9795-90 for dirty-water applications |
Warranty
- Filter system: 1 year, excluding replaceable filter elements
- Replaceable elements: 1 year against defects in material and workmanship
Installation and Maintenance Notes
- Confirm compatibility with the exact ice machine and required flow before ordering; Hoshizaki does not recommend this system for flakers.
- Flush cartridges according to current instructions before connecting treated water to equipment.
- Replace both cartridges together when capacity is reached, flow falls, or site conditions require it.
- Add the E-20 prefilter where heavy sediment could prematurely load the main cartridges.
- Use only on microbiologically safe water of known quality unless adequate disinfection is provided before or after the system.
