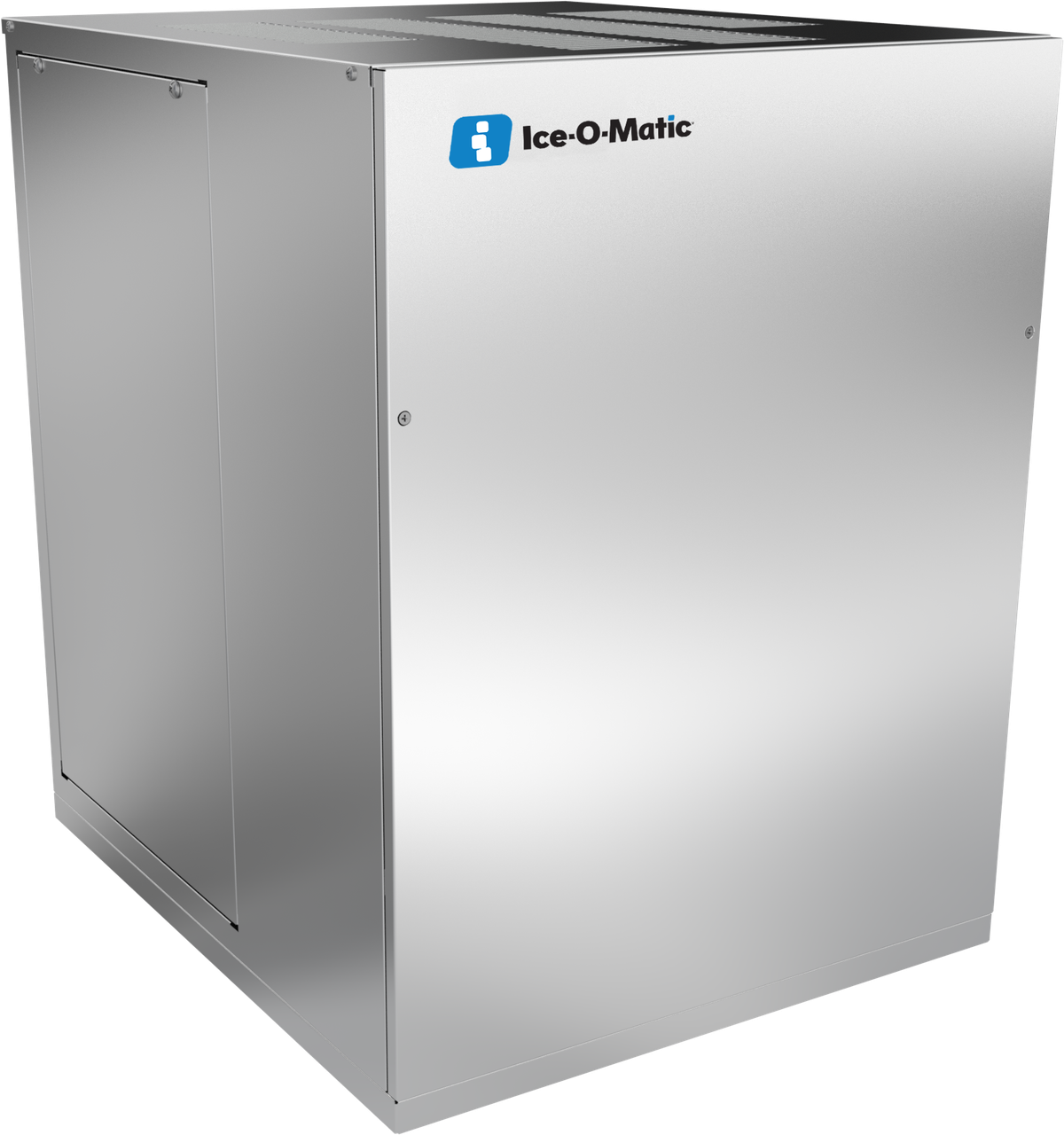

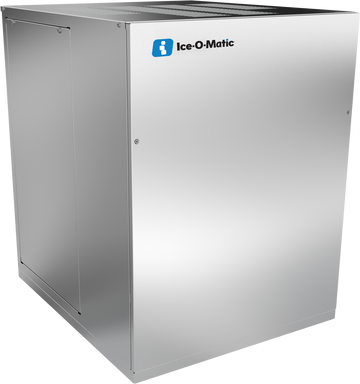

Ice-O-Matic GEM1306A90 21-Inch Air-Cooled Pearl Nugget Modular Ice Maker - 1306 lb/Day Head

Brand:Ice-O-Matic
Model:GEM1306A90
Pearl Nugget Ice Air-Cooled Up to 1306 lb/day 21 in. Wide Modular Head R290 Refrigerant

Meet substantial Pearl Ice demand with the Ice-O-Matic GEM1306A90, an air-cooled modular nugget ice maker producing up to 1,306 lb/day at 70°F air/50°F water. The 21-inch head delivers 1,004 lb/day at 90°F air/70°F water and incorporates gearbox load monitoring. Pair its 208–230V installation with a separate compatible bin for a complete ice station.


Certified by
Made in USA
UL Listed
NSF Listed
ENERGY STAR® Certified

Ask a question

Ask a Question

* Required fields

Size guide Share
Free Standard Shipping
Regular price $10,017.00
Sale price $10,017.00 Regular price $12,216.00
Unit price
Save 18%

Price Match Guarantee

Found a better advertised price from an authorized competitor? Let us know and our team will review it.

Request Price Match

Send us the competing offer and our team will review your request.

Price match for
Ice-O-Matic GEM1306A90 21-Inch Air-Cooled Pearl Nugget Modular Ice Maker - 1306 lb/Day Head
Enter the advertised price you found.
Paste the exact page where the competing price is currently shown.

Price match requests are subject to verification. The competing product and offer must be comparable, current, and available from a legitimate seller.

Request a Quote

Tell us what you need and our team will provide pricing and availability for this product.

Product
Ice-O-Matic GEM1306A90 21-Inch Air-Cooled Pearl Nugget Modular Ice Maker - 1306 lb/Day Head

We’ll use these details only to respond to your quote request.

A banner showing multiple payment logos including American Express, Apple Pay, Discover, Google Pay, Mastercard, PayPal, O2O, and VISA under the text '100% Secure Checkout' on a white background.

Quick Shipping with Bank Deposit

Want your ice machine shipped sooner? Choose Bank Deposit at checkout for priority order processing once your payment is confirmed. Eligible orders are prioritized for fulfillment to help get your equipment on its way sooner.

Estimated Delivery: 5-7 Business Days*

*Eligible in-stock items within the contiguous U.S.; includes normal processing and transit. Freight and special-order items may take longer.

Ice-O-Matic GEM1306A90 21-Inch Air-Cooled Pearl Nugget Modular Ice Maker - 1306 lb/Day Head

Ice-O-Matic GEM1306A90 21-Inch Air-Cooled Pearl Nugget Modular Ice Maker - 1306 lb/Day Head

Regular price $10,017.00
Sale price $10,017.00 Regular price $12,216.00
Unit price

Ice-O-Matic GEM1306A90 21-Inch Air-Cooled Pearl Nugget Modular Ice Maker - 1306 lb/Day Head Description

The Ice-O-Matic GEM1306A90 is an air-cooled modular pearl nugget ice maker producing up to 1306 lb of ice every 24 hours at 70°F air and 50°F water. At 90°F air and 70°F water, its rated output is 1004 lb per day. The head measures 21 inches wide and works with a separate compatible storage bin, allowing the ice-making and storage capacities to be selected independently. This listing is for the ice machine head only; a storage bin is sold separately.

Ice-O-Matic's Pearl Ice measures 1/2 x 3/8 in. and has the soft, chewable texture associated with nugget-style ice. It suits fountain drinks, iced tea and other beverage service where customers enjoy both the drink and the ice. The GEM1306A90 makes this small, irregular ice format automatically, bringing a different texture to the menu than a hard full cube or gourmet cube.

A stainless steel evaporator assembly and industrial-grade double roller bearings support the continuous ice-making mechanism. The gearbox load-monitoring system checks the drive workload and can shut the system down on overload. A water sensor responds to water-supply conditions, while non-contact ice detection provides an automatic bin-level shutoff. These systems support equipment operation without requiring a mechanical paddle to remain in the ice.

The GEM1306A90 combines its Pearl Ice mechanism with R290 refrigeration and a 208-230V / 60Hz / single-phase electrical supply. The listed cabinet dimensions are 21 W × 24 D × 27 H inches, with intake and exhaust positions shown on the installation drawing. Its 3/8 in. FPT water inlet and 3/4 in. FPT drain connect at the rear. A separate compatible bin and any required adapter kit complete the installation; neither is included with the ice machine head.

Key Features

  • Up to 1306 lb/day at 70°F air / 50°F water
  • 1004 lb/day at 90°F air / 70°F water
  • Pearl Nugget Ice: 1/2 x 3/8 in.
  • Stainless steel evaporator assembly
  • Industrial-grade double roller bearings
  • Gearbox load monitoring with protective shutoff
  • Water-sensing protection
  • Non-contact ice-level detection and automatic shutoff
  • 21-inch-wide modular cabinet
  • R290 refrigerant; 208-230V / 60Hz / 1 phase
  • Separate compatible bin required

Best For

Restaurants, cafés, convenience stores and high-use beverage stations that serve chewable nugget-style ice. The modular design suits operators who want to select storage capacity separately from daily ice production.

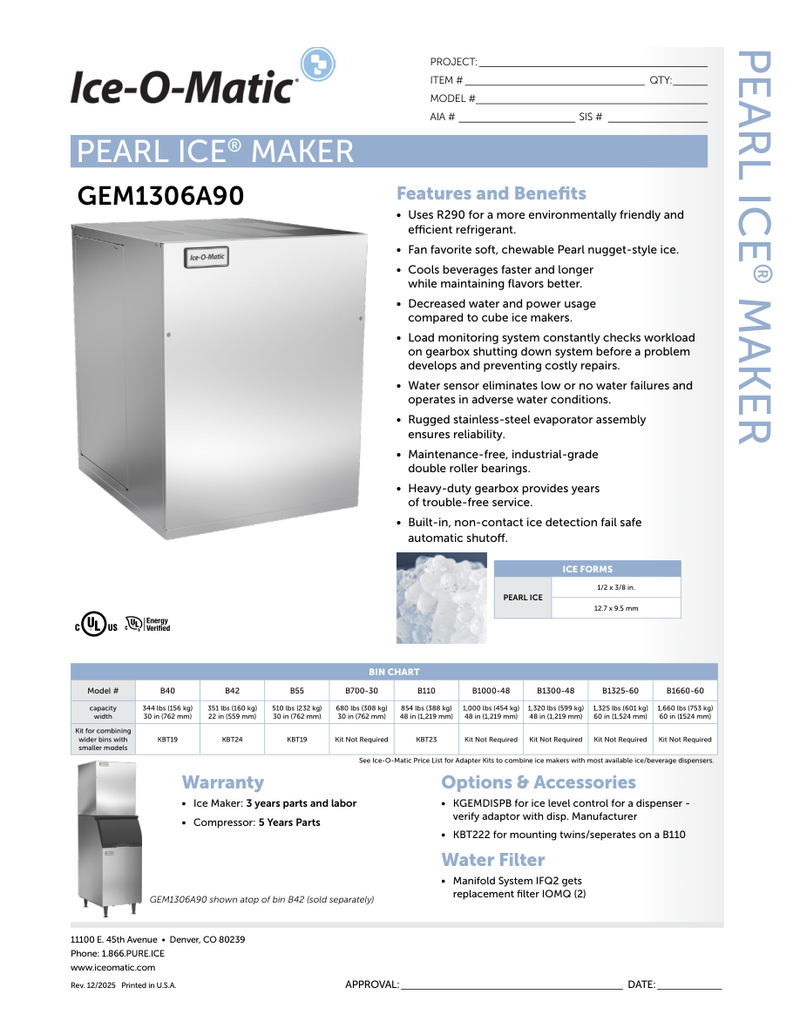

Full Specifications

Brand Ice-O-Matic
Model GEM1306A90
Machine type Modular ice maker head
Ice type Pearl Nugget Ice
Ice dimensions 1/2 x 3/8 in.
Cooling Air-cooled
Production at 70°F air / 50°F water 1306 lb/24 hr
Production at 90°F air / 70°F water 1004 lb/24 hr
Storage Separate compatible bin required; sold separately
Dimensions (W × D × H) 21 × 24 × 27 in.
Electrical 208-230V / 60Hz / 1 phase
Minimum circuit ampacity 13.5 A
Maximum breaker size 20 A
Energy at 70°F air / 50°F water 2.4 kWh/100 lb
Energy at 90°F air / 70°F water 3.4 kWh/100 lb
Potable water at 90°F air / 70°F water 12 gal/100 lb
Approximate heat output 15840 BTU/hr
Refrigerant R290
Refrigerant charge 150 g
Water inlet 3/8 in. FPT
Drain 3/4 in. FPT
Ambient operating range 50-100°F
Water temperature range 40-100°F
Water pressure 20-80 psi
Shipping weight 219 lb
Shipping dimensions 27 W x 24 D x 32 H in.
Certifications and verified marks cULus Listed, UL Energy Verified, ENERGY STAR

Warranty

  • Ice maker: 3 years parts and labor.
  • Compressor: 5 years parts.
  • Coverage above is the standard commercial warranty and is subject to the manufacturer’s registration requirements, terms and exclusions.

Accessories

  • Optional storage: B42 bin with KBT24 adapter, or B55 bin with KBT19 adapter, as shown in the model bin chart. Bin and adapter are sold separately.
  • Optional filtration: Ice-O-Matic IFQ2 water-filter system.

Installation and Maintenance Notes

  • Install on a compatible, properly supported bin with the model-specific adapter where required. Do not operate the machine head without an appropriate ice collection arrangement.
  • Use potable water within the specified 20-80 psi pressure range and 40-100°F temperature range.
  • Locate the machine where the ambient temperature remains within 50-100°F; keep ventilation openings clear.
  • Provide the specified 208-230V single-phase supply and proper drainage; have electrical and plumbing work completed to the manufacturer’s installation instructions and local codes.
  • Clean and sanitize the ice-making system routinely and maintain the water filter and air path. Production varies with air and water temperature and site conditions.
