Ice-O-Matic GEM0650A90 — 700-pound Pearl Ice capacity for frequent beverage service

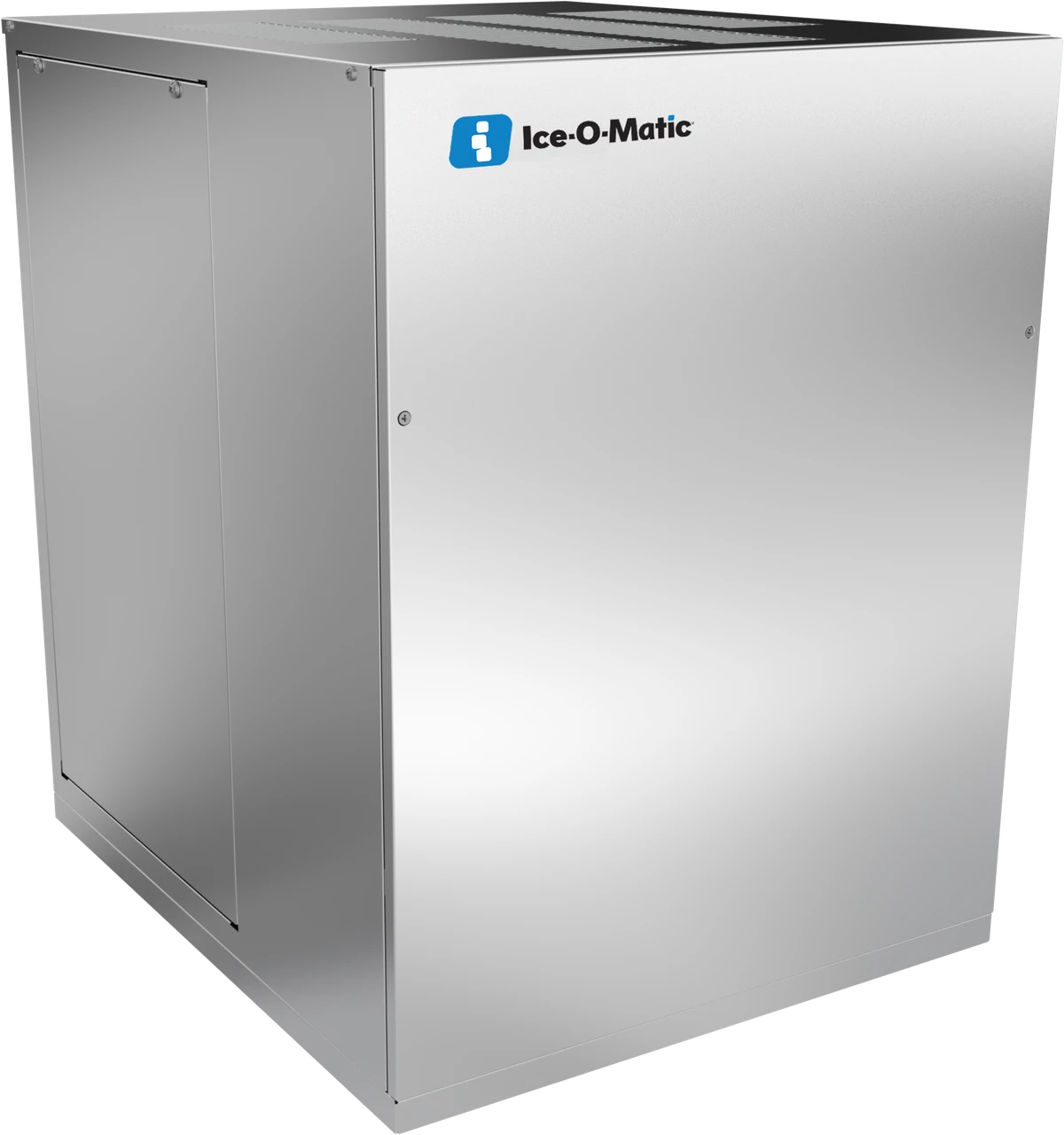

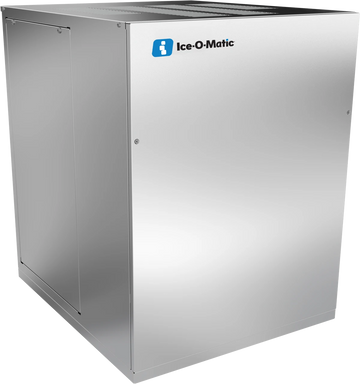

The Ice-O-Matic GEM0650A90 is an air-cooled modular pearl nugget ice maker producing up to 700 lb of ice every 24 hours at 70°F air and 50°F water. At 90°F air and 70°F water, its rated output is 538 lb per day. The head measures 21 inches wide and works with a separate compatible storage bin, allowing the ice-making and storage capacities to be selected independently. This listing is for the ice machine head only; a storage bin is sold separately.
Ice-O-Matic's Pearl Ice measures 1/2 x 3/8 in. and has the soft, chewable texture associated with nugget-style ice. It suits fountain drinks, iced tea and other beverage service where customers enjoy both the drink and the ice. The GEM0650A90 makes this small, irregular ice format automatically, bringing a different texture to the menu than a hard full cube or gourmet cube.
A stainless steel evaporator assembly and industrial-grade double roller bearings support the continuous ice-making mechanism. The gearbox load-monitoring system checks the drive workload and can shut the system down on overload. A water sensor responds to water-supply conditions, while non-contact ice detection provides an automatic bin-level shutoff. These systems support equipment operation without requiring a mechanical paddle to remain in the ice.
The GEM0650A90 combines its Pearl Ice mechanism with R290 refrigeration and a 115V / 60Hz / single-phase electrical supply. The listed cabinet dimensions are 21 W × 24 D × 27 H inches, with intake and exhaust positions shown on the installation drawing. Its 3/8 in. FPT water inlet and 3/4 in. FPT drain connect at the rear. A separate compatible bin and any required adapter kit complete the installation; neither is included with the ice machine head.
Key Features
- Up to 700 lb/day at 70°F air / 50°F water
- 538 lb/day at 90°F air / 70°F water
- Pearl Nugget Ice: 1/2 x 3/8 in.
- Stainless steel evaporator assembly
- Industrial-grade double roller bearings
- Gearbox load monitoring with protective shutoff
- Water-sensing protection
- Non-contact ice-level detection and automatic shutoff
- 21-inch-wide modular cabinet
- R290 refrigerant; 115V / 60Hz / 1 phase
- Separate compatible bin required
Best For
Restaurants, cafés, convenience stores and high-use beverage stations that serve chewable nugget-style ice. The modular design suits operators who want to select storage capacity separately from daily ice production.

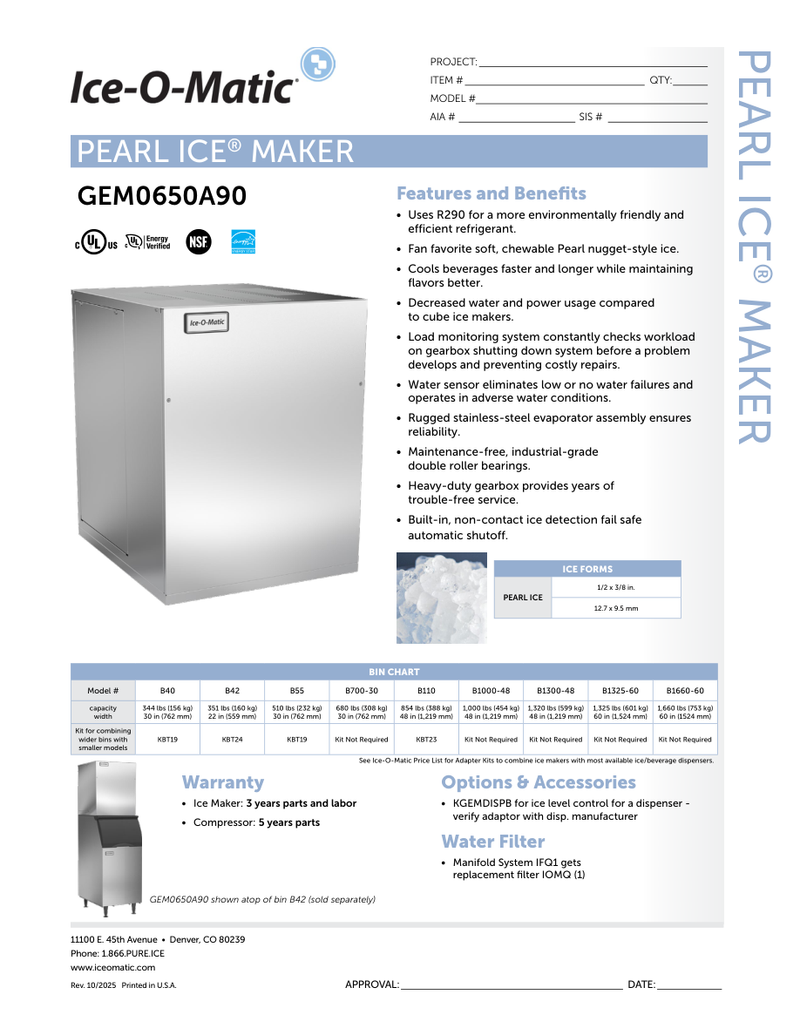

Full Specifications
| Brand | Ice-O-Matic |
| Model | GEM0650A90 |
| Machine type | Modular ice maker head |
| Ice type | Pearl Nugget Ice |
| Ice dimensions | 1/2 x 3/8 in. |
| Cooling | Air-cooled |
| Production at 70°F air / 50°F water | 700 lb/24 hr |
| Production at 90°F air / 70°F water | 538 lb/24 hr |
| Storage | Separate compatible bin required; sold separately |
| Dimensions (W × D × H) | 21 × 24 × 27 in. |
| Electrical | 115V / 60Hz / 1 phase |
| Minimum circuit ampacity | 13.6 A |
| Maximum breaker size | 20 A |
| Energy at 70°F air / 50°F water | 2.5 kWh/100 lb |
| Energy at 90°F air / 70°F water | 3.6 kWh/100 lb |
| Potable water at 90°F air / 70°F water | 12 gal/100 lb |
| Approximate heat output | 8190 BTU/hr |
| Refrigerant | R290 |
| Refrigerant charge | 110 g |
| Water inlet | 3/8 in. FPT |
| Drain | 3/4 in. FPT |
| Ambient operating range | 50-100°F |
| Water temperature range | 40-100°F |
| Water pressure | 20-80 psi |
| Shipping weight | 176 lb |
| Shipping dimensions | 27 W x 24 D x 32 H in. |
| Certifications and verified marks | cULus Listed, UL Energy Verified, NSF Listed, ENERGY STAR |
Warranty
- Ice maker: 3 years parts and labor.
- Compressor: 5 years parts.
- Coverage above is the standard commercial warranty and is subject to the manufacturer’s registration requirements, terms and exclusions.
Accessories
- Optional storage: B42 bin with KBT24 adapter, or B55 bin with KBT19 adapter, as shown in the model bin chart. Bin and adapter are sold separately.
- Optional filtration: Ice-O-Matic IFQ1 water-filter system.
Installation and Maintenance Notes
- Install on a compatible, properly supported bin with the model-specific adapter where required. Do not operate the machine head without an appropriate ice collection arrangement.
- Use potable water within the specified 20-80 psi pressure range and 40-100°F temperature range.
- Locate the machine where the ambient temperature remains within 50-100°F; keep ventilation openings clear.
- Provide the specified 115V single-phase supply and proper drainage; have electrical and plumbing work completed to the manufacturer’s installation instructions and local codes.
- Clean and sanitize the ice-making system routinely and maintain the water filter and air path. Production varies with air and water temperature and site conditions.
