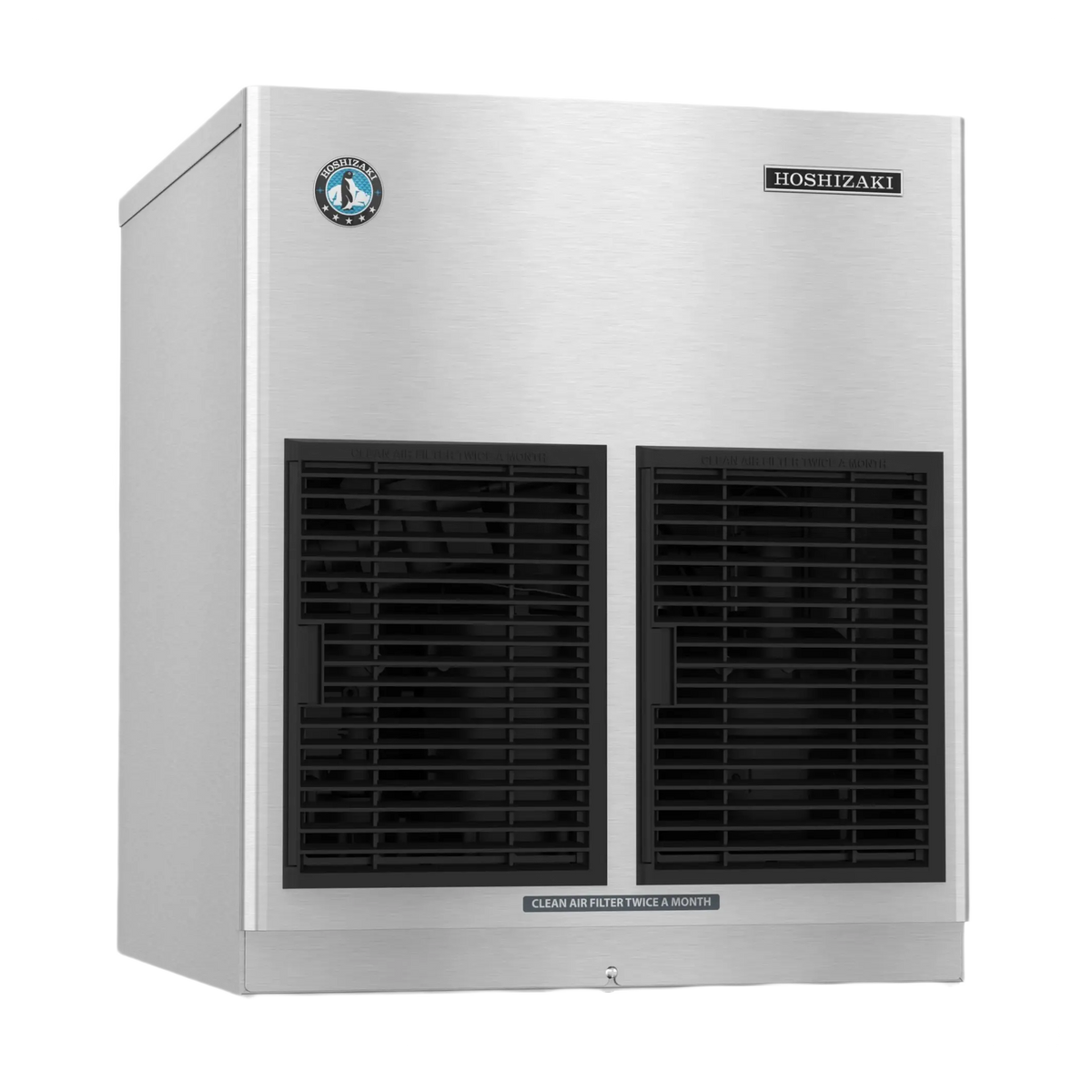

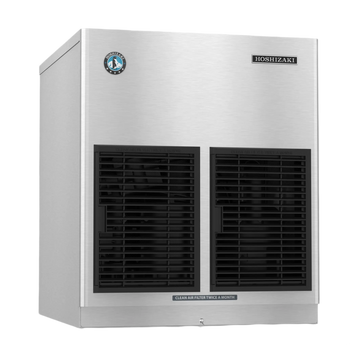

Hoshizaki FD-1002MAJ-C 22-Inch Air-Cooled Modular Cubelet Ice Machine Head - 890 lb/Day
Price Match Guarantee
-
Estimated Delivery: 7-10 Business Days
Hoshizaki FD-1002MAJ-C 22-Inch Air-Cooled Modular Cubelet Ice Machine Head - 890 lb/Day
Hoshizaki FD-1002MAJ-C 22-Inch Air-Cooled Modular Cubelet Ice Machine Head - 890 lb/Day Description
Hoshizaki FD-1002MAJ-C — High-Volume Cubelet Ice for Dispenser-Ready Beverage Service

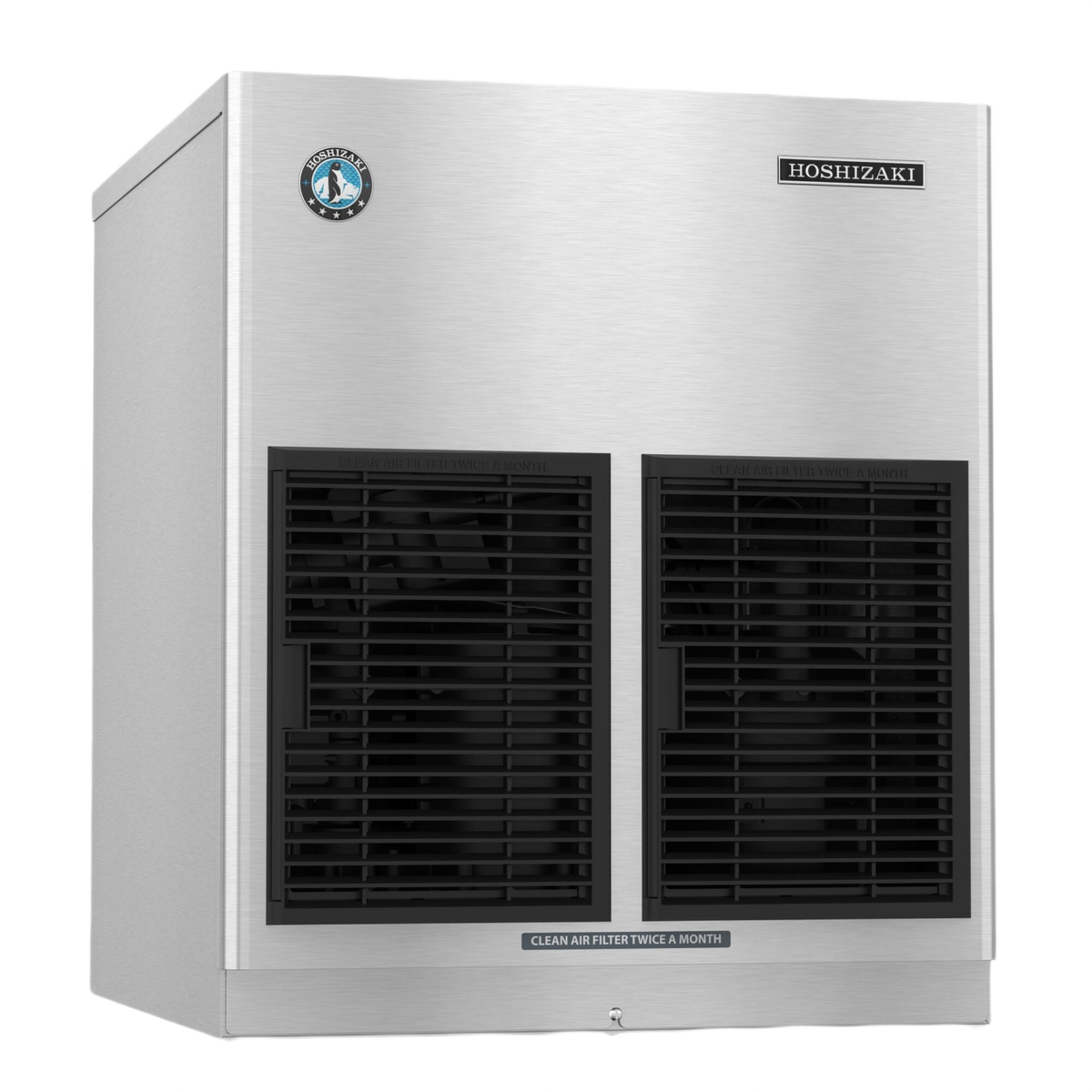

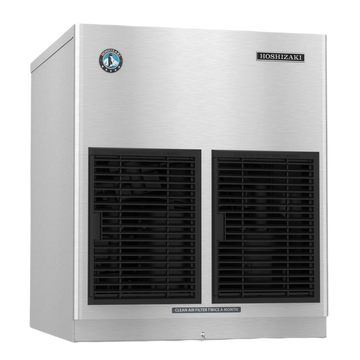

The Hoshizaki FD-1002MAJ-C is a 22-inch air-cooled modular cubelet ice machine head engineered for high-volume beverage and hydration service. It produces up to 890 lb of cubelet ice per 24 hours at 70°F air and 50°F water and is designed to work with compatible storage or dispensing equipment selected separately.

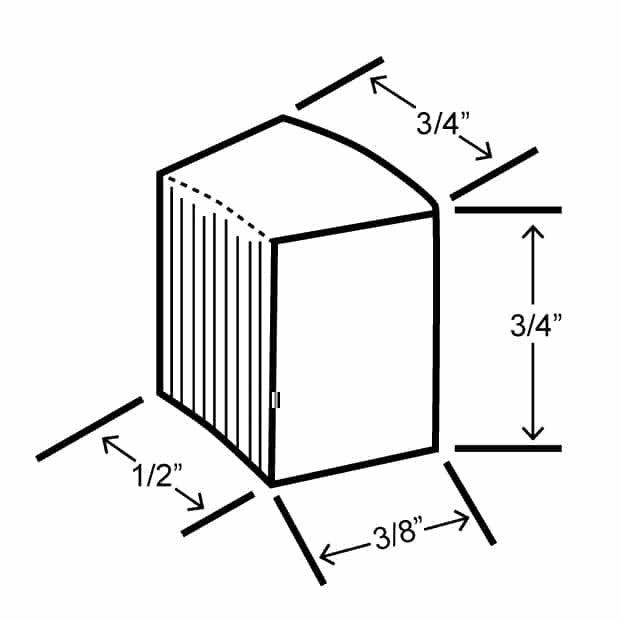

Cubelet ice is soft and chewable, making it a popular choice for fountain beverages, blended drinks, healthcare hydration, and self-service applications. The dispenser-ready configuration supports operations that need high-capacity ice production paired with a suitable direct-dispense or storage setup.
Its stainless steel exterior and stainless steel auger are built for commercial duty, and the greaseless bearing design helps streamline maintenance. Hoshizaki CleanCycle24 automatically runs a brief flush cycle every hour to help clear sediment. Infrared bin control monitors the selected storage or dispensing arrangement, while removable panels and an accessible air filter support routine service.
Key Features
- Cubelet ice
- Air-cooled
- Up to 890 lb/day
- 22 in. wide

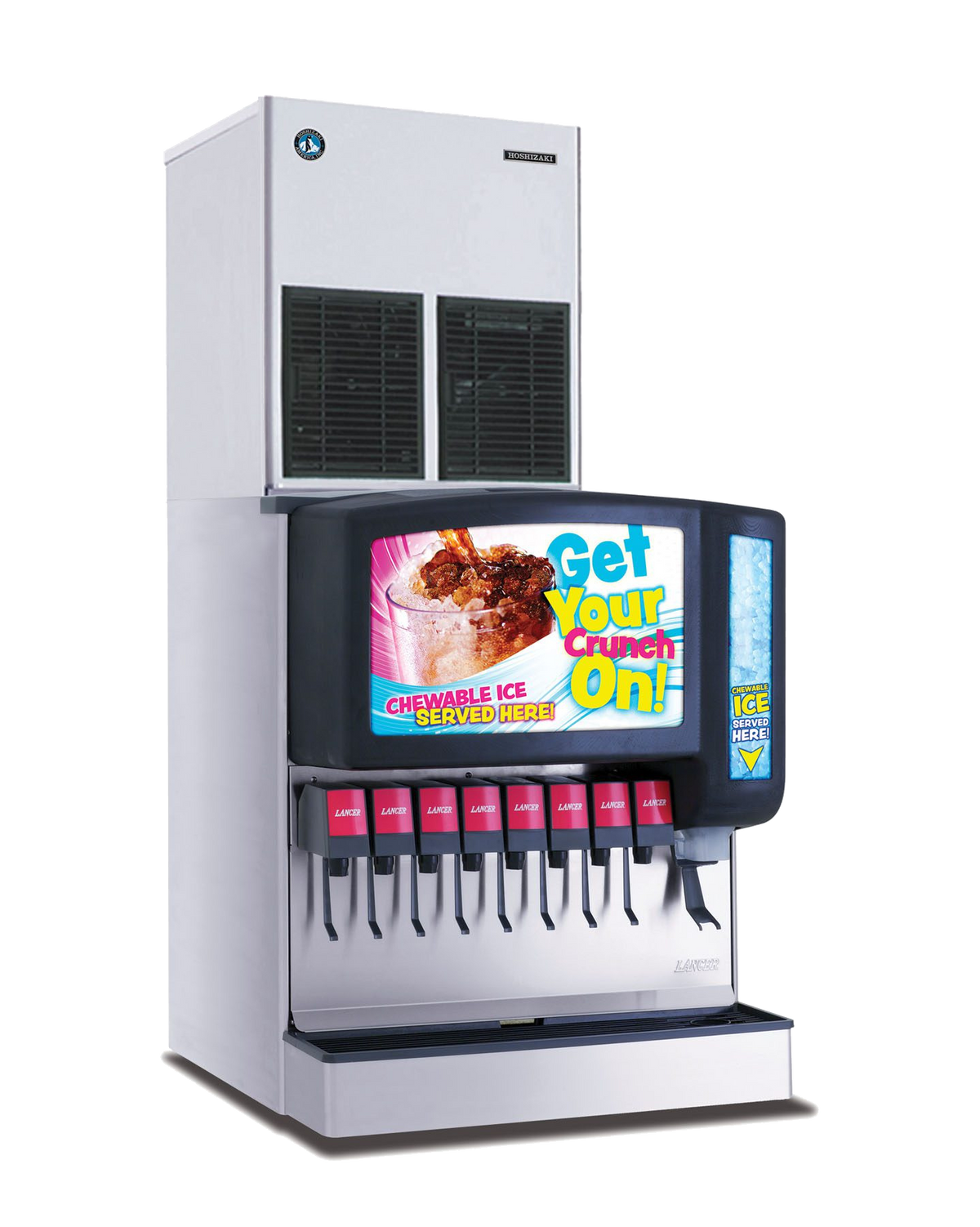

- Modular dispenser-ready head
- CleanCycle24
Best For
Quick-service restaurants, self-service beverage stations, healthcare facilities, cafeterias, and convenience stores that need high-volume chewable cubelet ice with a compatible dispensing or storage solution.

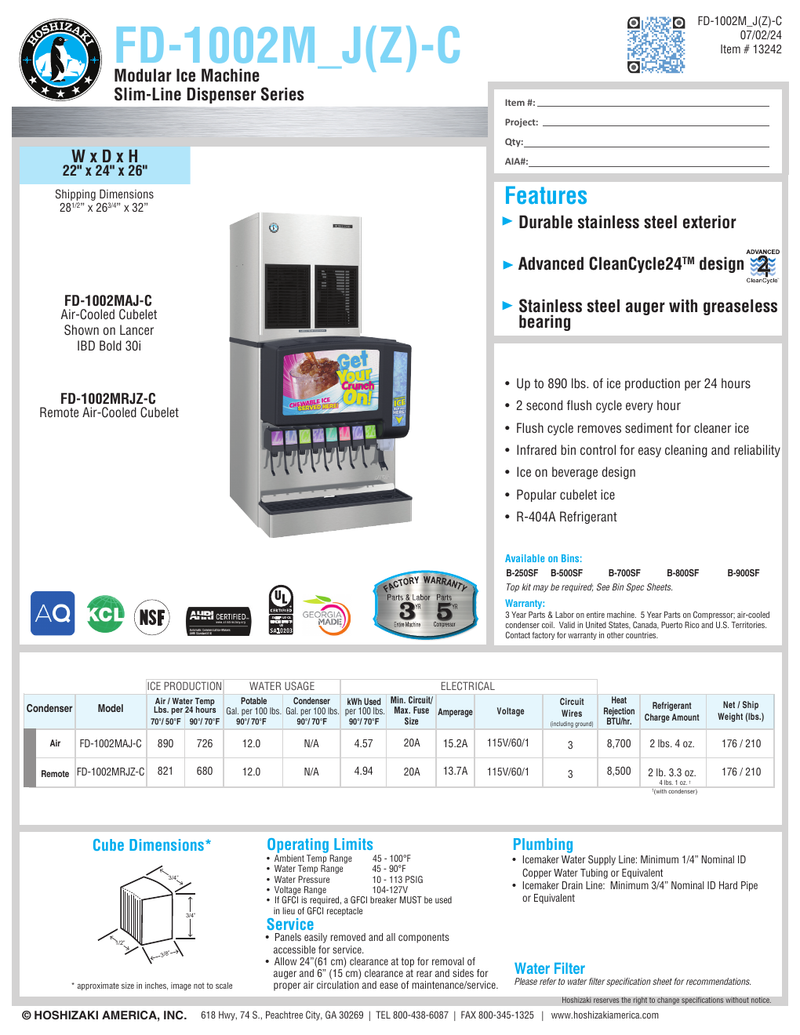

Full Specifications
| Specification | Detail |
|---|---|
| Brand | Hoshizaki |
| Model | FD-1002MAJ-C |
| Equipment type | Modular dispenser-ready cubelet ice machine head; compatible storage or dispensing equipment sold separately |
| Ice type | Cubelet ice |
| Cooling | Air-cooled |
| Daily production | 890 lb/24 hr at 70°F air / 50°F water; 726 lb/24 hr at 90°F air / 70°F water |
| Dimensions | 22 × 24 × 26 in. |
| Electrical | 115V / 60Hz / 1 phase; 15.2A; 20A maximum fuse; hardwired |
| Energy use | 4.57 kWh per 100 lb at 90°F air / 70°F water |
| Water use | 12 gal per 100 lb at 90°F air / 70°F water |
| Heat rejection | 8,700 BTU/hr |
| Refrigerant | R-404A; 2 lb 3.3 oz charge |
| Water inlet / drain | 1/2 in. FPT / 3/4 in. FPT |
| Operating conditions | 45°F–100°F air; 45°F–90°F water; 10–113 psig water pressure |
| Net / shipping weight | 176 / 210 lb |
Warranty
- 3 years parts and labor on the entire machine
- 5 years parts and labor on the evaporator
- 5 years parts on the compressor and air-cooled condenser coil
Installation and Maintenance Notes
- Allow 24 in. clearance above for auger removal and 6 in. at the rear and sides.
- Hardwire to a dedicated 115V electrical supply; no cord or plug is supplied.
- Confirm the compatible storage or dispensing equipment and any required top kit before installation.
