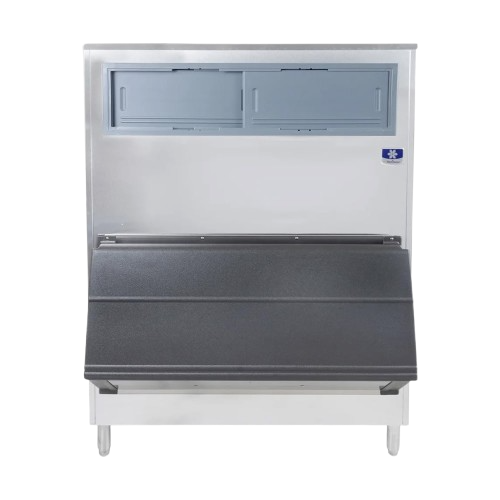

Manitowoc F1300 - Large Ice Reserves in a 48-Inch Upright Bin
Handle larger ice reserves with the Manitowoc F1300 upright ice storage bin. Its 1,194 lb application capacity supports high-demand kitchens and hospitality operations, while the 48-inch-wide cabinet provides a storage base for specified modular ice machines. A sliding ice gate controls the flow toward the access snout for removal with a scoop or shovel.
Heavy-duty welded construction and a stainless steel exterior are paired with a polyethylene liner and foamed-in-place insulation. Impact-resistant sliding windows provide a view into the storage compartment without fully opening the lift door, helping staff assess the available supply during service.
The durable polyethylene door has a ball-catch hinge that holds it open for access. The sliding ice gate controls the amount of ice released toward the snout and returns to its closed position. These are manual ice-handling features; the bin does not include the powered ice production equipment or the separate cart system shown elsewhere in the F-series literature.
The main cabinet measures 48 inches wide by 31 inches deep by 65 inches high. The fitted door snout adds 8 inches to the depth, and 18.5 inches of front clearance is required to open the door. Four 6-inch legs, a sanitary ice scoop and the K483048 single-head adapter are included. Applicable cube-machine configurations require a separate ice deflector.
Key Features
- 1,194 lb application storage capacity
- 48-inch-wide stainless steel cabinet
- Heavy-duty welded construction with insulated polyethylene-lined storage
- Sliding ice gate controls flow into the access snout
- Impact-resistant sliding inspection windows
- Polyethylene lift door with ball-catch hinge
- Includes K483048 single-head adapter
- Four 6-inch legs and sanitary scoop included
- NSF and AHRI certification
Best For
Large restaurants, hotels, banquet kitchens and institutional foodservice operations that need bulk ice storage and accessible manual ice handling.

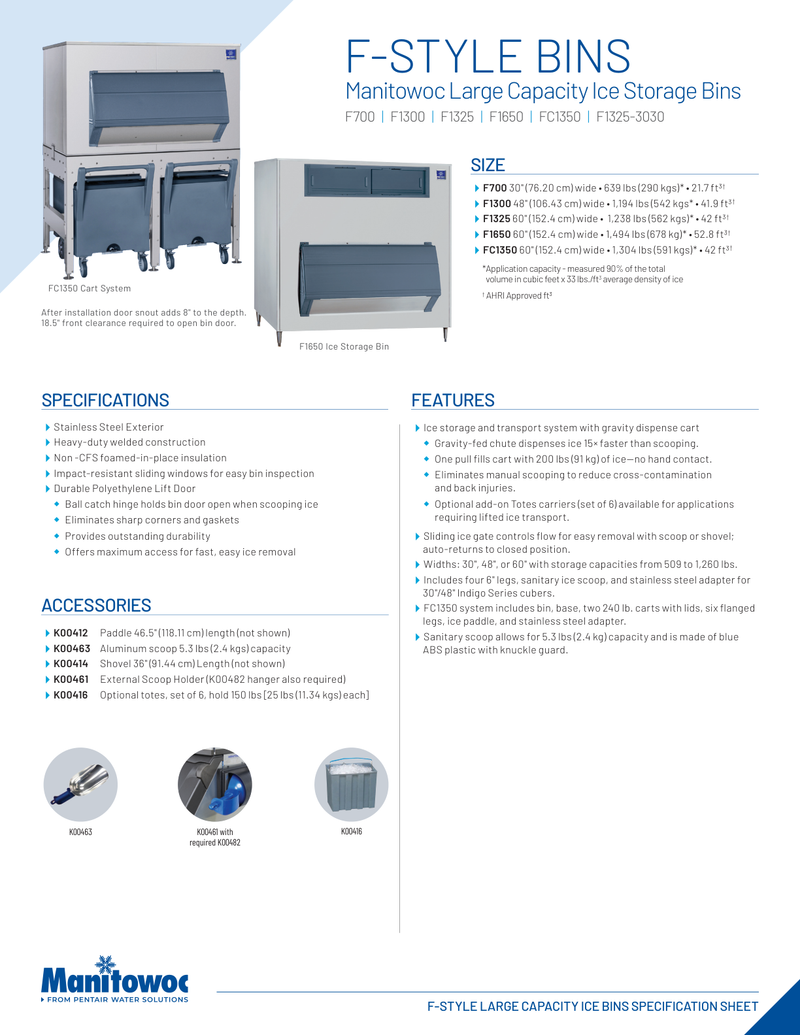

Full Specifications
| Specification | Details |
|---|---|
| Brand | Manitowoc |
| Model | F1300 |
| Product type | Large-capacity upright ice storage bin |
| Application capacity | 1,194 lb |
| Cabinet dimensions (W x D x H) | 48 x 31 x 65 in. |
| Installed snout projection | Adds 8 in. to cabinet depth |
| Door-opening clearance | 18.5 in. in front |
| Exterior | Stainless steel |
| Liner | Polyethylene |
| Insulation | Foamed-in-place |
| Door and access | Polyethylene lift door; sliding ice gate; sliding windows |
| Legs | Four 6-in. legs included |
| Included adapter | K483048 single-head adapter |
| Other included equipment | Sanitary ice scoop |
| Drain | 1 in. FPT |
| Approximate shipping weight | 292 lb |
| Certifications | NSF; AHRI |
| Capacity basis | Application capacity; not daily production |
Warranty
5 years parts and labor under the F-style bin limited commercial warranty. Limited lifetime corrosion coverage applies to the cabinet exterior, including top and trim, and the interior liner for the useful life of the product.
Installation and Maintenance Notes
- Ice machine head and required ice deflector are sold separately.
- For specified 30-inch front-facing-evaporator Indigo NXT cube machines, use K00347. Other head configurations require their designated deflector.
- Flake and nugget machines do not require the cube-machine ice deflector; their mounting adapter must still match the head/bin combination.
- Allow for the 8-inch snout projection and 18.5-inch door-opening clearance.
- Use the included K483048 adapter only with its specified single-head pairings.
- Optional ice-handling tools include K00412 paddle, K00414 shovel and K00463 scoop.
