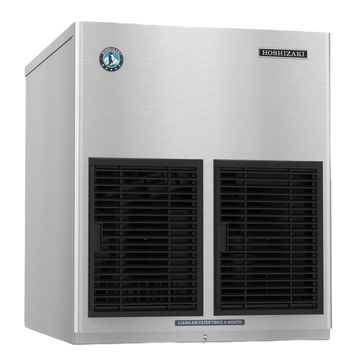

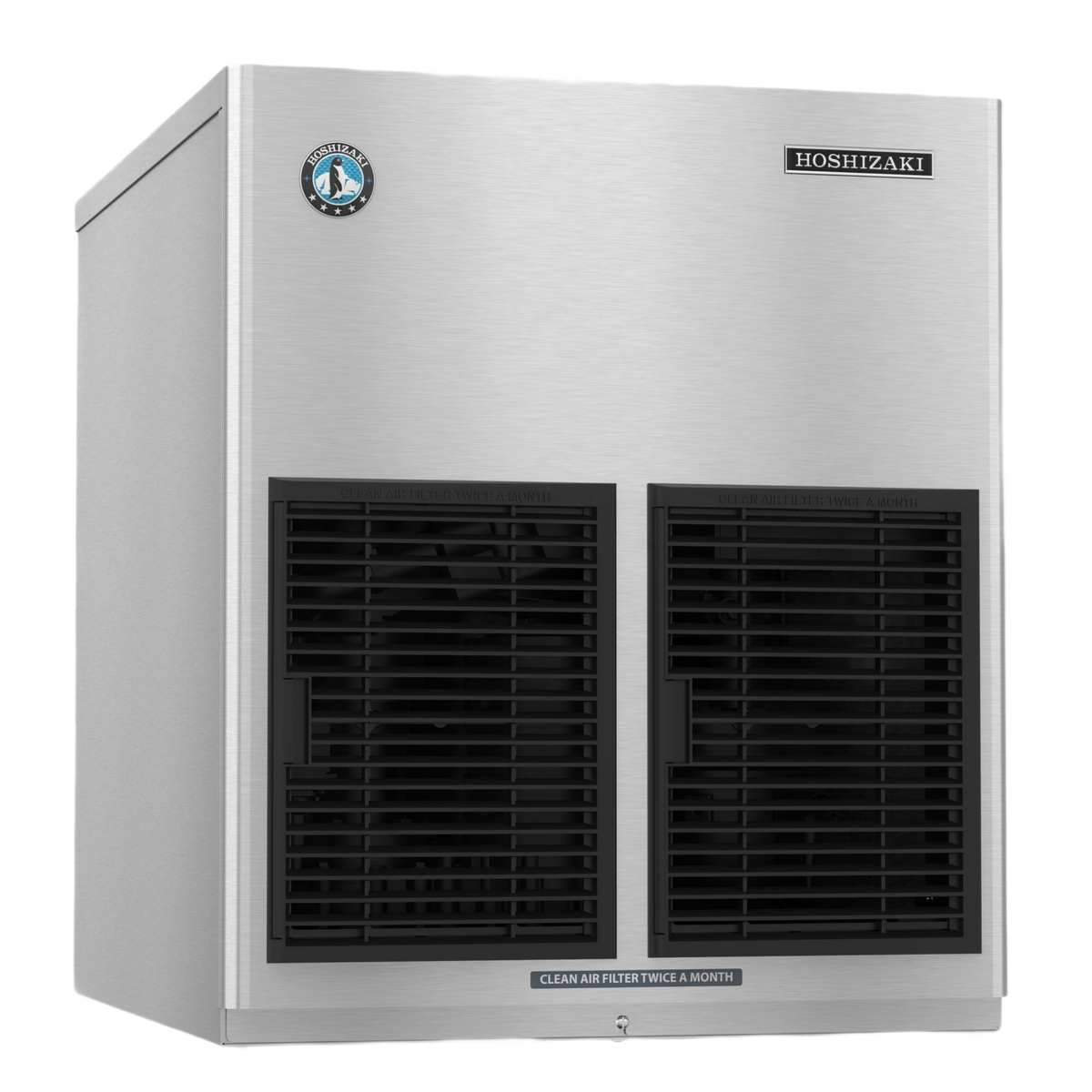

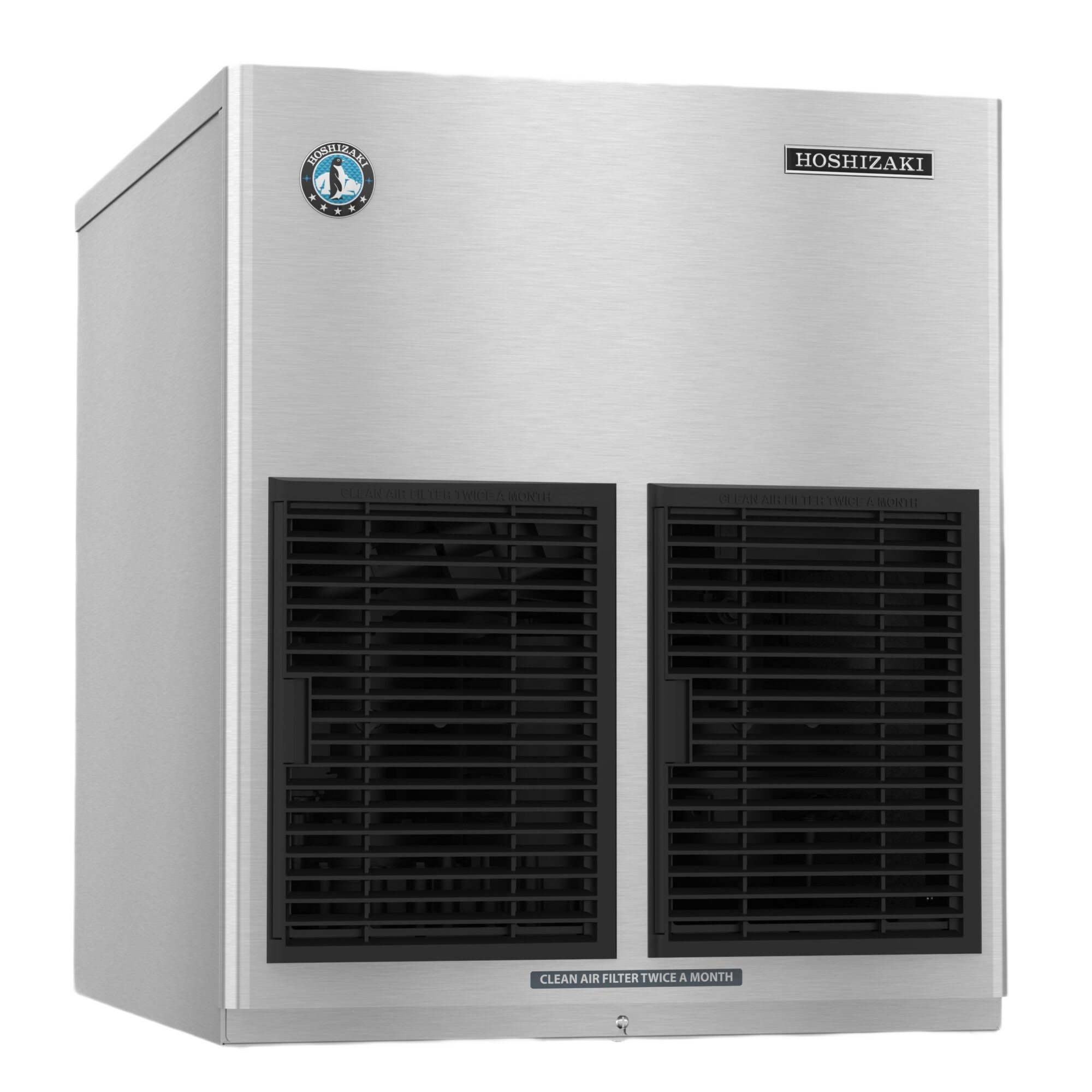

Hoshizaki F-822MAK-C - Slim-Line Cubelet Ice Machine Head with Advanced CleanCycle24

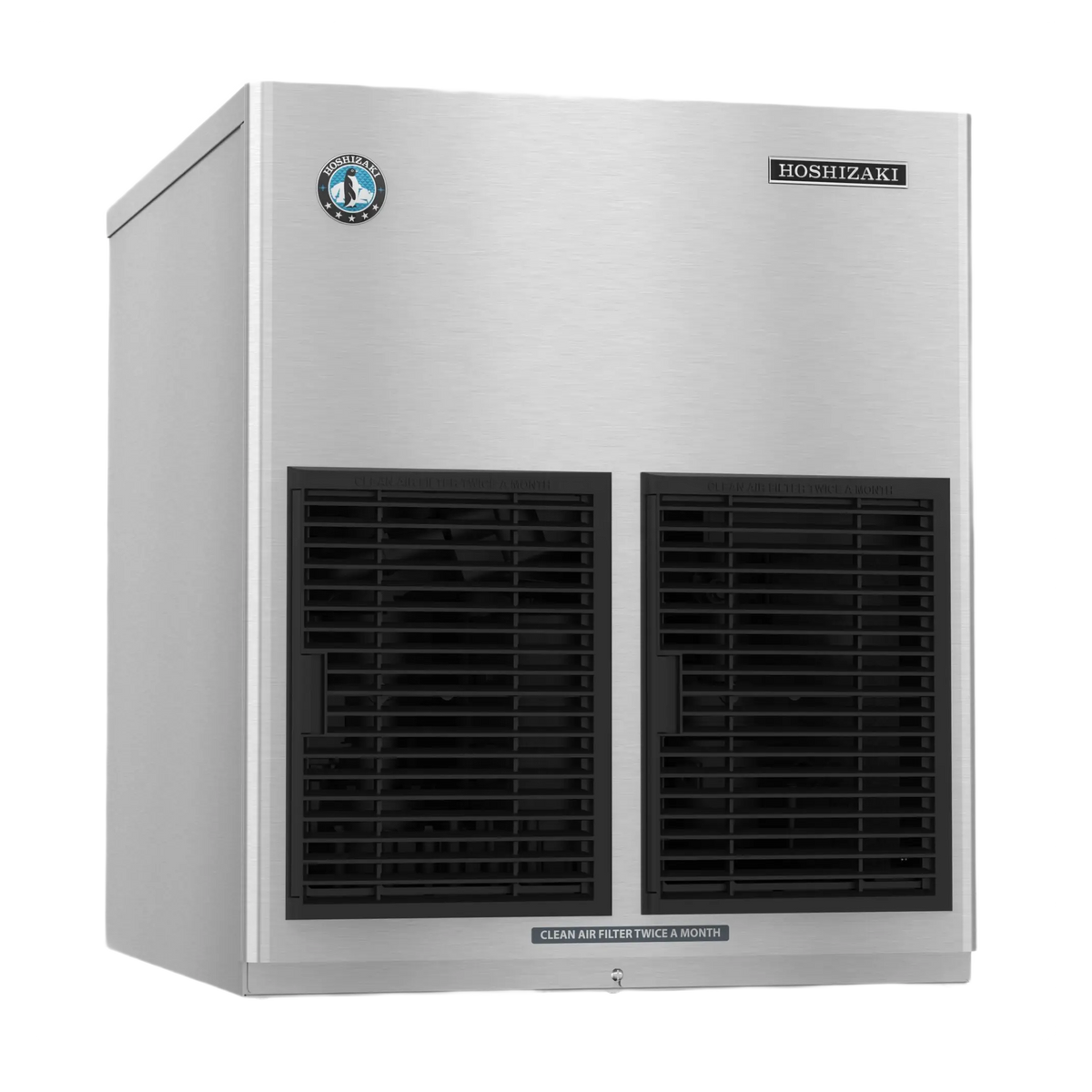

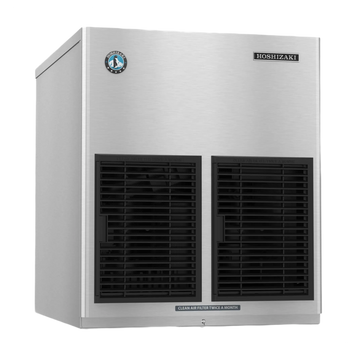

The Hoshizaki F-822MAK-C is an air-cooled modular cubelet ice maker that produces up to 653 lb of cubelet ice per 24 hours at 70°F air and 50°F water. At 90°F air and 70°F water, the AHRI rating is approximately 525 lb per day. This listing describes the cubelet configuration of the F-822 series; the machine head requires a compatible Hoshizaki storage bin or dispenser.
Cubelet ice is compact and chewable, making it popular for fountain beverages, healthcare, cafes and convenience foodservice. The stainless steel auger uses a greaseless bearing, and an ultrasonic sensor monitors the storage opening. Advanced CleanCycle24 flushes the system for two seconds every hour to help remove sediment, while a complete cleaning and sanitizing schedule keeps the water system in proper condition.

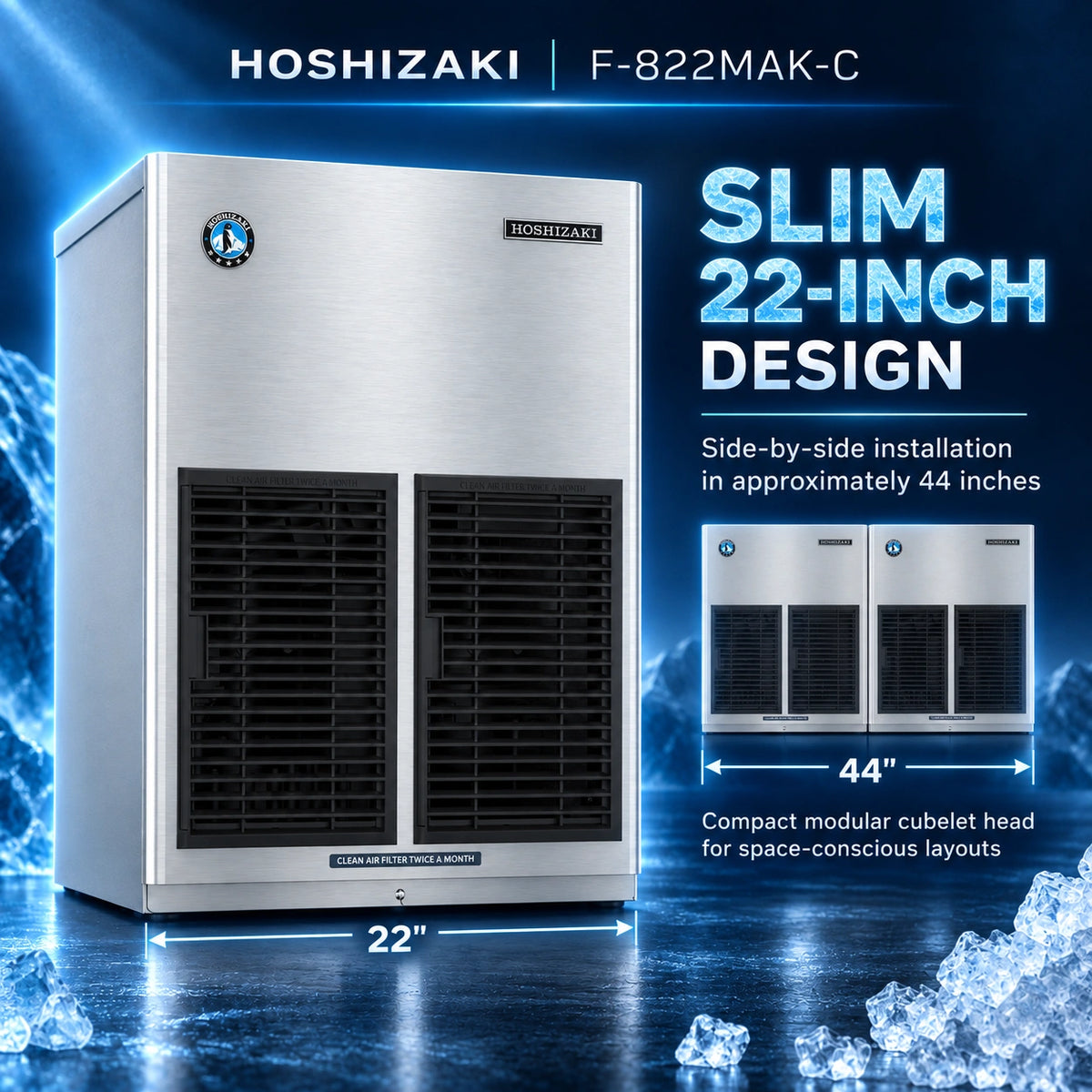

The slim 22-inch cabinet supports side-by-side installation of two units in approximately 44 inches. Leave 24 inches above the machine for auger removal and 6 inches at the rear and sides for service. R290 refrigerant lowers environmental impact, and the unit uses a 115V single-phase connection. Choose the compatible bin or dispenser and any top kit, water treatment and drain components separately.
Key Features
- Up to 653 lb/day of cubelet ice at 70°F air/50°F water
- Approximately 525 lb/day at 90°F air/70°F water
- Cubelet ice configuration for compact, chewable beverage ice

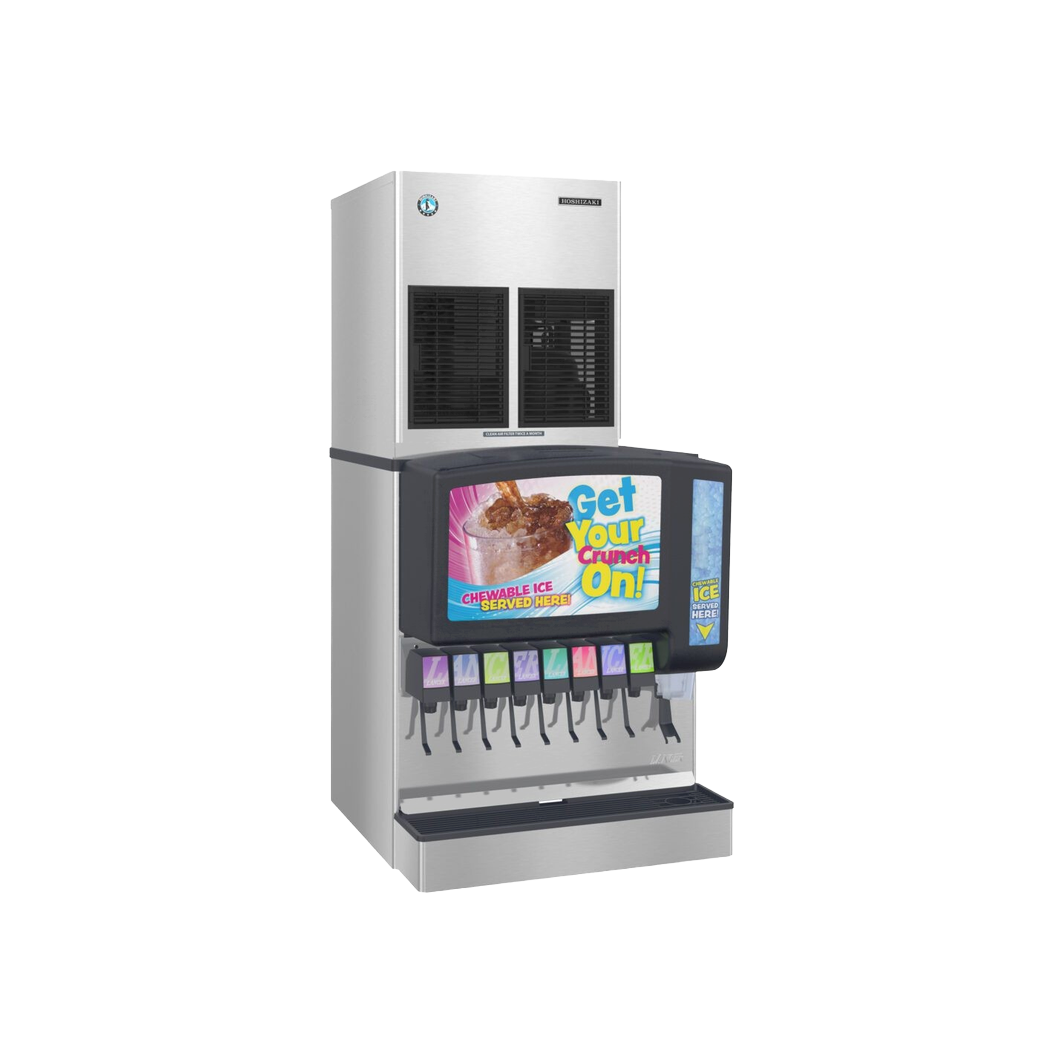

- Modular head for compatible Hoshizaki storage bins and dispensers
- Advanced CleanCycle24 two-second hourly flush
- Stainless steel auger with greaseless bearing
- Ultrasonic sensor and durable stainless steel exterior
- R290 hydrocarbon refrigerant and 115V single-phase operation
- Two-unit side-by-side installation in approximately 44 inches
Best For
Convenience stores, restaurants, cafes, healthcare facilities, hotels and beverage programs that need a slim modular cubelet ice machine head with low-GWP refrigeration.

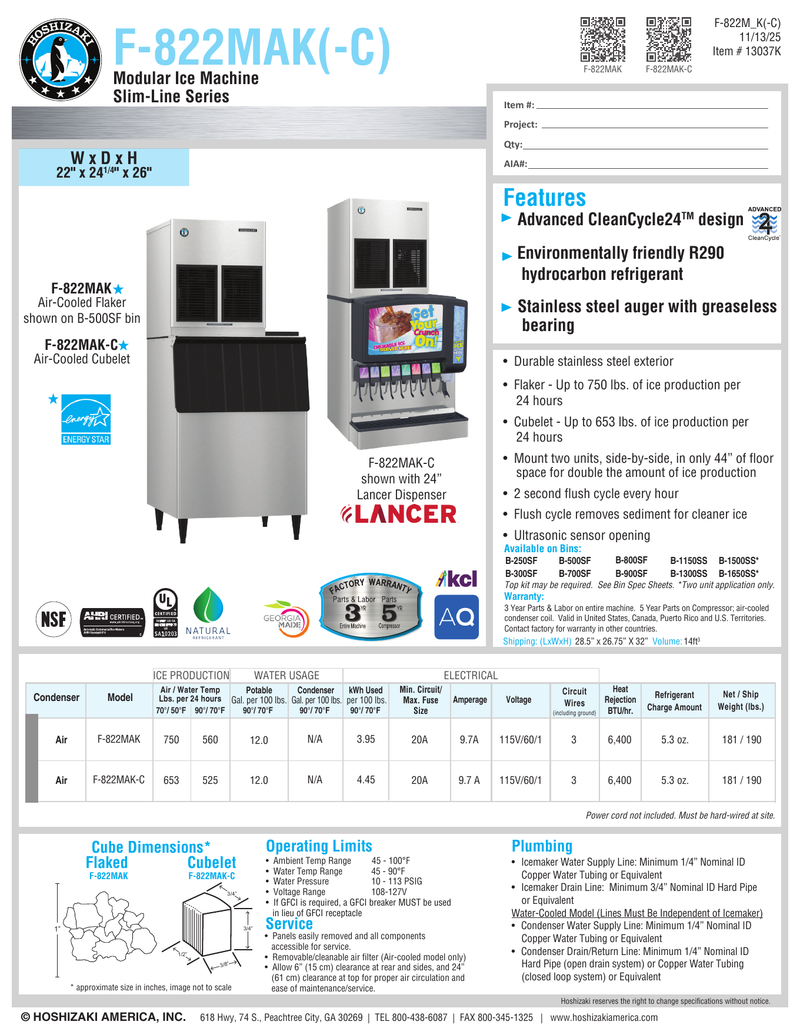

Full Specifications
| Brand | Hoshizaki |
| Model | F-822MAK-C |
| Type | Modular cubelet ice machine head |
| Ice Type | Cubelet ice |
| Cooling | Air-cooled |
| Maximum Production | 653 lb/24 hr at 70°F air/50°F water |
| AHRI Production | 525 lb/24 hr at 90°F air/70°F water |
| Dimensions | 22 in. W × 24-1/4 in. D × 26 in. H |
| Electrical | 115V / 60Hz / 1 phase; 20A maximum fuse; 9.7A |
| Energy Use | 4.45 kWh per 100 lb at 90°F/70°F |
| Potable Water Use | 12.0 gal per 100 lb |
| Heat Rejection | 6,400 BTU/hr |
| Refrigerant | R290; 5.3 oz charge |
| Water Inlet / Drain | 1/2-in. FPT inlet with minimum 1/4-in. ID supply / 3/4-in. FPT drain with minimum 3/4-in. hard pipe |
| Operating Temperatures | Air 45-100°F; water 45-90°F |
| Water Pressure | 10-113 PSIG |
| Net / Shipping Weight | 181 lb / 190 lb |
| Bin Compatibility | B-250SF, B-300SF, B-500SF, B-700SF, B-800SF, B-900SF, B-1150SS, B-1300SS, B-1500SS and B-1650SS; top kit may be required |
Warranty
- 3 years parts and labor on the entire machine
- 5 years parts on the compressor and air-cooled condenser coil
Installation and Maintenance Notes

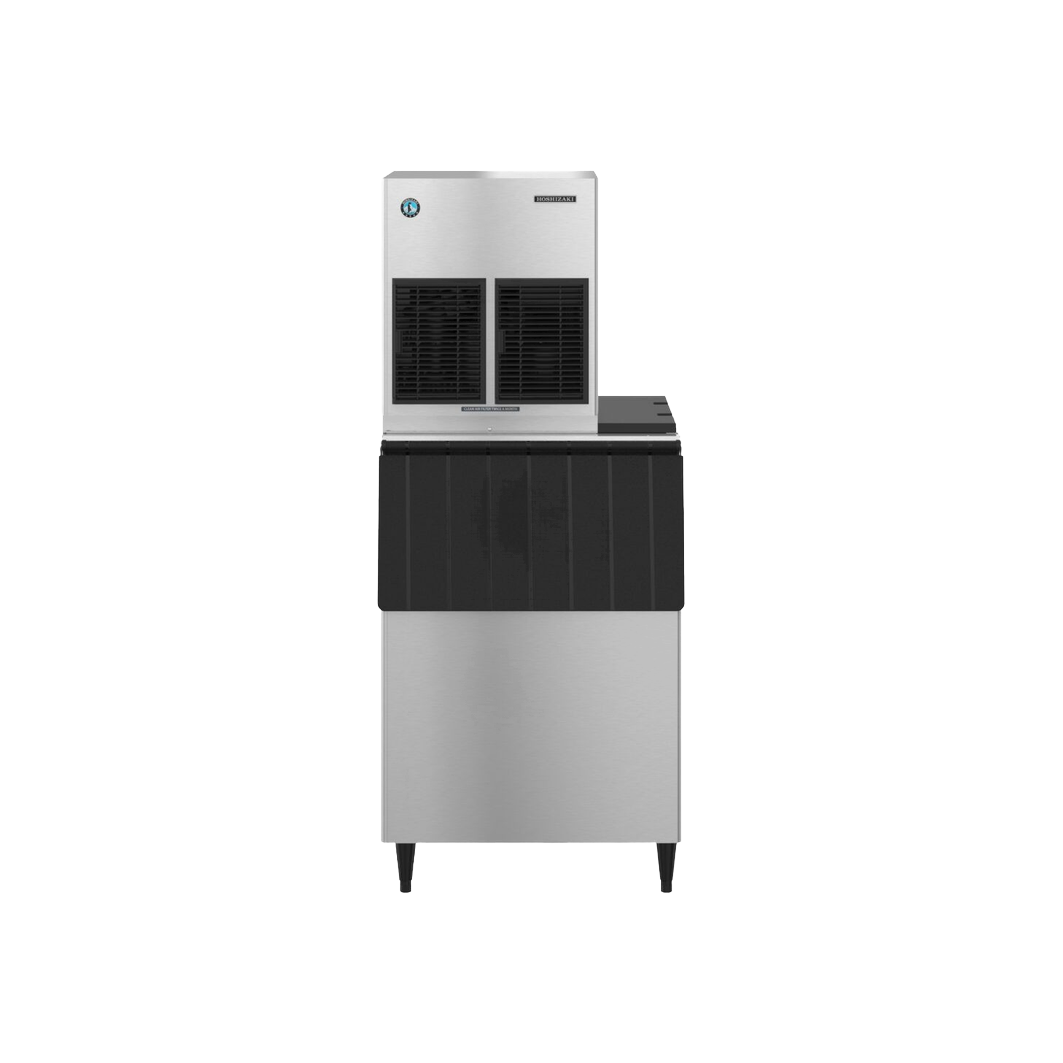

- This is the cubelet modular head; install it on a compatible bin or dispenser.
- Leave 6 in. rear and side clearance and 24 in. above for auger service.
- Connect potable cold water and an independent gravity drain.
- Advanced CleanCycle24 supports routine flushing but does not replace full cleaning and sanitizing.
- Production depends on ambient air, water temperature, pressure and other site conditions.
