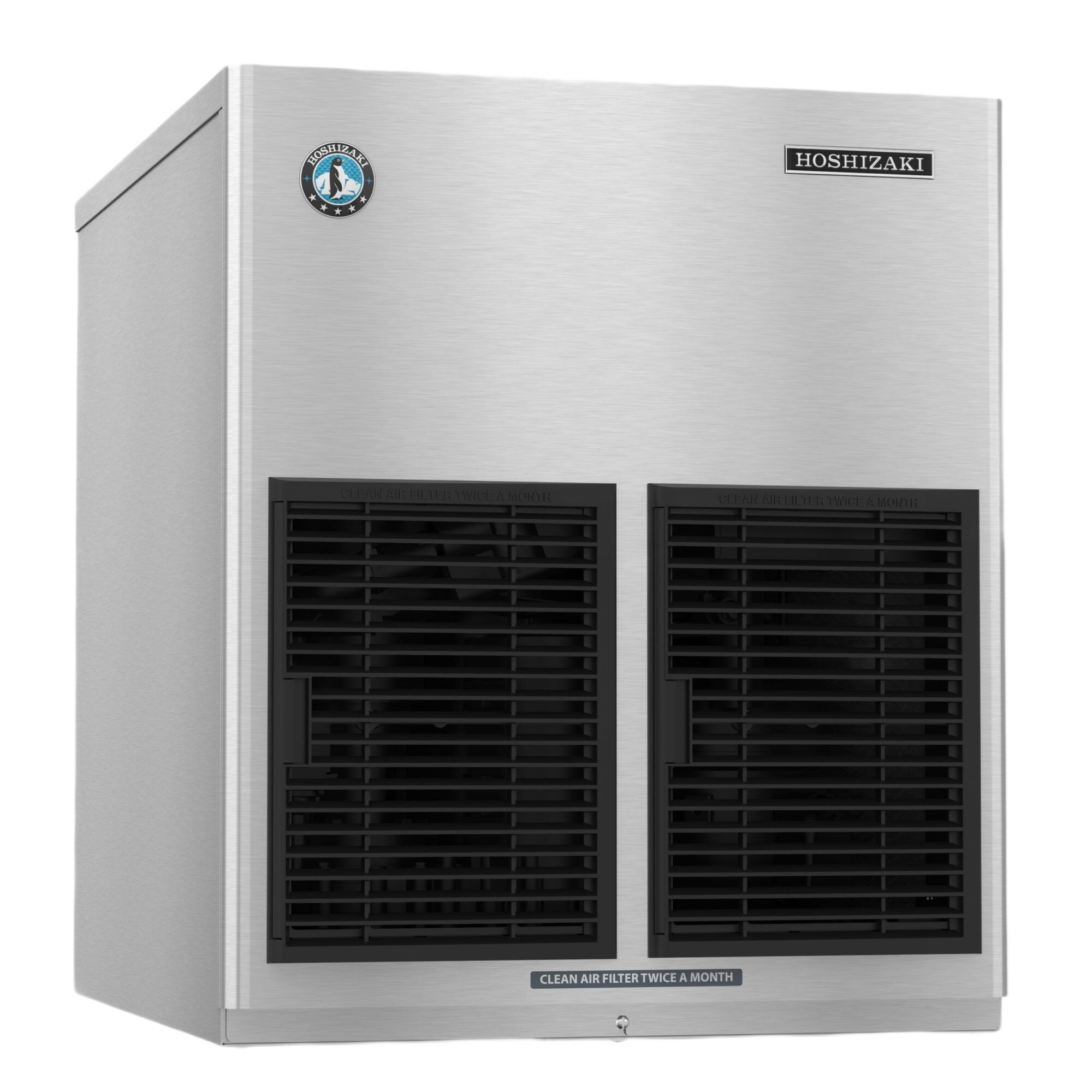

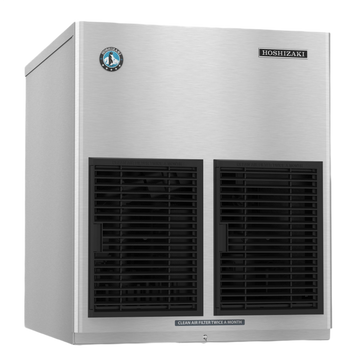

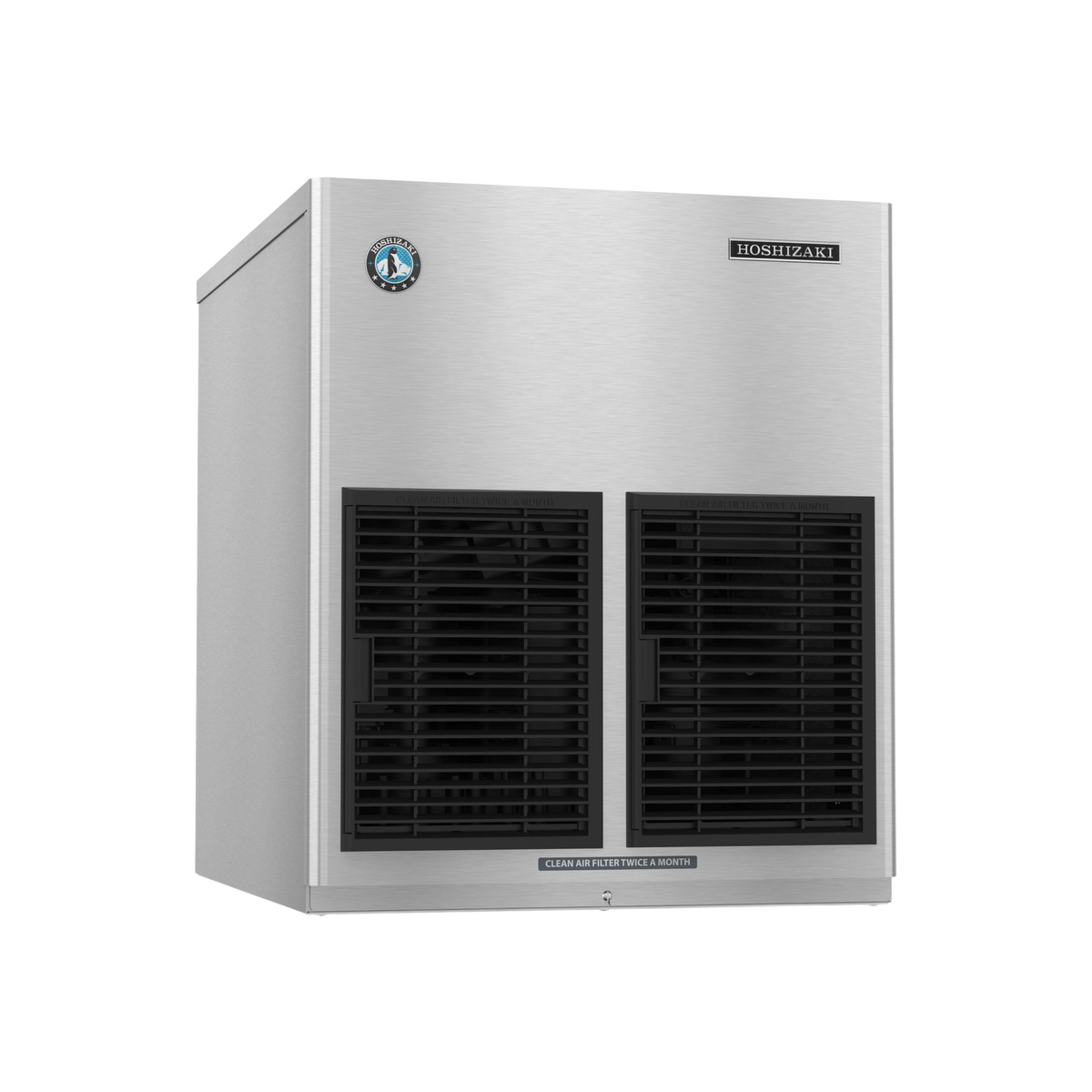

Hoshizaki F-801MAJ-C 22-Inch Air-Cooled Modular Cubelet Ice Machine Head - 632 lb/Day
Price Match Guarantee
Quick Shipping with Bank Deposit
Want your ice machine shipped sooner? Choose Bank Deposit at checkout for priority order processing once your payment is confirmed. Eligible orders are prioritized for fulfillment to help get your equipment on its way sooner.
-
Estimated Delivery: 5-7 Business Days*
Hoshizaki F-801MAJ-C 22-Inch Air-Cooled Modular Cubelet Ice Machine Head - 632 lb/Day
Hoshizaki F-801MAJ-C 22-Inch Air-Cooled Modular Cubelet Ice Machine Head - 632 lb/Day Description

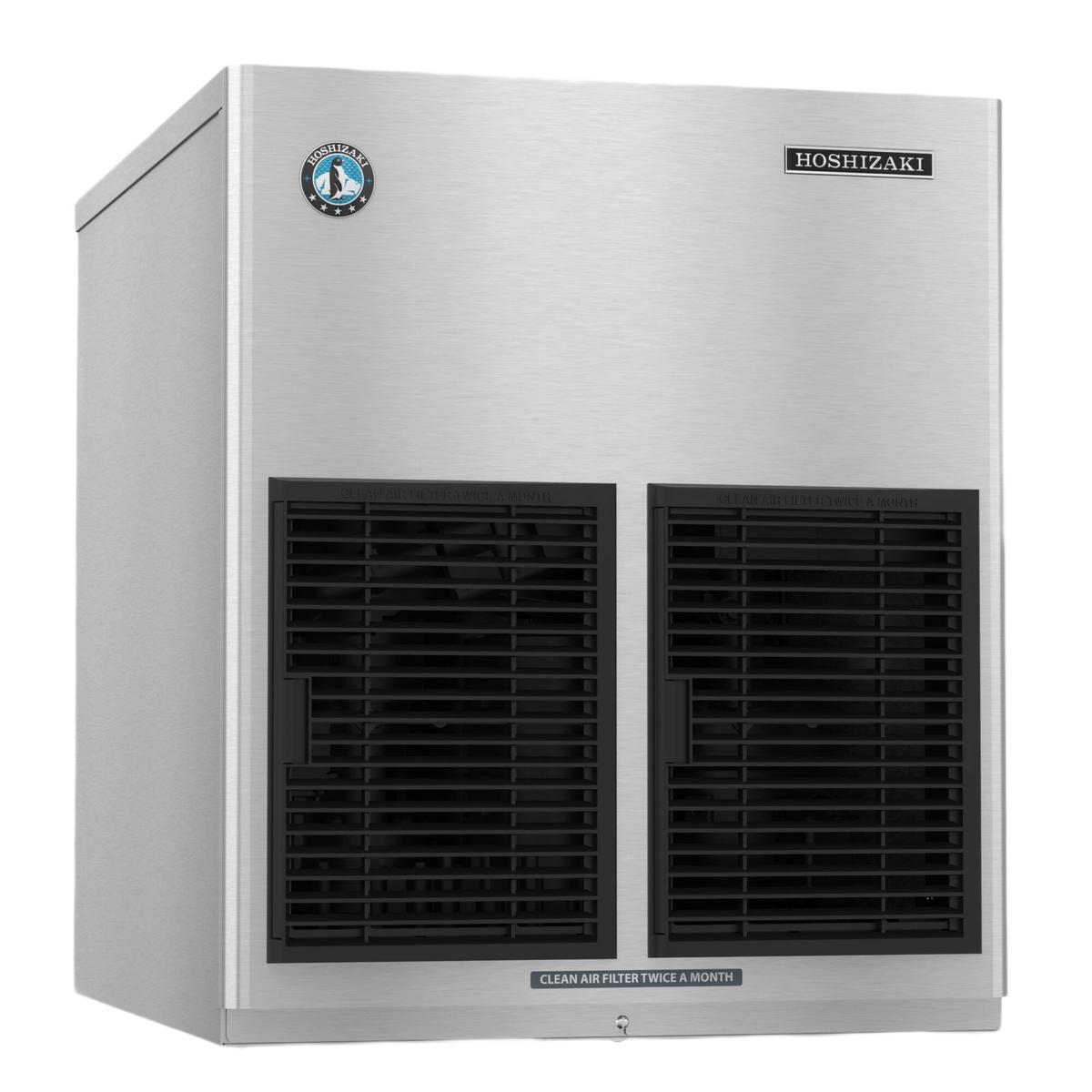

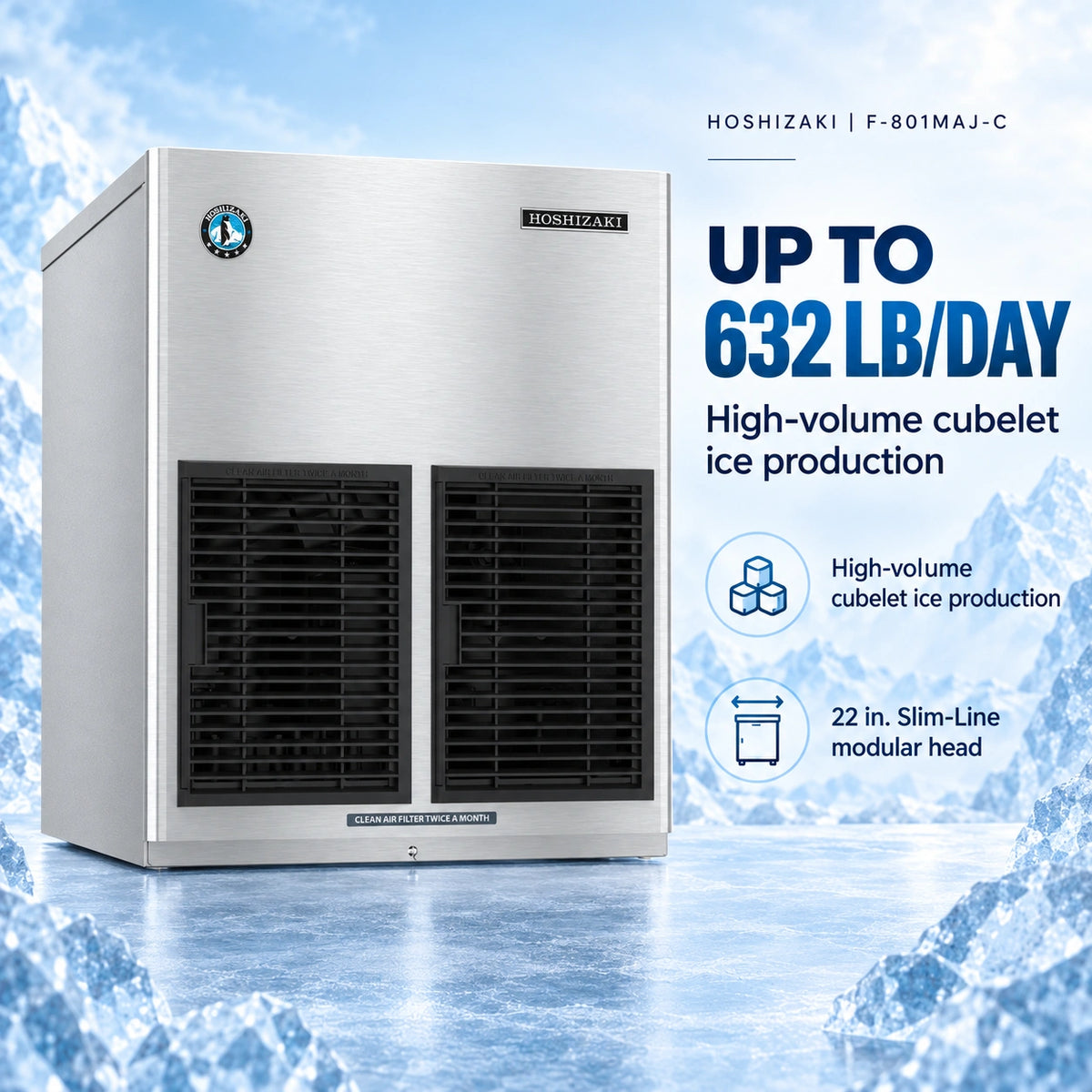

Hoshizaki F-801MAJ-C — High-Volume Cubelet Ice in a Slim 22-Inch Modular Head

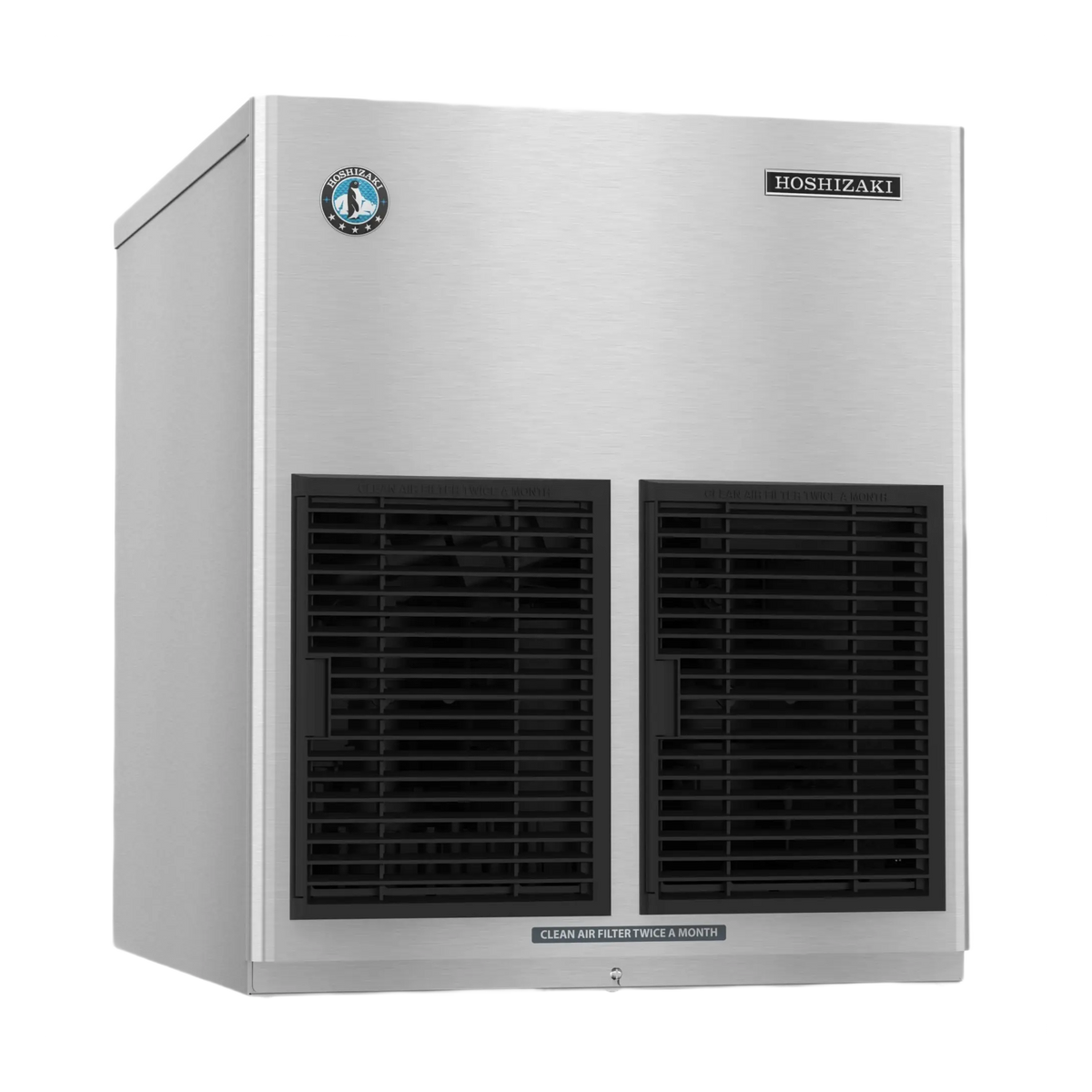

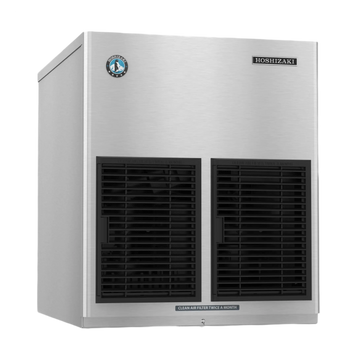

The Hoshizaki F-801MAJ-C is an air-cooled modular cubelet ice machine head designed for high-volume beverage and hydration applications. This 22-inch Slim-Line model is rated at up to 632 lb of cubelet ice per day on the manufacturer product page and installs above a compatible bin or dispenser selected separately.

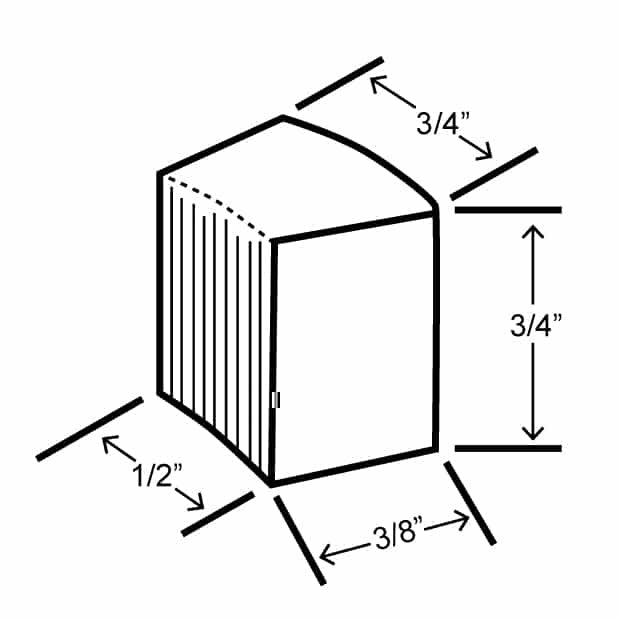

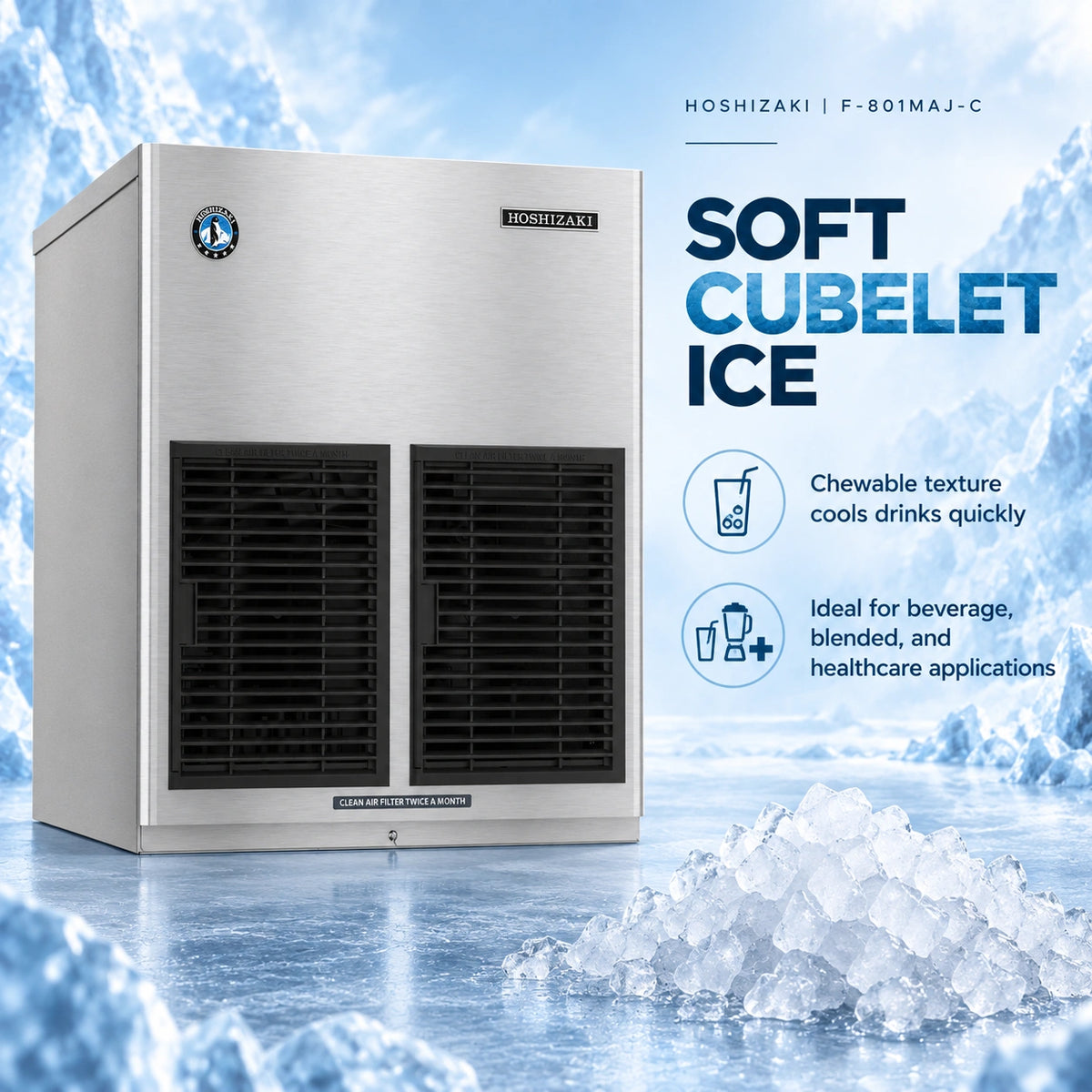

Cubelet ice has a soft, chewable texture that cools drinks quickly and is especially popular for healthcare hydration, self-service beverages, blended drinks, and convenience-store fountain programs. Its compact 22-inch width helps operations add substantial ice capacity where space is limited.
The stainless steel exterior and stainless steel auger are built for commercial use, while the greaseless bearing design helps simplify maintenance. Hoshizaki CleanCycle24 automatically runs a brief flush cycle each hour to help clear sediment. Infrared bin control works with the selected storage or dispensing arrangement, and removable panels plus an accessible air filter support routine service.
Key Features
- Cubelet ice
- Air-cooled
- Up to 632 lb/day
- 22 in. wide Slim-Line cabinet

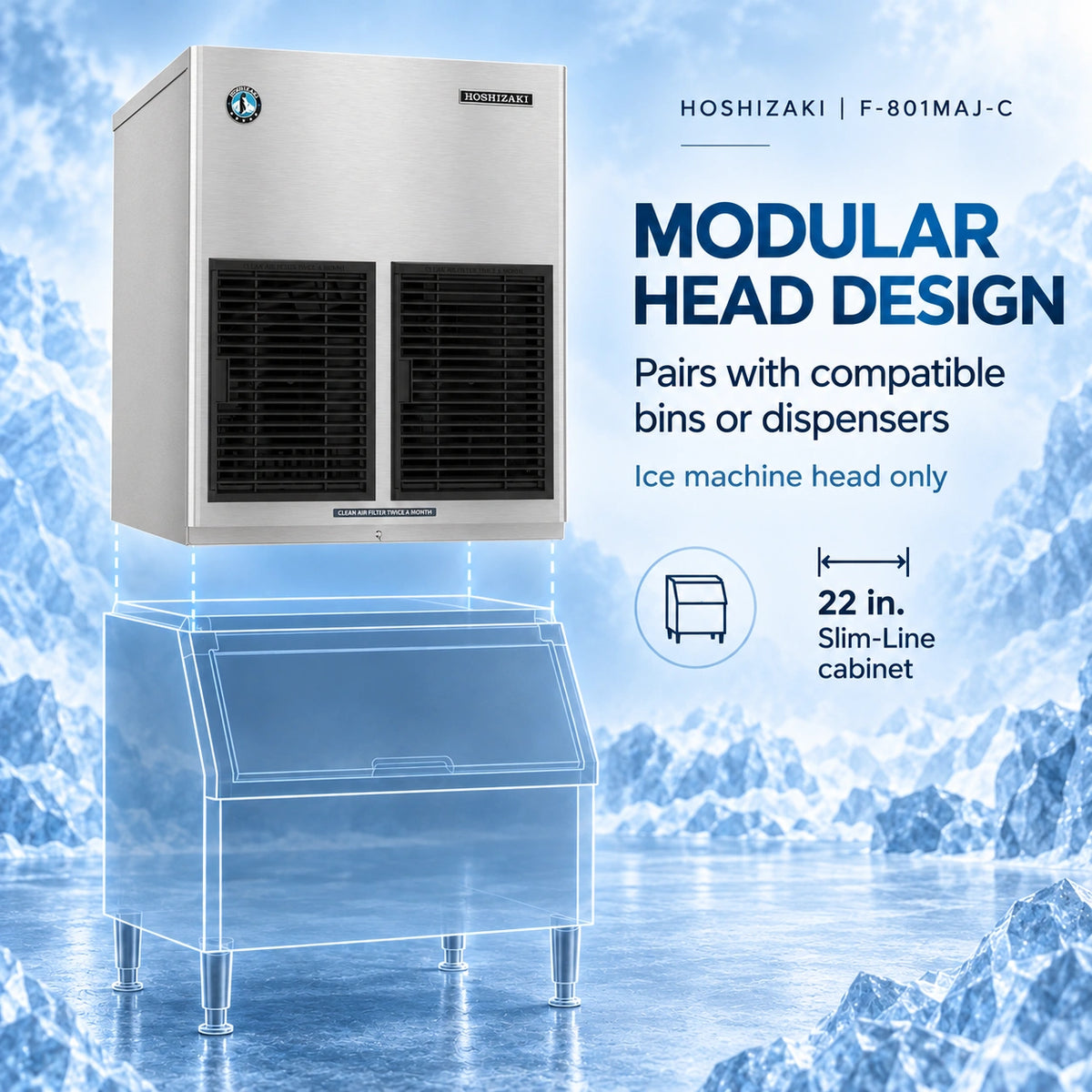

- Modular head; bin or dispenser sold separately
- ENERGY STAR qualified
Best For
Healthcare facilities, cafeterias, convenience stores, beverage counters, and self-service stations that need chewable cubelet ice with independently selected storage or dispensing capacity.

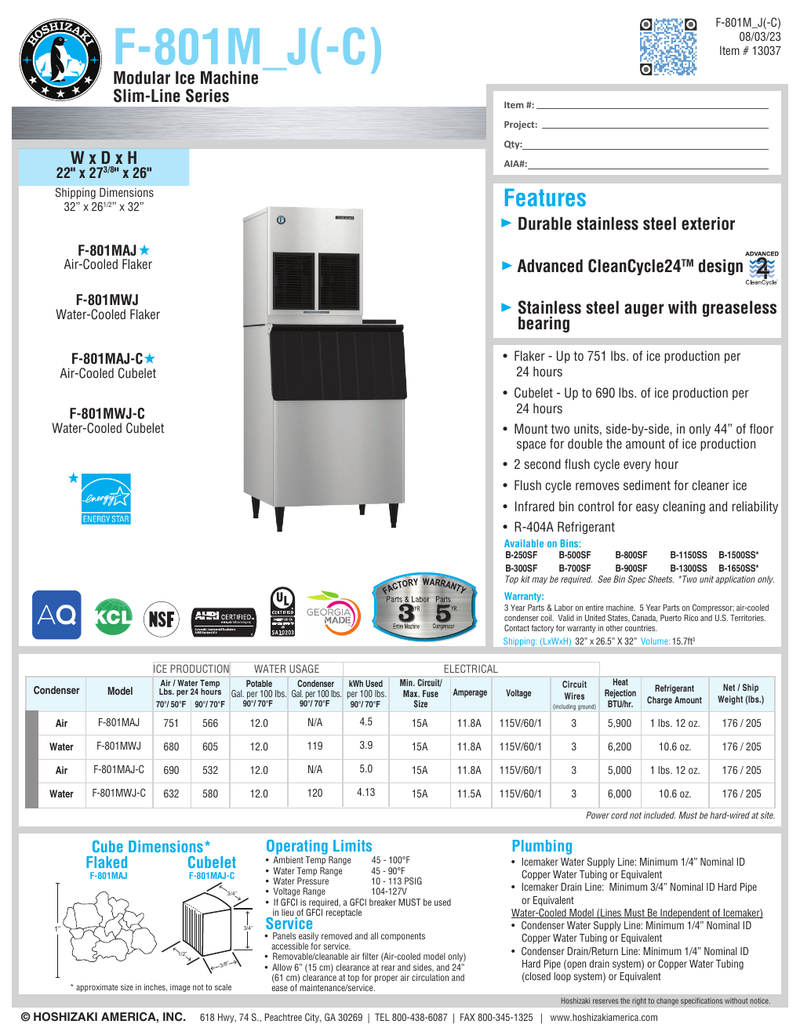

Full Specifications
| Specification | Detail |
|---|---|
| Brand | Hoshizaki |
| Model | F-801MAJ-C |
| Equipment type | Modular cubelet ice machine head; bin or dispenser sold separately |
| Ice type | Cubelet ice |
| Cooling | Air-cooled |
| Daily production | Up to 632 lb/day on the manufacturer product page; 690 lb/24 hr at 70°F air / 50°F water and 532 lb/24 hr at 90°F air / 70°F water on the specification sheet |
| Dimensions | 22 × 27-3/8 × 26 in. |
| Electrical | 115V / 60Hz / 1 phase; 11.8A; 15A maximum fuse; hardwired |
| Energy use | 5.0 kWh per 100 lb at 90°F air / 70°F water |
| Water use | 12 gal per 100 lb at 90°F air / 70°F water |
| Heat rejection | 5,900 BTU/hr |
| Refrigerant | R-404A; 1 lb 12 oz charge |
| Water inlet / drain | 1/2 in. FPT / 3/4 in. FPT |
| Operating conditions | 45°F–100°F air; 45°F–90°F water; 10–113 psig water pressure |
| Net / shipping weight | 176 / 205 lb |
Warranty
- 3 years parts and labor on the entire machine
- 5 years parts and labor on the evaporator
- 5 years parts on the compressor and air-cooled condenser coil
Installation and Maintenance Notes
- Allow 24 in. clearance above for auger removal and 6 in. at the rear and sides.
- Hardwire to a dedicated 115V electrical supply; no cord or plug is supplied.
- Confirm the compatible bin or dispenser and any required top kit before installation.
