Hoshizaki F-622MAK-C Modular Cubelet Ice Machine Head - 640 lb/Day, Air-Cooled
Price Match Guarantee
-
Estimated Delivery: 7-10 Business Days
Hoshizaki F-622MAK-C Modular Cubelet Ice Machine Head - 640 lb/Day, Air-Cooled
Hoshizaki F-622MAK-C Modular Cubelet Ice Machine Head - 640 lb/Day, Air-Cooled Description

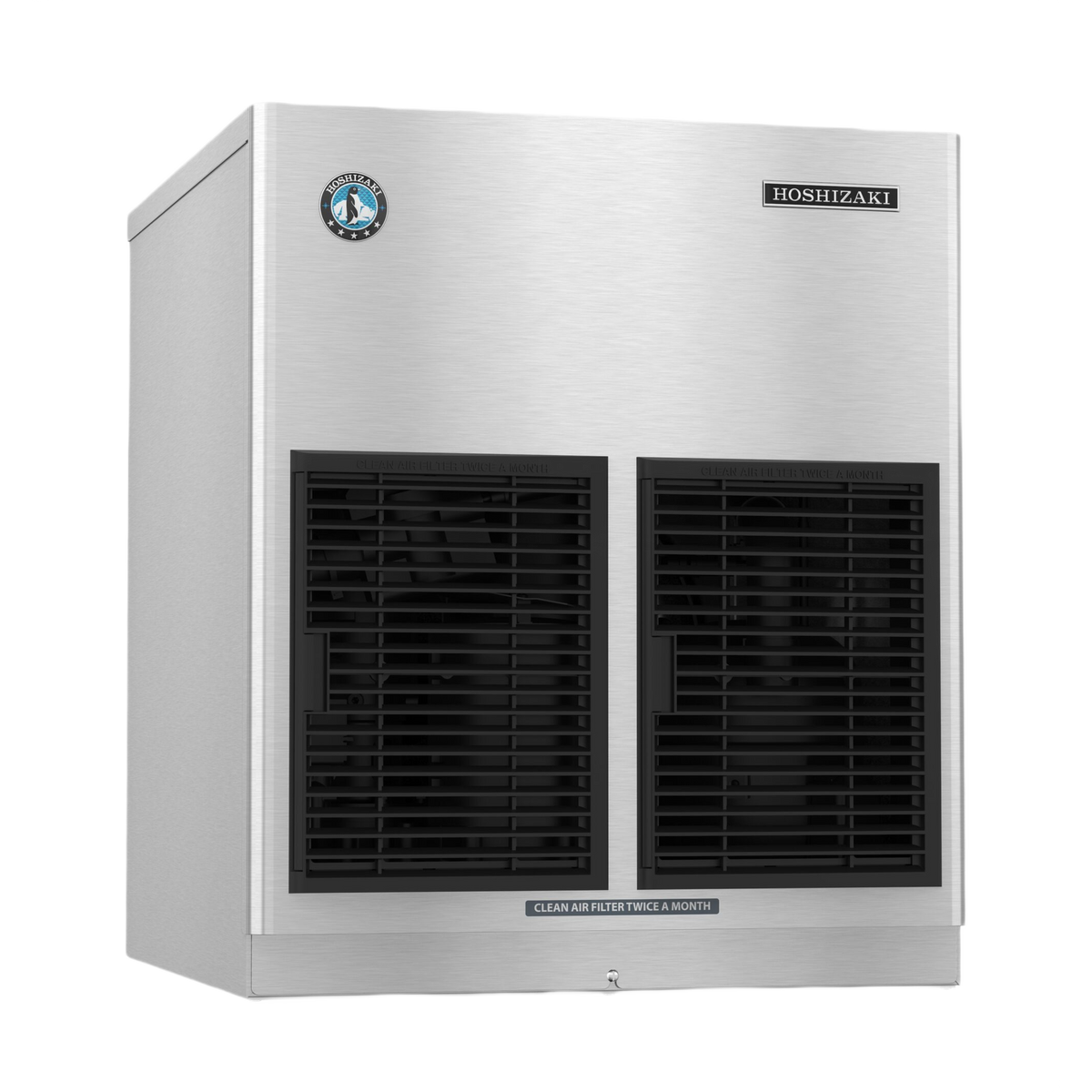

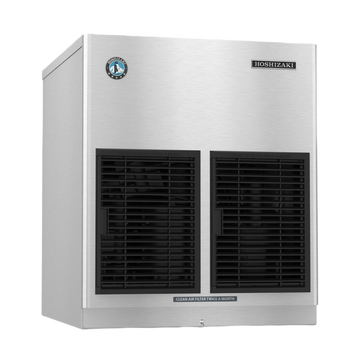

Hoshizaki F-622MAK-C — Modular Cubelet Ice Production with Flexible Storage
Supply a busy beverage program with a slim-line modular cubelet ice machine. Its adjustable ultrasonic bin control helps installers adapt the head to the selected bin or dispenser, while the separate storage arrangement allows a flexible equipment layout. The Hoshizaki F-622MAK-C modular cubelet ice machine produces up to 640 lb per 24 hours at 70°F air/50°F water. At 90°F air/70°F water, its rated output is 500 lb per day. A storage bin or dispenser is not included with the machine head.

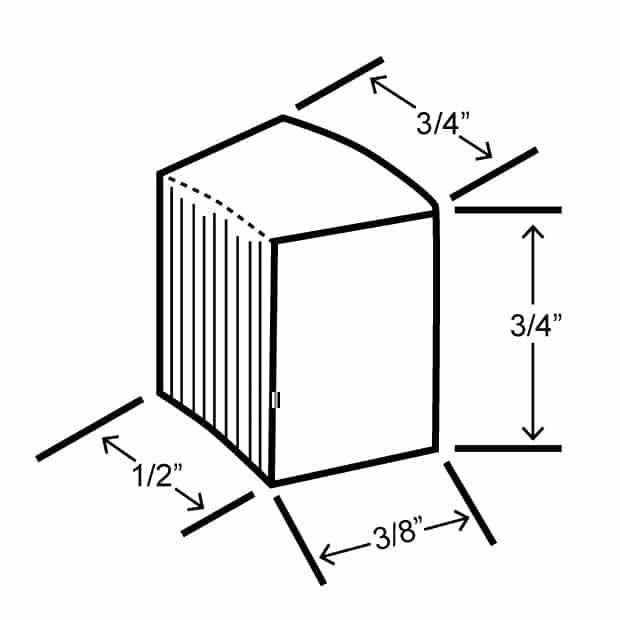

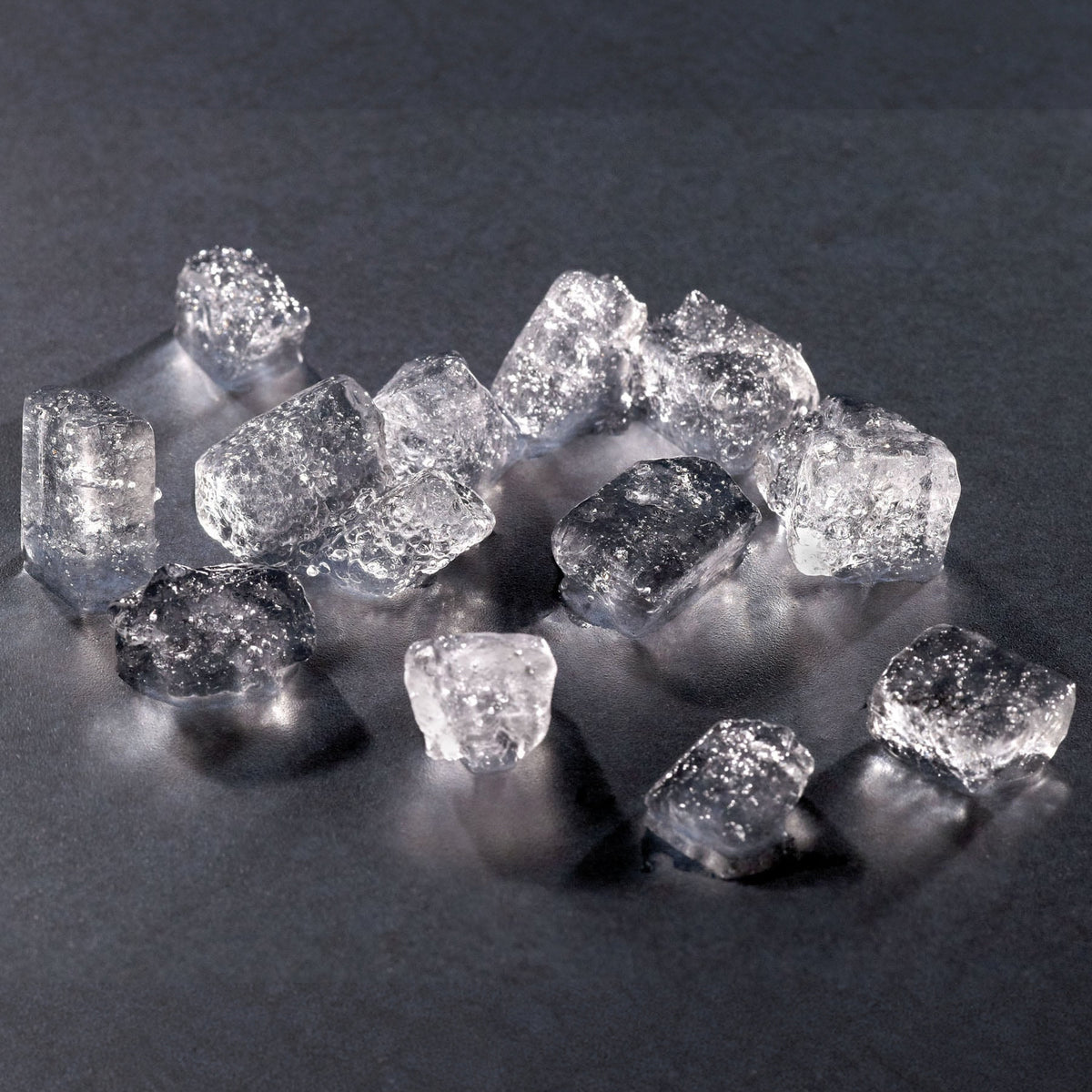

Cubelet ice offers a small, nugget-style format for iced beverages and customers who prefer chewable ice. The stainless steel auger uses a greaseless bearing, and Advanced CleanCycle24 provides a two-second flush every hour to help remove sediment. This automatic flushing supports routine care but does not replace scheduled cleaning and sanitizing.

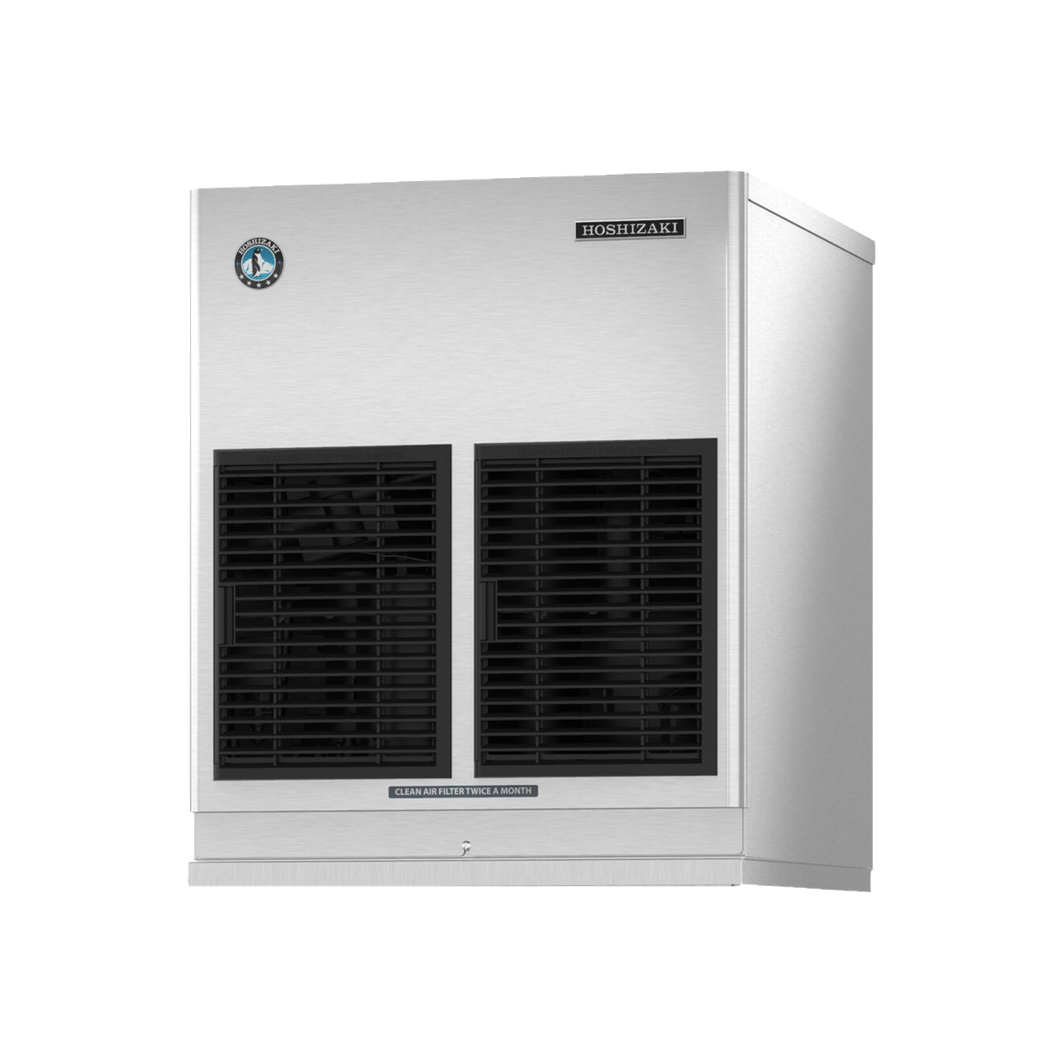

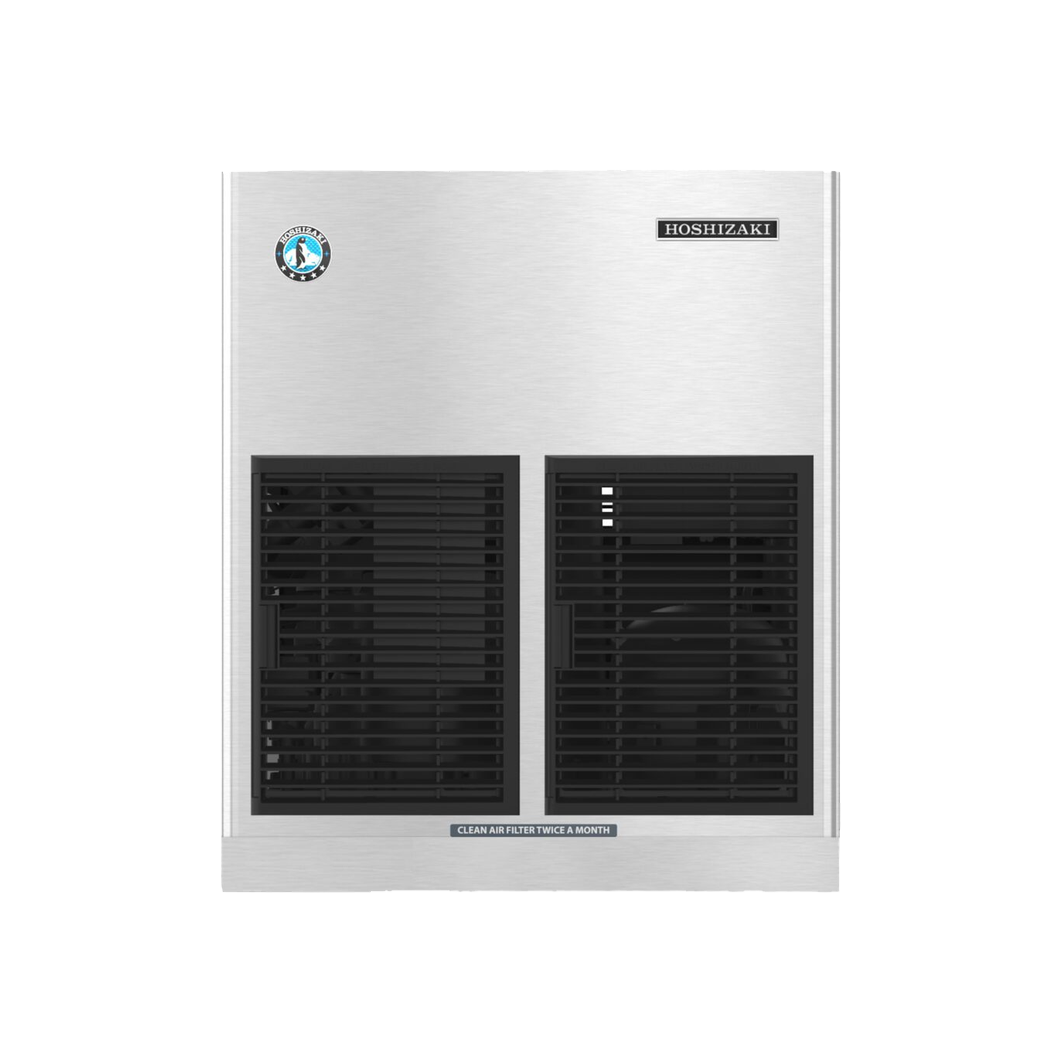

A durable stainless steel exterior and removable service panels suit commercial installations. The machine is designed to work above approved storage equipment, and the installer must confirm any required top kit and sensor alignment. The air-cooled refrigeration system uses R290 hydrocarbon refrigerant.
The cabinet dimensions are 22-1/8 × 24-1/4 × 25-7/8 in. (W × D × H). Electrical service is 115V/60Hz/single phase with a 20A circuit/fuse rating. Allow 24 in. above for auger removal and 6 in. at the rear and sides for ventilation and service. Production changes with room and inlet-water temperatures, so size the installation using the hotter-condition output as well as the maximum rating.
Key Features
- Up to 640 lb/day at 70°F air/50°F water
- Stainless steel auger with greaseless bearing
- Advanced CleanCycle24 design
- Two-second flush cycle every hour
- Durable stainless steel exterior
- Adjustable factory-installed ultrasonic bin control
- Removable panels provide service access
- R290 hydrocarbon refrigerant
Best For
Restaurants, cafés, hotels and self-service beverage stations that need cubelet ice and independently selected storage or dispensing equipment.
Full Specifications
| Specification | Detail |
|---|---|
| Brand | Hoshizaki |
| Model | F-622MAK-C |

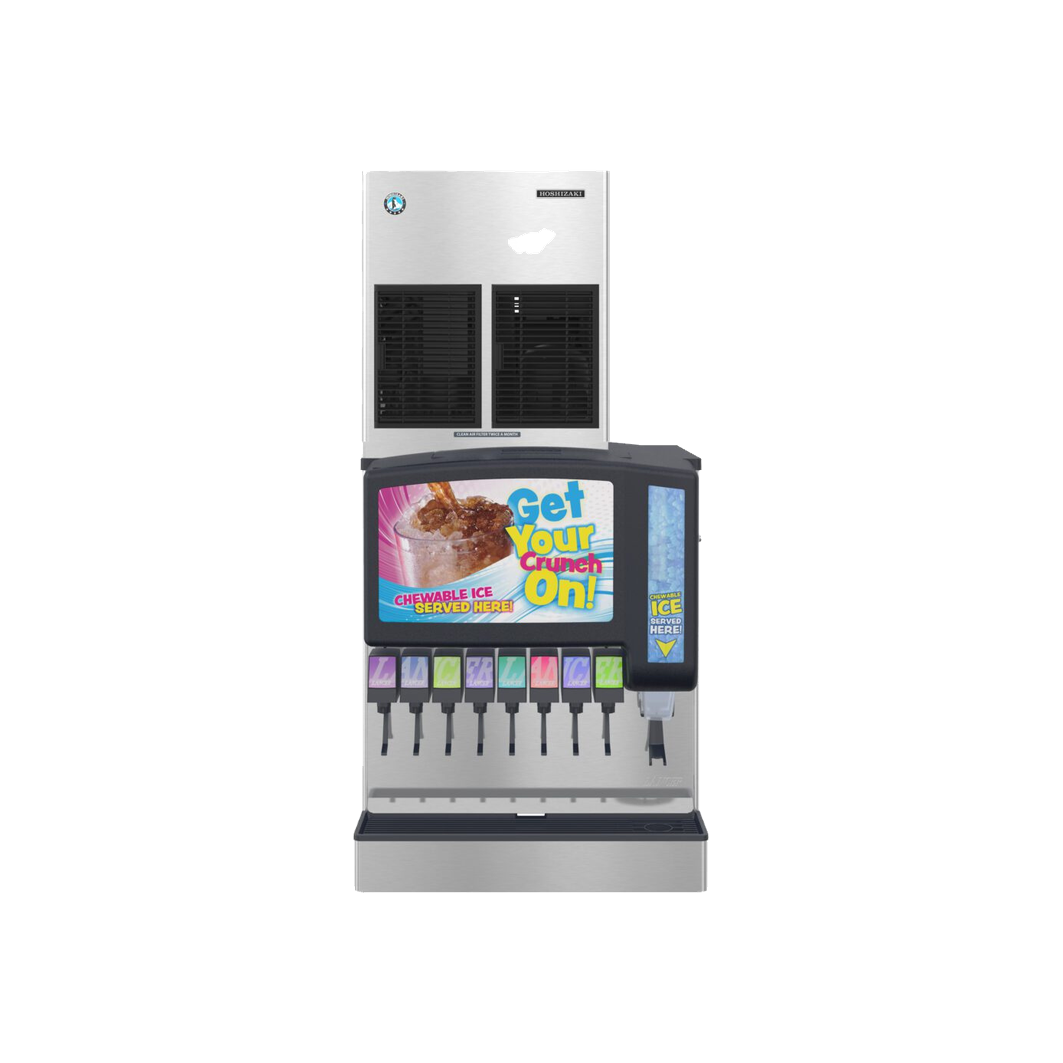

| Equipment type | Modular ice machine head; separate bin/dispenser required |
| Ice type | Cubelet Ice |
| Cooling | Air-cooled |
| Production at 70°F air / 50°F water | 640 lb/24 hr |
| Production at 90°F air / 70°F water | 500 lb/24 hr |
| Storage | Separate compatible bin/dispenser, sold separately |
| Dimensions (W × D × H) | 22-1/8 × 24-1/4 × 25-7/8 in. |
| Electrical | 115V / 60Hz / 1 phase; 8.9A |
| Circuit / maximum fuse | 20A |
| Energy use at 90°F / 70°F | 4.55 kWh per 100 lb |
| Potable water use at 90°F / 70°F | 12 gal per 100 lb |
| Heat rejection | 6,000 BTU/hr |
| Refrigerant | R290; 4.1 oz. charge |
| Water inlet | 1/2-in. FPT; minimum 1/4-in. nominal ID supply tubing |
| Drain | 3/4-in. FPT; minimum 3/4-in. nominal ID drain piping |
| Ambient temperature | 45–100°F |
| Water temperature | 45–90°F |
| Water pressure | 10–113 PSIG |
| Net / shipping weight | 176 / 185 lb |
Warranty
- 3 years parts and labor on the entire machine
- 5 years parts on the compressor and air-cooled condenser coil
Manufacturer coverage applies in the United States, Canada, Puerto Rico and U.S. territories, subject to Hoshizaki's warranty terms.
Installation and Maintenance Notes
- Allow 24 in. above for auger removal and 6 in. at the rear and sides for ventilation and service.
- Connect to a potable cold-water supply and suitable drain. Follow the manufacturer's installation instructions and applicable local codes.

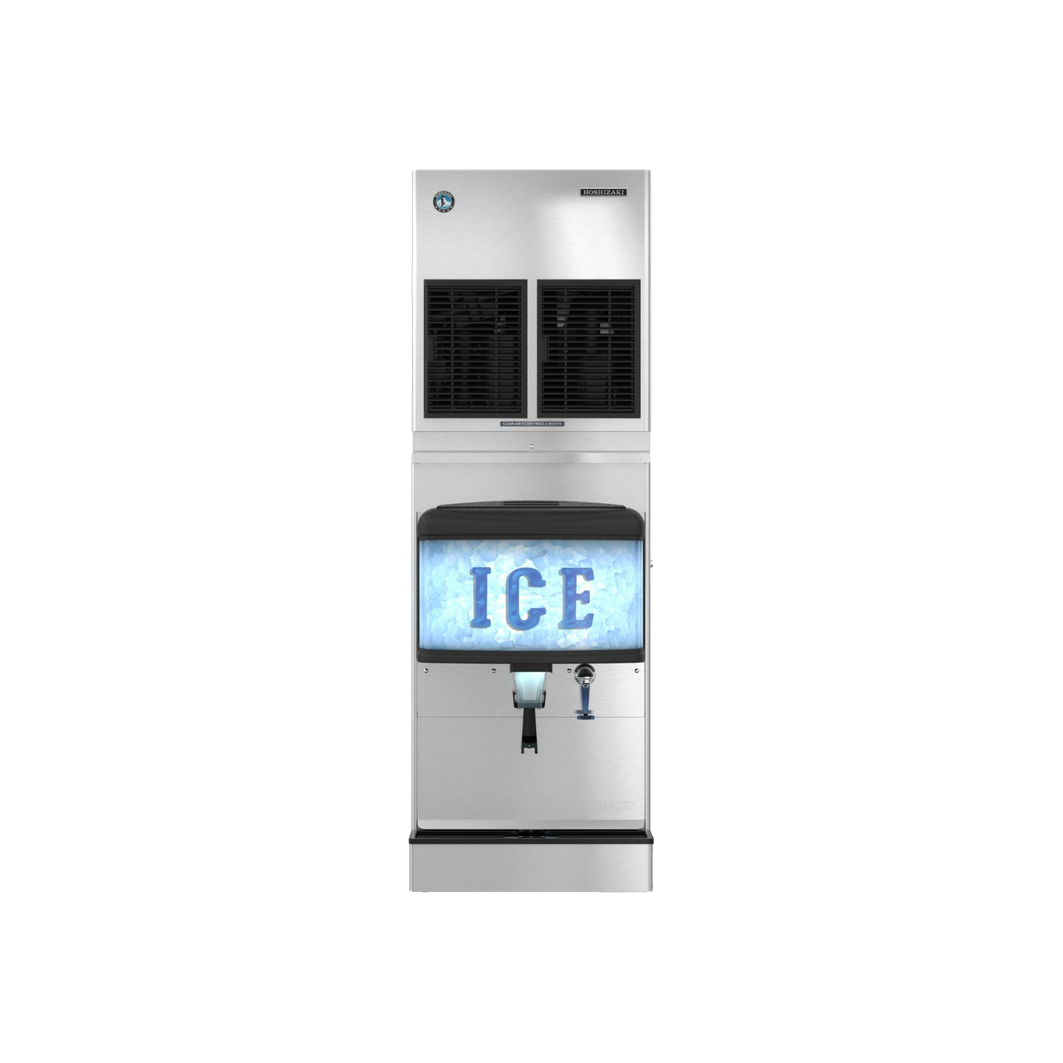

- Confirm the exact bin/dispenser combination and any required top kit before installation; storage equipment is sold separately.
- Keep ventilation paths clear and follow the specified cleaning and sanitizing schedule. Automatic control and flushing features do not eliminate routine maintenance.
