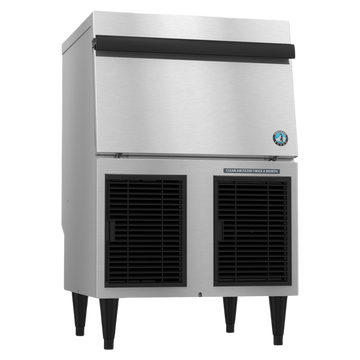

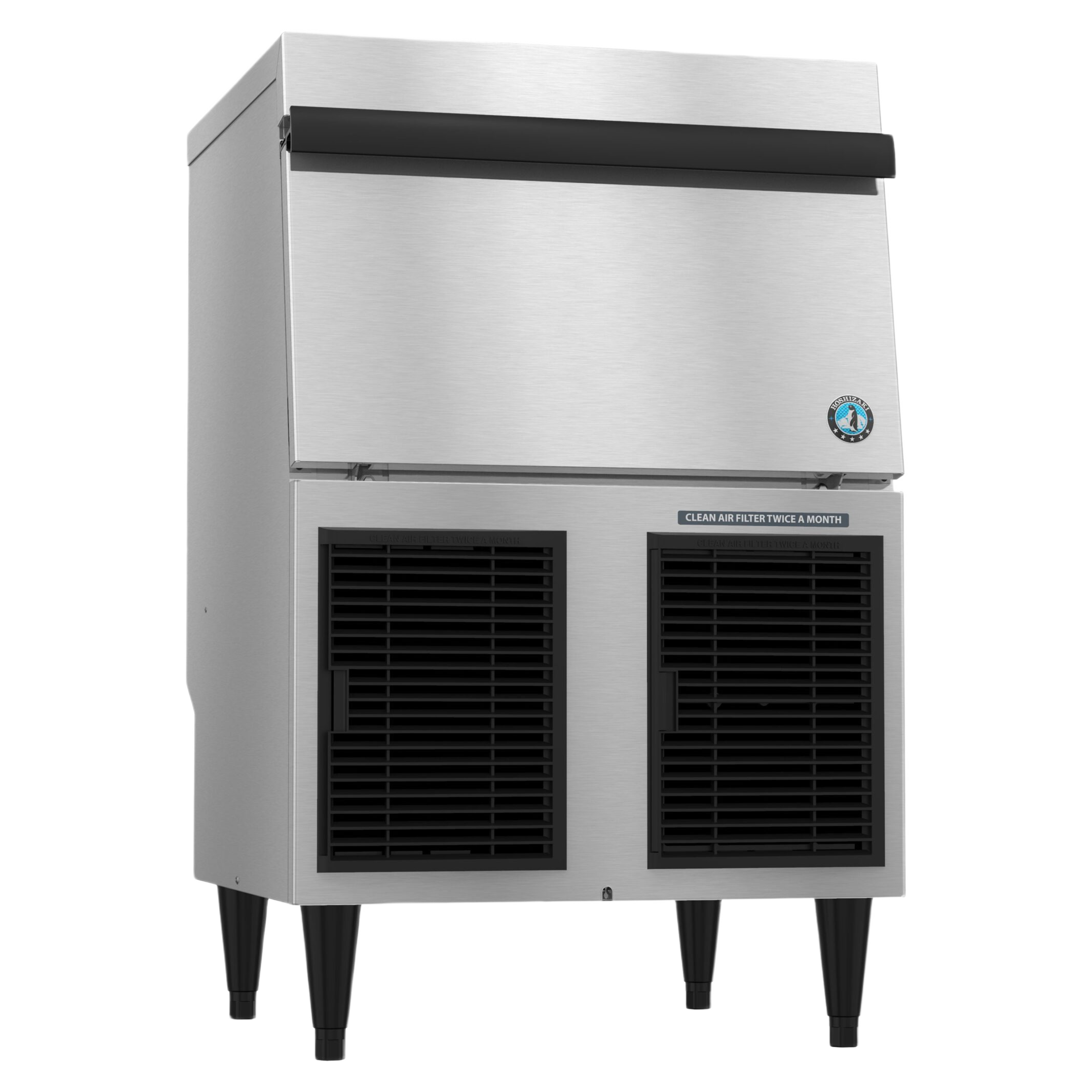

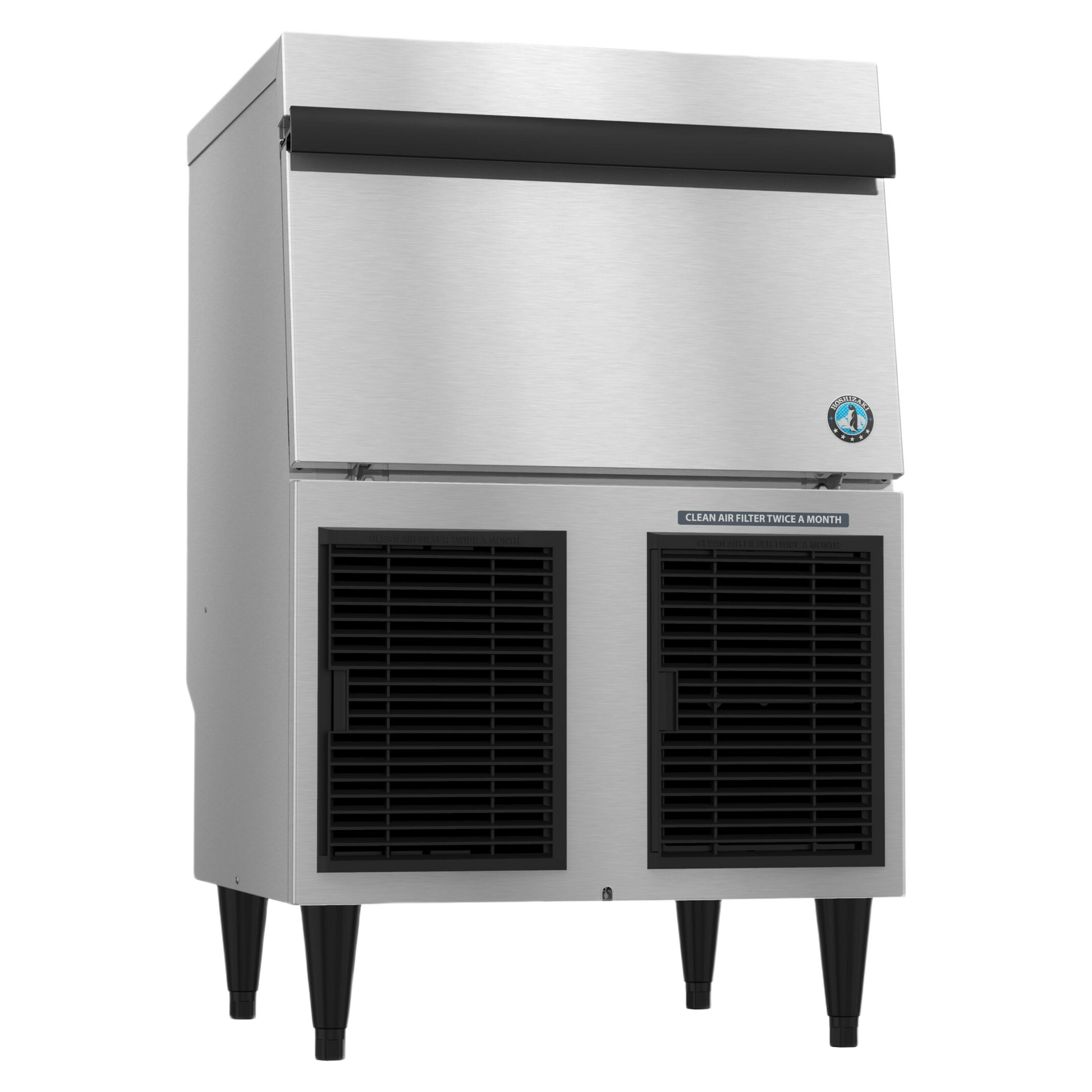

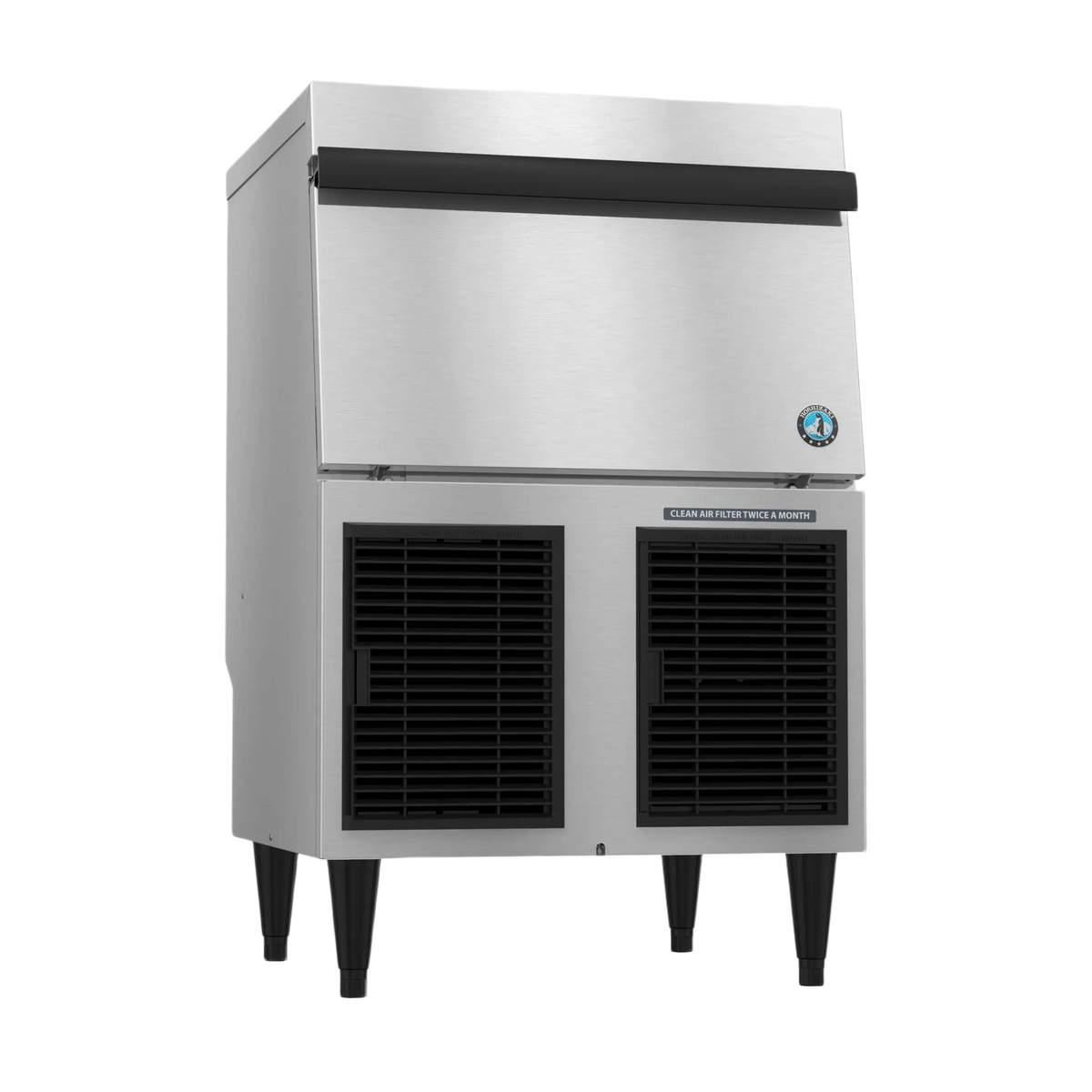

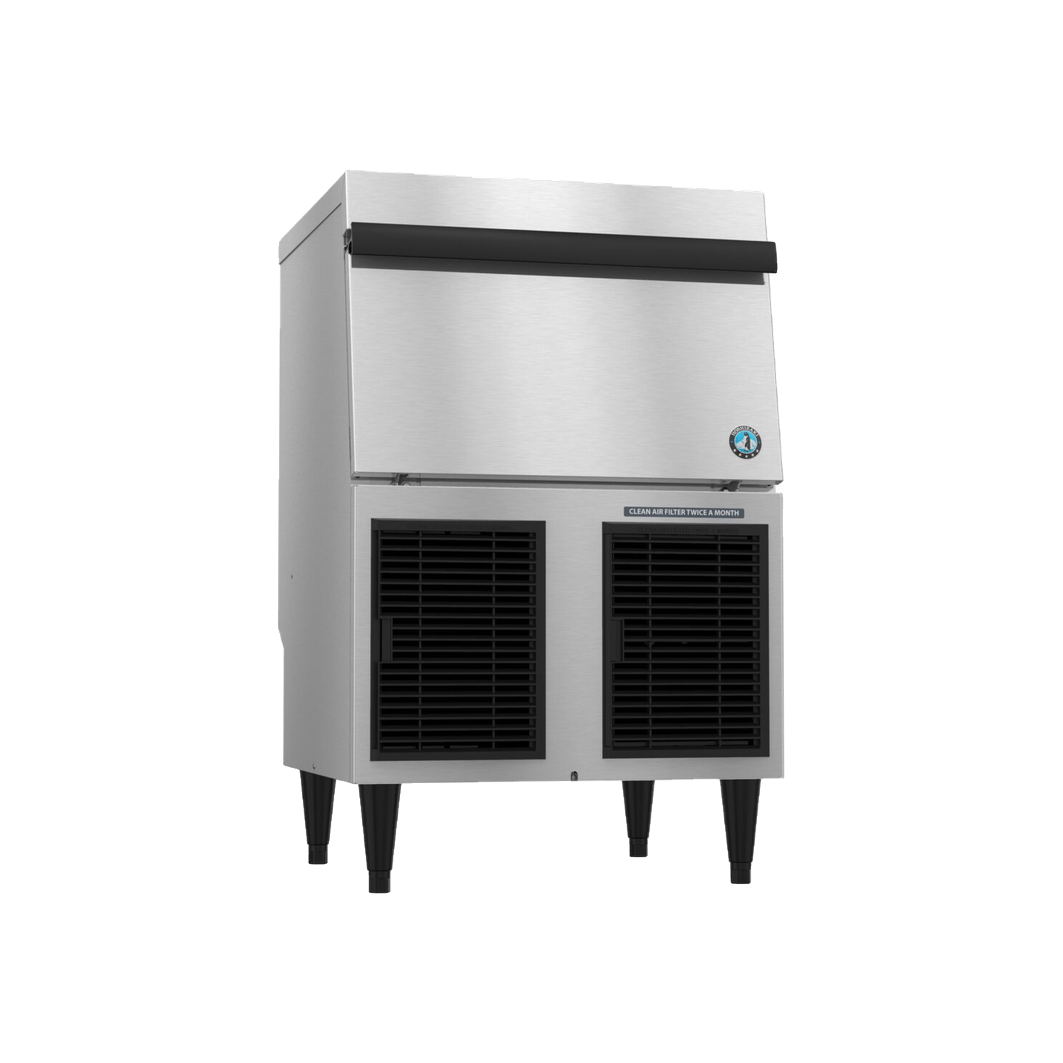

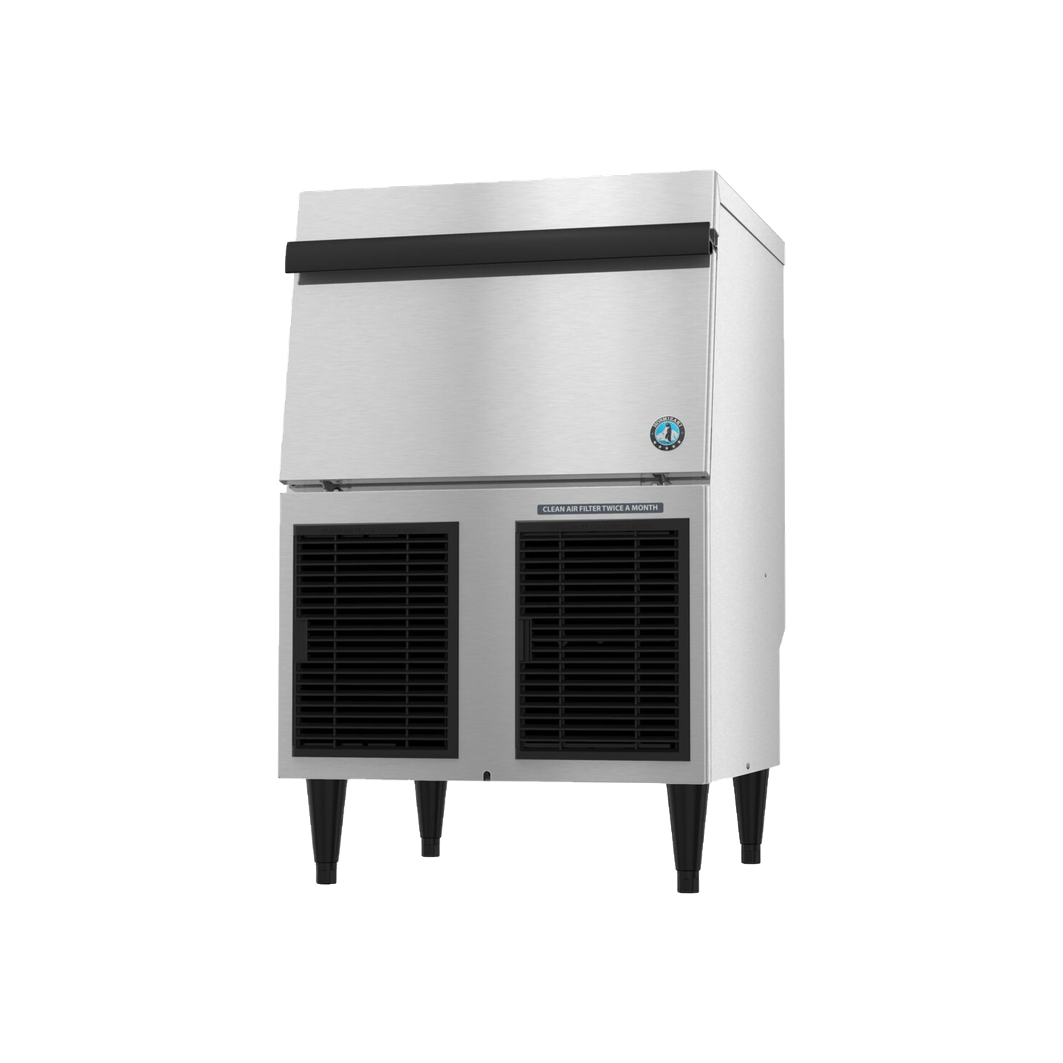

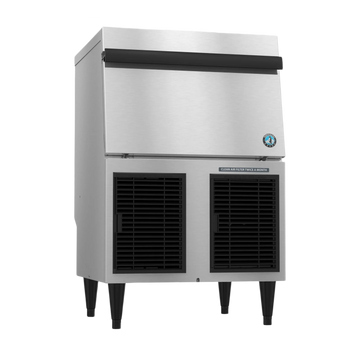

Hoshizaki F-330BAK-C — Undercounter Cubelet Ice Production with Built-In Storage
Keep cubelet ice and storage together at the service counter. This 24-inch-wide self-contained machine suits cafés, beverage bars and hospitality operations that want a chewable ice format without installing a separate modular head and bin. The Hoshizaki F-330BAK-C undercounter cubelet ice maker produces up to 300 lb per 24 hours at 70°F air/50°F water. At 90°F air/70°F water, its rated output is 250 lb per day. The built-in bin holds up to 80 lb of ice.

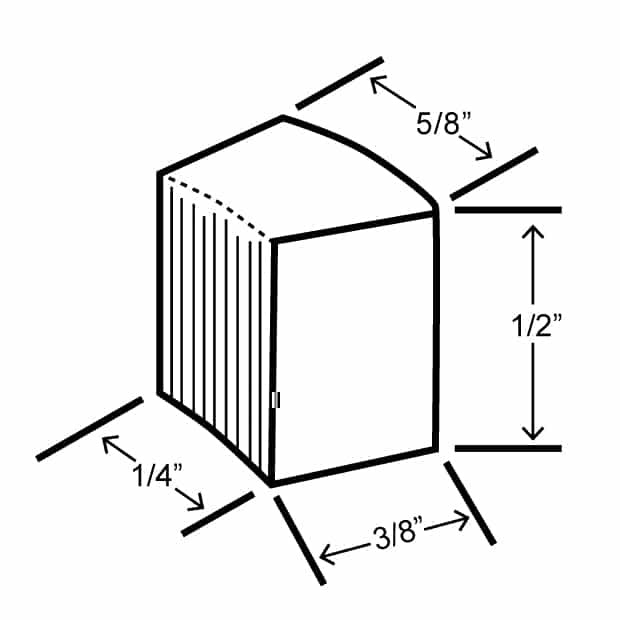

Cubelet ice offers a small, nugget-style format for iced beverages and customers who prefer chewable ice. The stainless steel auger uses a greaseless bearing, and Advanced CleanCycle24 provides a two-second flush every hour to help remove sediment. This automatic flushing supports routine care but does not replace scheduled cleaning and sanitizing.

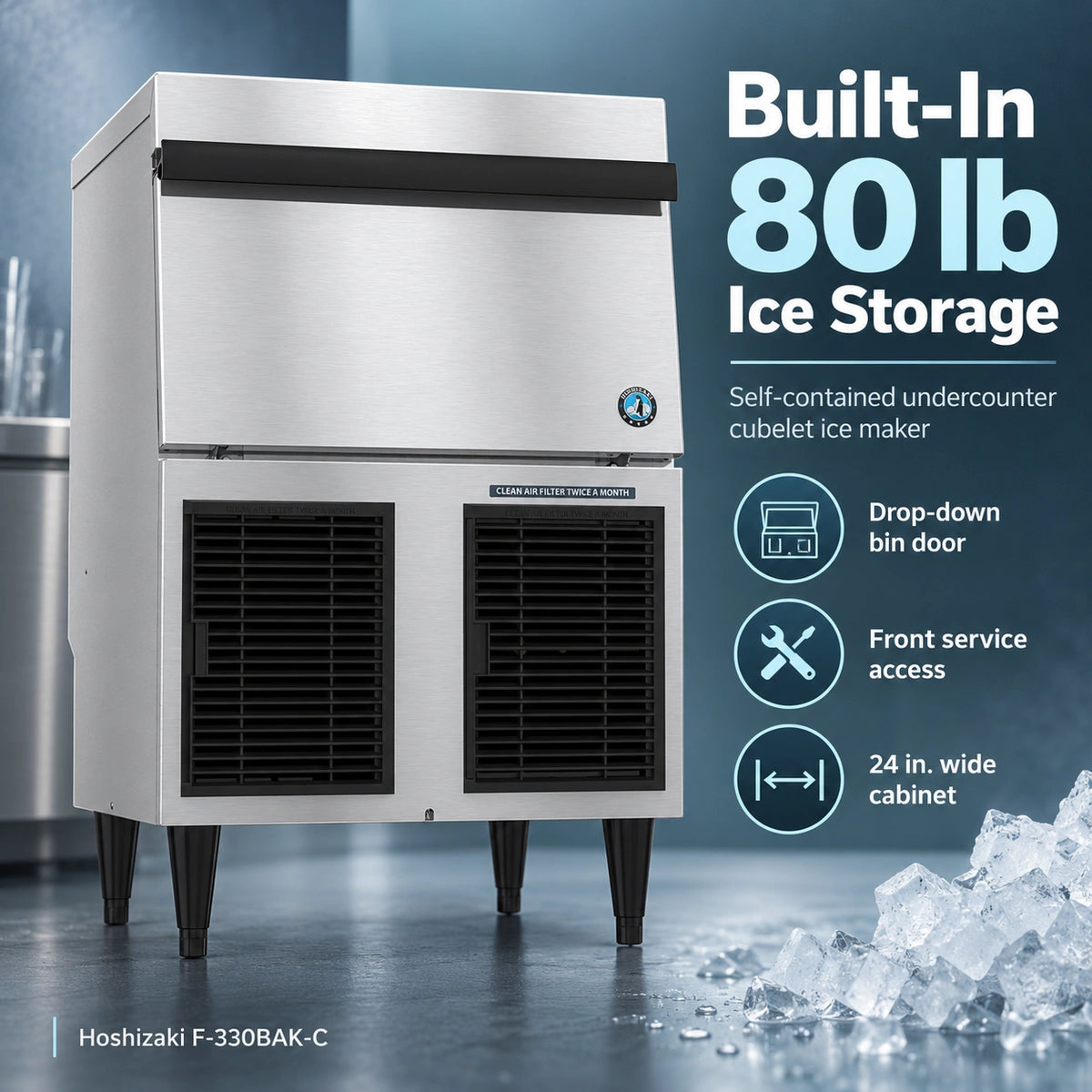

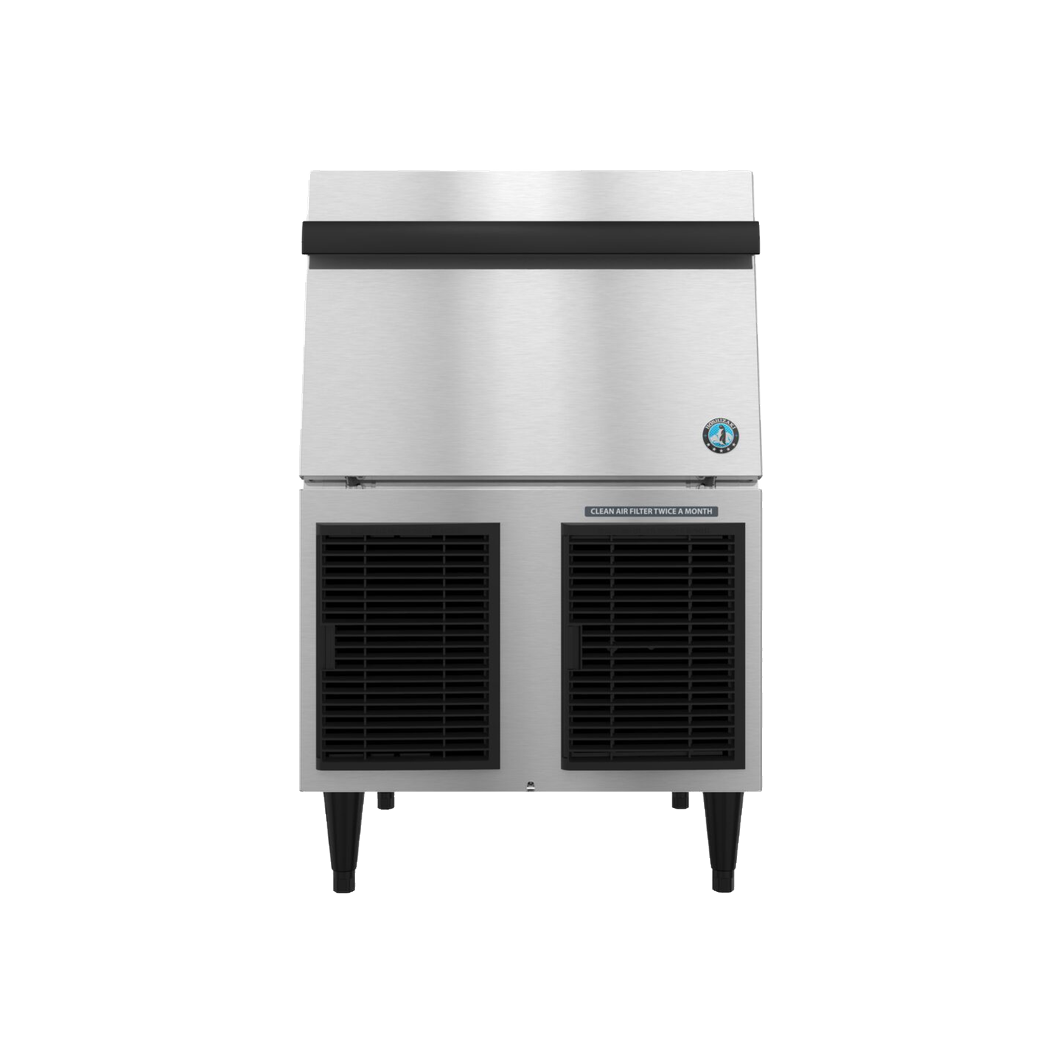

Front breathing, a drop-down door and an 80 lb built-in bin make the cabinet practical at a staffed beverage station. Removable air filters and front access help simplify maintenance. The air-cooled refrigeration system uses R290 hydrocarbon refrigerant.
The cabinet dimensions are 24 × 26 × 39 in. (including 6-in. legs) (W × D × H). Electrical service is 115V/60Hz/single phase with a 15A circuit/fuse rating. Allow 24 in. above for auger removal, maintain front access and avoid installation beside high-heat equipment. Production changes with room and inlet-water temperatures, so size the installation using the hotter-condition output as well as the maximum rating.
Key Features
- Up to 300 lb/day at 70°F air/50°F water
- 80 lb built-in ice storage
- Stainless steel auger with greaseless bearing
- Advanced CleanCycle24 design
- Two-second flush cycle every hour
- Durable stainless steel exterior
- Front-breathing design and front service access
- Drop-down bin door and removable air filters
- 8-ft power cord with NEMA 5-15P plug
- R290 hydrocarbon refrigerant
Best For
Cafés, bars, break rooms and hospitality beverage counters that need cubelet ice close to the point of service.
Full Specifications
| Specification | Detail |
|---|---|
| Brand | Hoshizaki |
| Model | F-330BAK-C |
| Equipment type | Undercounter ice maker with built-in bin |
| Ice type | Cubelet Ice |
| Cooling | Air-cooled |
| Production at 70°F air / 50°F water | 300 lb/24 hr |
| Production at 90°F air / 70°F water | 250 lb/24 hr |
| Storage | 80 lb built-in bin |
| Dimensions (W × D × H) | 24 × 26 × 39 in. (including 6-in. legs) |
| Electrical | 115V / 60Hz / 1 phase; 6.3A |
| Circuit / maximum fuse | 15A |
| Energy use at 90°F / 70°F | 5 kWh per 100 lb |
| Potable water use at 90°F / 70°F | 12 gal per 100 lb |
| Heat rejection | 3,400 BTU/hr |
| Refrigerant | R290; 2.8 oz. charge |
| Water inlet | 1/2-in. FPT; minimum 1/4-in. nominal ID supply tubing |
| Drain | 3/4-in. FPT; minimum 3/4-in. nominal ID drain piping |
| Ambient temperature | 45–100°F |
| Water temperature | 45–90°F |
| Water pressure | 10–113 PSIG |
| Net / shipping weight | 147 / 178 lb |
| Power cord | 8 ft; NEMA 5-15P |
Warranty
- 3 years parts and labor on the entire machine
- 5 years parts on the compressor and air-cooled condenser coil
Manufacturer coverage applies in the United States, Canada, Puerto Rico and U.S. territories, subject to Hoshizaki's warranty terms.
Installation and Maintenance Notes
- Allow 24 in. above for auger removal, maintain front access and avoid installation beside high-heat equipment.
- Connect to a potable cold-water supply and suitable drain. Follow the manufacturer's installation instructions and applicable local codes.
- Keep ventilation paths clear and follow the specified cleaning and sanitizing schedule. Automatic control and flushing features do not eliminate routine maintenance.
