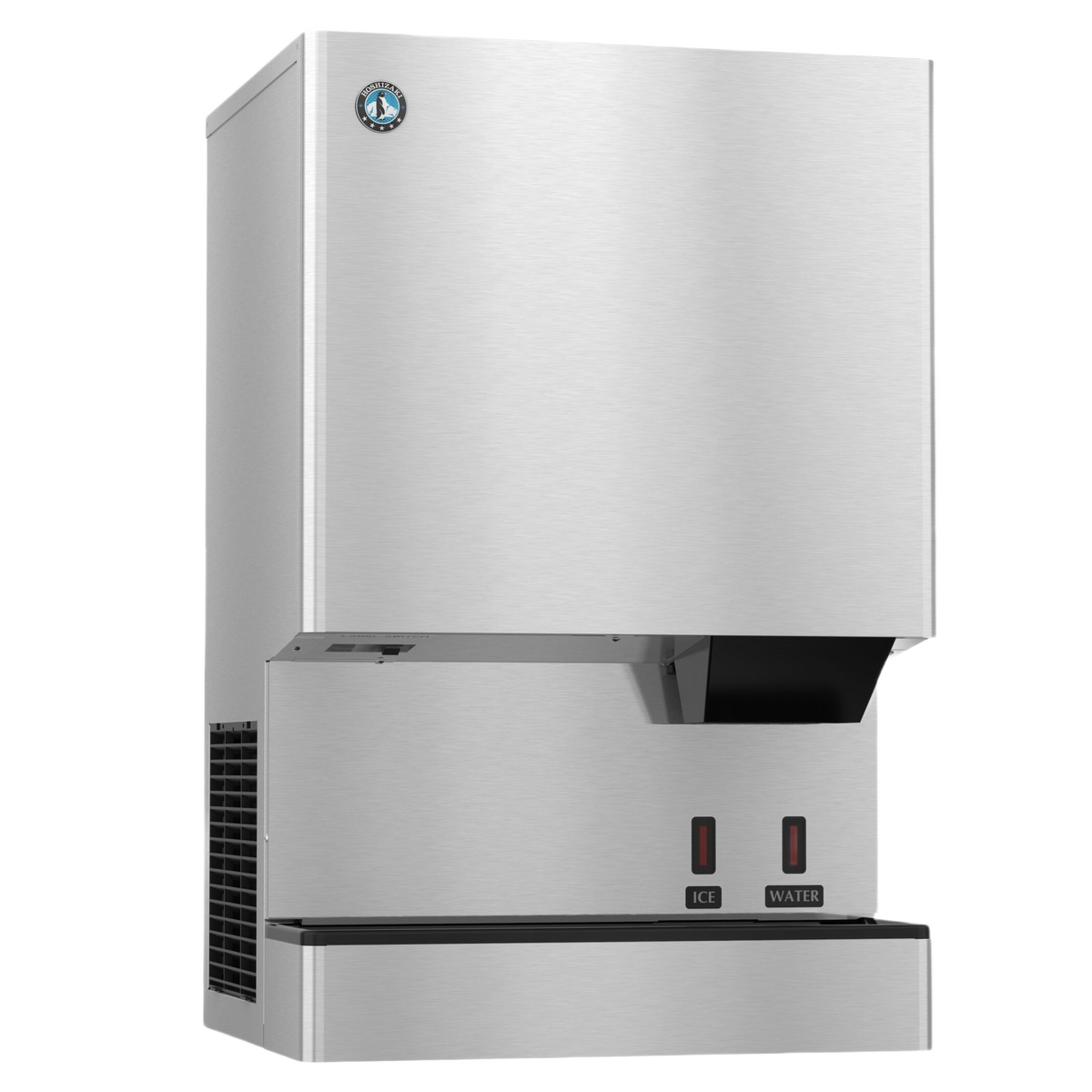

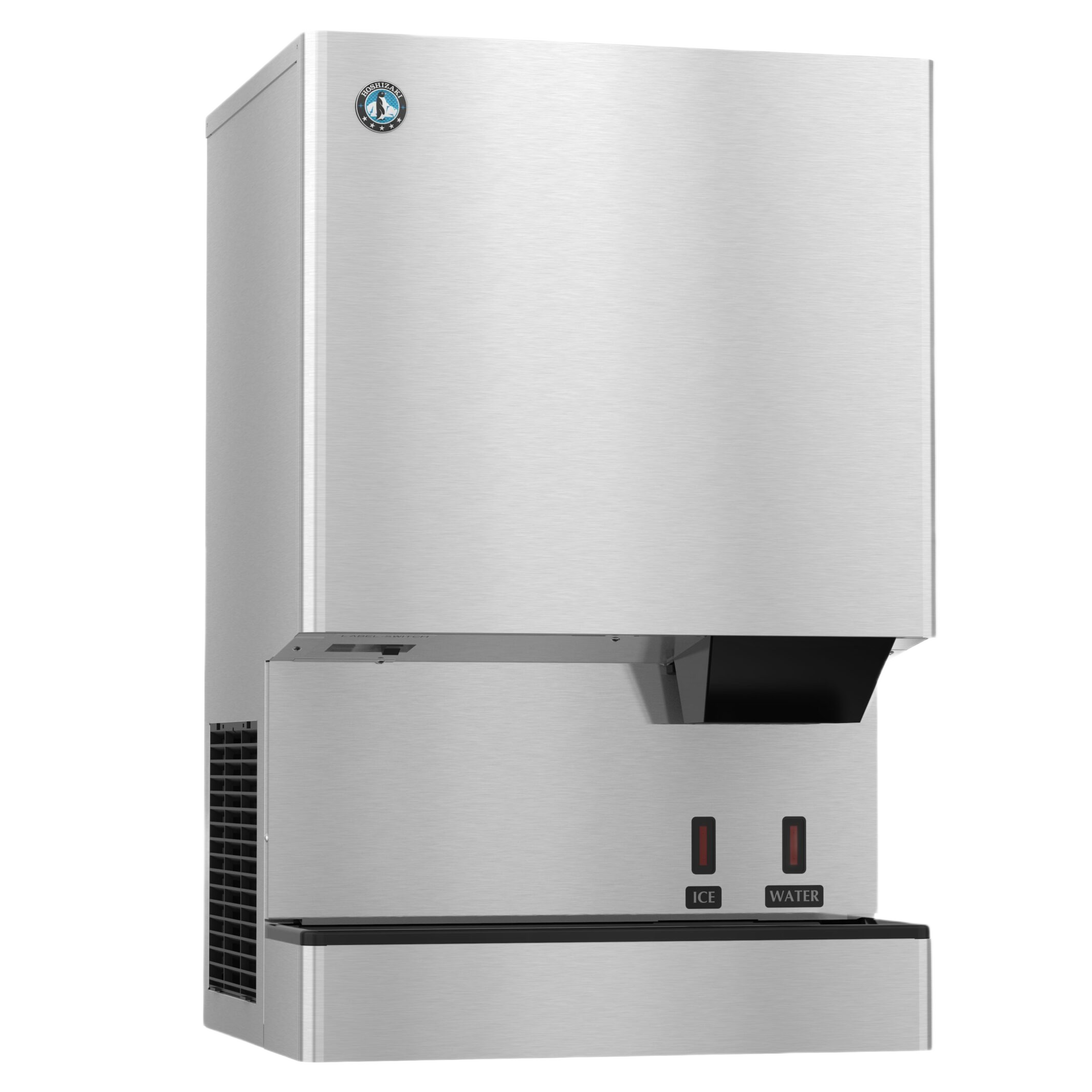

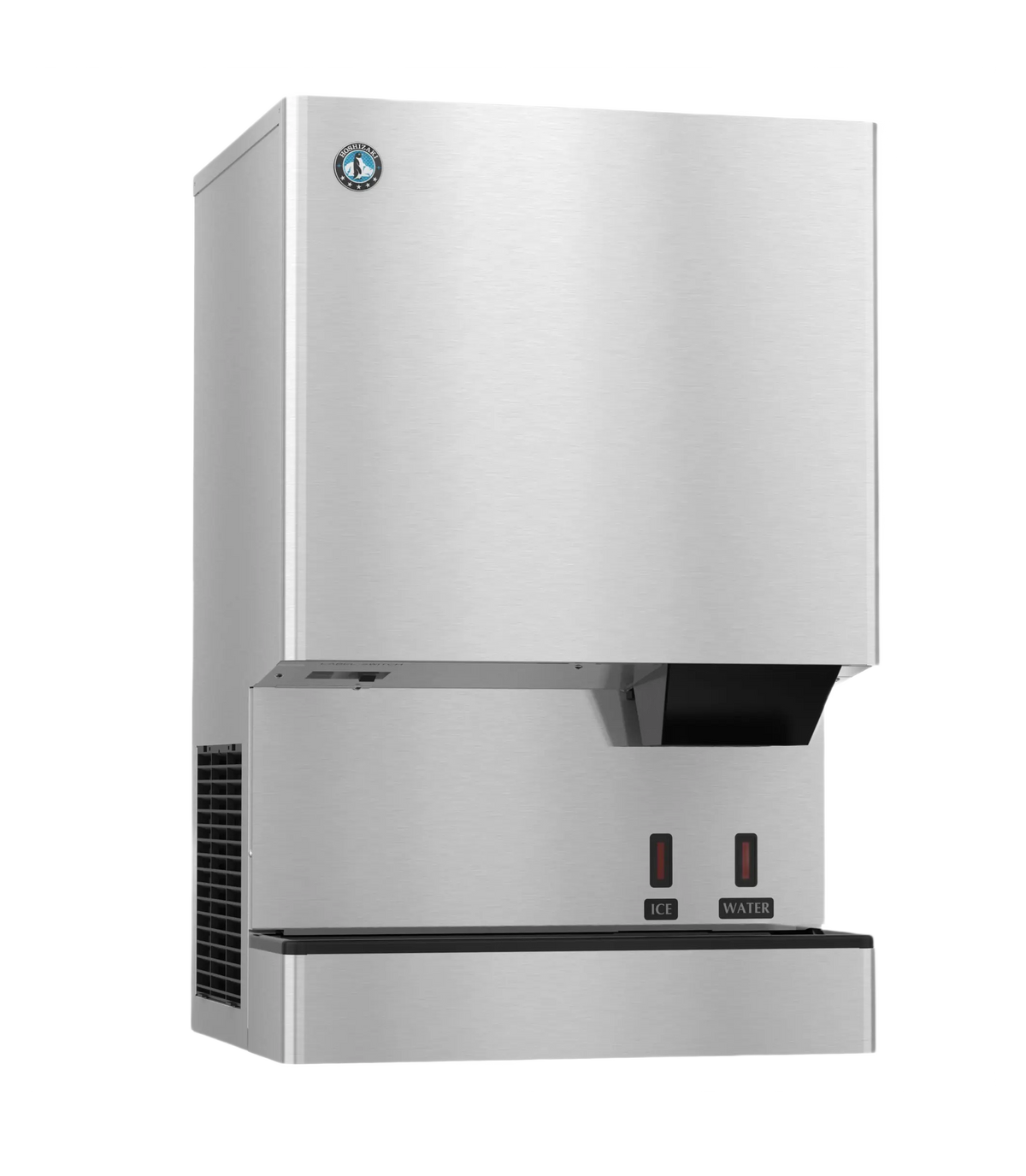

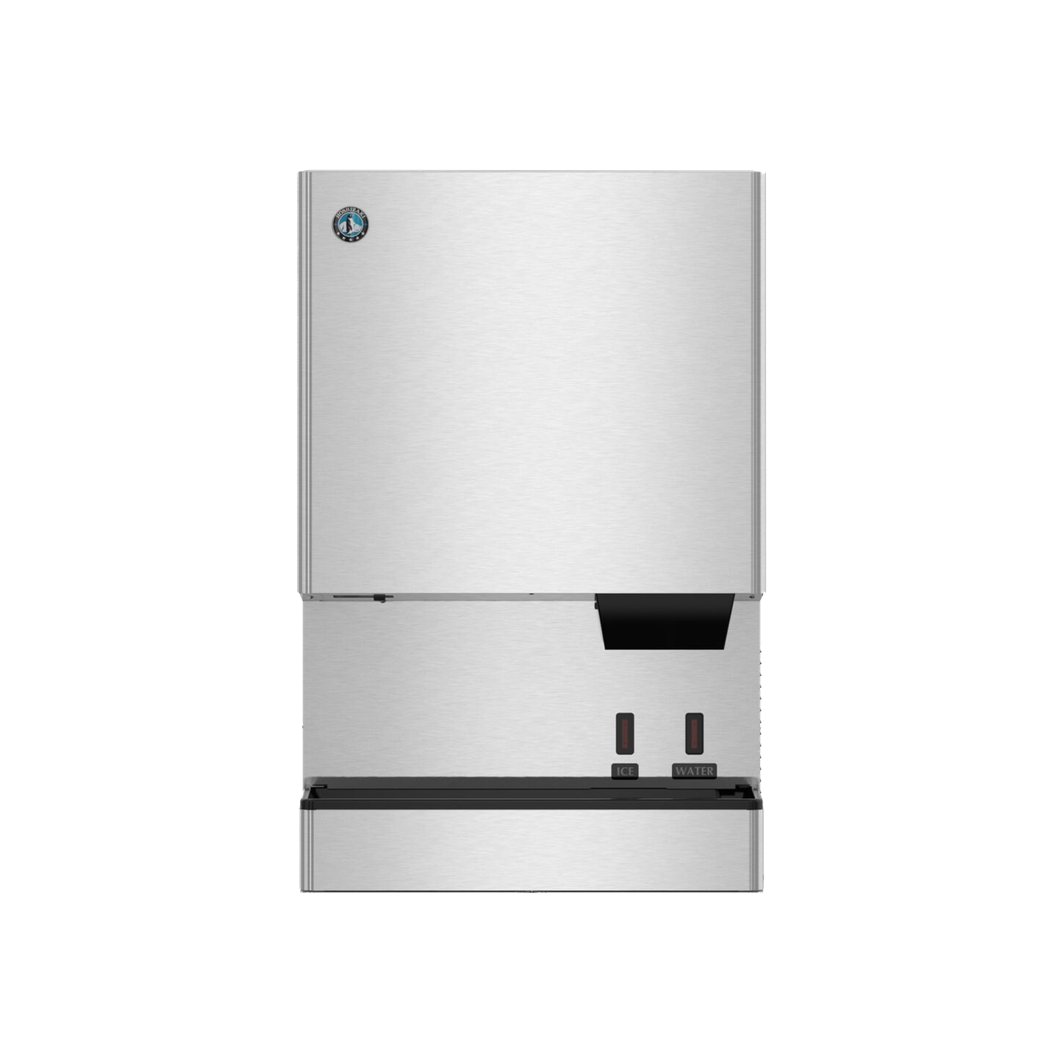

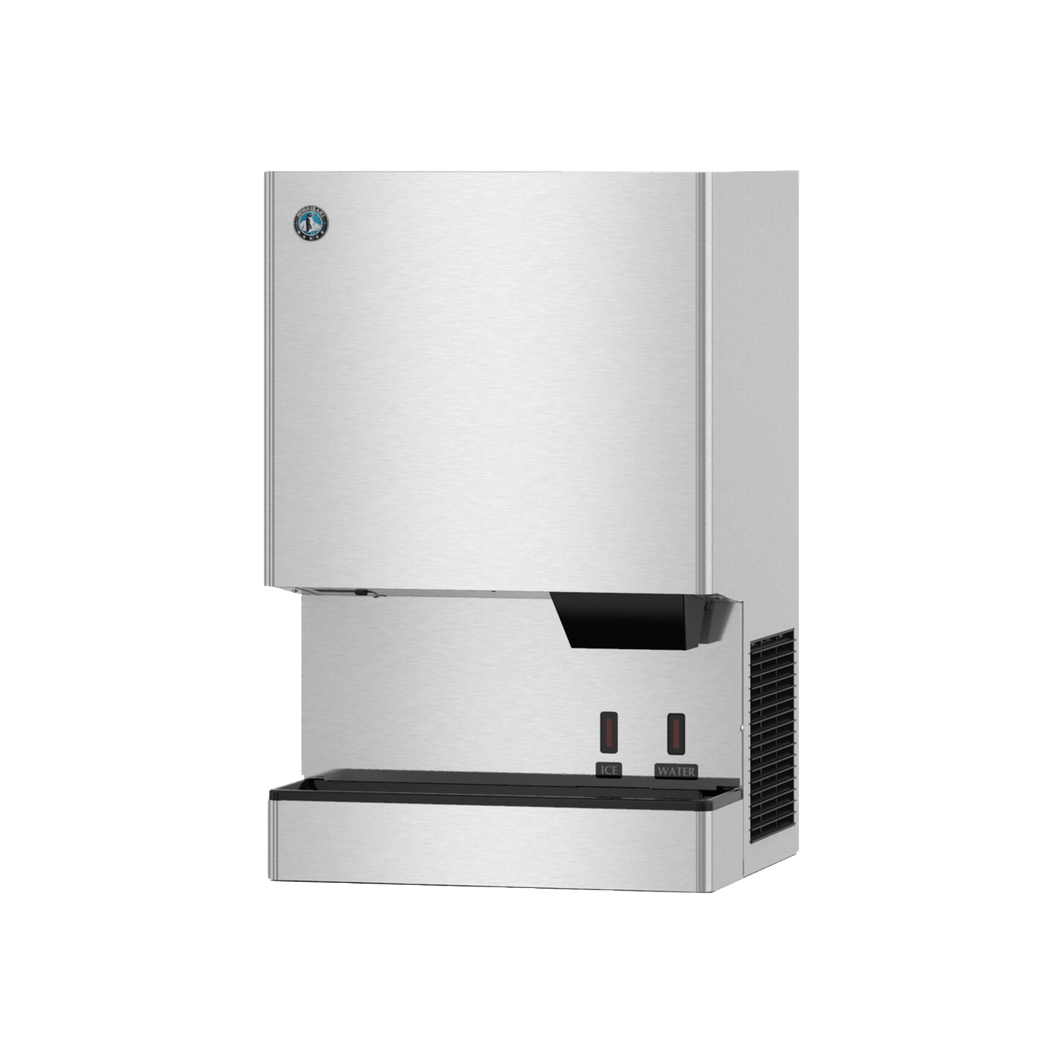

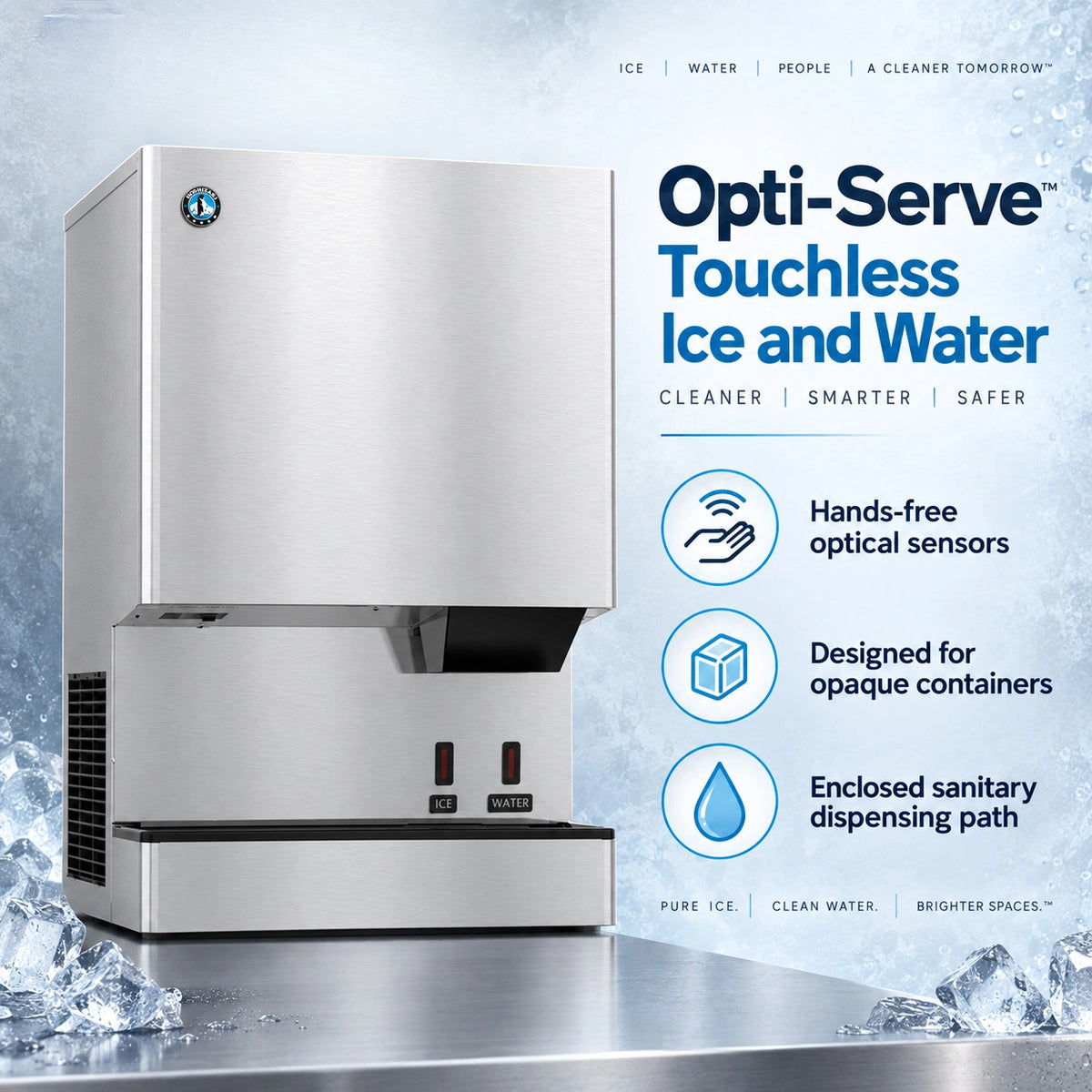

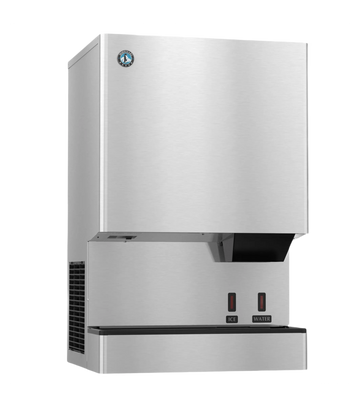

Hoshizaki DCM-500BAK-OS Touchless Cubelet Ice and Water Dispenser — 597 lb/day with 40 lb Bin
The Hoshizaki DCM-500BAK-OS touchless cubelet ice and water dispenser combines high daily output with Opti-Serve hands-free operation. It produces up to 597 lb of small, chewable cubelet ice per day and stores as much as 40 lb in its built-in bin. Separate optical sensors dispense ice or water when an opaque container is positioned in the serving area, making this model a strong fit for shared spaces where reducing touchpoints matters.
Unlike an open ice bin that requires a scoop, the DCM-500BAK-OS keeps ice inside an enclosed path from production through dispensing. This design helps support sanitary service in hospitals, assisted-living facilities, schools, corporate offices, hotels, and cafeterias. The cubelet nugget-style ice is soft and easy to chew, yet versatile enough for fountain beverages, iced drinks, water service, and patient hydration.
A stainless steel auger with greaseless bearing forms the ice, while the corrosion-resistant stainless steel cabinet handles daily commercial traffic. Advanced CleanCycle24™ performs a two-second flush every hour to help clear sediment. The air-cooled system uses R290 refrigerant, with rated energy use of 4.7 kWh per 100 lb under 90°F air and 70°F water test conditions.
Maximum production reaches 597 lb per day in 70°F air and 50°F water; output is approximately 470 lb per day under warmer 90°F/70°F conditions. The 26-inch-wide cabinet may be used on a suitable counter or with the optional SD-500 stand. Because the optical sensors are designed for opaque containers, confirm the intended cup type and keep the machine away from direct sunlight.
Key Features
- Produces up to 597 lb of small cubelet ice per day
- Built-in storage holds up to 40 lb
- Opti-Serve touchless sensors dispense ice or water
- Designed for opaque cups and containers
- Enclosed storage and dispensing path supports sanitary service
- Advanced CleanCycle24™ two-second hourly flush
- Stainless steel cabinet, auger, and greaseless bearing
- Air-cooled R290 refrigeration system
- 6.7-amp operating draw on 115V power
- Optional SD-500 stand sold separately
Best For
High-volume healthcare environments, offices, schools, universities, hotels, cafeterias, and institutional facilities that need a touchless source of water and soft nugget-style ice with dependable 40-lb storage.

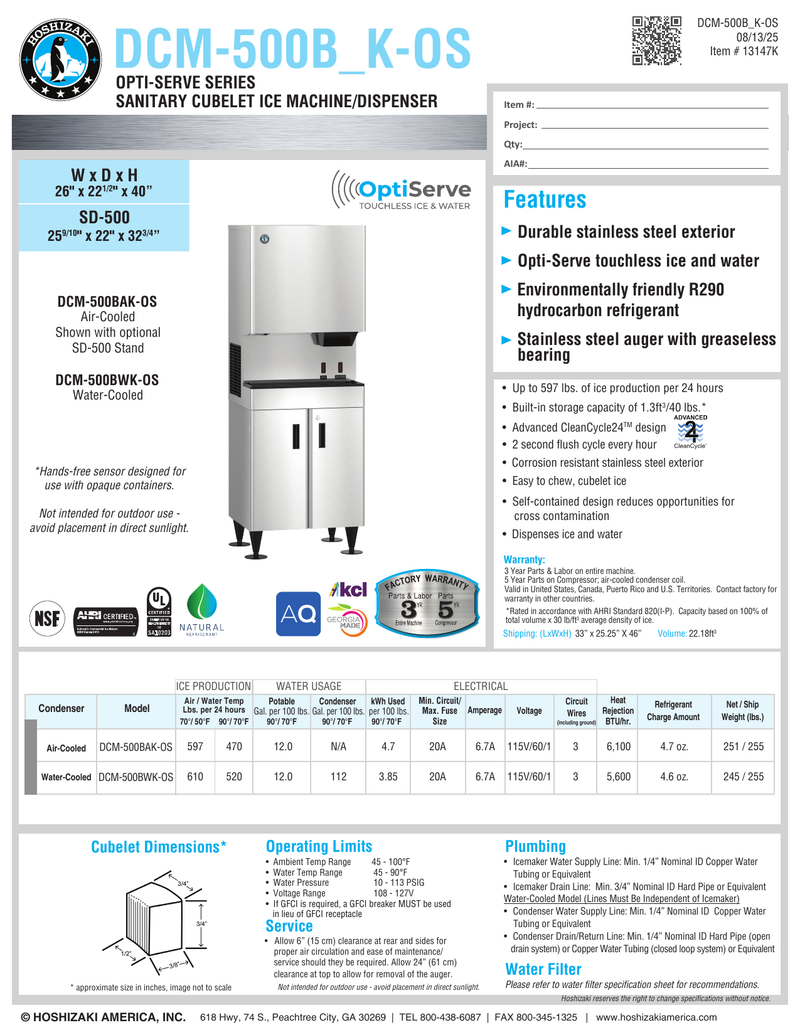

Full Specifications
| Brand | Hoshizaki |
|---|---|
| Model | DCM-500BAK-OS |
| Item number | 13147K |
| Machine type | Self-contained touchless cubelet ice machine and water dispenser |
| Dispensing | Opti-Serve optical sensors for opaque containers |

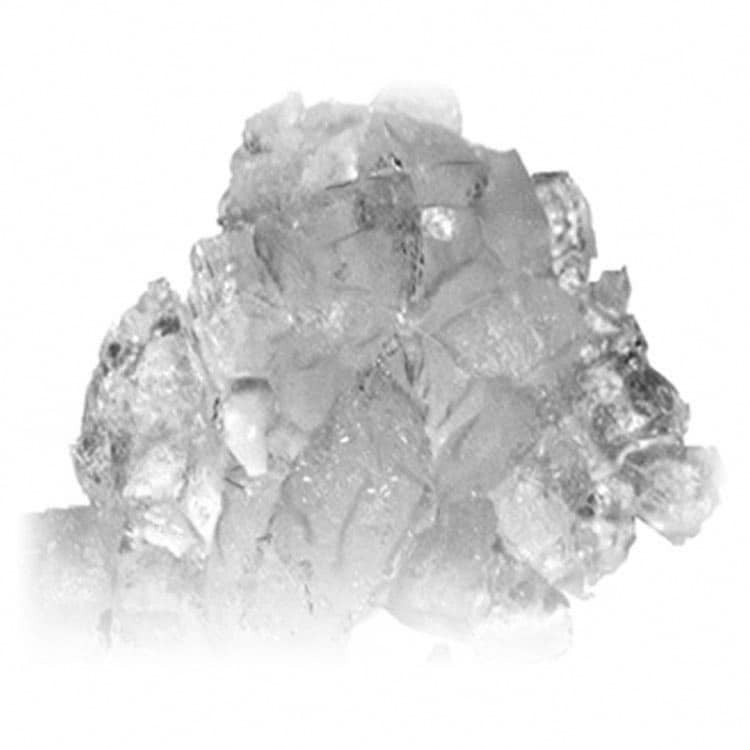

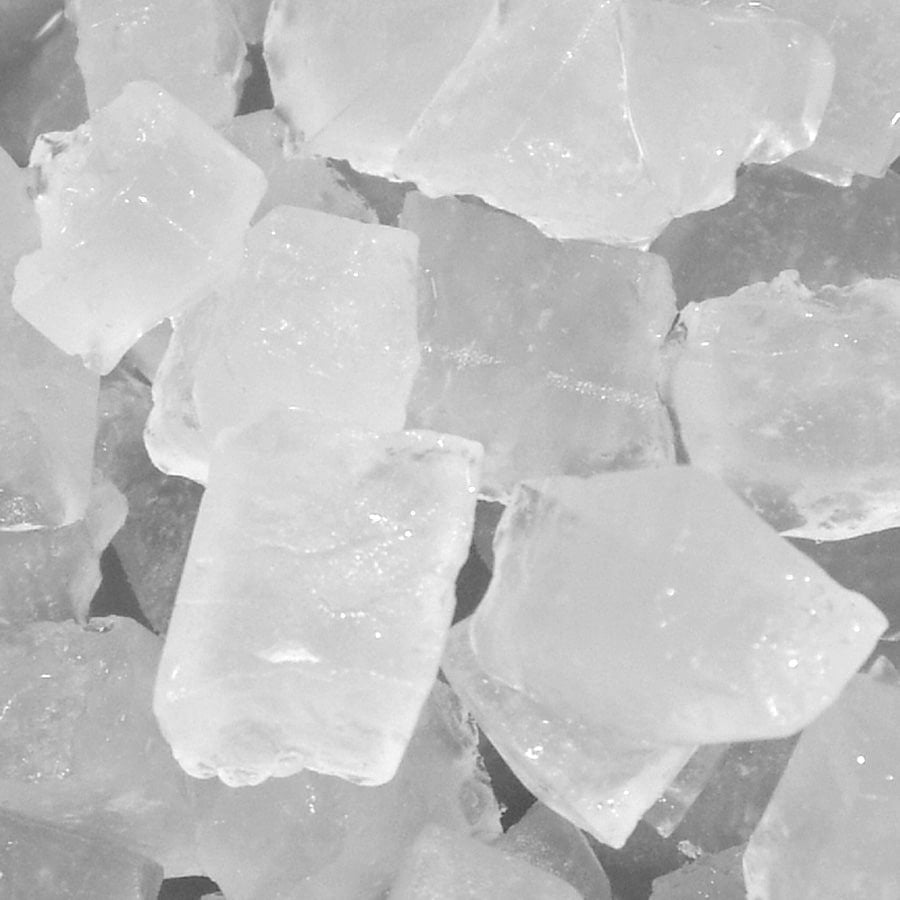

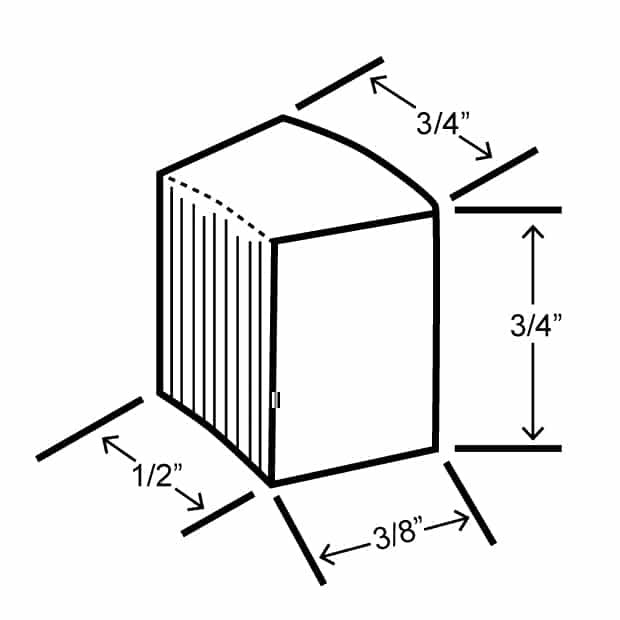

| Ice type | Small cubelet, nugget-style ice |
| Cooling | Air-cooled |
| Maximum daily production | 597 lb at 70°F air / 50°F water |
| Production at 90°F air / 70°F water | 470 lb per 24 hours |
| Built-in storage | 40 lb / 1.3 cu. ft. |
| Dimensions | 26 in. W × 22-1/2 in. D × 40 in. H |
| Net / shipping weight | 251 lb / 255 lb |
| Electrical | 115V / 60Hz / 1 phase; 6.7A; 20A maximum fuse or breaker |
| Energy use | 4.7 kWh per 100 lb at 90°F / 70°F |
| Potable water use | 12 gal per 100 lb at 90°F / 70°F |
| Heat rejection | 6,100 BTU/hr |
| Refrigerant | R290, 4.7 oz. |
| Water / drain | 1/2-inch FPT water inlet; 3/4-inch drain outlet |
| Operating limits | 45–100°F air; 45–90°F water; 10–113 PSIG; 108–127V |
| Required clearance | 6 inches at rear and sides; 24 inches above for auger service |

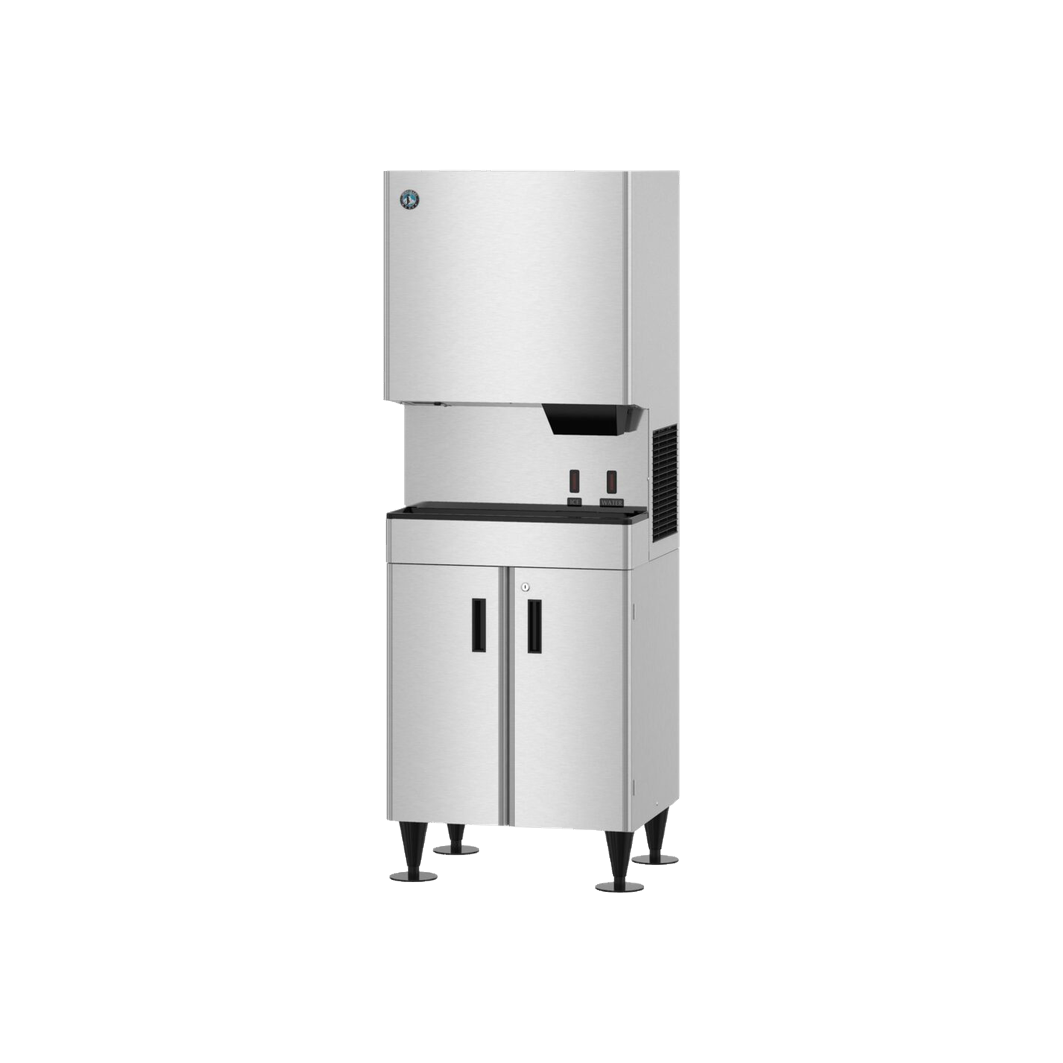

| Recommended stand | Hoshizaki SD-500, sold separately |
Warranty
- Entire machine: 3 years parts and labor
- Compressor and air-cooled condenser coil: 5 years parts
Installation and Maintenance Notes
- Use opaque containers for correct hands-free operation.
- Indoor use only; do not install in direct sunlight.
- Preserve the manufacturer’s airflow and auger-service clearances.
- A commercial water filter is recommended to support ice quality and reduce scale buildup.
