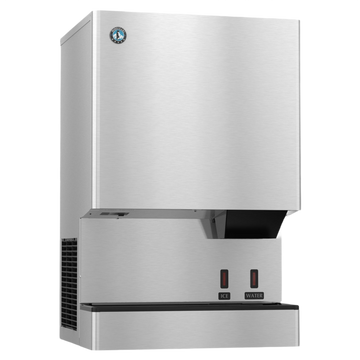

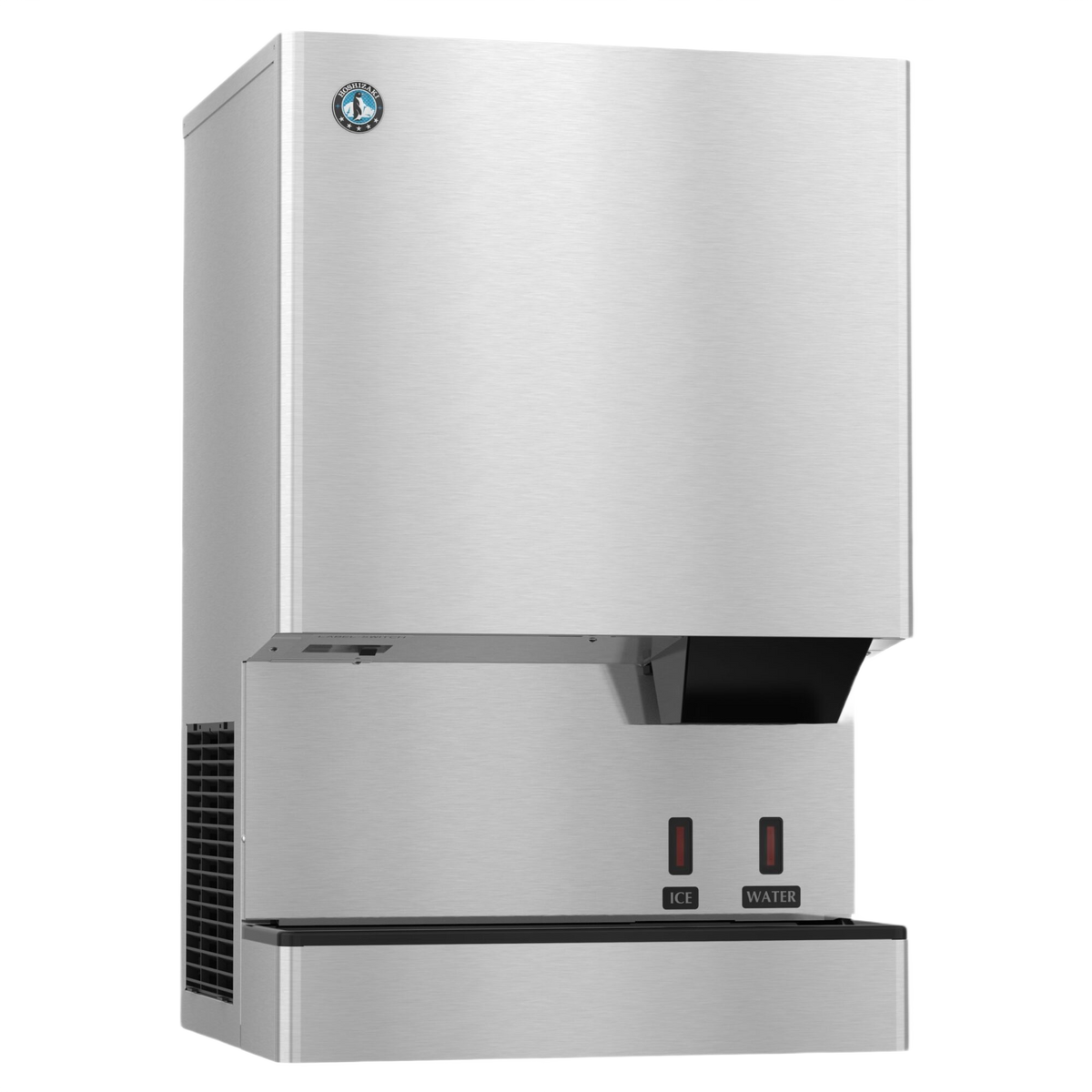

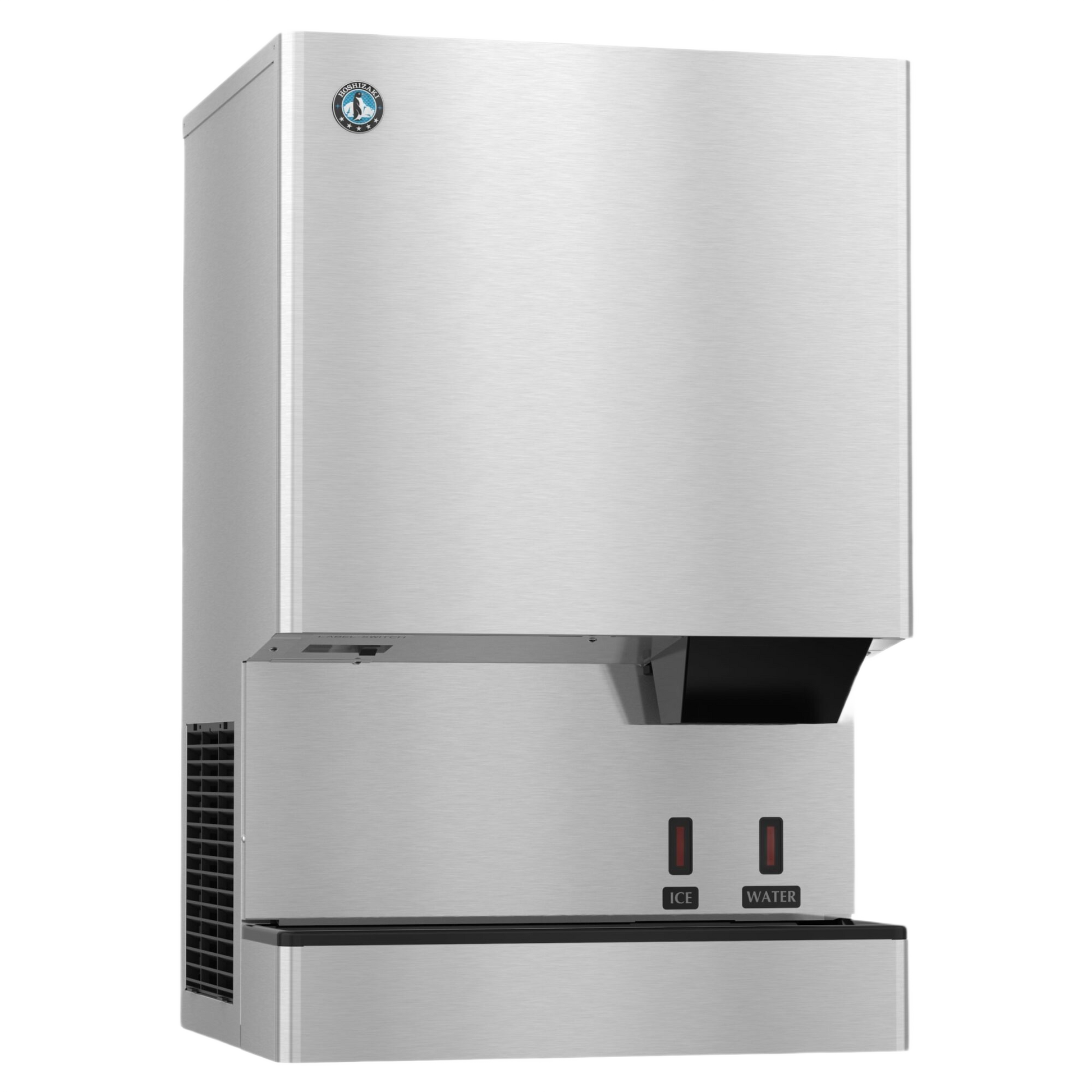

Hoshizaki DCM-500BAH-OS Opti-Serve Touchless Cubelet Ice & Water Dispenser - 618 lb/Day with 40 lb Bin, Air-Cooled
Price Match Guarantee
Quick Shipping with Bank Deposit
Want your ice machine shipped sooner? Choose Bank Deposit at checkout for priority order processing once your payment is confirmed. Eligible orders are prioritized for fulfillment to help get your equipment on its way sooner.
-
Estimated Delivery: 5-7 Business Days*
Hoshizaki DCM-500BAH-OS Opti-Serve Touchless Cubelet Ice & Water Dispenser - 618 lb/Day with 40 lb Bin, Air-Cooled
Hoshizaki DCM-500BAH-OS Opti-Serve Touchless Cubelet Ice & Water Dispenser - 618 lb/Day with 40 lb Bin, Air-Cooled Description

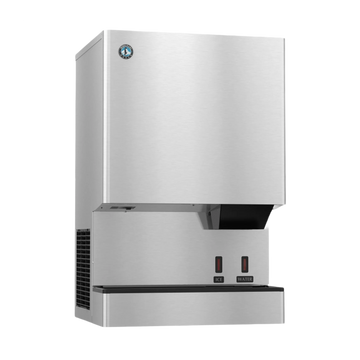

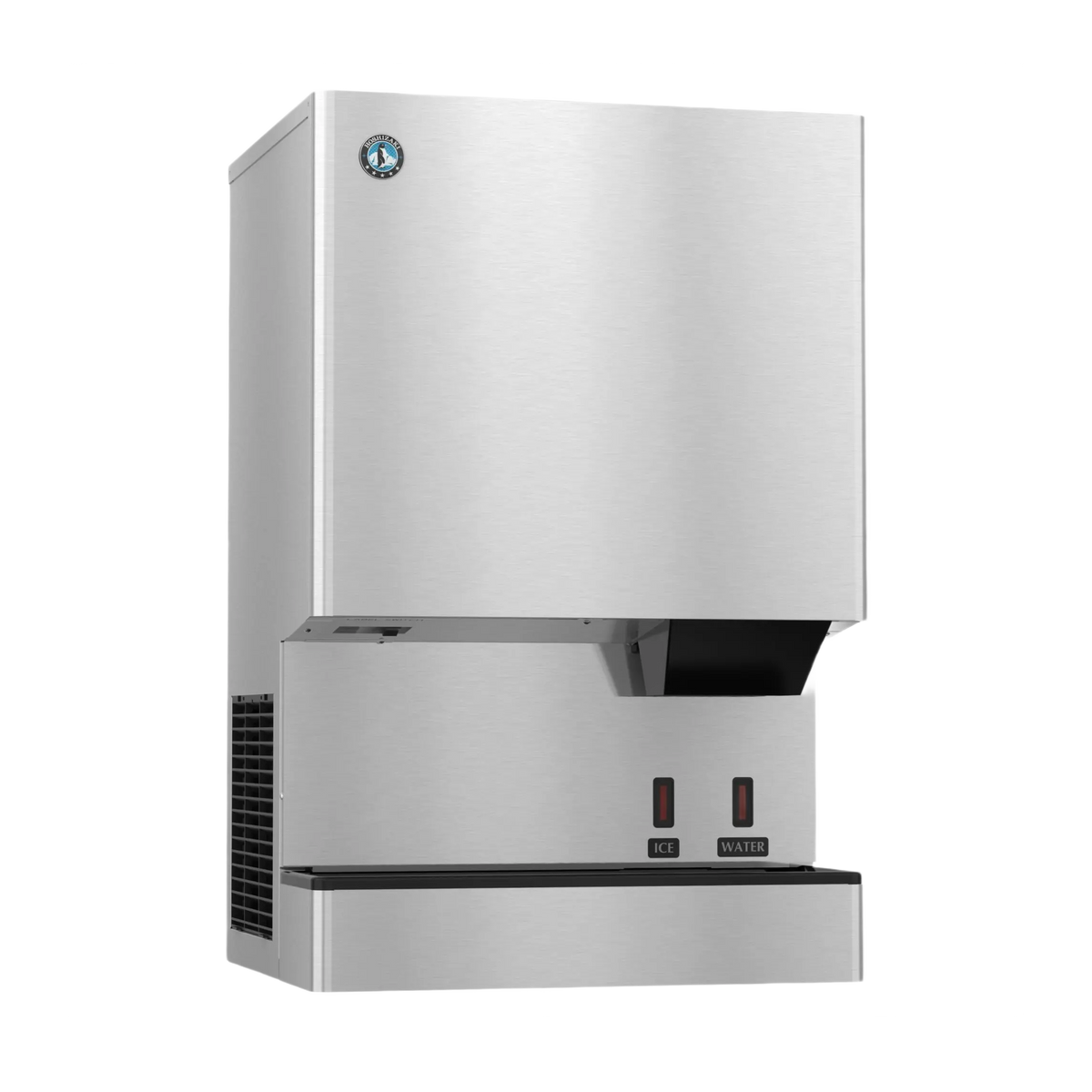

The Hoshizaki DCM-500BAH-OS touchless cubelet ice and water dispenser combines production, storage and dispensing in one sanitary 26-inch-wide cabinet. It produces up to 618 lb of cubelet ice per 24 hours at 70°F air and 50°F water, with a 40 lb built-in storage bin for on-demand service.

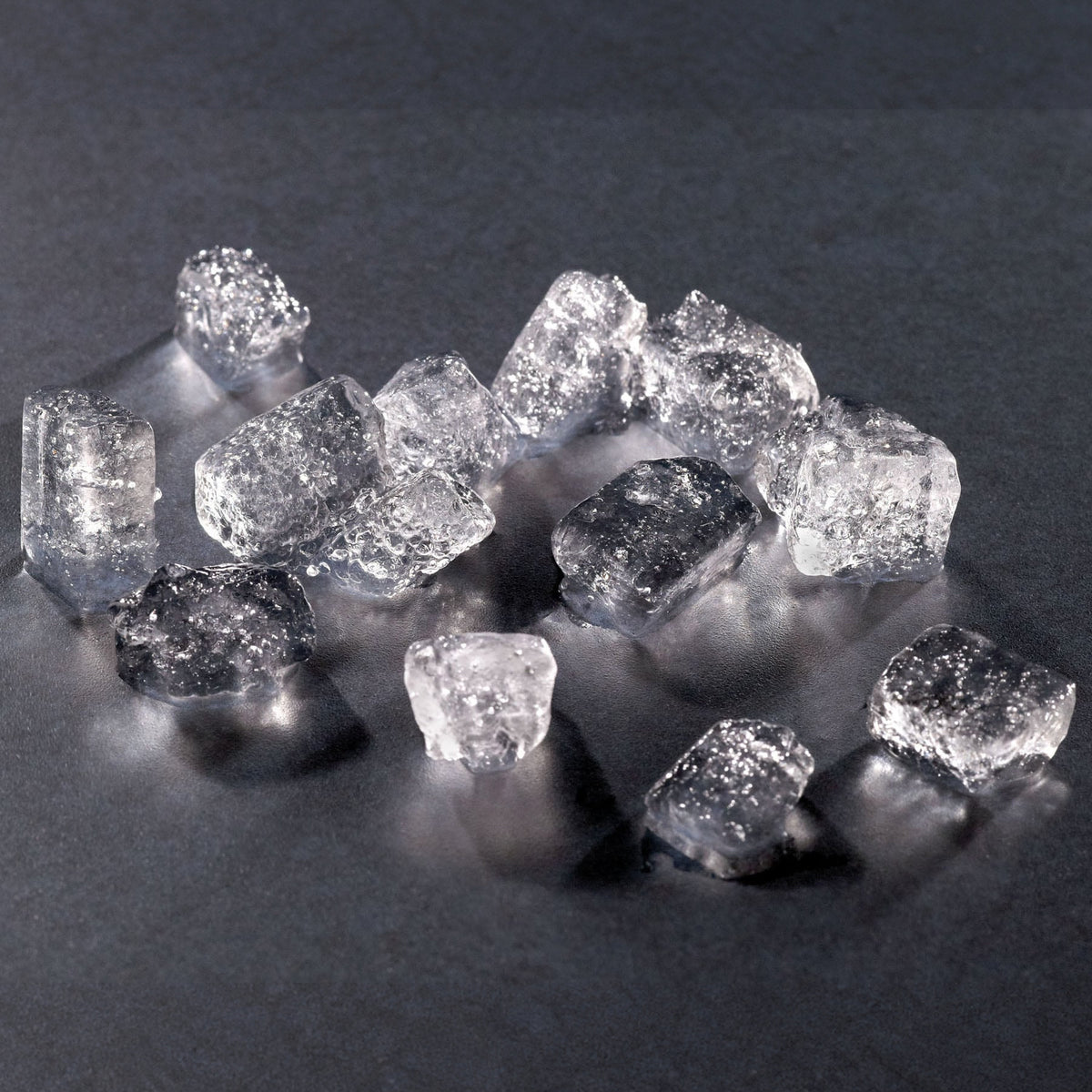

Cubelet ice is a soft, chewable form of ice that cools beverages quickly and works well for water, fountain drinks and patient-care hydration. An LED remote sensor enables hands-free dispensing with opaque containers, while the enclosed delivery path keeps ice contained until it is dispensed.
The stainless steel exterior, stainless steel auger and greaseless bearing support a durable dispensing station. Advanced CleanCycle24 design performs a short flush cycle every hour to help remove sediment, and the self-contained format reduces ice handling at the point of service. The unit dispenses both ice and water; the optional SD-500 stand is not included.
Key Features
- Cubelet Ice
- Air-Cooled

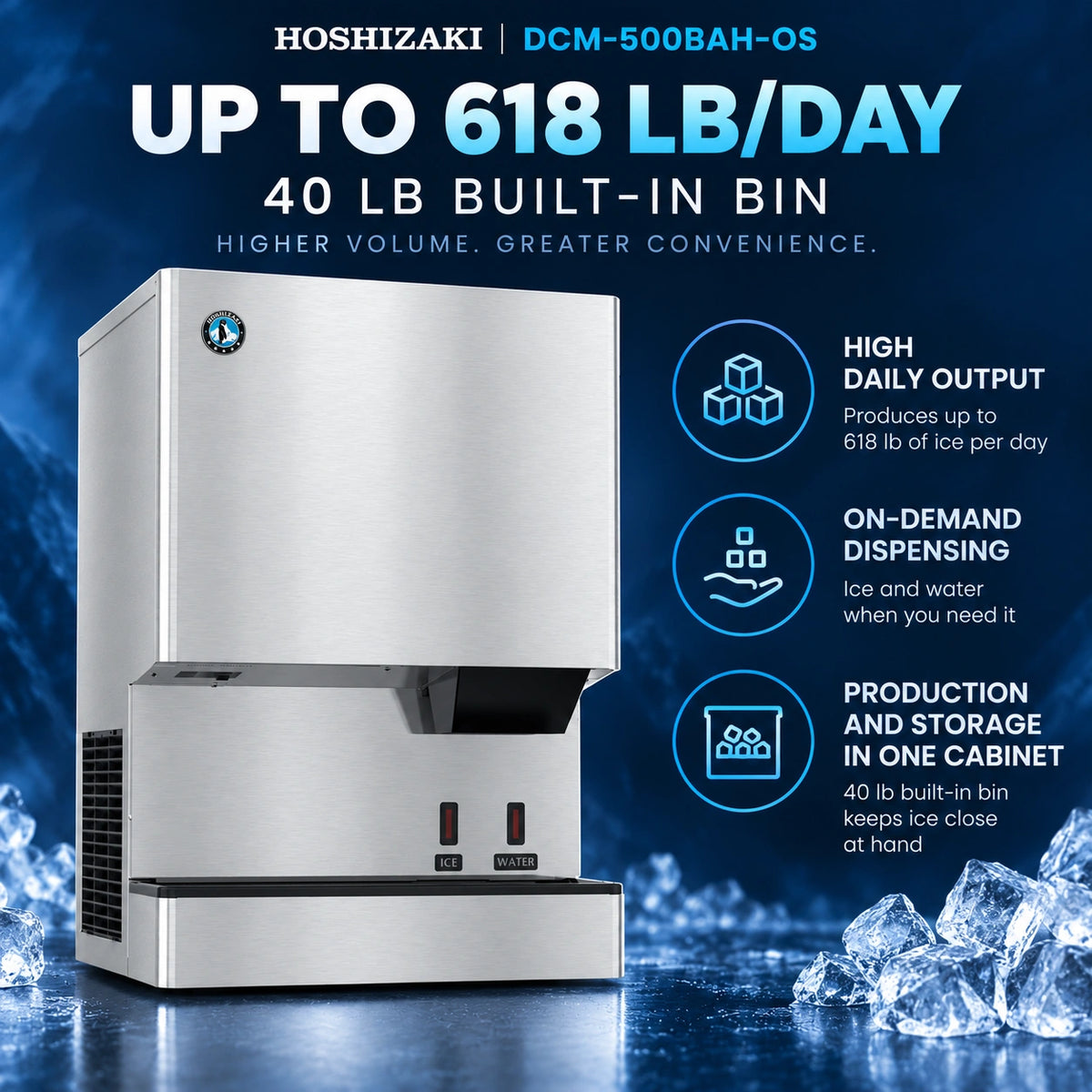

- Up to 618 lb/day

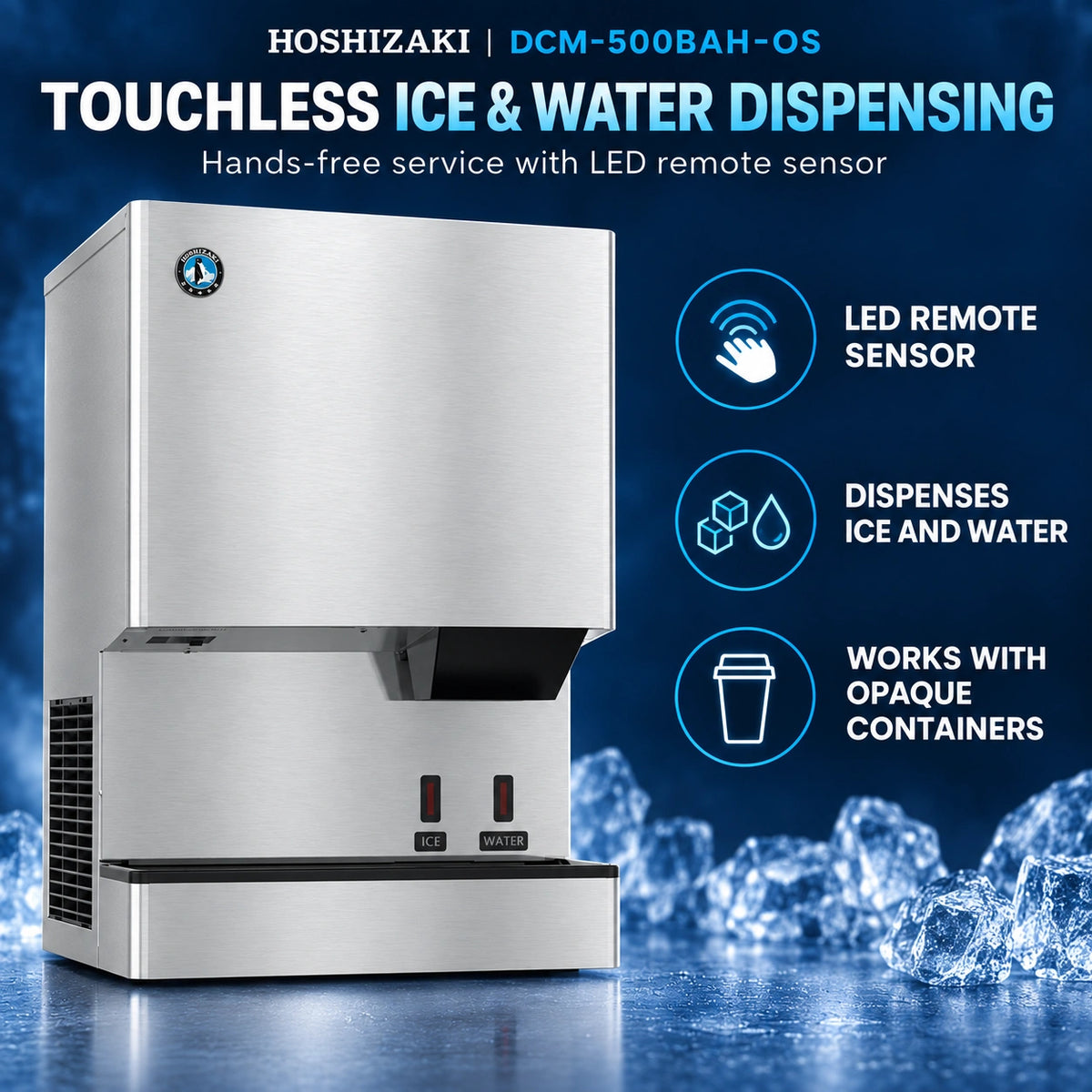

- Touchless Ice & Water Dispenser
- 40 lb Built-In Bin
- 26 in. Wide
Best For
Healthcare, offices, cafeterias, self-service beverage stations and other locations that need a touch-free combination of chewable ice and water.

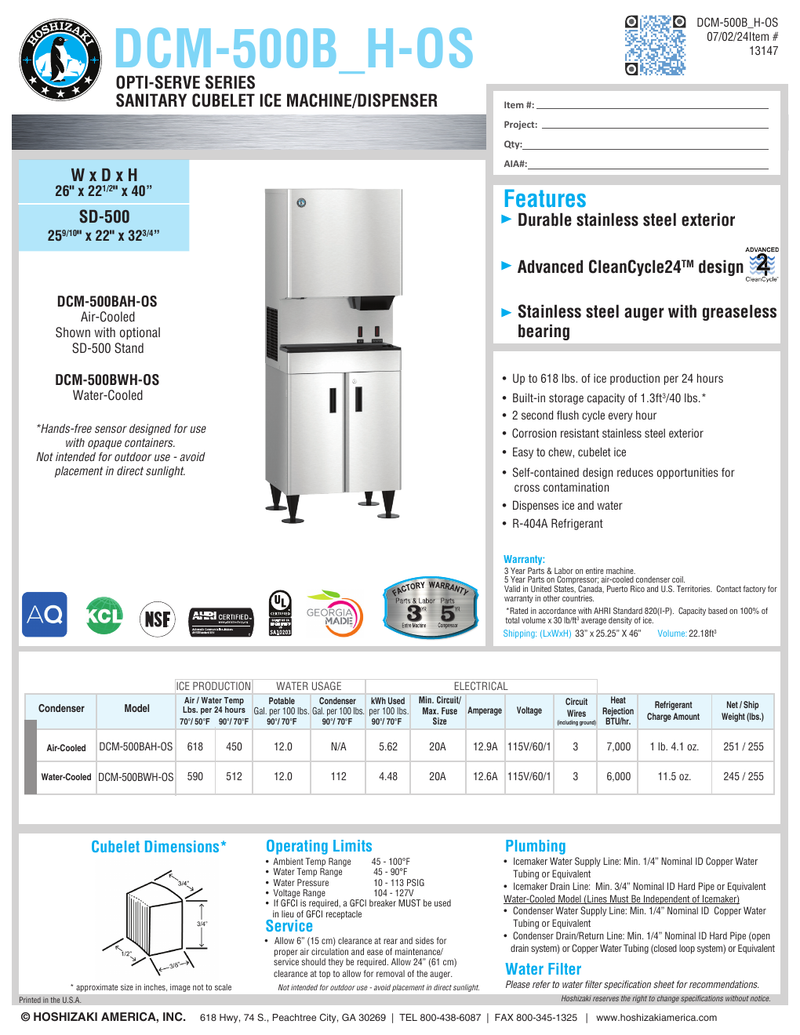

Full Specifications
Cubelet ice5.62 kWh per 100 lb at 90°F air / 70°F water
| Specification | Detail | |
|---|---|---|
| Brand | Hoshizaki | |
| Model | DCM-500BAH-OS | |
| Equipment type | Self-contained touchless cubelet ice and water dispenser | |
| Ice type | ||
| Cooling | Air-cooled | |
| Daily production | 618 lb/24 hr at 70°F air / 50°F water; 450 lb/24 hr at 90°F air / 70°F water | |
| Built-in storage | 40 lb / 1.3 cu. ft. | |
| Dimensions (W × D × H) | 26 × 22-1/2 × 40 in. | |
| Electrical | 115V / 60Hz / 1 phase; 12.9A; 20A maximum fuse; hardwired | |
| Energy use | ||
| Water use | 12 gal per 100 lb at 90°F air / 70°F water | |
| Heat rejection | 7,000 BTU/hr | |
| Refrigerant | R-404A; 1 lb 4.1 oz charge | |
| Water inlet / drain | 1/in. FPT inlet / 3/4 in. FPT drain | |
| Operating limits | 45-100°F ambient; 45-90°F water; 10-113 psig water pressure | |
| Net / shipping weight | 251 / 255 lb |
Warranty
- 3 years parts and labor on the entire machine
- 5 years parts and labor on the evaporator
- 5 years parts on the compressor and air-cooled condenser coil
Warranty coverage is subject to Hoshizaki terms and conditions.
Installation and Maintenance Notes
- Allow 6 in. clearance at the rear and sides and 24 in. clearance above for air circulation, service and auger removal.
- Use an opaque container with the LED hands-free sensor; the manufacturer does not recommend direct-sunlight placement or outdoor use.
- Connect to a potable cold-water supply and suitable drain in accordance with local codes and the installation manual.
