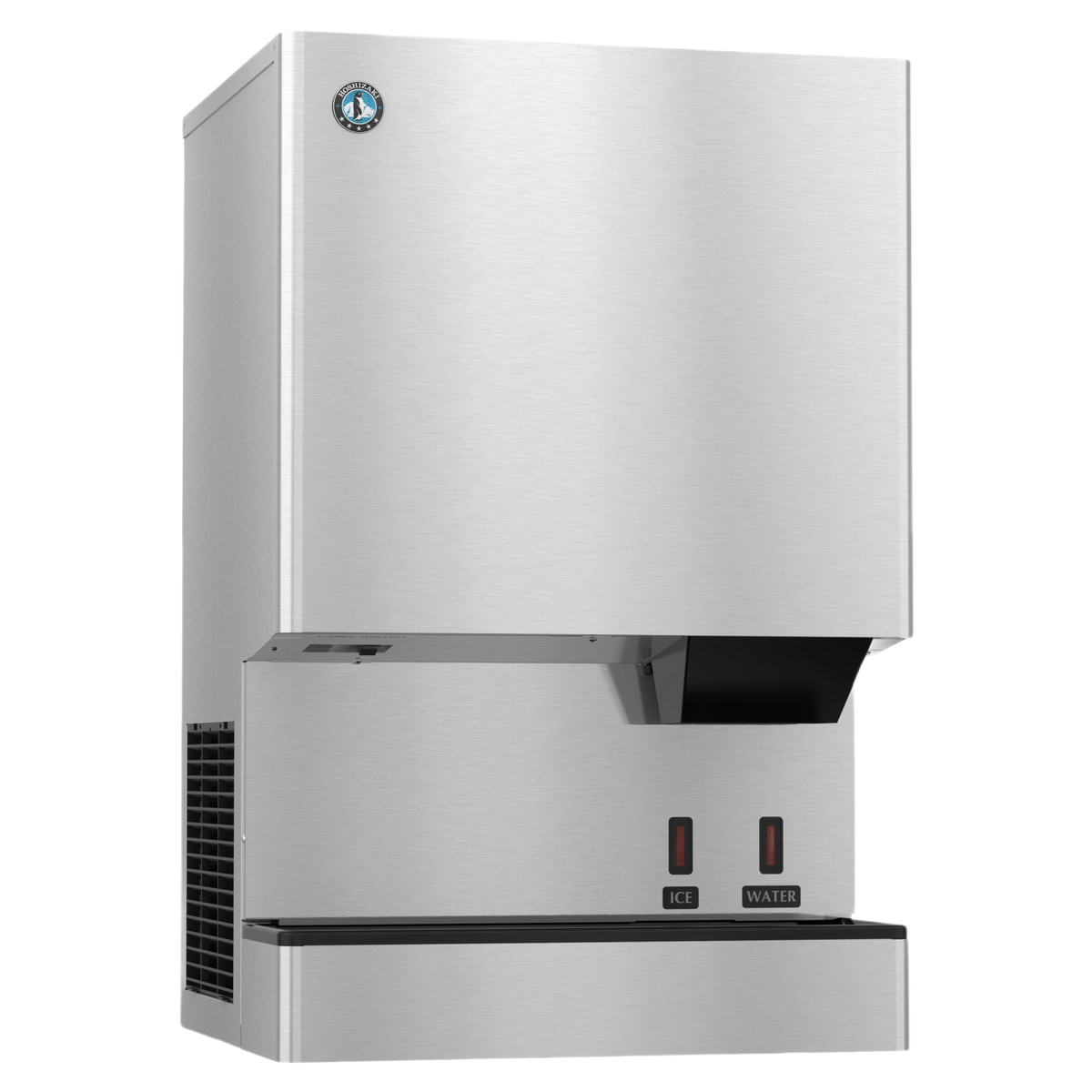

Hoshizaki DCM-300BAK-OS Touchless Cubelet Ice and Water Dispenser — 343 lb/day Opti-Serve System
The Hoshizaki DCM-300BAK-OS touchless cubelet ice and water dispenser provides high-output ice making and hands-free dispensing in one self-contained stainless steel cabinet. It makes up to 343 lb of chewable cubelet nugget-style ice per day and keeps up to 40 lb ready in its enclosed storage bin. Opti-Serve optical sensors activate ice or water for opaque containers, reducing shared touchpoints at busy beverage and hydration stations.
This configuration is especially useful where sanitation and user convenience are priorities. Ice stays enclosed from production through dispensing, helping limit opportunities for contamination associated with open bins and scoops. The soft cubelet format is comfortable to chew and works well for patient hydration, fountain beverages, iced drinks, and general refreshment service. A corrosion-resistant stainless steel exterior and stainless steel auger with greaseless bearing support long-term commercial operation.
The Advanced CleanCycle24™ system performs a two-second flush every hour to help move sediment out of the water circuit. An air-cooled condenser and low-GWP R290 refrigerant provide efficient, self-contained refrigeration. Maximum output is measured at 70°F air and 50°F water; at the more demanding 90°F air and 70°F water condition, rated production is approximately 240 lb per day.
With its 26-inch width and 40-inch height, the DCM-300BAK-OS can serve from a suitable counter or compatible stand. The sensors are intended for opaque containers and should be protected from direct sunlight. Plan for a 115-volt circuit, water supply, drain, ventilation space, and overhead auger-service clearance before installation.
Key Features
- Produces up to 343 lb of cubelet nugget-style ice per day
- Stores up to 40 lb in an enclosed 1.3-cu.-ft. bin
- Opti-Serve touchless ice and water sensors
- Sensor system is designed for opaque containers
- Self-contained design supports sanitary point-of-use service
- Advanced CleanCycle24™ and two-second hourly flush
- Corrosion-resistant stainless steel cabinet
- Stainless steel auger with greaseless bearing
- Air-cooled R290 refrigeration
- 115V / 60Hz / single-phase operation
Best For
Hospitals, senior-living communities, clinics, schools, corporate offices, hotels, cafeterias, and other high-use locations that want touchless access to water and easy-to-chew ice with a 40-lb reserve.

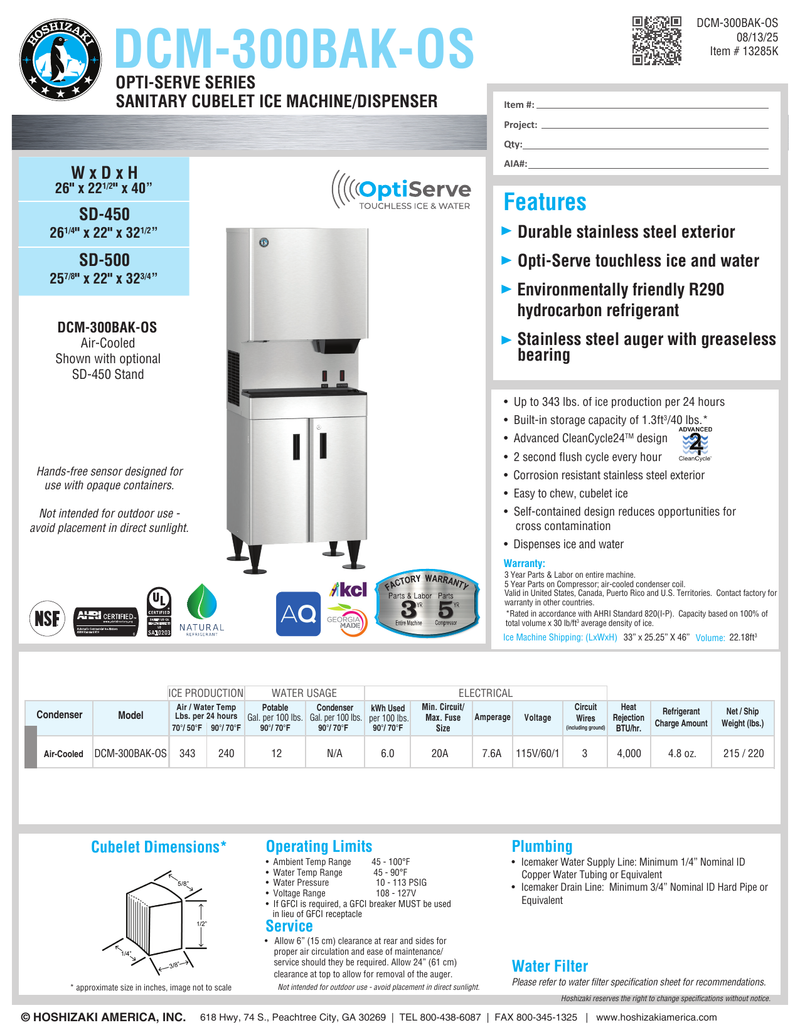

Full Specifications
| Brand | Hoshizaki |
|---|---|
| Model | DCM-300BAK-OS |
| Item number | 13285K |
| Machine type | Self-contained touchless cubelet ice machine and water dispenser |
| Dispensing | Opti-Serve hands-free optical sensors for ice and water |
| Ice type | Mini cubelet, nugget-style ice |
| Cooling | Air-cooled |
| Maximum daily production | 343 lb at 70°F air / 50°F water |
| Production at 90°F air / 70°F water | 240 lb per 24 hours |
| Built-in storage | 40 lb / 1.3 cu. ft. |
| Dimensions | 26 in. W × 22-1/2 in. D × 40 in. H |
| Net / shipping weight | 215 lb / 220 lb |
| Electrical | 115V / 60Hz / 1 phase; 7.6A; 20A maximum fuse or breaker |
| Energy use | 6.0 kWh per 100 lb at 90°F / 70°F |
| Potable water use | 12 gal per 100 lb at 90°F / 70°F |
| Heat rejection | 4,000 BTU/hr |
| Refrigerant | R290, 4.8 oz. |
| Water / drain | 1/2-inch FPT water inlet; 3/4-inch drain outlet |
| Operating limits | 45–100°F air; 45–90°F water; 10–113 PSIG; 108–127V |
| Required clearance | 6 inches at rear and sides; 24 inches above for auger service |
| Recommended stand | Hoshizaki SD-500, sold separately; verify current stand fit before ordering |
Warranty
- Entire machine: 3 years parts and labor
- Compressor and air-cooled condenser coil: 5 years parts
Installation and Maintenance Notes
- Use opaque containers for reliable hands-free activation.
- Install indoors and shield optical sensors from direct sunlight.
- Provide the specified ventilation and auger-service clearances.
- Select a compatible water filter based on water conditions and expected demand.
