Hoshizaki DCM-300BAK Cubelet Ice and Water Dispenser — 343 lb/day with 40 lb Storage

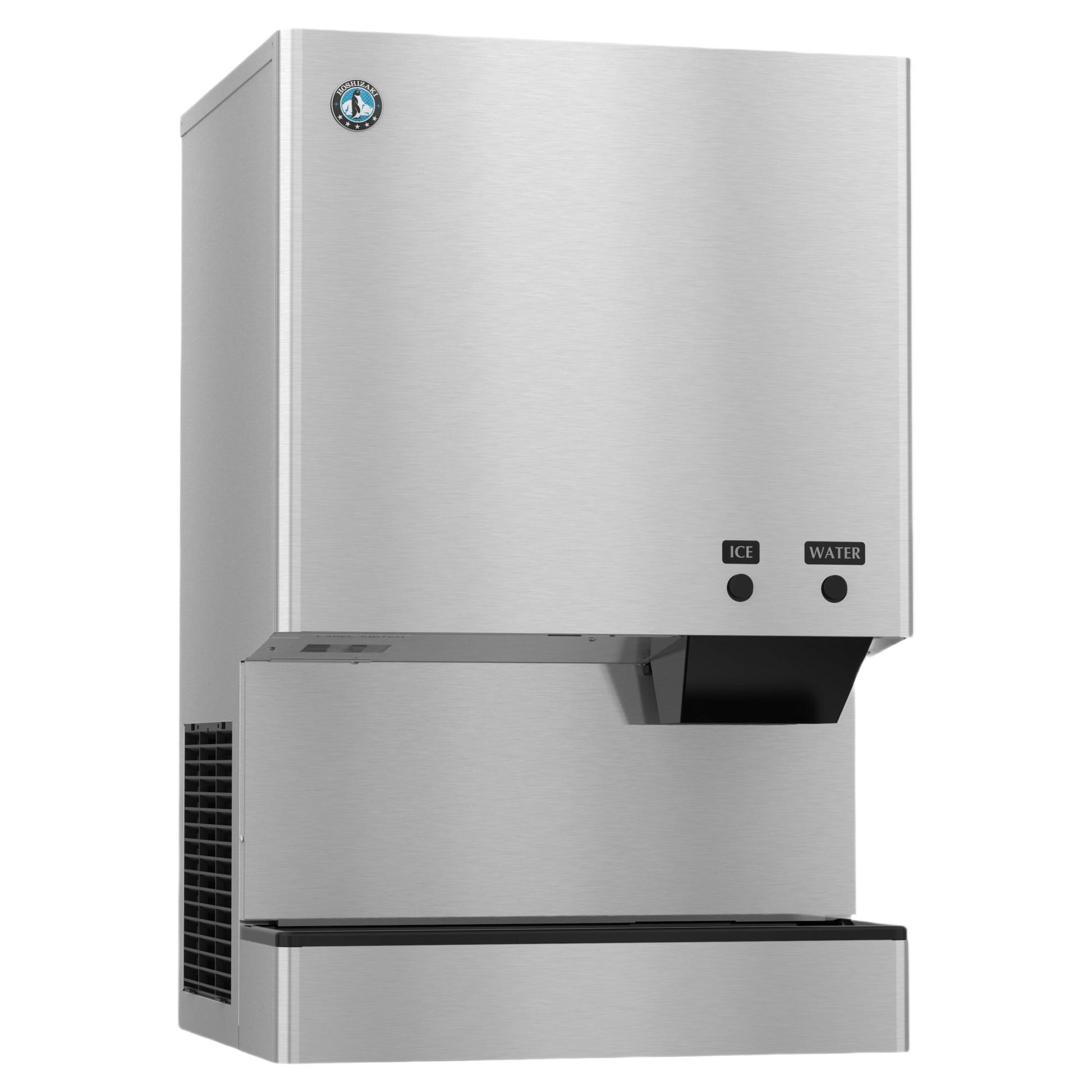

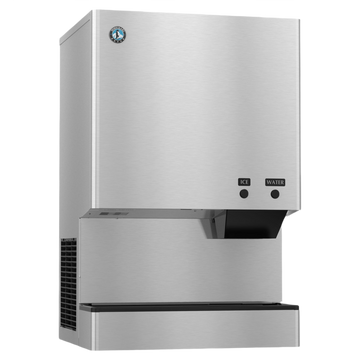

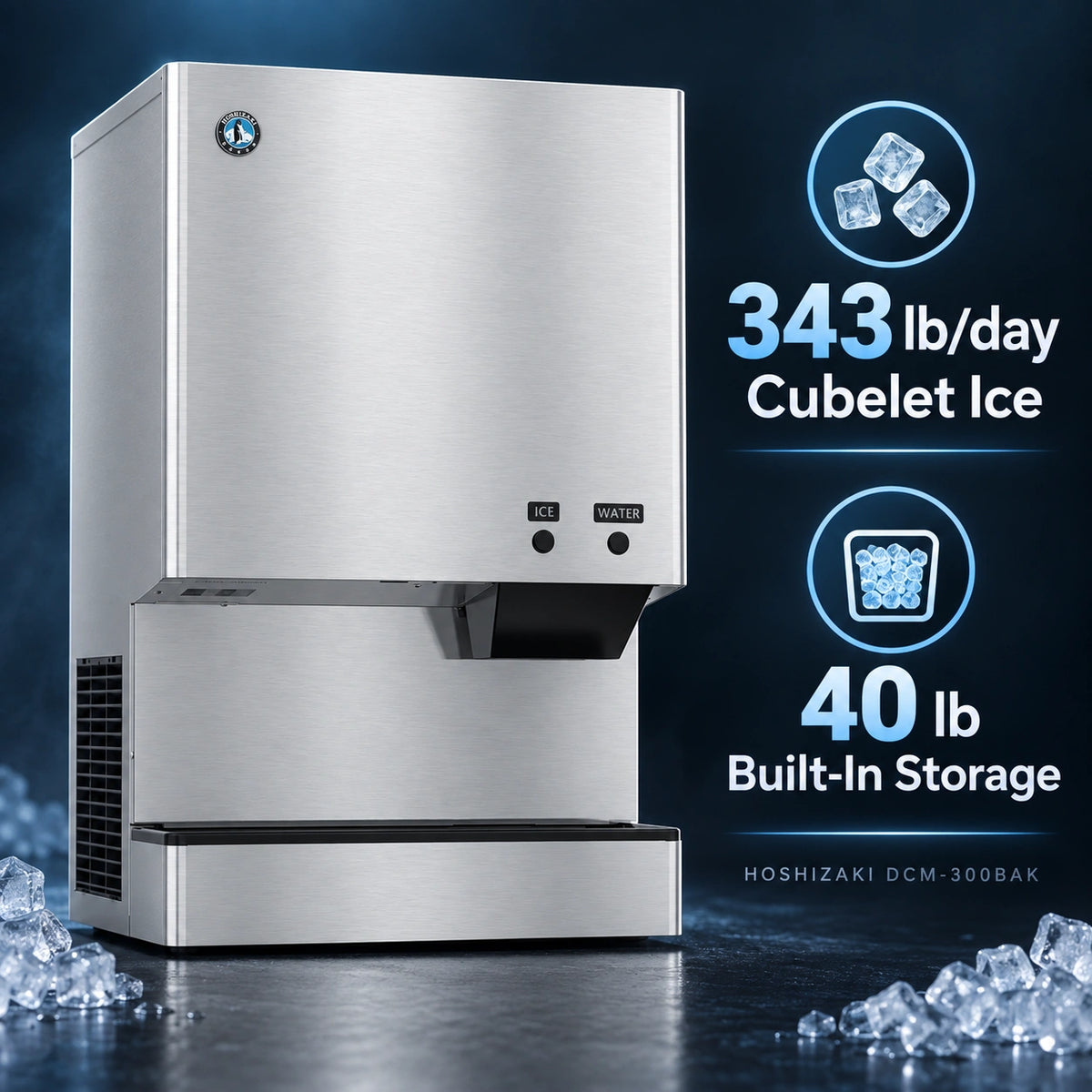

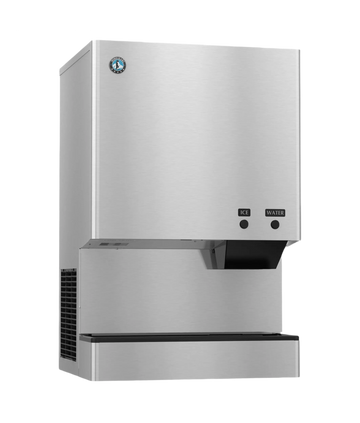

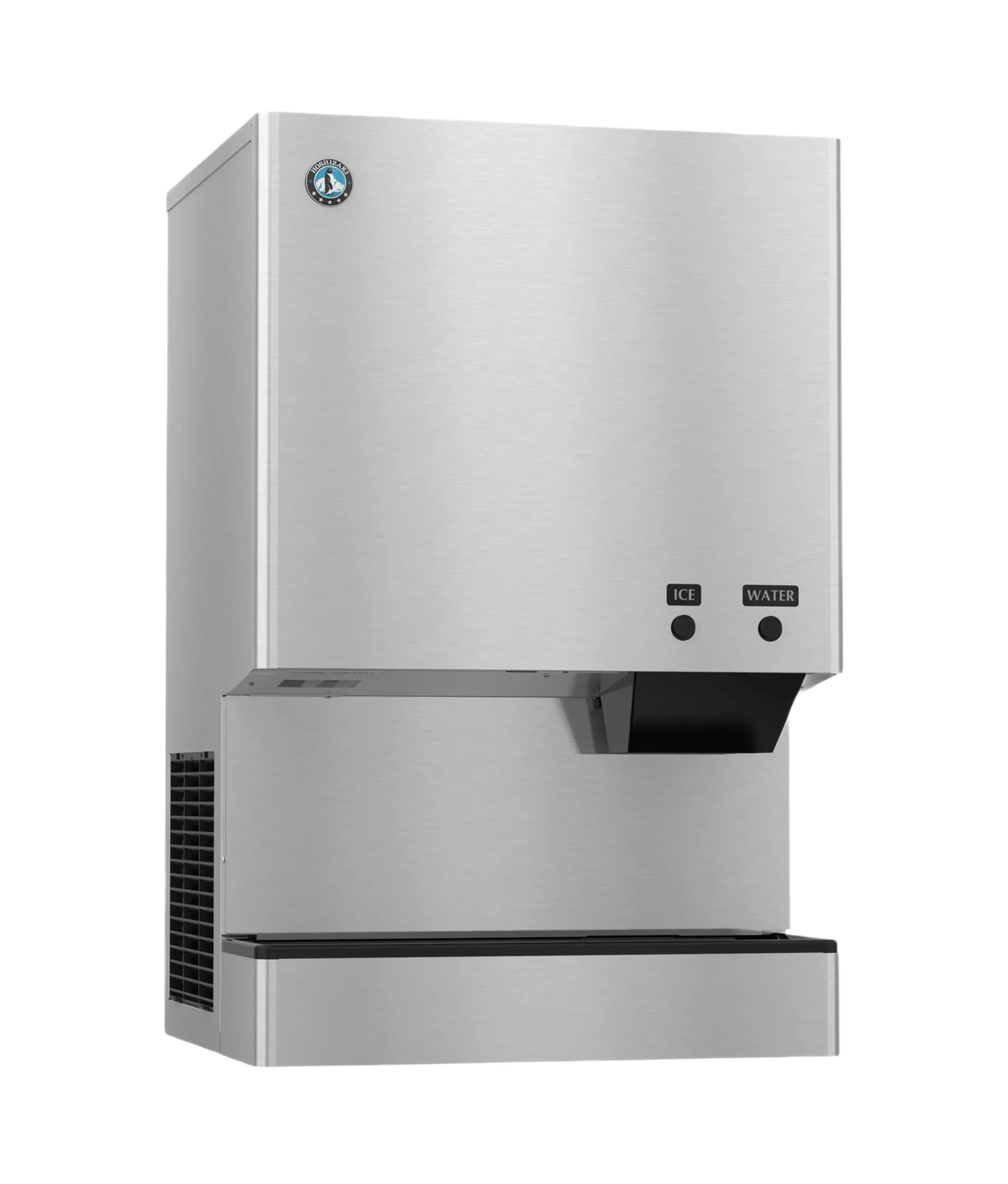

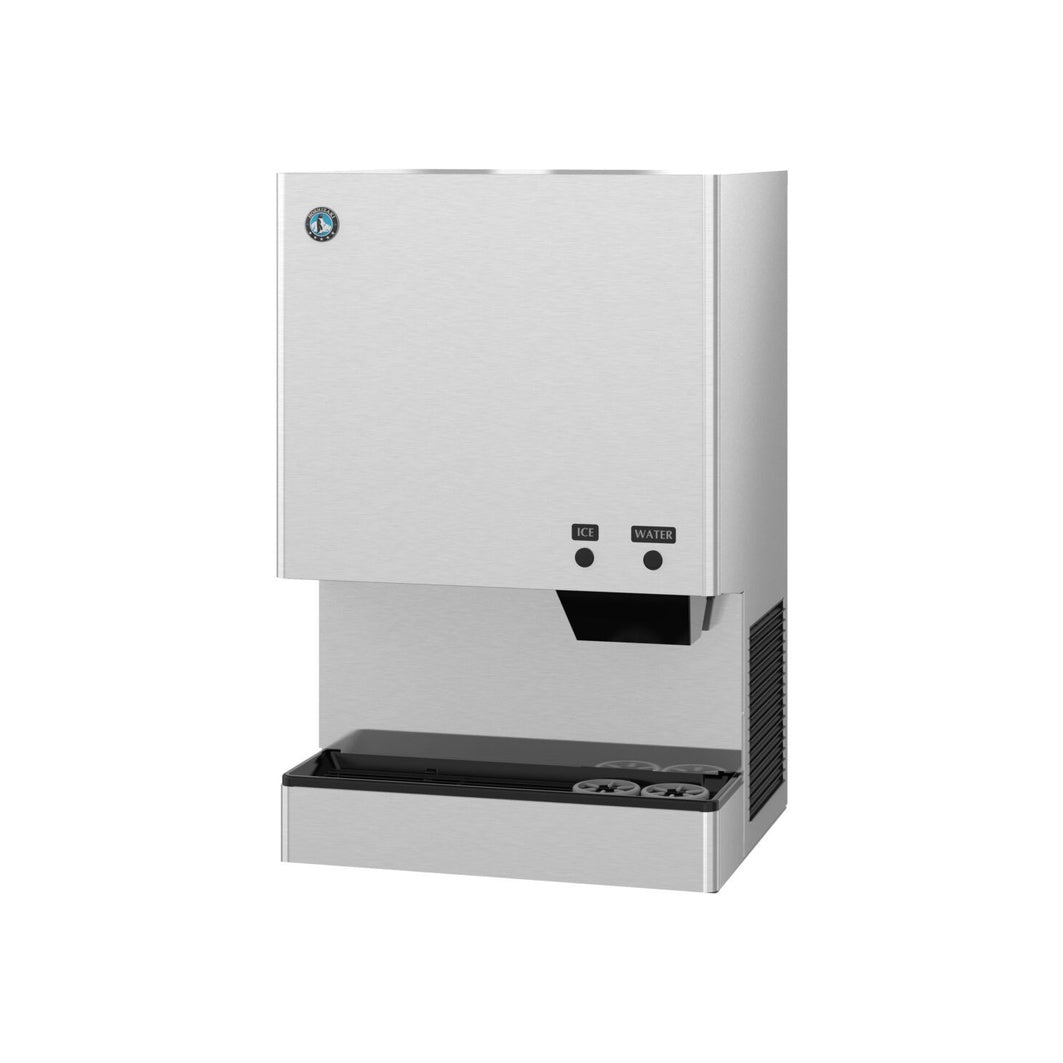

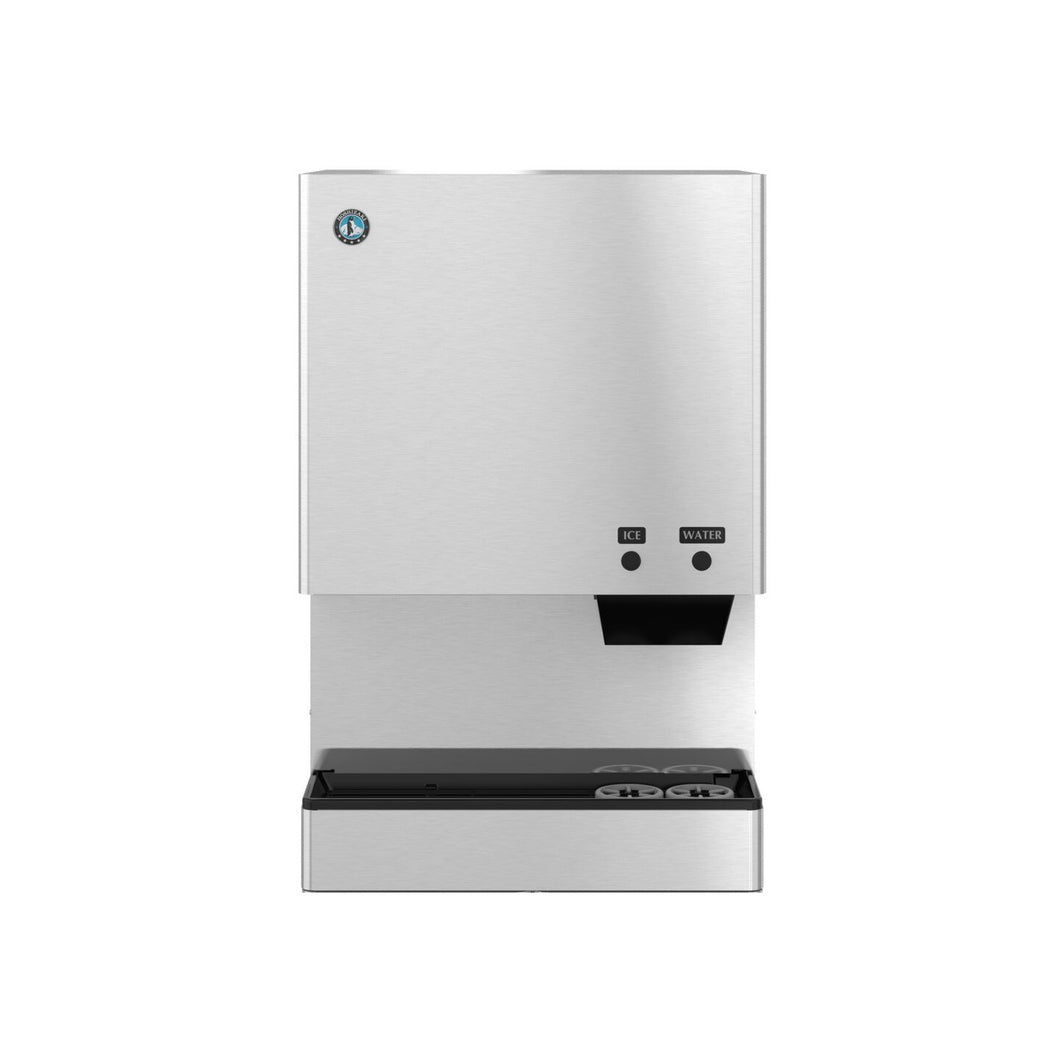

The Hoshizaki DCM-300BAK cubelet ice and water dispenser is a self-contained commercial solution for locations that need more ice storage than a compact countertop model while retaining simple point-of-use service. It produces up to 343 lb of soft cubelet nugget-style ice per day and stores up to 40 lb in its built-in 1.3-cubic-foot bin. Clearly labeled push buttons let users select ice or water from one sanitary, enclosed dispenser.

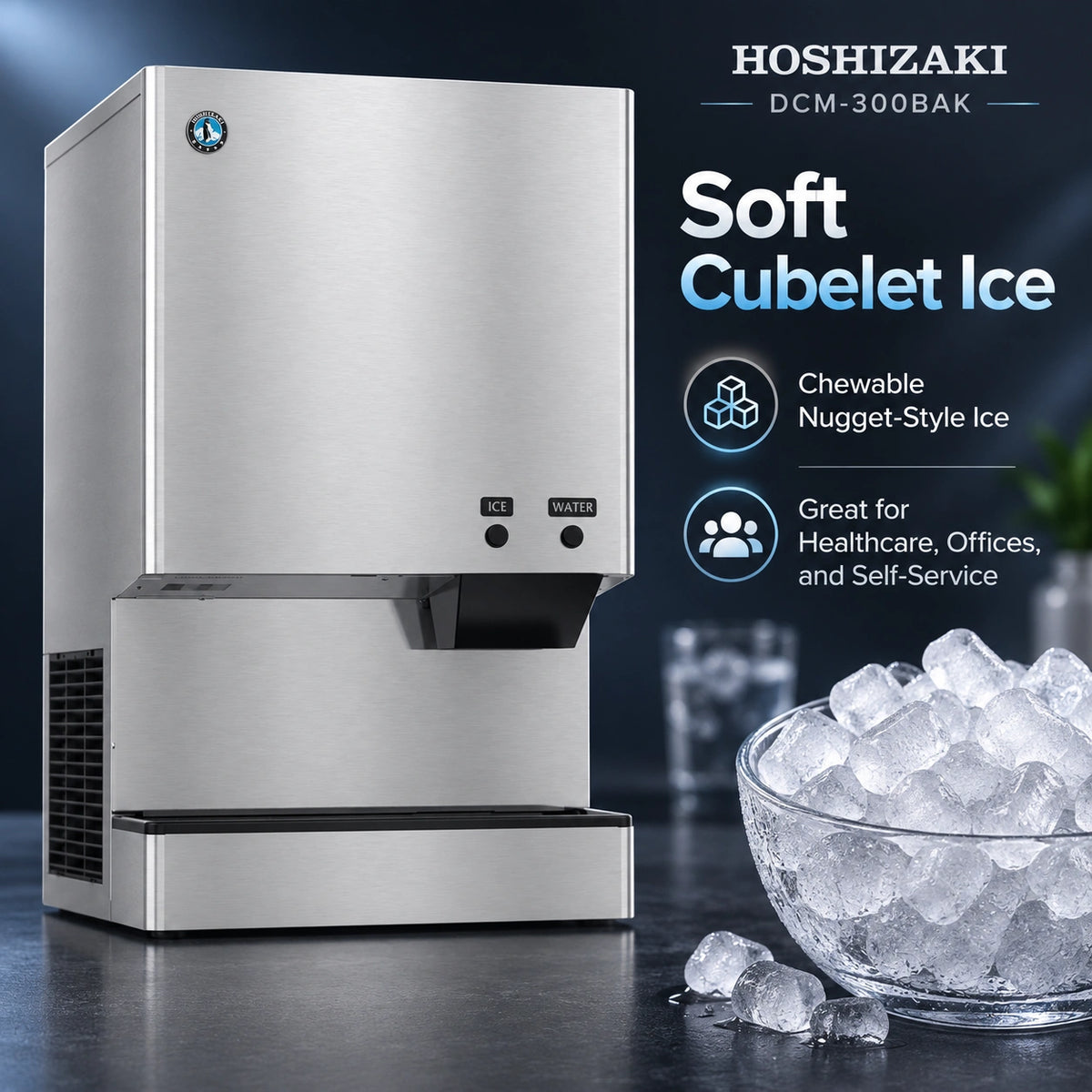

Soft cubelet ice is easy to chew and works well in healthcare hydration, soft drinks, iced beverages, and self-service applications. Because the machine produces, stores, and dispenses ice inside one cabinet, it eliminates open scooping at the service point and helps reduce opportunities for cross-contamination. The corrosion-resistant stainless steel exterior is suited to daily commercial use, while the stainless steel auger with a greaseless bearing supports dependable ice production.
Advanced CleanCycle24™ and a two-second hourly flush help move sediment through the water system and support routine sanitation. The air-cooled refrigeration system uses R290 hydrocarbon refrigerant. Under warmer 90°F air and 70°F water conditions, the machine is rated for approximately 240 lb per day, giving operators a useful real-world planning figure beyond its 343-lb maximum rating.
The DCM-300BAK has a 26-inch-wide cabinet and can be installed on a suitable counter or paired with a compatible Hoshizaki stand. A 115-volt connection, 20-amp maximum circuit protection, water supply, and indirect drain are required. Maintain the specified airflow and auger-service clearances so the unit can perform and be serviced correctly.
Key Features
- Produces up to 343 lb of cubelet nugget-style ice per day
- Built-in 40-lb / 1.3-cu.-ft. storage bin
- Push-button ice and water dispensing
- Enclosed self-contained design helps reduce contact with stored ice
- Advanced CleanCycle24™ with a two-second hourly flush
- Corrosion-resistant stainless steel exterior
- Stainless steel auger with greaseless bearing
- Air-cooled system using R290 refrigerant
- 115V single-phase commercial operation
- Optional stand available separately
Best For
Hospitals and healthcare facilities, institutional kitchens, offices, cafeterias, hotels, employee refreshment areas, and busy self-service stations that need chewable ice, water dispensing, and a substantial built-in reserve.

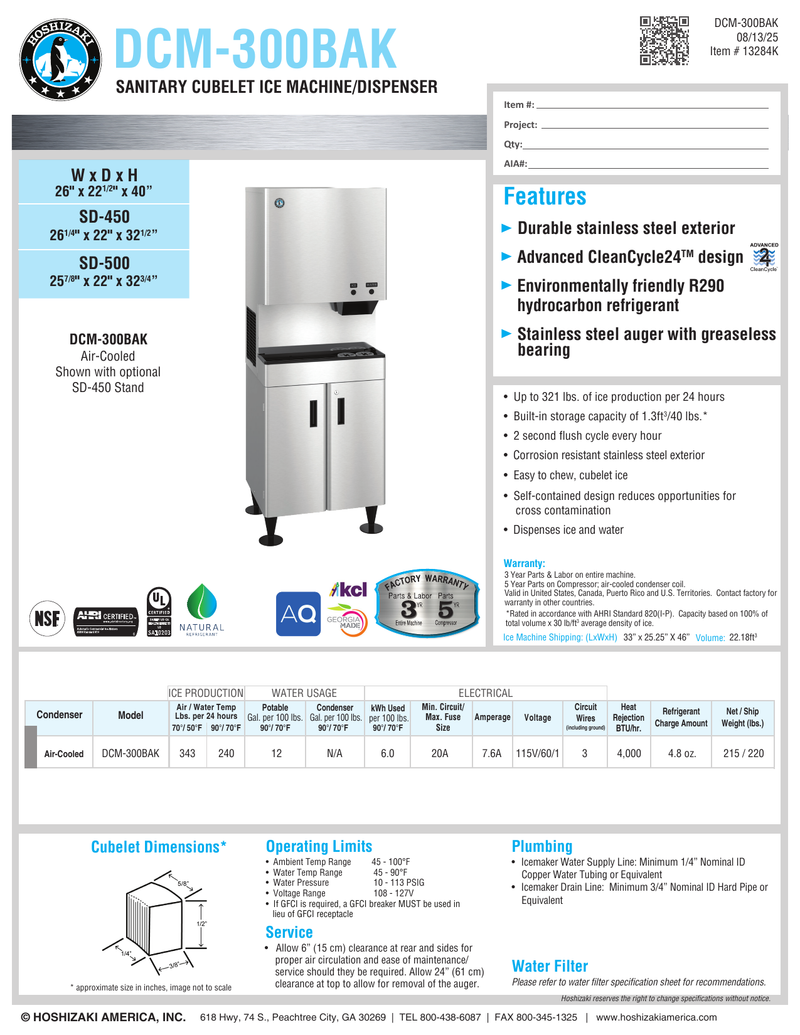

Full Specifications
| Brand | Hoshizaki |
|---|---|
| Model | DCM-300BAK |
| Item number | 13284K |
| Machine type | Self-contained cubelet ice machine and water dispenser |

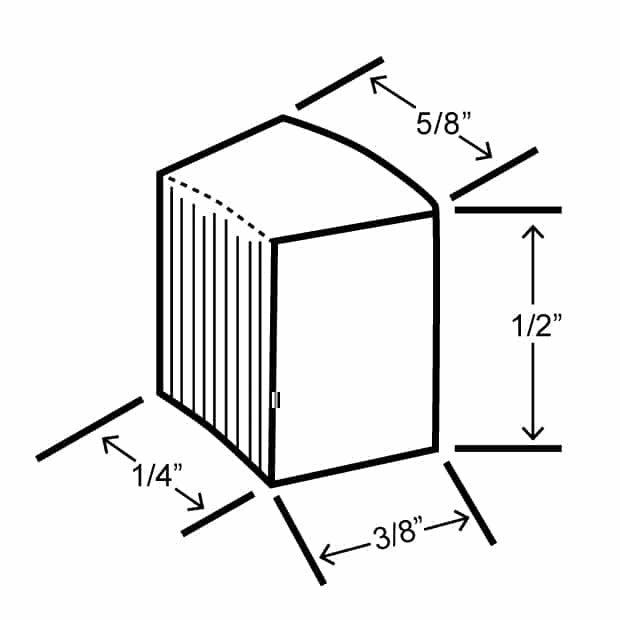

| Ice type | Mini cubelet, nugget-style ice |
| Cooling | Air-cooled |
| Maximum daily production | 343 lb at 70°F air / 50°F water |
| Production at 90°F air / 70°F water | 240 lb per 24 hours |
| Built-in storage | 40 lb / 1.3 cu. ft. |
| Dimensions | 26 in. W × 22-1/2 in. D × 40 in. H |
| Net / shipping weight | 215 lb / 220 lb |
| Electrical | 115V / 60Hz / 1 phase; 7.6A; 20A maximum fuse or breaker |
| Energy use | 6.0 kWh per 100 lb at 90°F / 70°F |
| Potable water use | 12 gal per 100 lb at 90°F / 70°F |
| Heat rejection | 4,000 BTU/hr |
| Refrigerant | R290, 4.8 oz. |
| Water / drain | 1/2-inch FPT water inlet; 3/4-inch drain outlet |
| Operating limits | 45–100°F air; 45–90°F water; 10–113 PSIG; 108–127V |
| Required clearance | 6 inches at rear and sides; 24 inches above for auger service |

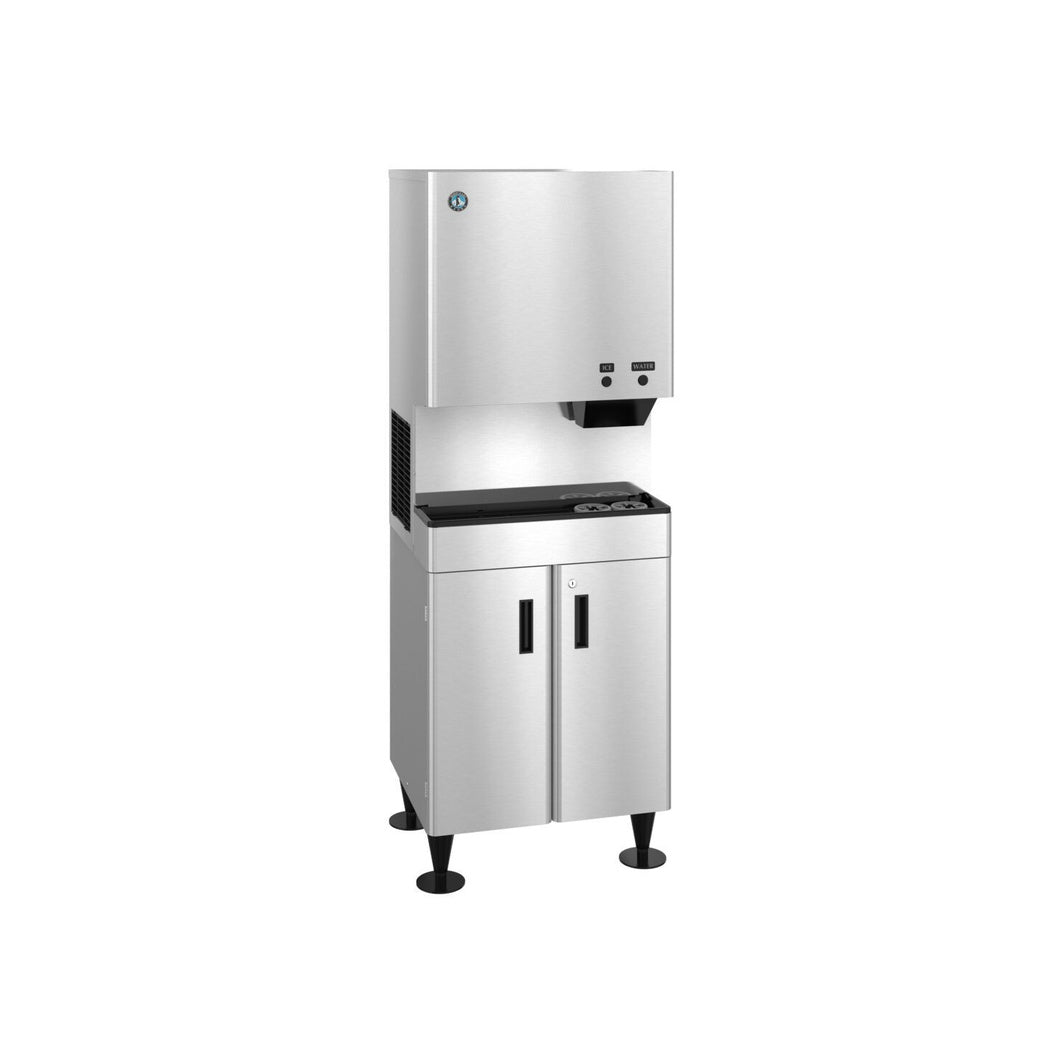

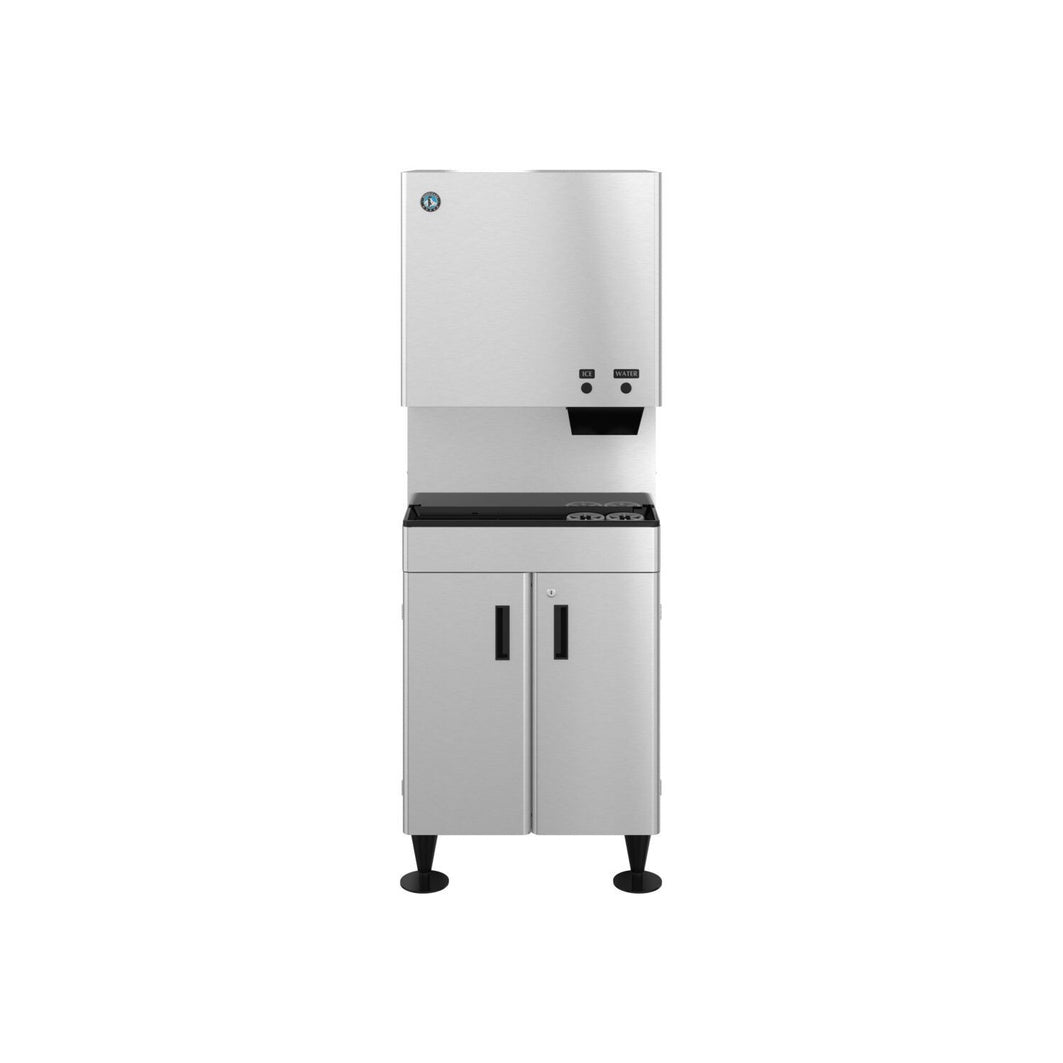

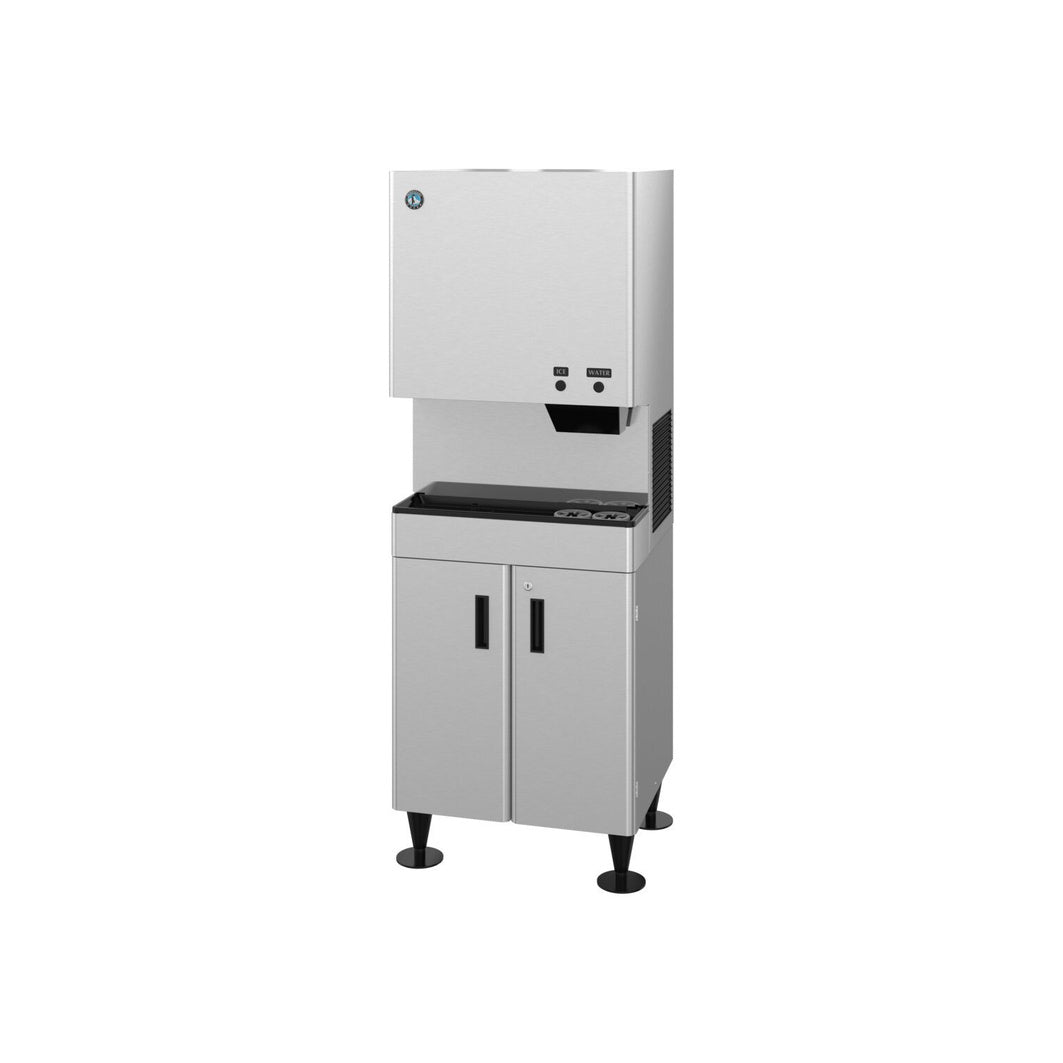

| Recommended stand | Hoshizaki SD-500, sold separately; verify current stand fit before ordering |
Warranty
- Entire machine: 3 years parts and labor
- Compressor and air-cooled condenser coil: 5 years parts
Installation and Maintenance Notes
- Indoor installation only; do not place in direct sunlight.
- Provide the required side, rear, and top service clearances.
- If GFCI protection is required, use a GFCI breaker rather than a receptacle.
- Choose a water-filter configuration based on local water quality and actual ice usage.
