Hoshizaki DCM-271BAK-OS Touchless Cubelet Ice and Water Dispenser — Compact Opti-Serve Convenience

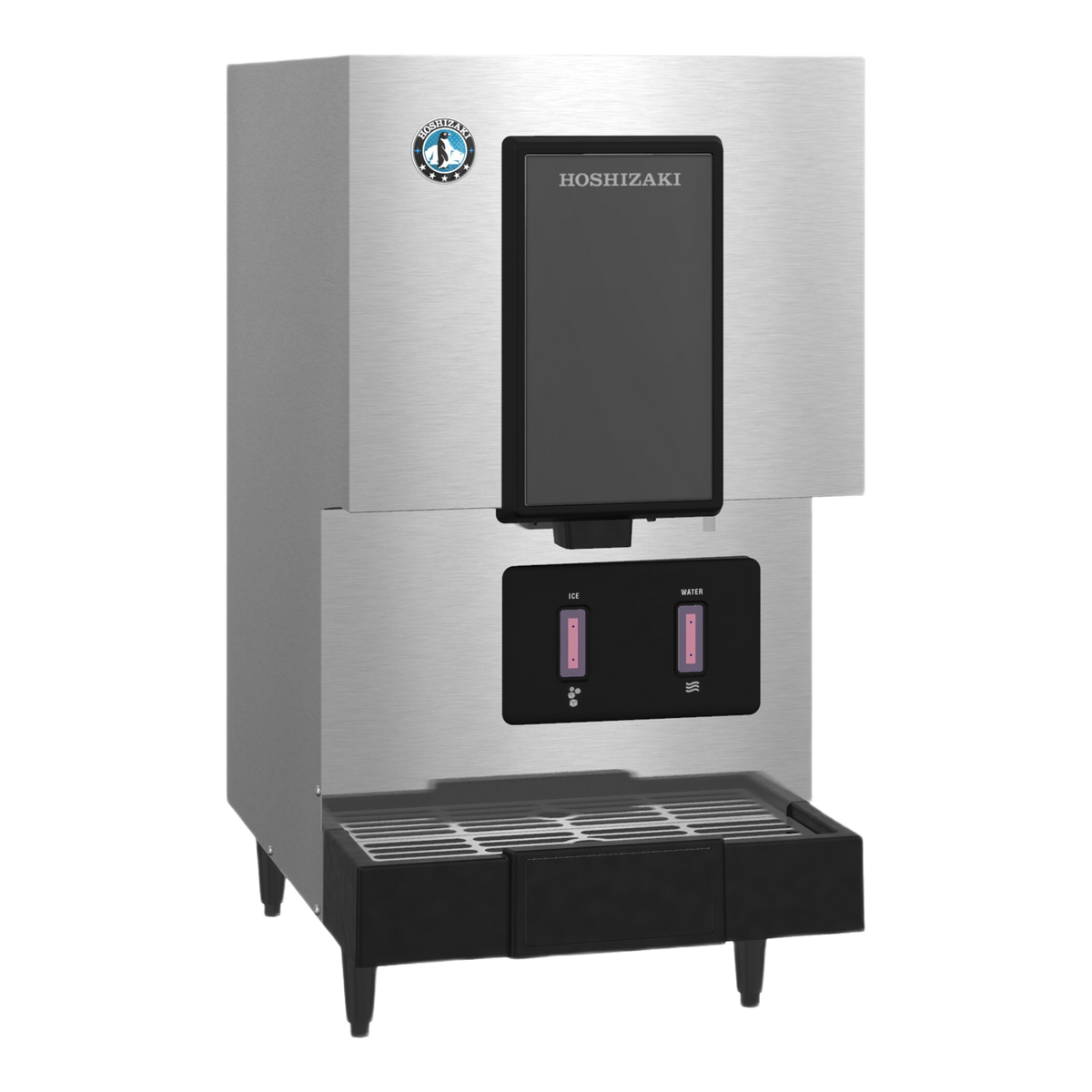

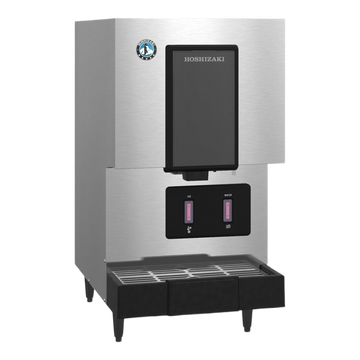

The Hoshizaki DCM-271BAK-OS touchless cubelet ice and water dispenser brings hands-free ice and water service to compact commercial spaces. It produces up to 286 lb of mini cubelet nugget-style ice every 24 hours and stores up to 10 lb in its built-in bin. Independent optical sensors activate ice or water without requiring the user to press a button, helping reduce touchpoints in healthcare, office, education, hospitality, and self-service environments.
The Opti-Serve sensors are designed for use with opaque containers. A generous 10-1/4-inch cup clearance accommodates common beverage cups and reusable containers, while the stainless steel drain-pan grate manages drips around the dispensing area. The removable spout supports more efficient daily cleaning, and the enclosed storage-and-dispensing path keeps ice protected until it is served.
Inside the machine, Hoshizaki’s auger system forms soft, chewable cubelet ice suited to patient hydration, soft drinks, blended beverages, and casual chewing. Advanced CleanCycle24™ performs a two-second flush every hour to help remove sediment and support a cleaner freezing system. The air-cooled refrigeration system uses R290 natural refrigerant, and the stainless steel cabinet provides commercial durability without requiring a separate ice maker and dispenser.
The 16-5/8-inch-wide cabinet can sit on a suitable countertop or pair with the optional SD-271 stand. The machine is ADA compliant and includes a six-foot cord with a NEMA 5-15 plug. For reliable performance, install it indoors, preserve the required ventilation and service clearances, and keep the optical-sensor area out of direct sunlight.
Key Features
- Produces up to 286 lb of mini cubelet ice per day
- Built-in storage holds up to 10 lb
- Opti-Serve optical sensors provide touchless ice and water dispensing
- Sensors are designed for use with opaque cups and containers
- ADA-compliant commercial dispenser
- 10-1/4-inch cup clearance
- Advanced CleanCycle24™ two-second hourly flush
- Removable spout and stainless steel drain-pan grate
- Air-cooled R290 refrigeration system
- Compact 16-5/8-inch width for countertop or stand installation
- Six-foot cord and NEMA 5-15 plug included
Best For
Hospitals, clinics, senior-living facilities, corporate breakrooms, schools, hotels, waiting rooms, and other facilities that want a compact touchless dispenser for chewable ice and chilled-water service.

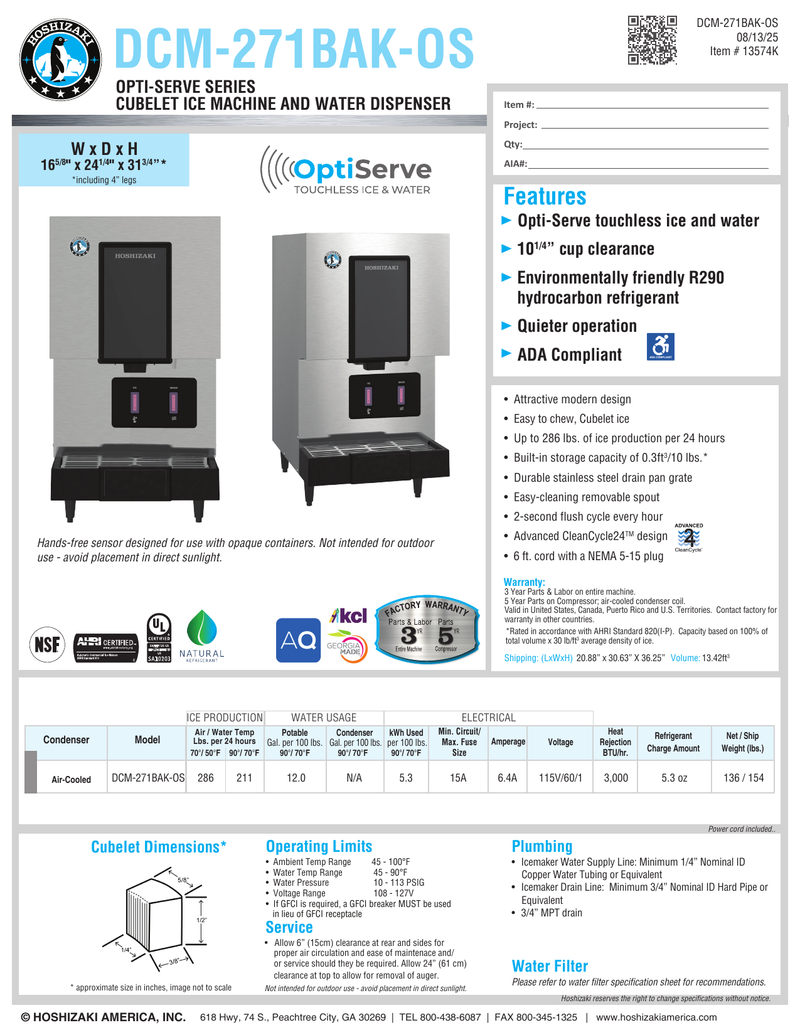

Full Specifications
| Brand | Hoshizaki |
|---|---|
| Model | DCM-271BAK-OS |
| Item number | 13574K |
| Machine type | Self-contained touchless cubelet ice machine and water dispenser |
| Dispensing | Opti-Serve hands-free optical sensors for ice and water |
| Ice type | Mini cubelet, nugget-style ice |
| Cooling | Air-cooled |
| Maximum daily production | 286 lb at 70°F air / 50°F water |
| Production at 90°F air / 70°F water | 211 lb per 24 hours |
| Built-in storage | 10 lb / 0.3 cu. ft. |
| Dimensions | 16-5/8 in. W × 24-1/4 in. D × 31-3/4 in. H, including 4-inch legs |
| Net / shipping weight | 136 lb / 154 lb |
| Electrical | 115V / 60Hz / 1 phase; 6.4A; 15A maximum fuse or breaker |
| Plug | NEMA 5-15; six-foot cord included |
| Energy use | 5.3 kWh per 100 lb at 90°F / 70°F |
| Potable water use | 12 gal per 100 lb at 90°F / 70°F |
| Heat rejection | 3,000 BTU/hr |
| Refrigerant | R290, 5.3 oz. |
| Water / drain | 1/2-inch FPT water inlet; 3/4-inch drain outlet |
| Operating limits | 45–100°F air; 45–90°F water; 10–113 PSIG; 108–127V |
| Required clearance | 6 inches at rear and sides; 24 inches above for auger service |
| Recommended stand | Hoshizaki SD-271, sold separately |
Warranty
- Entire machine: 3 years parts and labor
- Compressor and air-cooled condenser coil: 5 years parts
Installation and Maintenance Notes
- Install indoors and keep the optical sensors away from direct sunlight.
- Use opaque containers for reliable sensor activation.
- Use a GFCI breaker rather than a GFCI receptacle if protection is required.
- The model is designed for the SD-271 stand; the SD-270 requires a new drain opening.
