Hoshizaki DCM-271BAK Cubelet Ice & Water Dispenser - 286 lb/Day with 10 lb Bin, Air-Cooled
Price Match Guarantee
-
Estimated Delivery: 7-10 Business Days
Hoshizaki DCM-271BAK Cubelet Ice & Water Dispenser - 286 lb/Day with 10 lb Bin, Air-Cooled
Hoshizaki DCM-271BAK Cubelet Ice & Water Dispenser - 286 lb/Day with 10 lb Bin, Air-Cooled Description
Hoshizaki DCM-271BAK Cubelet Ice & Water Dispenser - 286 lb/Day with 10 lb Bin, Air-Cooled Commercial Description

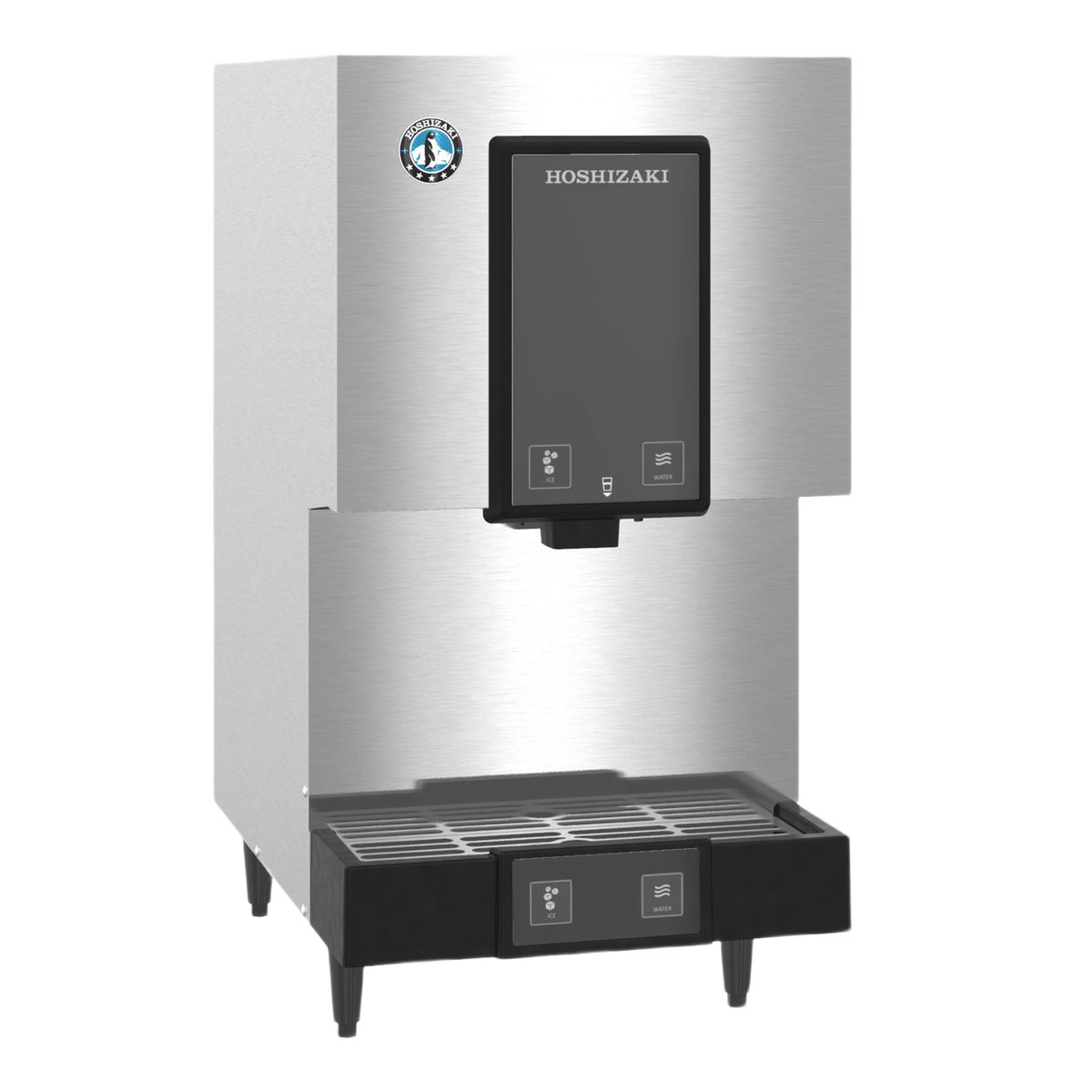

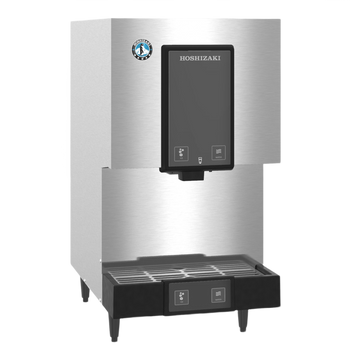

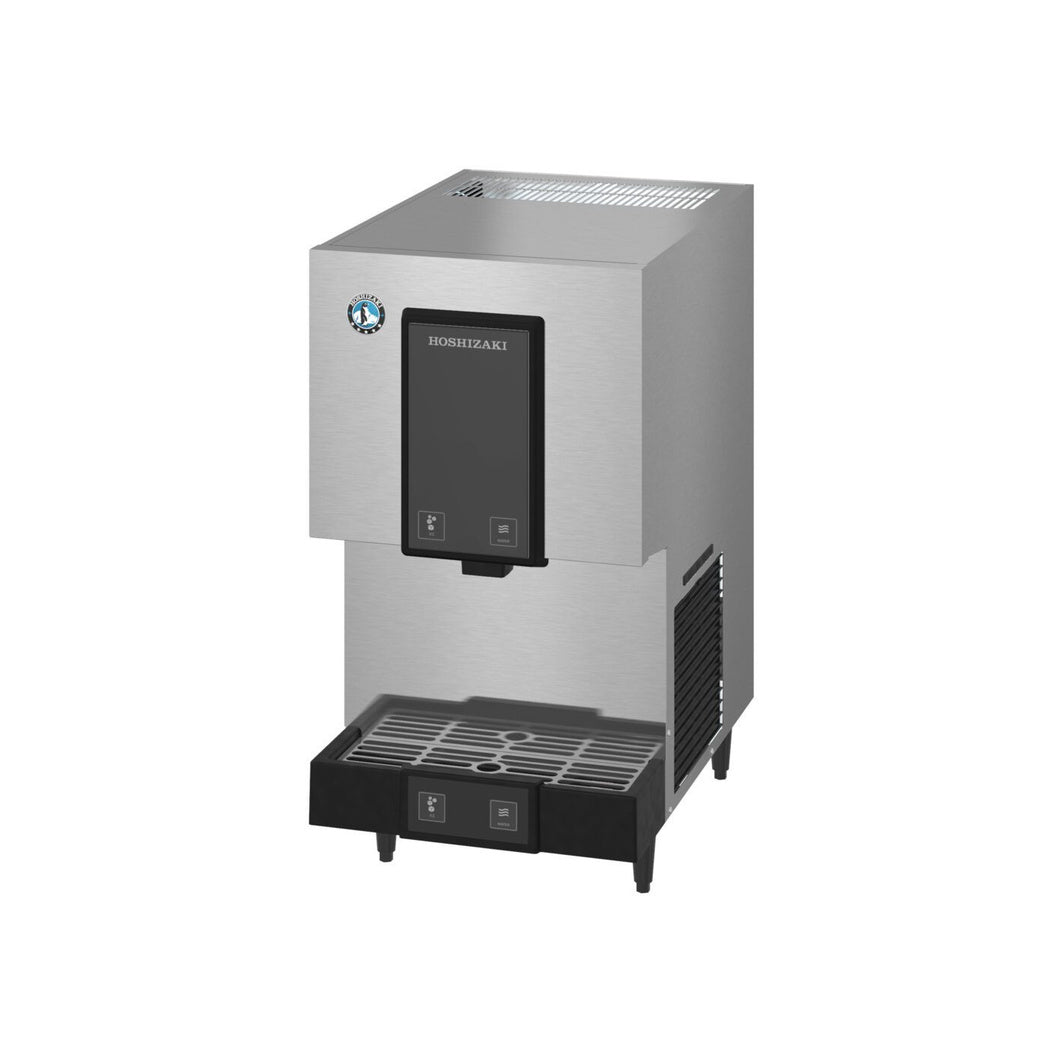

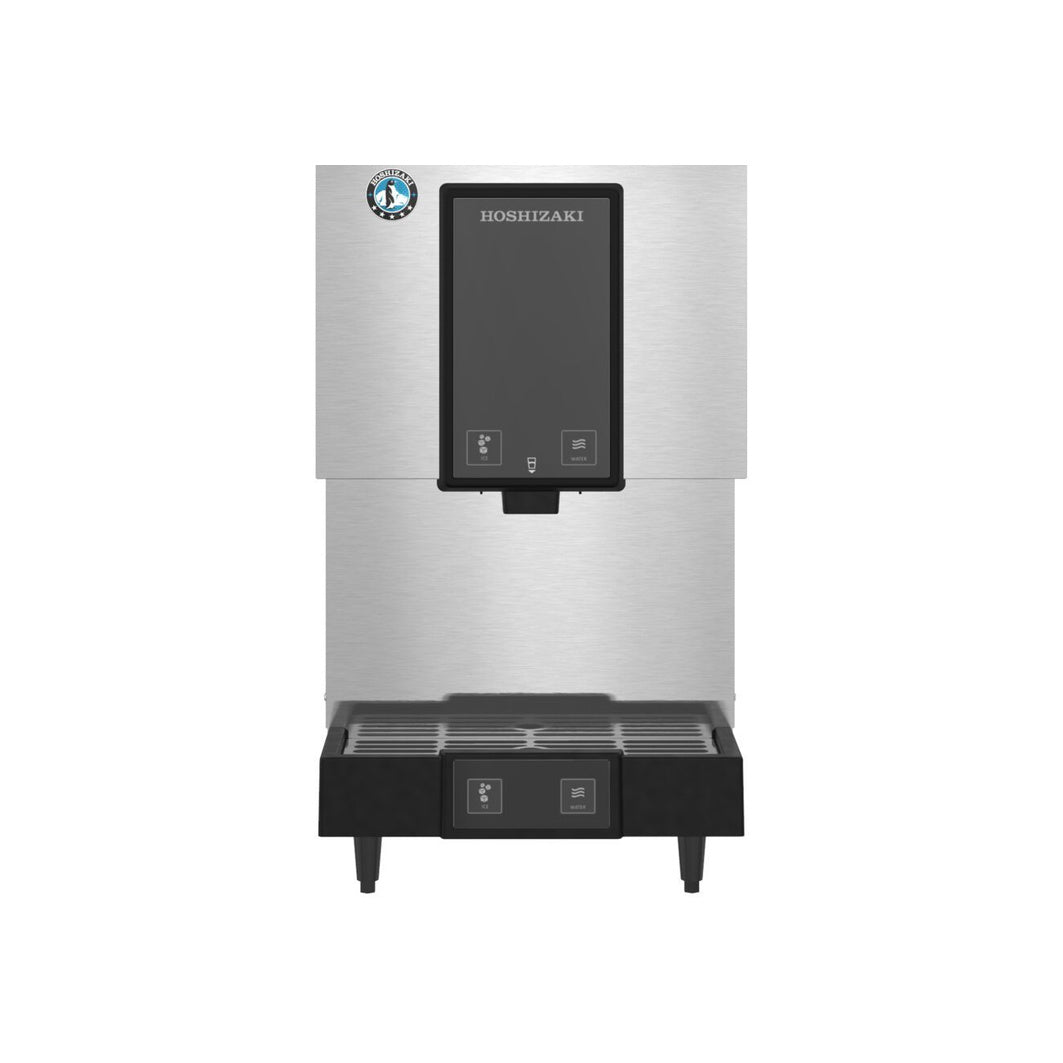

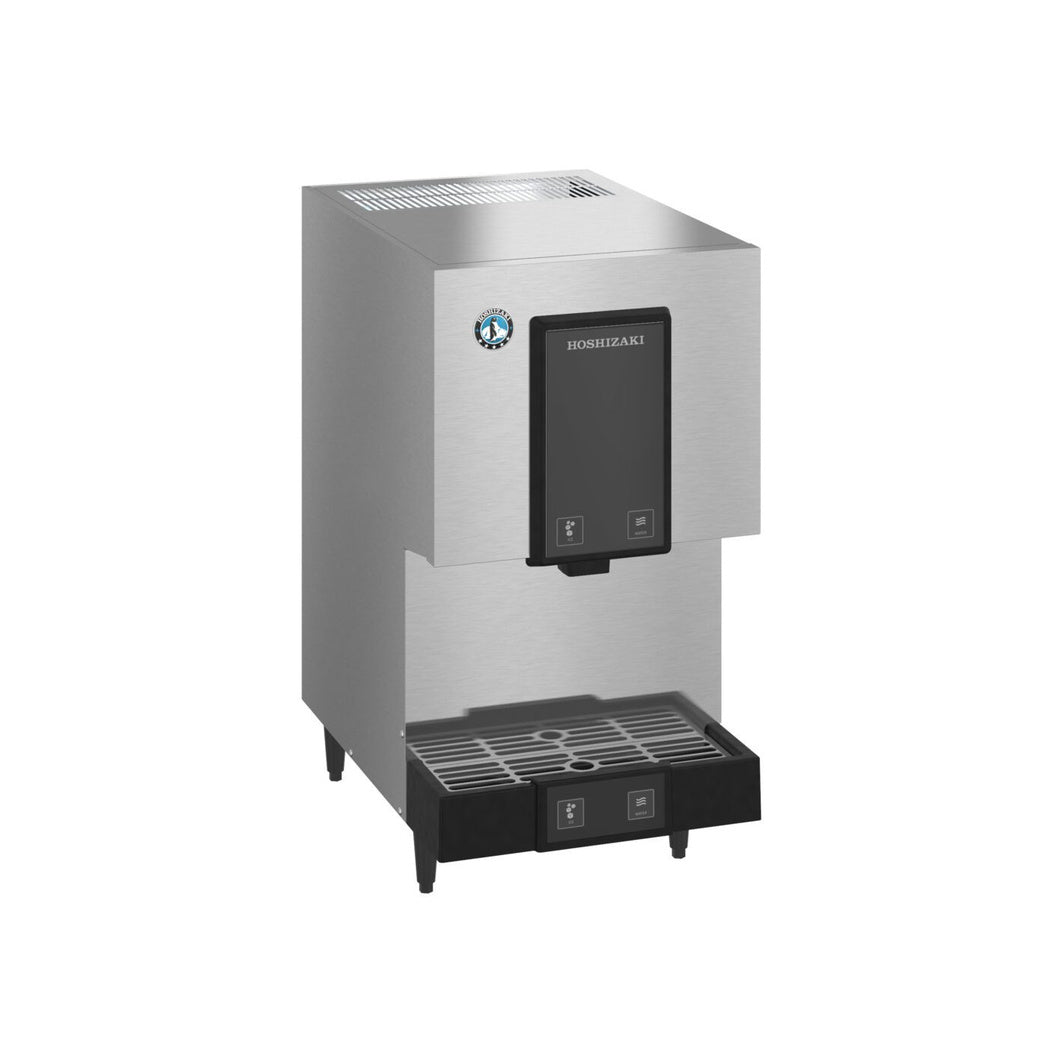

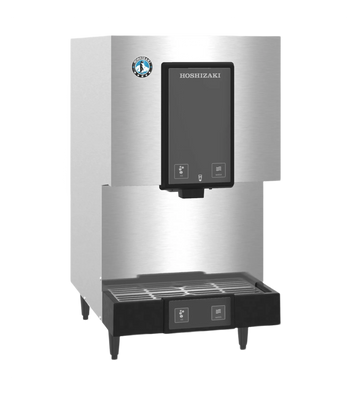

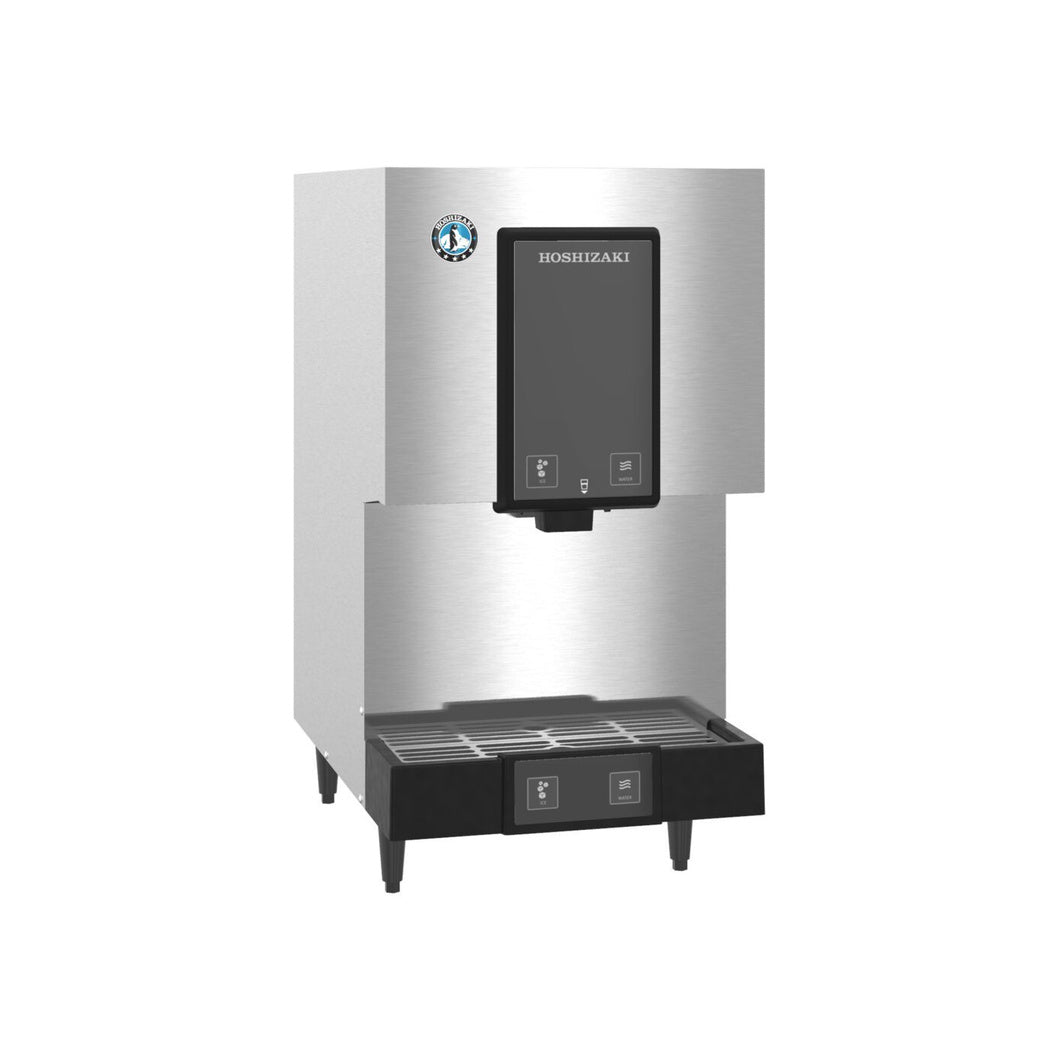

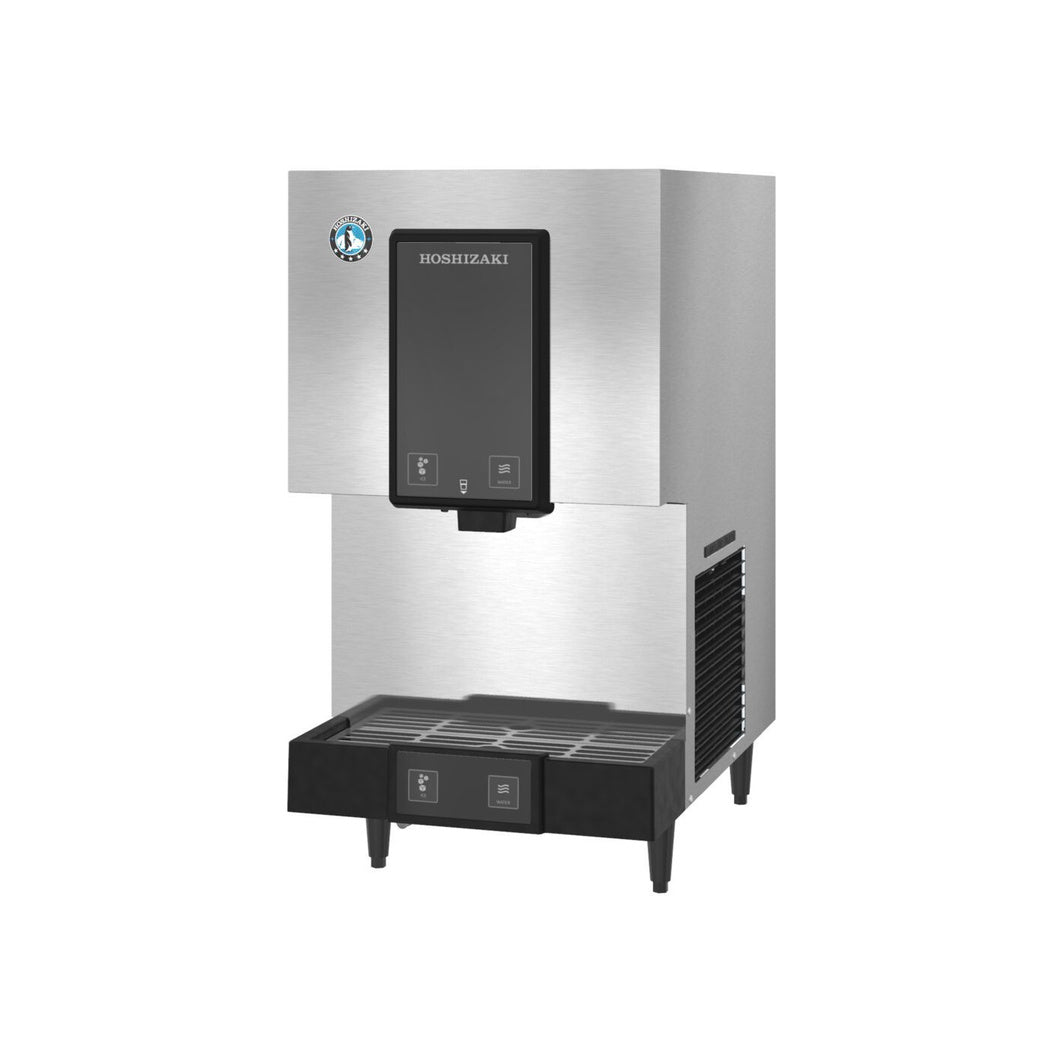

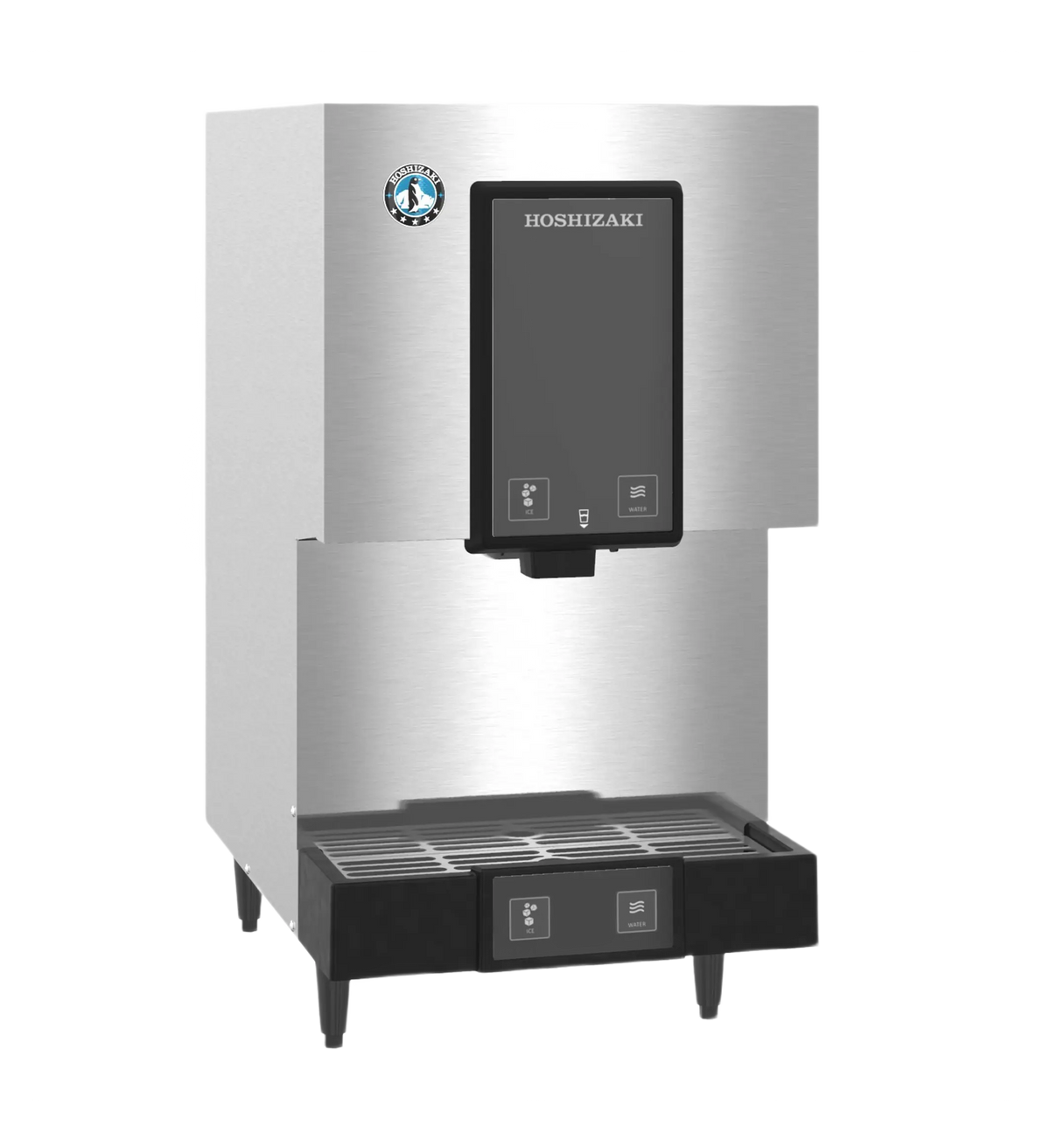

Hoshizaki DCM-271BAK - Compact, ADA-Compliant Cubelet Ice and Water Service
The Hoshizaki DCM-271BAK cubelet ice and water dispenser combines ice production, sanitary storage, and point-of-use dispensing in one compact, air-cooled machine. It produces up to 286 lb of easy-to-chew cubelet nugget-style ice per day and holds up to 10 lb in its insulated built-in bin. Separate LED touch buttons dispense either ice or water, making this model a practical choice for healthcare facilities, offices, waiting areas, breakrooms, hospitality spaces, and self-service beverage stations.

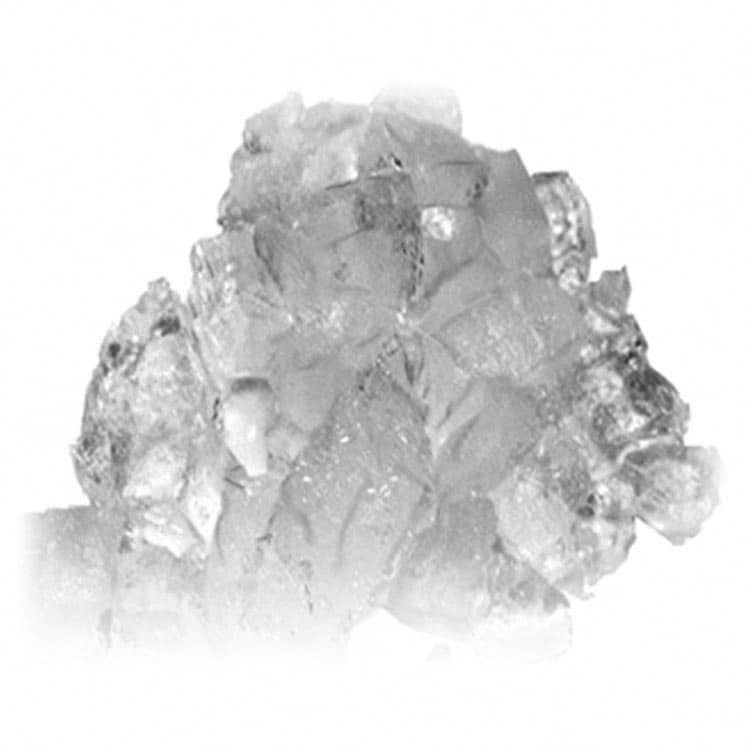

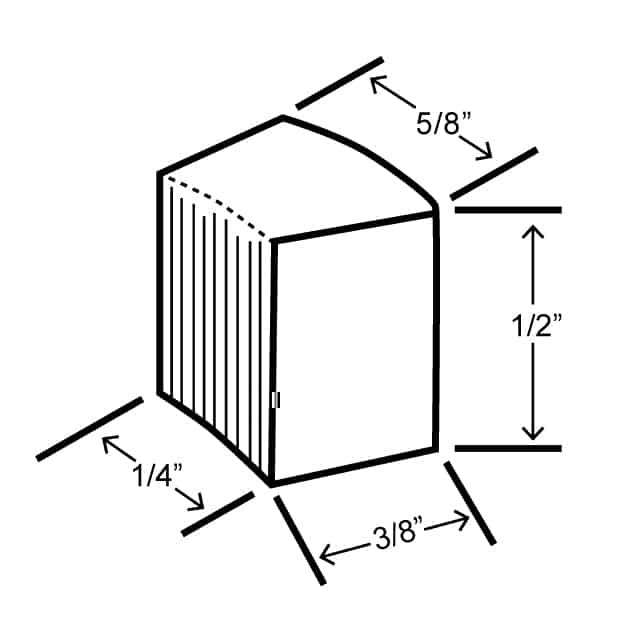

Hoshizaki cubelet ice has a soft, chewable texture that works well in cold beverages and patient hydration programs. The enclosed dispensing system keeps stored ice contained until it is requested, reducing unnecessary contact compared with an open bin and scoop. A 10-1/4-inch cup clearance, upper and lower controls, and an ADA-compliant design make the dispenser accessible to a wide range of users. The removable dispensing spout and durable stainless steel drain-pan grate simplify routine cleaning around the serving area.
For sanitation support, Hoshizaki's Advanced CleanCycle24™ design performs a two-second flush every hour. The flush helps move sediment out of the freezing system while the stainless steel exterior stands up to demanding commercial use. The sealed auger-style ice-making system produces a consistent supply of mini cubelet ice, and the air-cooled refrigeration circuit uses lower-impact R290 hydrocarbon refrigerant.
At only 16-5/8 inches wide, the DCM-271BAK can be installed on a suitable countertop or paired with the optional Hoshizaki SD-271 stand. A six-foot power cord with a NEMA 5-15 plug is included for 115-volt operation. Allow the manufacturer-required service clearances and verify water, drain, and electrical connections before installation.
Key Features
- Produces up to 286 lb of cubelet nugget-style ice per 24 hours
- Built-in insulated storage bin holds up to 10 lb of ice

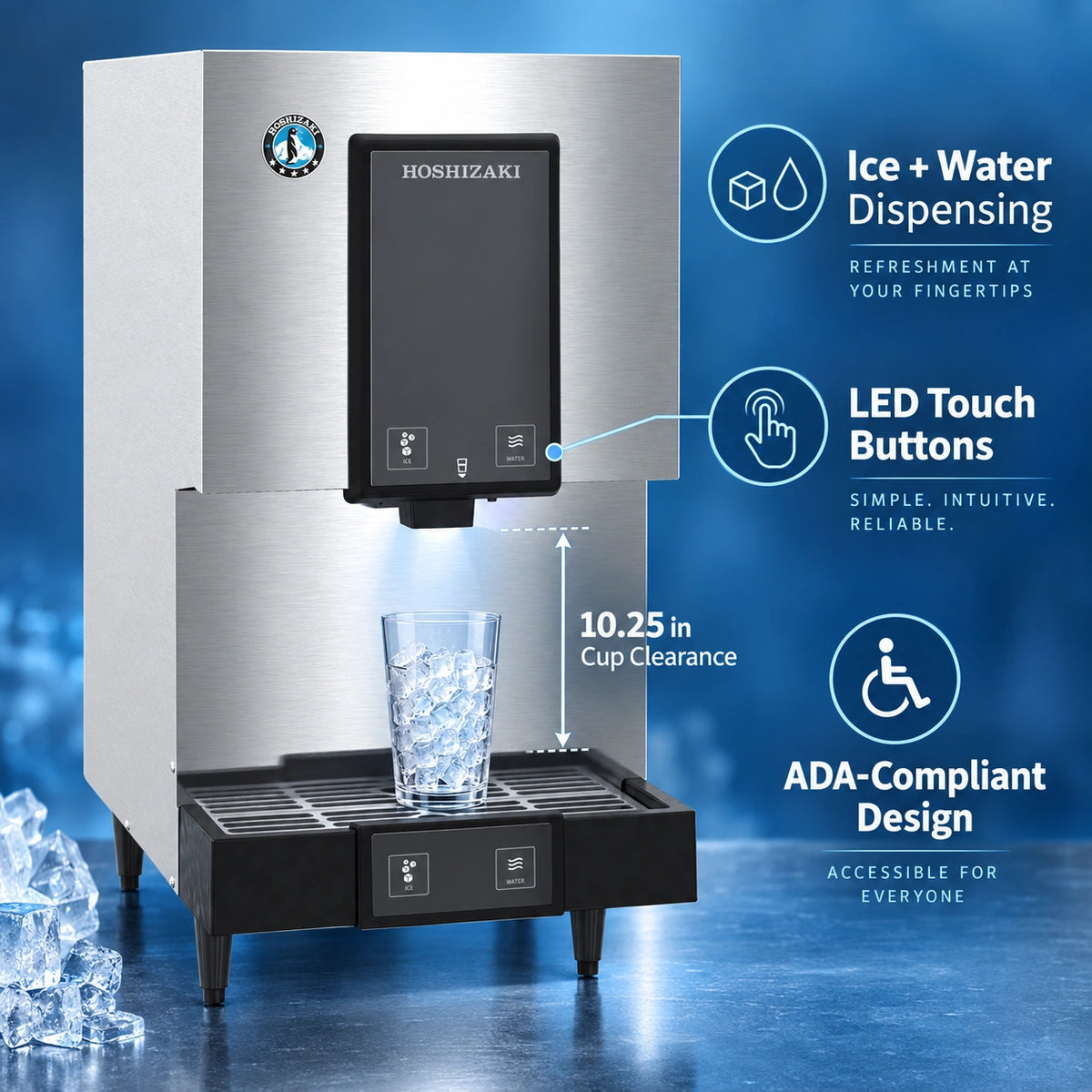

- Dispenses ice or water using clearly labeled LED touch buttons
- ADA-compliant layout with upper and lower dispensing controls
- 10-1/4-inch cup clearance accommodates common cups and containers
- Advanced CleanCycle24™ performs a two-second flush every hour
- Easy-cleaning removable spout and stainless steel drain-pan grate
- Durable stainless steel exterior for commercial environments
- Air-cooled system with R290 refrigerant
- Countertop installation or optional SD-271 stand
- Six-foot cord with NEMA 5-15 plug
Best For
Healthcare and senior-living facilities, offices, employee breakrooms, hospitality areas, cafeterias, education facilities, and other locations that need a compact sanitary dispenser with chewable ice and water from one machine.

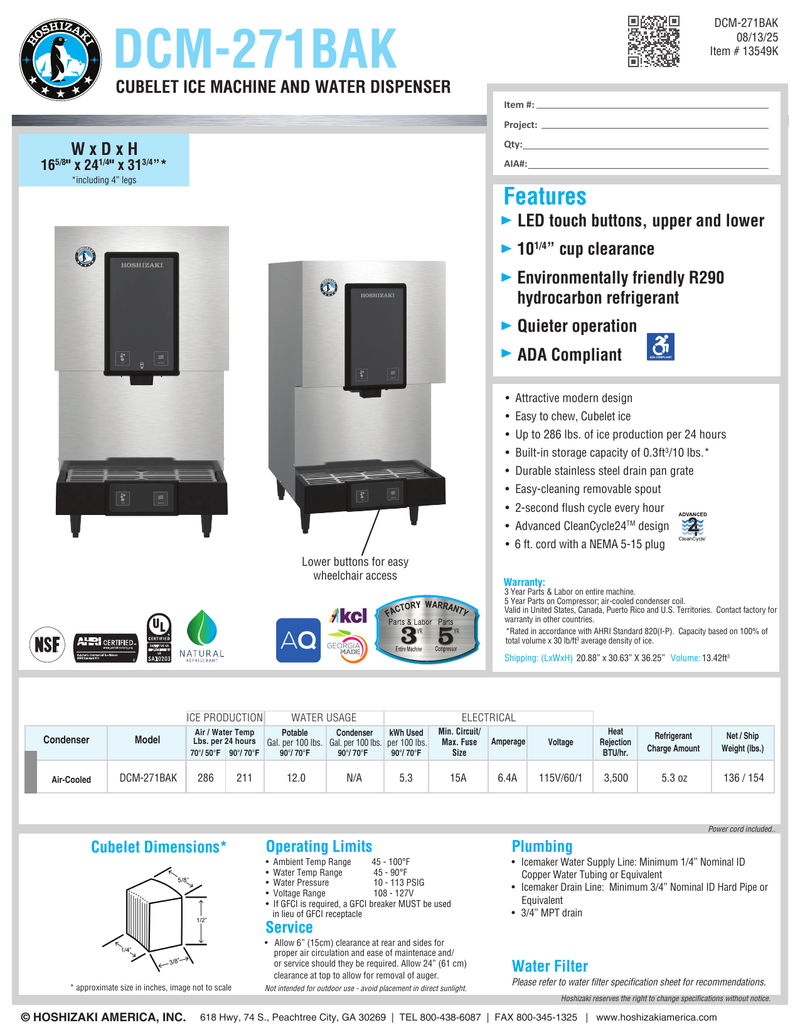

Full Specifications
| Brand | Hoshizaki |
| Model | DCM-271BAK |
| Item Number | 13549K |
| Machine Type | Self-contained cubelet ice machine and water dispenser |
| Ice Type | Mini cubelet, nugget-style ice |
| Cooling | Air-cooled |
| Maximum Daily Production | 286 lb at 70°F air / 50°F water |
| Production at 90°F Air / 70°F Water | 211 lb per 24 hours |
| Built-in Storage | 10 lb / 0.3 cu. ft. |
| Dimensions | 16-5/8 in. W × 24-1/4 in. D × 31-3/4 in. H, including 4-inch legs |
| Net / Shipping Weight | 136 lb / 154 lb |
| Electrical | 115V / 60Hz / 1 phase; 6.4A; 15A maximum fuse or breaker |
| Plug | NEMA 5-15; six-foot cord included |
| Energy Use | 5.3 kWh per 100 lb at 90°F / 70°F |
| Potable Water Use | 12 gal per 100 lb at 90°F / 70°F |
| Heat Rejection | 3,500 BTU/hr |
| Refrigerant | R290, 5.3 oz. |
| Water Connection | 1/2-inch FPT inlet; minimum 1/4-inch nominal-ID supply line |
| Drain Connection | 3/4-inch outlet; minimum 3/4-inch nominal-ID hard drain |
| Operating Limits | 45-100°F air; 45-90°F water; 10-113 PSIG water pressure; 108-127V |
| Required Clearance | 6 inches at rear and sides; 24 inches above for auger service |
| Recommended Stand | Hoshizaki SD-271, sold separately |
Warranty
- Entire machine: 3 years parts and labor
- Compressor and air-cooled condenser coil: 5 years parts
Installation and Maintenance Notes
- Designed for indoor use; avoid direct sunlight and outdoor installation.
- Use a GFCI breaker rather than a GFCI receptacle when GFCI protection is required.

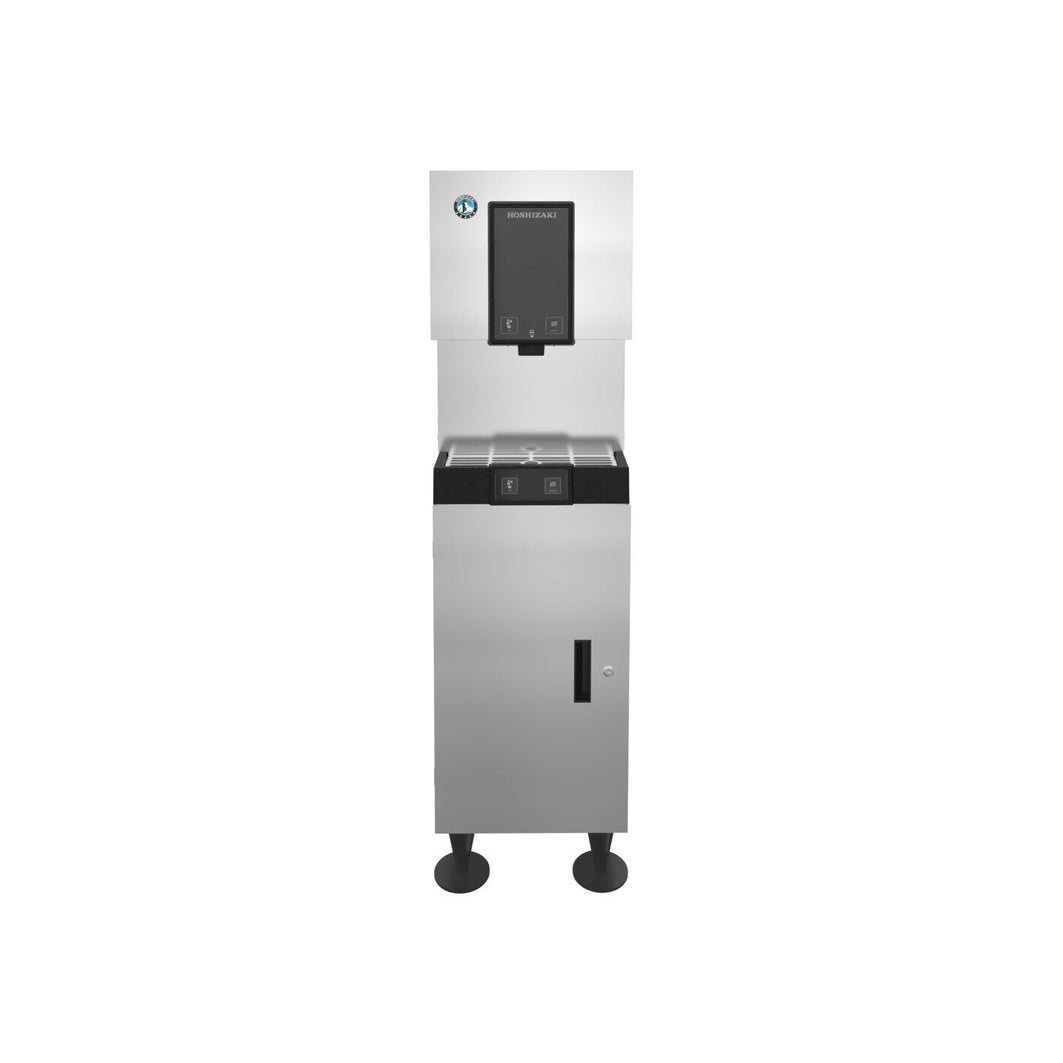

- The DCM-271BAK is designed to pair with the SD-271 stand. Installing it on an SD-270 stand requires a new drain opening.
- A properly selected water filter helps protect ice quality and reduce scale-related service.
