Manitowoc D320 22-Inch Ice Storage Bin - 264 lb Capacity, Duratech Exterior
Price Match Guarantee
-
Estimated Delivery: 7-10 Business Days
Manitowoc D320 22-Inch Ice Storage Bin - 264 lb Capacity, Duratech Exterior
Manitowoc D320 22-Inch Ice Storage Bin - 264 lb Capacity, Duratech Exterior Description

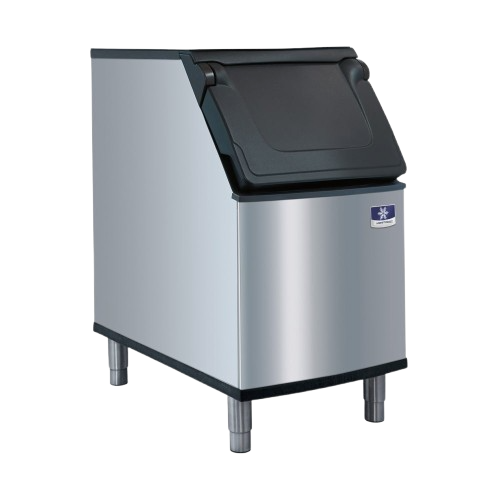

Manitowoc D320 - Compact 22-Inch Storage for a Modular Ice Station
Keep a compact modular ice station organized with the Manitowoc D320 ice storage bin. Its 264 lb application capacity provides a separate reservoir for a compatible top-mounted ice machine, while the 22-inch-wide cabinet helps fit installations where a wider bin would take valuable floor space.
The Duratech metal exterior resists smudging and corrosion, while the Arctic Blue polyurethane liner and foamed-insulated door support practical day-to-day storage. This is an insulated storage bin, not an ice-producing machine or refrigerated freezer; a separate compatible head supplies the ice and a gravity drain carries away meltwater.
A door angled at 53 degrees improves access toward the bottom of the bin. Side grips make it possible to lift the door from either side or the center, and the cammed hinge holds it open while ice is scooped. The included sanitary scoop has thumb and knuckle guards, and its built-in holder keeps the handle above the stored ice.
The cabinet measures 22 inches wide by 34 inches deep by 38 inches high with legs at 6 inches. The legs are adjustable for leveling, and the bin has a 3/4-inch drain. Use a compatible 22-inch ice-machine head and the installation components specified for that exact head/bin pairing.
Key Features
- Up to 264 lb application storage capacity
- 22-inch-wide cabinet
- 8.9 cu. ft. AHRI-rated internal volume
- Duratech smudge-resistant metal finish
- Foamed-insulated door with side grips and stay-open hinge
- Arctic Blue polyurethane liner
- Sanitary scoop, built-in holder and adjustable legs included
- NSF and AHRI certification
Best For
Restaurants, bars, hotels and foodservice operators needing a compact 22-inch modular ice station.

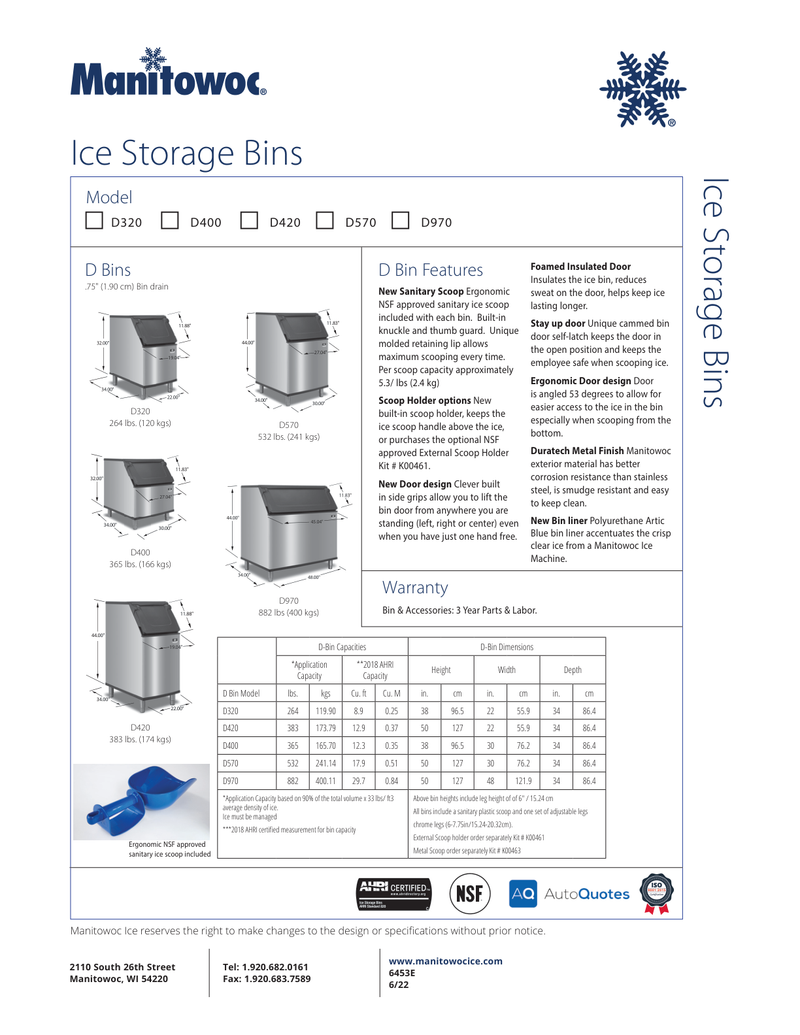

Full Specifications
| Specification | Details |
|---|---|
| Brand | Manitowoc |
| Model | D320 |
| Product type | Insulated ice storage bin; bin only |
| Application storage capacity | 264 lb |
| AHRI internal volume | 8.9 cu. ft. |
| Dimensions (W x D x H) | 22 x 34 x 38 in.; height includes legs at 6 in. |
| Exterior | Duratech metal finish |
| Interior liner | Arctic Blue polyurethane |
| Door | Foamed-insulated; side grips; stay-open hinge |
| Door access angle | 53 degrees |
| Drain | 3/4 in. |
| Included equipment | Sanitary scoop, internal scoop holder, one set of adjustable legs |
| Approximate shipping weight | 75 lb |
| Certifications | NSF; AHRI |
| Capacity basis | Application capacity uses 90% of volume x 33 lb/cu. ft. average ice density; ice must be managed |
Warranty
3 years parts and labor for commercial bin and accessory coverage, subject to Manitowoc limited-warranty terms.
Installation and Maintenance Notes
- Ice machine head and any required adapter or deflector are sold separately.
- Level the bin before mounting the compatible ice machine and connect its gravity drain.
- Maintain the head's required ventilation and service clearances.
- Clean and sanitize the bin and scoop on the prescribed maintenance schedule.
- Optional external scoop holder: K00461; optional metal scoop: K00463.
