Manitowoc CNP0202A-L Countertop Nugget Ice Dispenser
Manitowoc CNP0202A-L Countertop Nugget Ice Dispenser Description
Manitowoc CNP0202A-L — countertop Nugget ice and water service with 20-pound storage

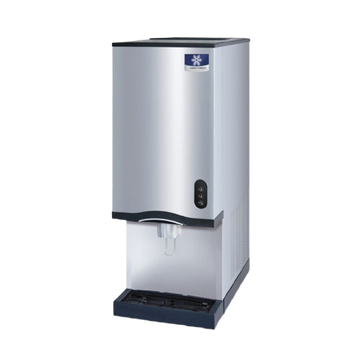

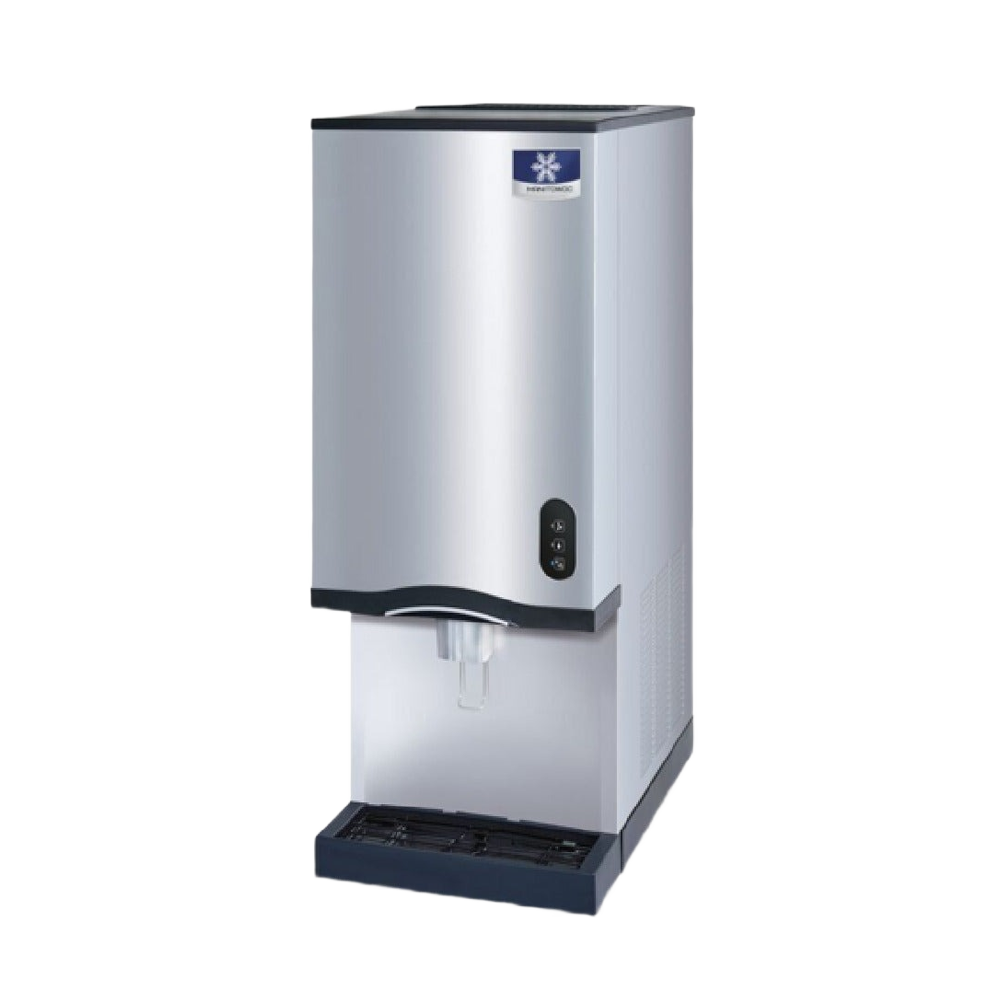

The Manitowoc CNP0202A-L (CNP0202A-161L) is a countertop ice-and-water dispenser designed to produce nugget ice for commercial use. Daily production values are not stated for this exact configuration in the supplied workbook, so current manufacturer output data should be confirmed before capacity planning. Its built-in bin holds 20 lb of ice, keeping production and point-of-use storage in one cabinet.
Nugget ice makes the CNP0202A-L a practical fit for soft-drink, iced-tea, healthcare, hospitality and self-service beverage applications where chewable ice is preferred. The dispenser format combines ice production, internal storage and controlled dispensing in a single countertop appliance, reducing the need for staff to scoop ice from an open bin.
This model uses lever-activated dispensing. The countertop family is designed for nugget ice plus water service, with a drain pan beneath the dispensing area and internal storage sized to the cabinet height. The supplied configuration should be checked against the selected activation method, stand or counter height, drain routing and intended user access before ordering.
The listed configuration combines Air-cooled heat rejection, R290 refrigeration, the quoted 115v/60/1-ph, 10.3 amps, cord with NEMA 5-15P, standard electrical arrangement, a cabinet measuring 16-1/4 × 24 × 42 in.. Electrical, plumbing, drainage and ventilation work must follow the model installation instructions and applicable local codes. Do not size openings or utility connections from the marketing description alone; use the installation drawing for final field work.
Key Features
- Nugget ice format
- 20-lb internal storage with countertop dispensing
- Air-cooled configuration
- R290 refrigerant
- 16-1/4 × 24 × 42 in. cabinet
- Quoted electrical configuration: 115v/60/1-ph, 10.3 amps, cord with NEMA 5-15P, standard
Best For
soft-drink, iced-tea, healthcare, hospitality and self-service beverage applications where chewable ice is preferred.
Full Specifications
| Specification | Details |
|---|---|
| Brand | Manitowoc |
| Model | CNP0202A-L |
| Quoted configuration | CNP0202A-161L |
| Product family | Countertop nugget dispenser |
| Machine type | Ice & Water Dispenser |
| Format | Countertop dispenser |
| Ice type | Nugget |
| Cooling | Air-cooled |
| Production at 70°F air / 50°F water | Not listed in the supplied product data |
| Production at 90°F air / 70°F water | Not listed in the supplied product data |
| Storage | 20 lb integrated |
| Dimensions (W × D × H) | 16-1/4 × 24 × 42 in. |
| Electrical | 115v/60/1-ph, 10.3 amps, cord with NEMA 5-15P, standard |
| Refrigerant | R290 |
| Certifications and listed marks | Not listed in the supplied product data |
| Lifecycle status | Current |
Warranty
- Ice maker: 2 years parts and labor.
- Compressor: 5 years parts and 2 years labor.
- Coverage is subject to registration requirements, terms and exclusions.
Accessories
- AR-10000-P: Arctic Pure Plus Primary Water Filter Assembly.
- These are quote-listed configuration items. Confirm included quantities and compatibility against the final sales quote before ordering.
Installation and Maintenance Notes
- Provide a level, supported counter or approved stand with adequate user clearance beneath the dispensing chute.
- Provide potable water, a correctly routed drain and the electrical service stated for CNP0202A-161L; plumbing and electrical work must follow the installation manual and local codes.
- Keep condenser air paths and required ventilation clear; restricted airflow or high ambient temperature can reduce production.
- Size capacity using realistic site conditions. Ice production changes with ambient temperature, incoming water temperature, water quality and maintenance condition.
- Clean and sanitize the food zone on the manufacturer's schedule. Maintain filtration, inspect drains and keep the condenser or ventilation path clean.
Manitowoc CNP0202A-L Countertop Nugget Ice Dispenser Features

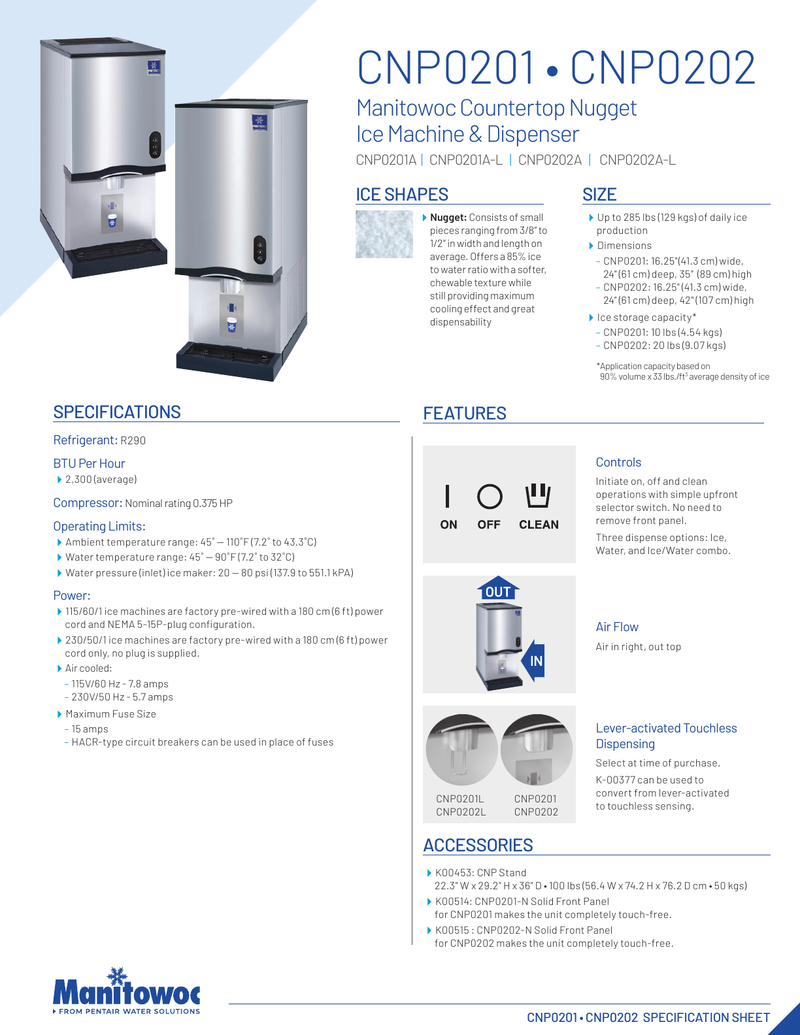

Manitowoc CNP0202A-L Countertop Nugget Ice Dispenser Resources
