Ice-O-Matic CIMU220FA90 — Compact cube ice production with convenient built-in storage

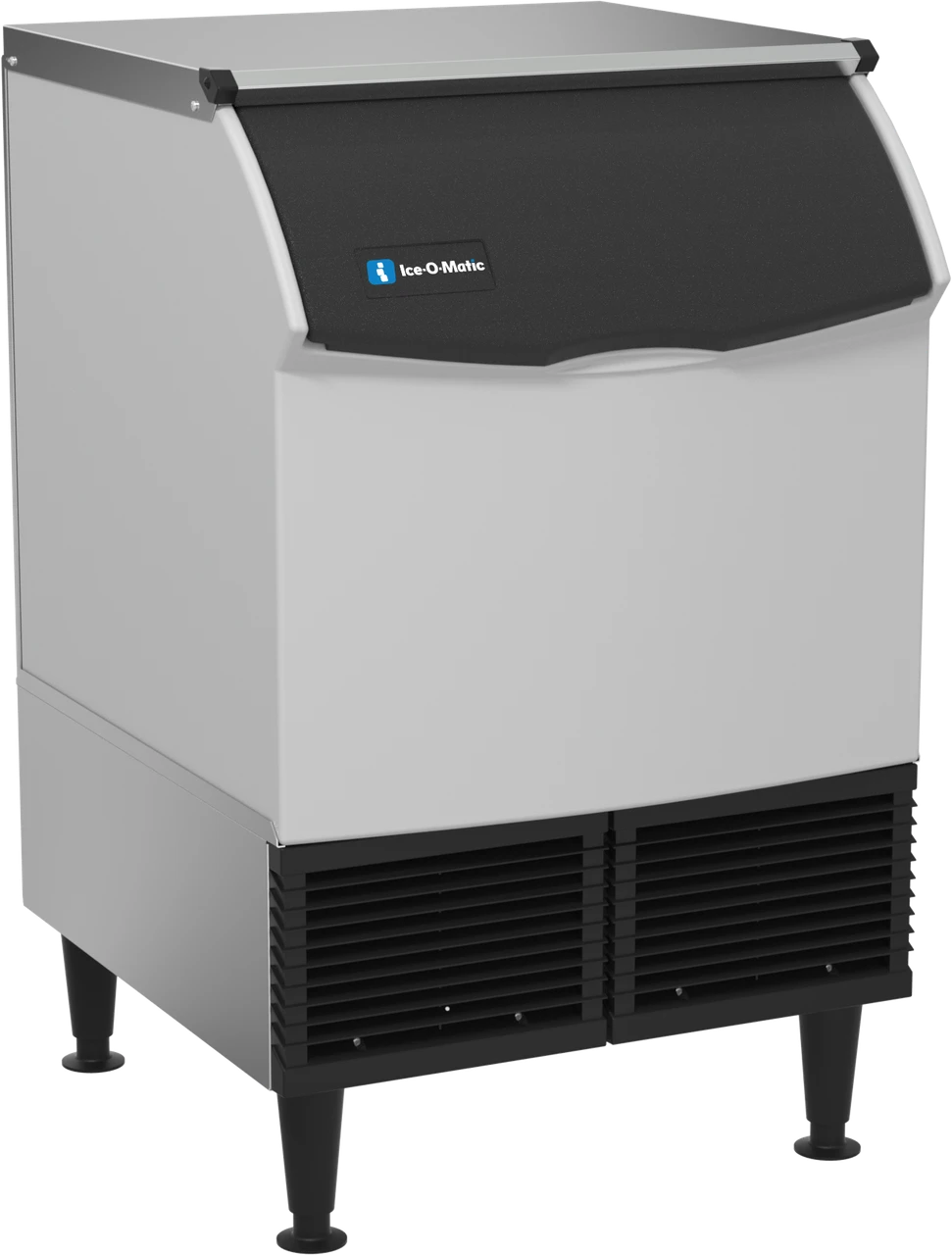

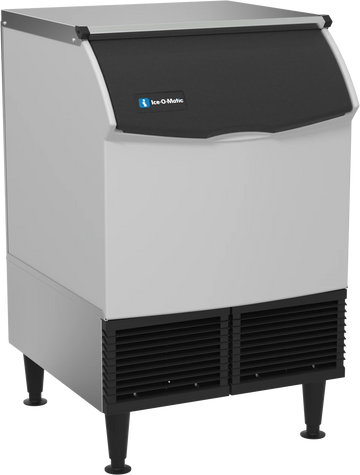

The Ice-O-Matic CIMU220FA90 is an air-cooled undercounter full cube ice maker producing up to 220 lb of ice every 24 hours at 70°F air and 50°F water. At 90°F air and 70°F water, its rated output is 167 lb per day. A 74 lb built-in storage bin keeps ice close to the point of service, with no separate bin needed. The 24.54-inch-wide cabinet brings production and storage together in one self-contained unit.
Each full cube measures 7/8 x 7/8 x 7/8 in.. Its substantial, regular shape is well suited to mixed drinks, water service and beverage presentations where a clearly defined cube is preferred. The CIMU220FA90 supplies this classic cube format without requiring staff to fill and empty ice molds, supporting a steady service routine across the bar or dining room.
A front-breathing airflow design places intake and discharge at the front, helping the machine serve undercounter layouts without depending on an open side air path. The stainless steel exterior resists corrosion and fingerprints, while the built-in bin keeps the production and dispensing points together. The cabinet height is 39 inches with the included 6-inch legs, so this is a commercial undercounter layout rather than a claim of fit beneath every counter.
Inside, a nickel-plated evaporator and Harvest Assist support repeatable cube production. The front control display and one-touch cleaning function help operators manage routine care, and R290 refrigerant is used in the sealed refrigeration circuit. A 115V single-phase connection, a 3/8 in. FPT potable-water inlet and a 3/4 in. FPT drain complete the principal service requirements. The electrical cord and adjustable legs are supplied with the machine.
Key Features
- Up to 220 lb/day at 70°F air / 50°F water
- 167 lb/day at 90°F air / 70°F water
- Full Cube Ice: 7/8 x 7/8 x 7/8 in.
- Built-in bin stores up to 74 lb
- Front-breathing design for commercial undercounter layouts
- Stainless steel exterior
- Nickel-plated evaporator and Harvest Assist
- Front display with one-touch cleaning function
- Includes 6-inch legs and electrical cord
- R290 refrigerant; 115V / 60Hz / 1 phase
Best For
Bars, cafés, restaurants and beverage counters that need full cube ice and integrated storage in one commercial-height undercounter unit.

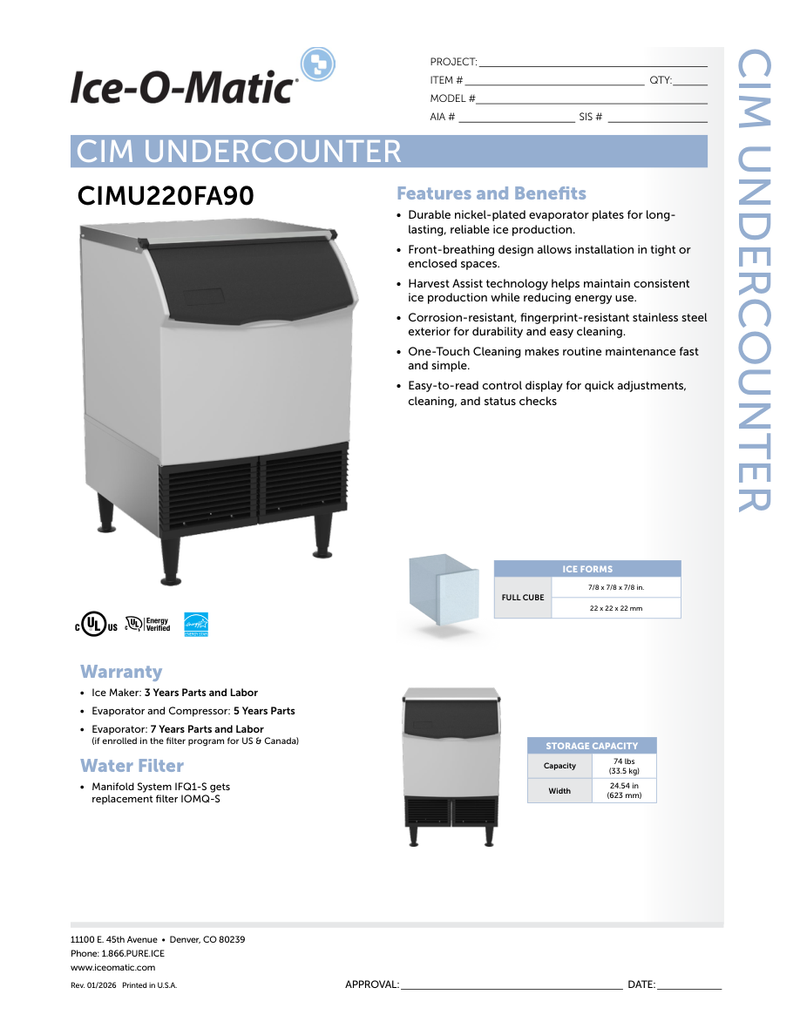

Full Specifications
| Brand | Ice-O-Matic |
| Model | CIMU220FA90 |
| Machine type | Undercounter ice maker with integrated bin |
| Ice type | Full Cube Ice |
| Ice dimensions | 7/8 x 7/8 x 7/8 in. |
| Cooling | Air-cooled |
| Production at 70°F air / 50°F water | 220 lb/24 hr |
| Production at 90°F air / 70°F water | 167 lb/24 hr |
| Storage | 74 lb built-in bin |
| Dimensions (W × D × H) | 24.54 × 26.27 × 39 in. including 6-inch legs |
| Electrical | 115V / 60Hz / 1 phase |
| Minimum circuit ampacity | 9.1 A |
| Maximum breaker size | 15 A |
| Energy at 70°F air / 50°F water | 3.7 kWh/100 lb |
| Energy at 90°F air / 70°F water | 5.82 kWh/100 lb |
| Potable water at 90°F air / 70°F water | 22.5 gal/100 lb |
| Approximate heat output | 2195 BTU/hr |
| Refrigerant | R290 |
| Refrigerant charge | 80 g |
| Water inlet | 3/8 in. FPT |
| Drain | 3/4 in. FPT |
| Ambient operating range | 50-100°F |
| Water temperature range | 40-100°F |
| Water pressure | 20-60 psi |
| Shipping weight | 153 lb |
| Shipping dimensions | 29 W x 27 D x 39 H in. |
| Certifications and verified marks | cULus Listed, UL Energy Verified, ENERGY STAR |
Warranty
- Ice maker: 3 years parts and labor.
- Evaporator and compressor: 5 years parts.
- Conditional evaporator extension: 7 years parts and labor in the United States and Canada when a qualifying Ice-O-Matic filter is installed and registered with the machine, with cartridge changes every six months reported under the manufacturer’s program.
- Coverage above is the standard commercial warranty and is subject to the manufacturer’s registration requirements, terms and exclusions.
Accessories
- Included: built-in storage bin, 6-inch legs and electrical cord.
- Optional: Ice-O-Matic IFQ1-S water-filter system.
Installation and Maintenance Notes
- Use potable water within the specified 20-60 psi pressure range and 40-100°F temperature range.
- Locate the machine where the ambient temperature remains within 50-100°F; keep ventilation openings clear.
- Provide the specified 115V single-phase supply and proper drainage; have electrical and plumbing work completed to the manufacturer’s installation instructions and local codes.
- Clean and sanitize the ice-making system routinely and maintain the water filter and air path. Production varies with air and water temperature and site conditions.
