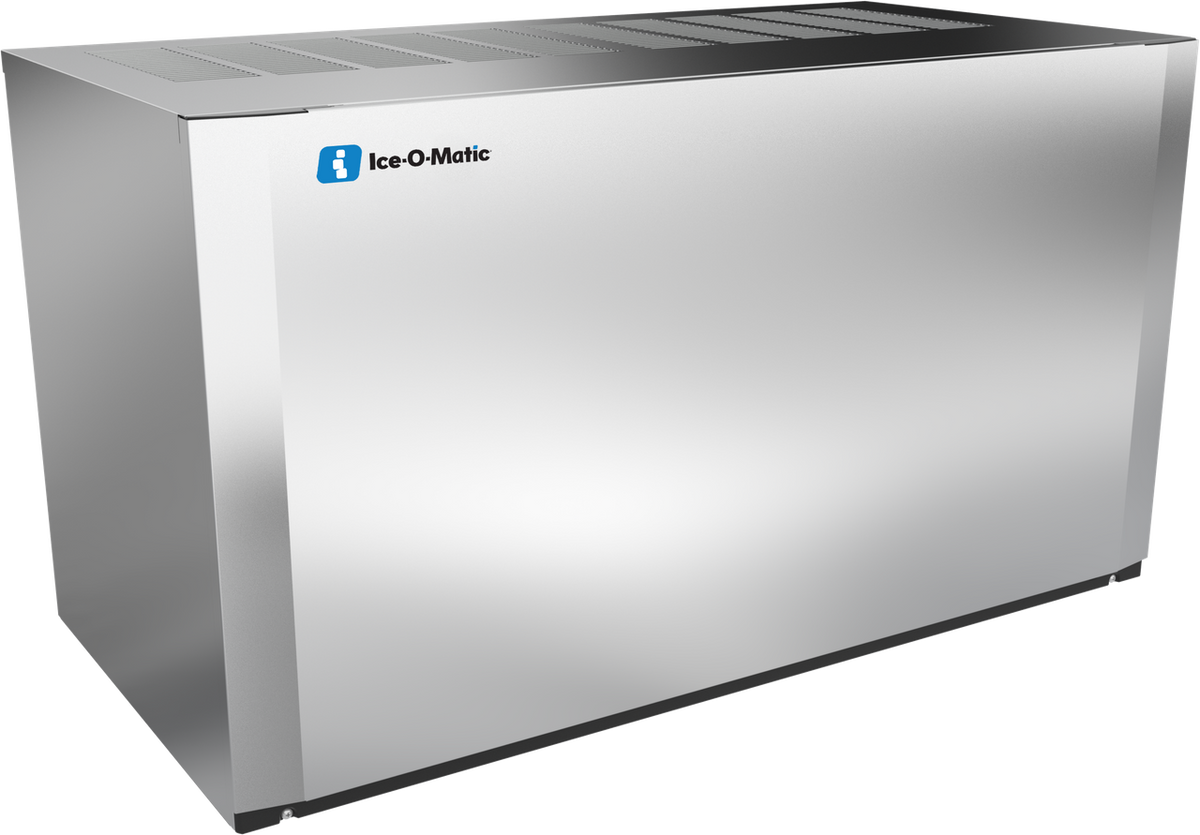

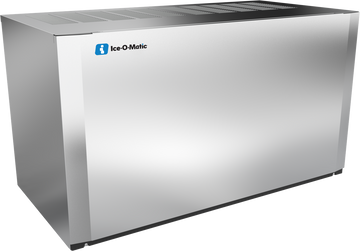

Ice-O-Matic CIM1446HA49 48.25-Inch Air-Cooled Half Cube Modular Ice Maker - 1600 lb/Day Head

Brand:Ice-O-Matic
Model:CIM1446HA49
Half Cube Ice Air-Cooled Up to 1600 lb/day 48.25 in. Wide Modular Head R449A Refrigerant

For large-volume half cube service, the Ice-O-Matic CIM1446HA49 delivers up to 1,600 lb/day at 70°F air/50°F water. This 48.25-inch air-cooled modular ice maker combines Harvest Assist, dual exhaust and R449A refrigeration. Its smaller cube format suits busy beverage operations; plan for 208–230V power and a separately purchased compatible storage bin.


Certified by
Made in USA
UL Listed
NSF Listed

Ask a question

Ask a Question

* Required fields

Size guide Share
Free Standard Shipping
Regular price $8,554.00
Sale price $8,554.00 Regular price $10,432.00
Unit price
Save 18%

Price Match Guarantee

Found a better advertised price from an authorized competitor? Let us know and our team will review it.

Request Price Match

Send us the competing offer and our team will review your request.

Price match for
Ice-O-Matic CIM1446HA49 48.25-Inch Air-Cooled Half Cube Modular Ice Maker - 1600 lb/Day Head
Enter the advertised price you found.
Paste the exact page where the competing price is currently shown.

Price match requests are subject to verification. The competing product and offer must be comparable, current, and available from a legitimate seller.

Request a Quote

Tell us what you need and our team will provide pricing and availability for this product.

Product
Ice-O-Matic CIM1446HA49 48.25-Inch Air-Cooled Half Cube Modular Ice Maker - 1600 lb/Day Head

We’ll use these details only to respond to your quote request.

A banner showing multiple payment logos including American Express, Apple Pay, Discover, Google Pay, Mastercard, PayPal, O2O, and VISA under the text '100% Secure Checkout' on a white background.

Quick Shipping with Bank Deposit

Want your ice machine shipped sooner? Choose Bank Deposit at checkout for priority order processing once your payment is confirmed. Eligible orders are prioritized for fulfillment to help get your equipment on its way sooner.

Estimated Delivery: 5-7 Business Days*

*Eligible in-stock items within the contiguous U.S.; includes normal processing and transit. Freight and special-order items may take longer.

Ice-O-Matic CIM1446HA49 48.25-Inch Air-Cooled Half Cube Modular Ice Maker - 1600 lb/Day Head

Ice-O-Matic CIM1446HA49 48.25-Inch Air-Cooled Half Cube Modular Ice Maker - 1600 lb/Day Head

Regular price $8,554.00
Sale price $8,554.00 Regular price $10,432.00
Unit price

Ice-O-Matic CIM1446HA49 48.25-Inch Air-Cooled Half Cube Modular Ice Maker - 1600 lb/Day Head Description

The Ice-O-Matic CIM1446HA49 is an air-cooled modular half cube ice maker producing up to 1600 lb of ice every 24 hours at 70°F air and 50°F water. At 90°F air and 70°F water, its rated output is 1212 lb per day. The head measures 48.25 inches wide and works with a separate compatible storage bin, allowing the ice-making and storage capacities to be selected independently. This listing is for the ice machine head only; a storage bin is sold separately.

The 3/8 x 7/8 x 7/8 in. half cube is a compact format for fountain drinks, iced beverages and frequent cup fills. Smaller cubes fit readily around one another in a glass, making this configuration a practical choice for beverage counters and self-service drink stations. Choose the CIM1446HA49 when a compact cube is preferred over the larger full-cube format.

Ice-O-Matic's Elevation Series combines Harvest Assist with electroless nickel-plated evaporator plates. The release system assists ice harvest, while the front-facing evaporator makes the ice-making area accessible for cleaning. Removable components rated for dishwasher cleaning up to 180°F simplify the cleaning process; the refrigeration system itself is not dishwasher washable. Shared service components across the CIM range also support a more consistent maintenance routine.

The corrosion-resistant, fingerprint-resistant aluminum exterior encloses a 48.25 W × 24.25 D × 26.8 H inch machine. Dual top and side exhaust gives installers flexibility in planning the air path, while R449A refrigeration and a 208-230V / 60Hz / single-phase supply define this exact configuration. Keep the intake and exhaust paths unobstructed and size the installation for the machine's heat output, water connections and required bin.

Key Features

  • Up to 1600 lb/day at 70°F air / 50°F water
  • 1212 lb/day at 90°F air / 70°F water
  • Half Cube Ice: 3/8 x 7/8 x 7/8 in.
  • Harvest Assist supports consistent ice release
  • Electroless nickel-plated evaporator plates
  • Front-facing evaporator for cleaning access
  • Removable dishwasher-safe components, up to 180°F
  • Corrosion-resistant, fingerprint-resistant aluminum exterior
  • Dual top/side exhaust arrangement
  • R449A refrigerant; 208-230V / 60Hz / 1 phase
  • Modular head; storage bin sold separately

Best For

Restaurants, bars, hotels and foodservice beverage stations needing a high-capacity central ice supply in half cube format. Bin capacity can be selected separately to suit the service schedule.

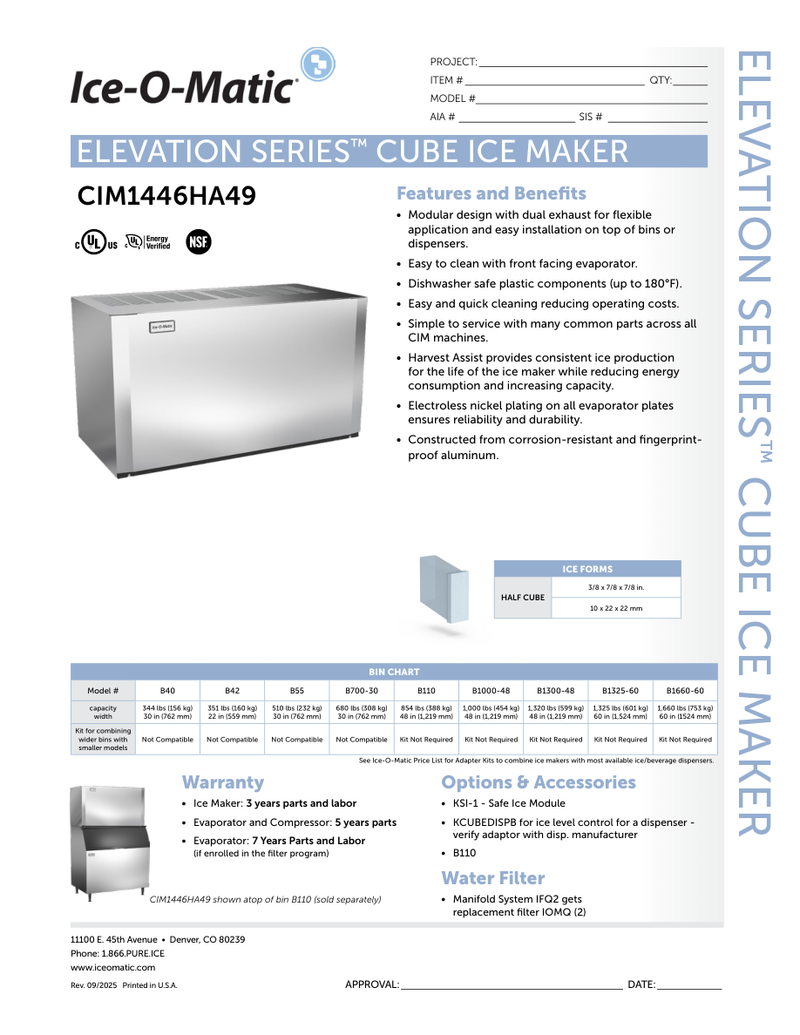

Full Specifications

Brand Ice-O-Matic
Model CIM1446HA49
Machine type Modular ice maker head
Ice type Half Cube Ice
Ice dimensions 3/8 x 7/8 x 7/8 in.
Cooling Air-cooled
Production at 70°F air / 50°F water 1600 lb/24 hr
Production at 90°F air / 70°F water 1212 lb/24 hr
Storage Separate compatible bin required; sold separately
Dimensions (W × D × H) 48.25 × 24.25 × 26.8 in.
Electrical 208-230V / 60Hz / 1 phase
Minimum circuit ampacity 18.9 A
Maximum breaker size 30 A
Energy at 70°F air / 50°F water 3.1 kWh/100 lb
Energy at 90°F air / 70°F water 4.22 kWh/100 lb
Potable water at 90°F air / 70°F water 15.2 gal/100 lb
Approximate heat output 23400 BTU/hr
Refrigerant R449A
Refrigerant charge 58 oz
Water inlet 3/8 in. FPT
Drain 3/4 in. FPT
Ambient operating range 50-100°F
Water temperature range 40-100°F
Water pressure 20-80 psi
Shipping weight 318 lb
Shipping dimensions 51 W x 27 D x 33 H in.
Certifications and verified marks cULus Listed, UL Energy Verified, NSF Listed

Warranty

  • Ice maker: 3 years parts and labor.
  • Evaporator and compressor: 5 years parts.
  • Conditional evaporator extension: 7 years parts and labor in the United States and Canada when a qualifying Ice-O-Matic filter is installed and registered with the machine, with cartridge changes every six months reported under the manufacturer’s program.
  • Coverage above is the standard commercial warranty and is subject to the manufacturer’s registration requirements, terms and exclusions.

Accessories

  • Optional storage: B110 bin with no adapter kit required, as listed in the model's bin chart. The bin is not included.
  • Optional filtration: Ice-O-Matic IFQ2 water-filter system.

Installation and Maintenance Notes

  • Install on a compatible, properly supported bin with the model-specific adapter where required. Do not operate the machine head without an appropriate ice collection arrangement.
  • Use potable water within the specified 20-80 psi pressure range and 40-100°F temperature range.
  • Locate the machine where the ambient temperature remains within 50-100°F; keep ventilation openings clear.
  • Provide the specified 208-230V single-phase supply and proper drainage; have electrical and plumbing work completed to the manufacturer’s installation instructions and local codes.
  • Clean and sanitize the ice-making system routinely and maintain the water filter and air path. Production varies with air and water temperature and site conditions.
