Ice-O-Matic CIM1136FA90 — 1,000-pound output for central ice stations and busy kitchens

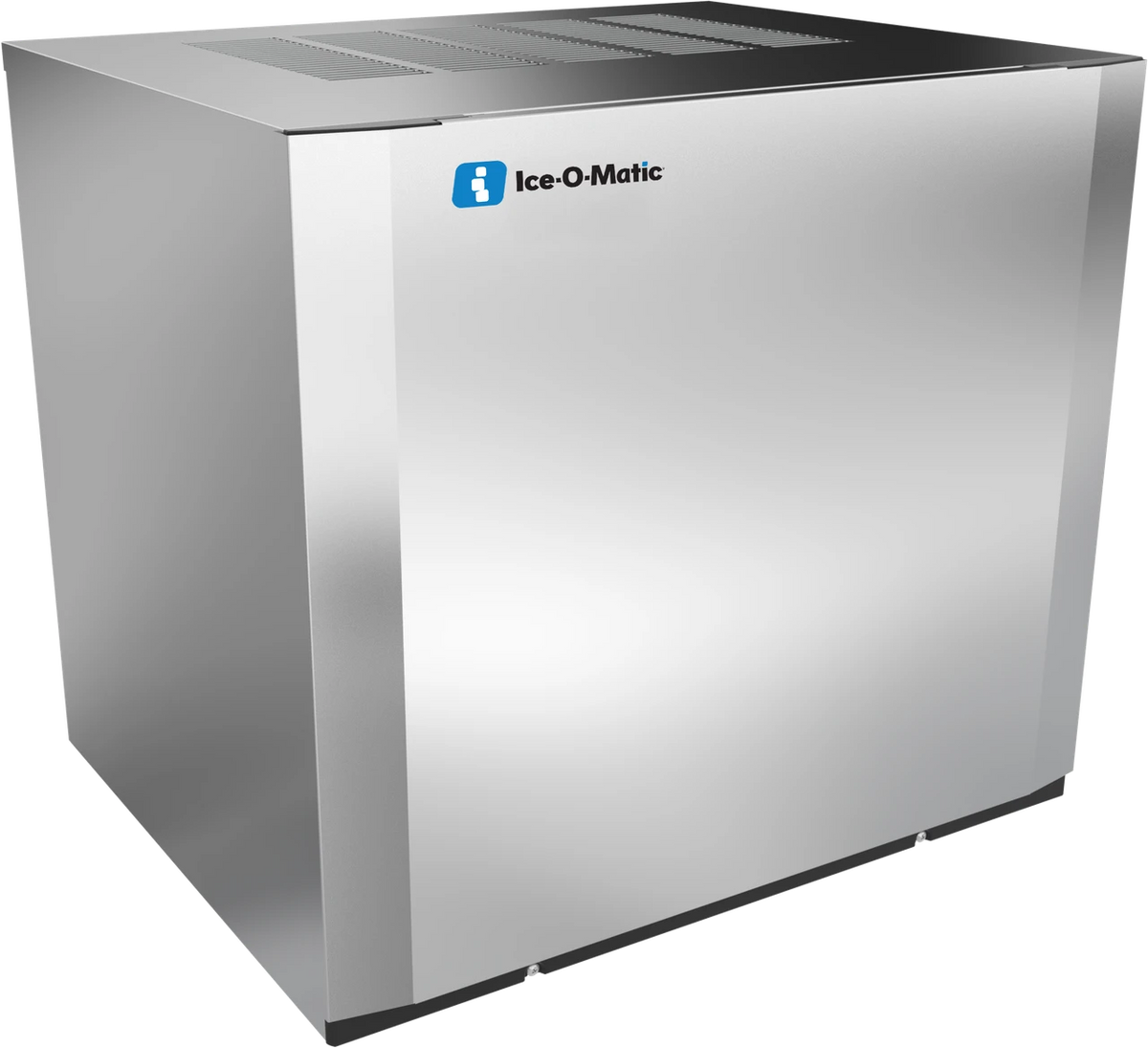

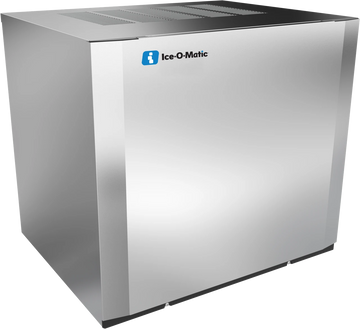

The Ice-O-Matic CIM1136FA90 is an air-cooled modular full cube ice maker producing up to 1000 lb of ice every 24 hours at 70°F air and 50°F water. At 90°F air and 70°F water, its rated output is 812 lb per day. The head measures 30.25 inches wide and works with a separate compatible storage bin, allowing the ice-making and storage capacities to be selected independently. This listing is for the ice machine head only; a storage bin is sold separately.
Each full cube measures 7/8 x 7/8 x 7/8 in.. Its substantial, regular shape is well suited to mixed drinks, water service and beverage presentations where a clearly defined cube is preferred. The CIM1136FA90 supplies this classic cube format without requiring staff to fill and empty ice molds, supporting a steady service routine across the bar or dining room.
Ice-O-Matic's Elevation Series combines Harvest Assist with electroless nickel-plated evaporator plates. The release system assists ice harvest, while the front-facing evaporator makes the ice-making area accessible for cleaning. Removable components rated for dishwasher cleaning up to 180°F simplify the cleaning process; the refrigeration system itself is not dishwasher washable. Shared service components across the CIM range also support a more consistent maintenance routine.
The corrosion-resistant, fingerprint-resistant aluminum exterior encloses a 30.25 W × 24.25 D × 26.9 H inch machine. Dual top and side exhaust gives installers flexibility in planning the air path, while R290 refrigeration and a 208-230V / 60Hz / single-phase supply define this exact configuration. Keep the intake and exhaust paths unobstructed and size the installation for the machine's heat output, water connections and required bin.
Key Features
- Up to 1000 lb/day at 70°F air / 50°F water
- 812 lb/day at 90°F air / 70°F water
- Full Cube Ice: 7/8 x 7/8 x 7/8 in.
- Harvest Assist supports consistent ice release
- Electroless nickel-plated evaporator plates
- Front-facing evaporator for cleaning access
- Removable dishwasher-safe components, up to 180°F
- Corrosion-resistant, fingerprint-resistant aluminum exterior
- Dual top/side exhaust arrangement
- R290 refrigerant; 208-230V / 60Hz / 1 phase
- Modular head; storage bin sold separately
Best For
Restaurants, bars, hotels and foodservice beverage stations needing a high-capacity central ice supply in full cube format. Bin capacity can be selected separately to suit the service schedule.

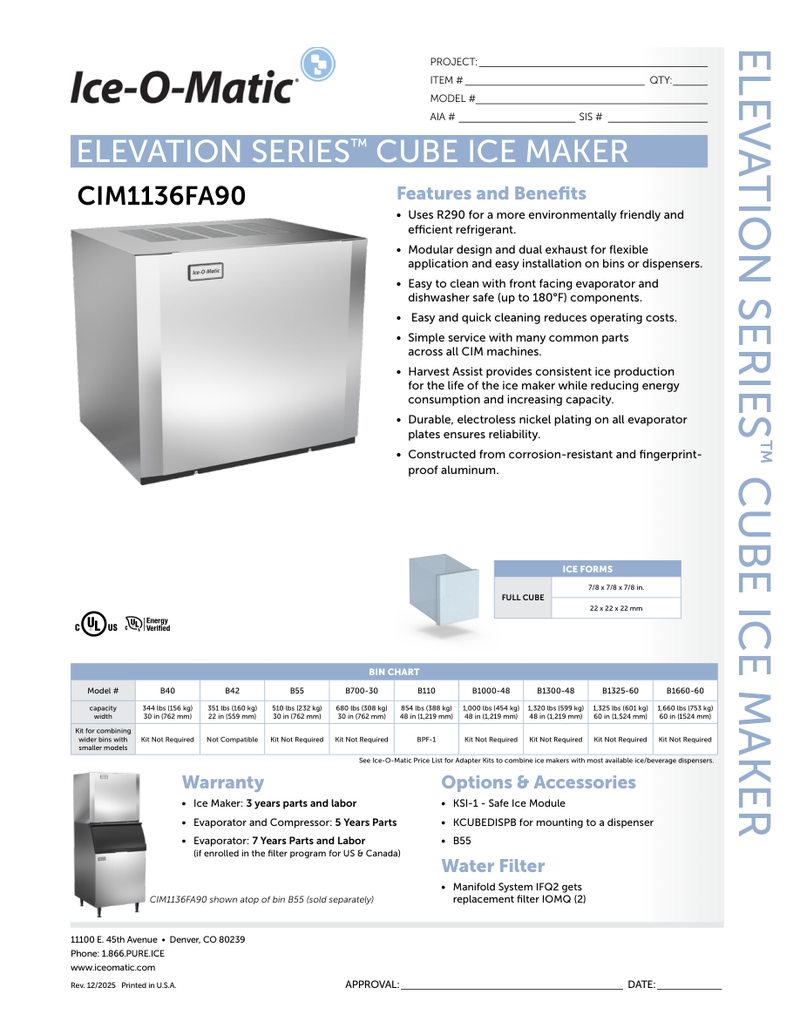

Full Specifications
| Brand | Ice-O-Matic |
| Model | CIM1136FA90 |
| Machine type | Modular ice maker head |
| Ice type | Full Cube Ice |
| Ice dimensions | 7/8 x 7/8 x 7/8 in. |
| Cooling | Air-cooled |
| Production at 70°F air / 50°F water | 1000 lb/24 hr |
| Production at 90°F air / 70°F water | 812 lb/24 hr |
| Storage | Separate compatible bin required; sold separately |
| Dimensions (W × D × H) | 30.25 × 24.25 × 26.9 in. |
| Electrical | 208-230V / 60Hz / 1 phase |
| Minimum circuit ampacity | 13.6 A |
| Maximum breaker size | 20 A |
| Energy at 70°F air / 50°F water | 3.7 kWh/100 lb |
| Energy at 90°F air / 70°F water | 4.91 kWh/100 lb |
| Potable water at 90°F air / 70°F water | 18 gal/100 lb |
| Approximate heat output | 18165 BTU/hr |
| Refrigerant | R290 |
| Refrigerant charge | 190 g |
| Water inlet | 3/8 in. FPT |
| Drain | 3/4 in. FPT |
| Ambient operating range | 50-100°F |
| Water temperature range | 40-100°F |
| Water pressure | 20-80 psi |
| Shipping weight | 211 lb |
| Shipping dimensions | 33 W x 27 D x 33 H in. |
| Certifications and verified marks | cULus Listed, UL Energy Verified |
Warranty
- Ice maker: 3 years parts and labor.
- Evaporator and compressor: 5 years parts.
- Conditional evaporator extension: 7 years parts and labor in the United States and Canada when a qualifying Ice-O-Matic filter is installed and registered with the machine, with cartridge changes every six months reported under the manufacturer’s program.
- Coverage above is the standard commercial warranty and is subject to the manufacturer’s registration requirements, terms and exclusions.
Accessories
- Optional storage: B55 bin with no adapter kit required, as listed in the model's bin chart. The bin is not included.
- Optional filtration: Ice-O-Matic IFQ2 water-filter system.
Installation and Maintenance Notes
- Install on a compatible, properly supported bin with the model-specific adapter where required. Do not operate the machine head without an appropriate ice collection arrangement.
- Use potable water within the specified 20-80 psi pressure range and 40-100°F temperature range.
- Locate the machine where the ambient temperature remains within 50-100°F; keep ventilation openings clear.
- Provide the specified 208-230V single-phase supply and proper drainage; have electrical and plumbing work completed to the manufacturer’s installation instructions and local codes.
- Clean and sanitize the ice-making system routinely and maintain the water filter and air path. Production varies with air and water temperature and site conditions.
