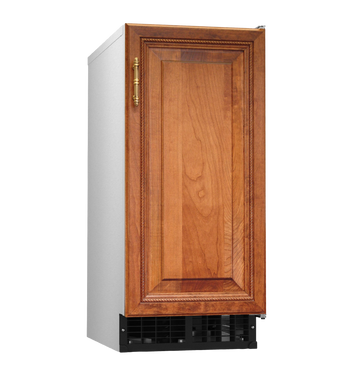

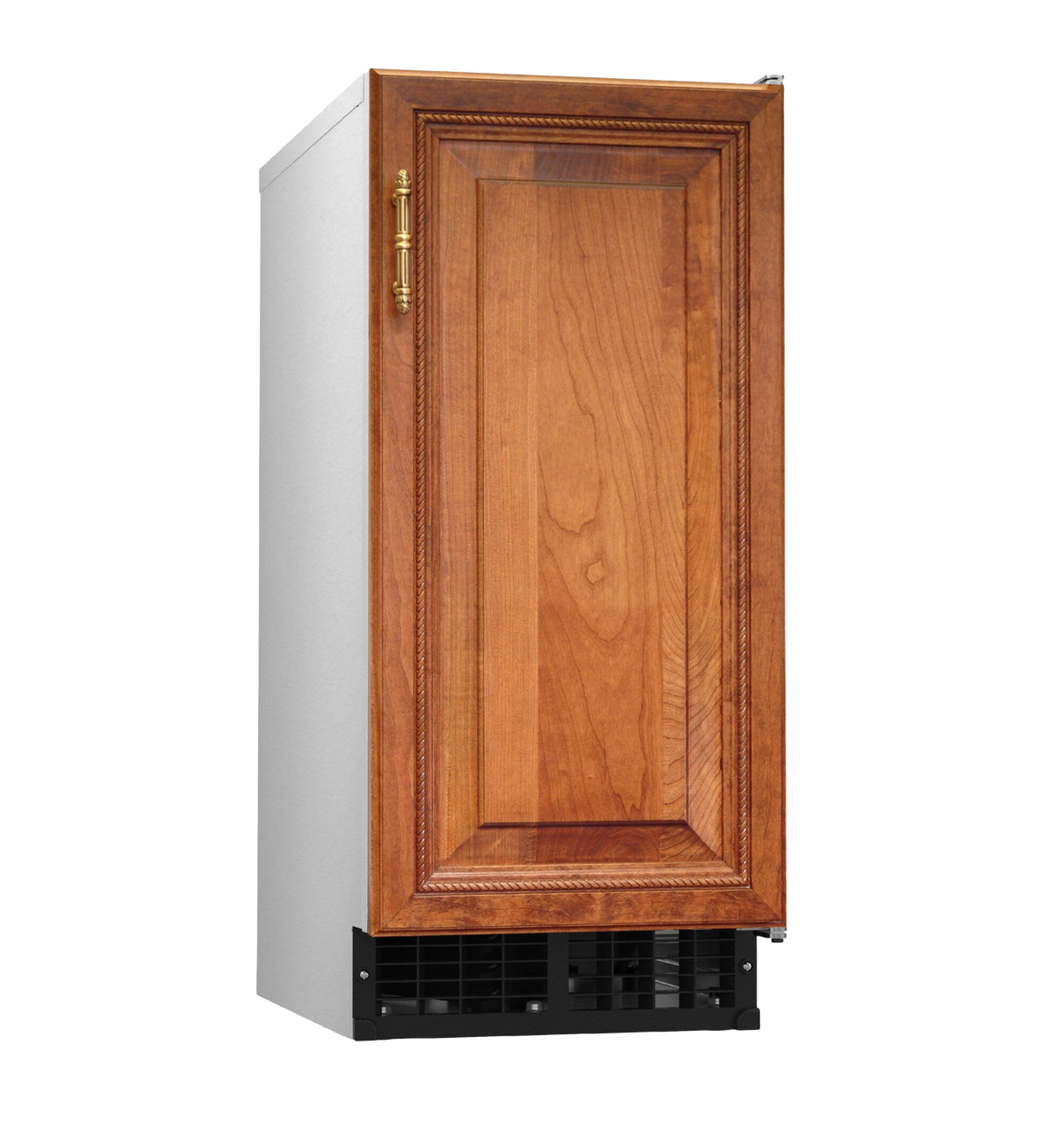

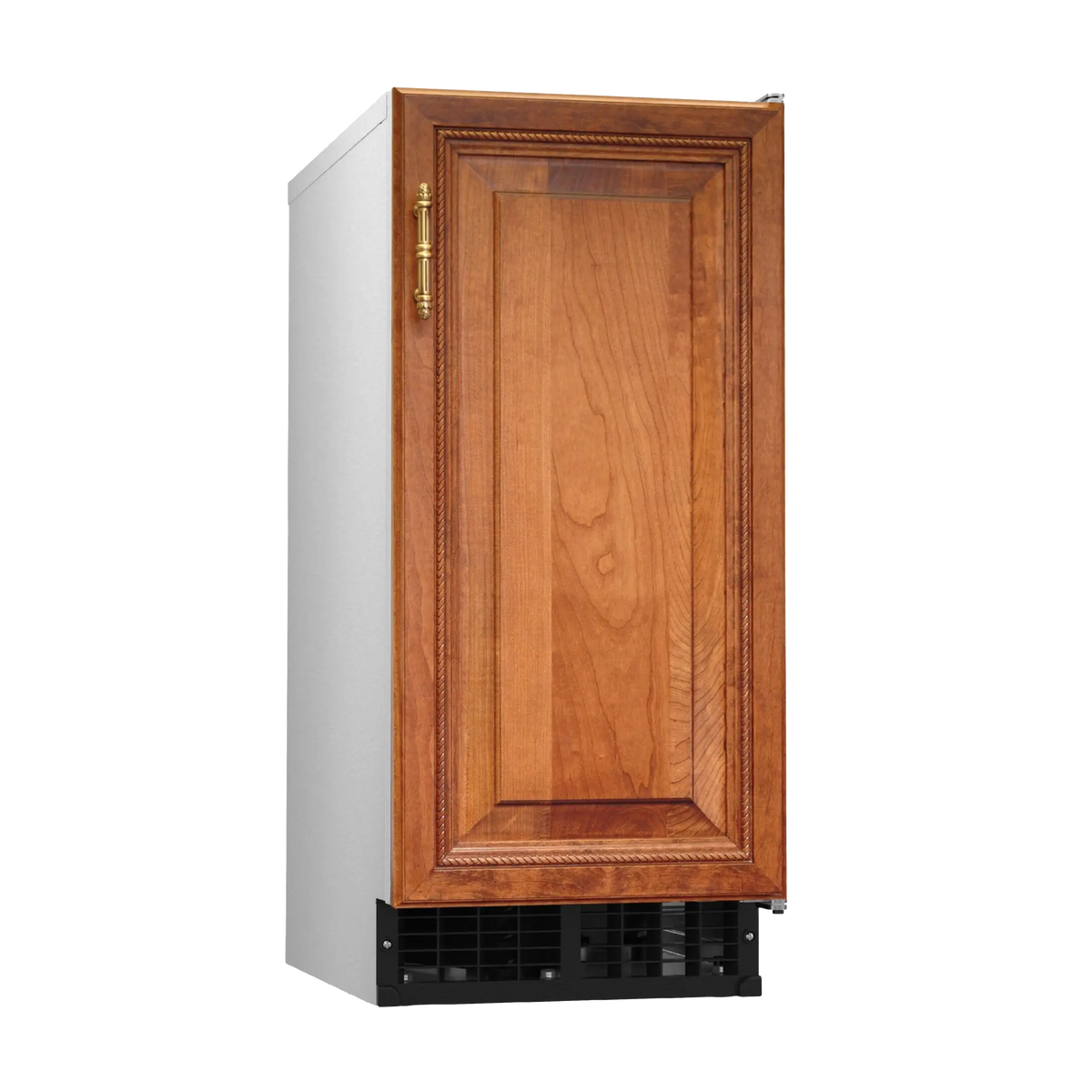

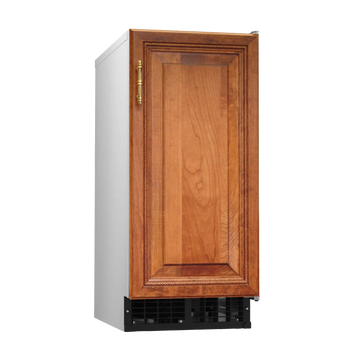

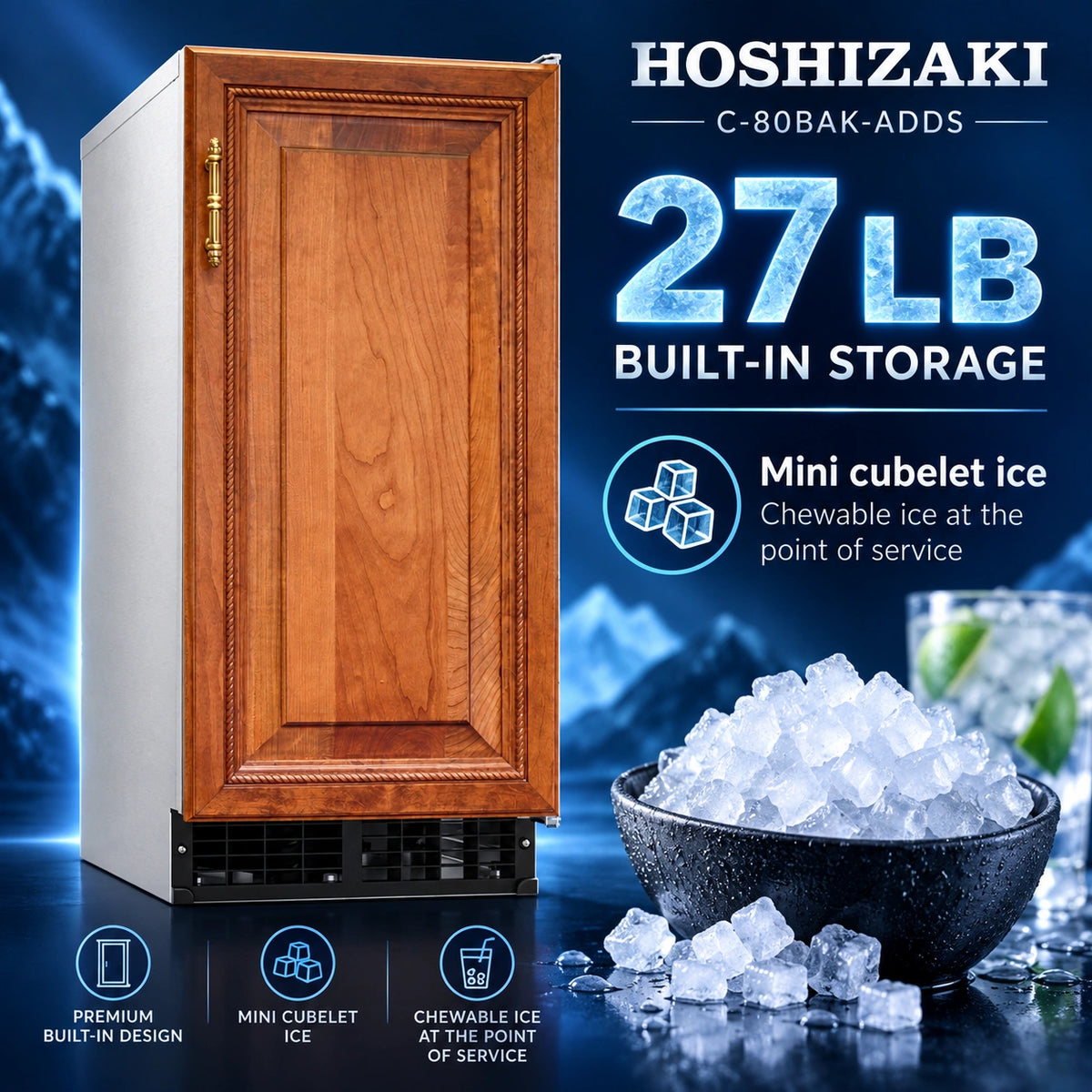

Hoshizaki C-80BAK-ADDS — Undercounter Cubelet Ice Production with Built-In Storage
Match the ice maker to a custom cabinetry scheme while retaining the 31-1/2-inch-high ADA-compliant format. This model uses Hoshizaki's customized cabinet door system; the customer supplies the cabinetry panel, allowing the finished door to coordinate with the surrounding space. The Hoshizaki C-80BAK-ADDS undercounter cubelet ice maker produces up to 92 lb per 24 hours at 70°F air/50°F water. At 90°F air/70°F water, its rated output is 65 lb per day. The built-in bin holds up to 27 lb of ice.

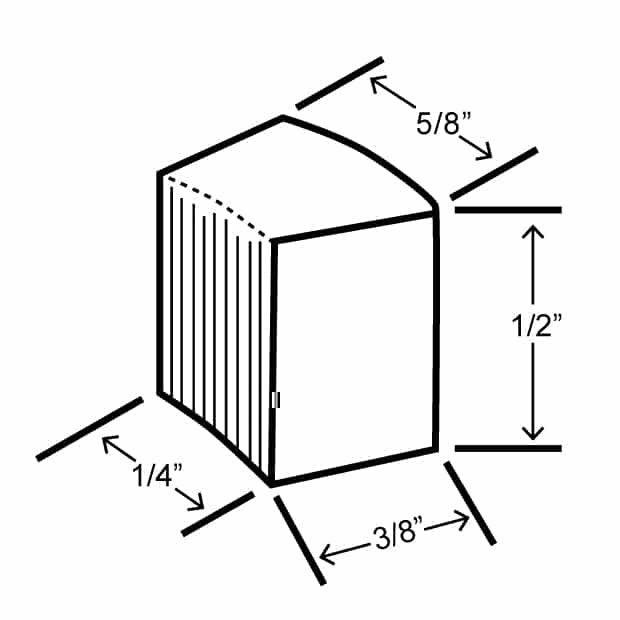

Mini cubelet ice offers a small, nugget-style format for iced beverages and customers who prefer chewable ice. The narrow undercounter cabinet makes this format accessible at the point of use, while its front airflow avoids relying on side ventilation. The power switch can be reached without panel removal, and the water circuit can be disassembled for routine cleaning.
The custom door system is intended for a customer-supplied cabinetry panel; the decorative panel is not supplied with the ice maker. Confirm the panel specification and finished opening before cabinetry is ordered. The model uses R290 refrigerant and is ENERGY STAR qualified. UL outdoor approval does not remove the specified ambient-temperature limits or the need for proper utility connections.
The cabinet dimensions are 14-7/8 × 22-5/8 × 31-1/2 in. (excluding handle) (W × D × H). Electrical service is 115V/60Hz/single phase with a 15A circuit/fuse rating. Leave space at the rear for water and drain connections and at least 15 in. in front for service. Install on a firm, level foundation away from ovens, grills and other high-heat equipment. Production changes with room and inlet-water temperatures, so size the installation using the hotter-condition output as well as the maximum rating.
Key Features
- Up to 92 lb/day at 70°F air/50°F water
- 27 lb built-in ice storage
- Mini cubelet ice with integrated 27 lb storage

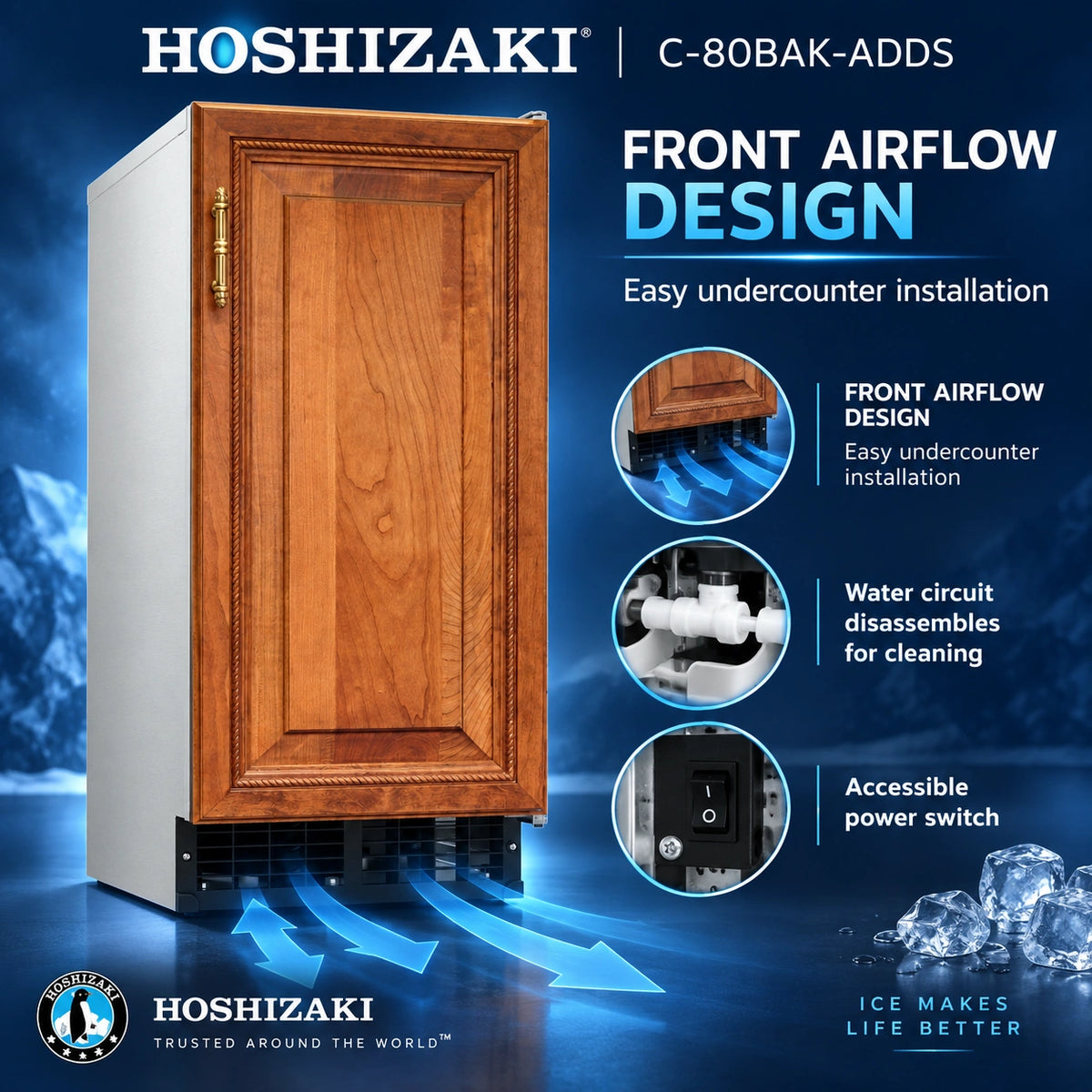

- Front-in, front-out airflow for undercounter applications
- Water circuit disassembles for cleaning
- Power switch accessible without removing a panel
- 6-ft power cord with NEMA 5-15 plug
- UL approved for outdoor use within specified operating limits

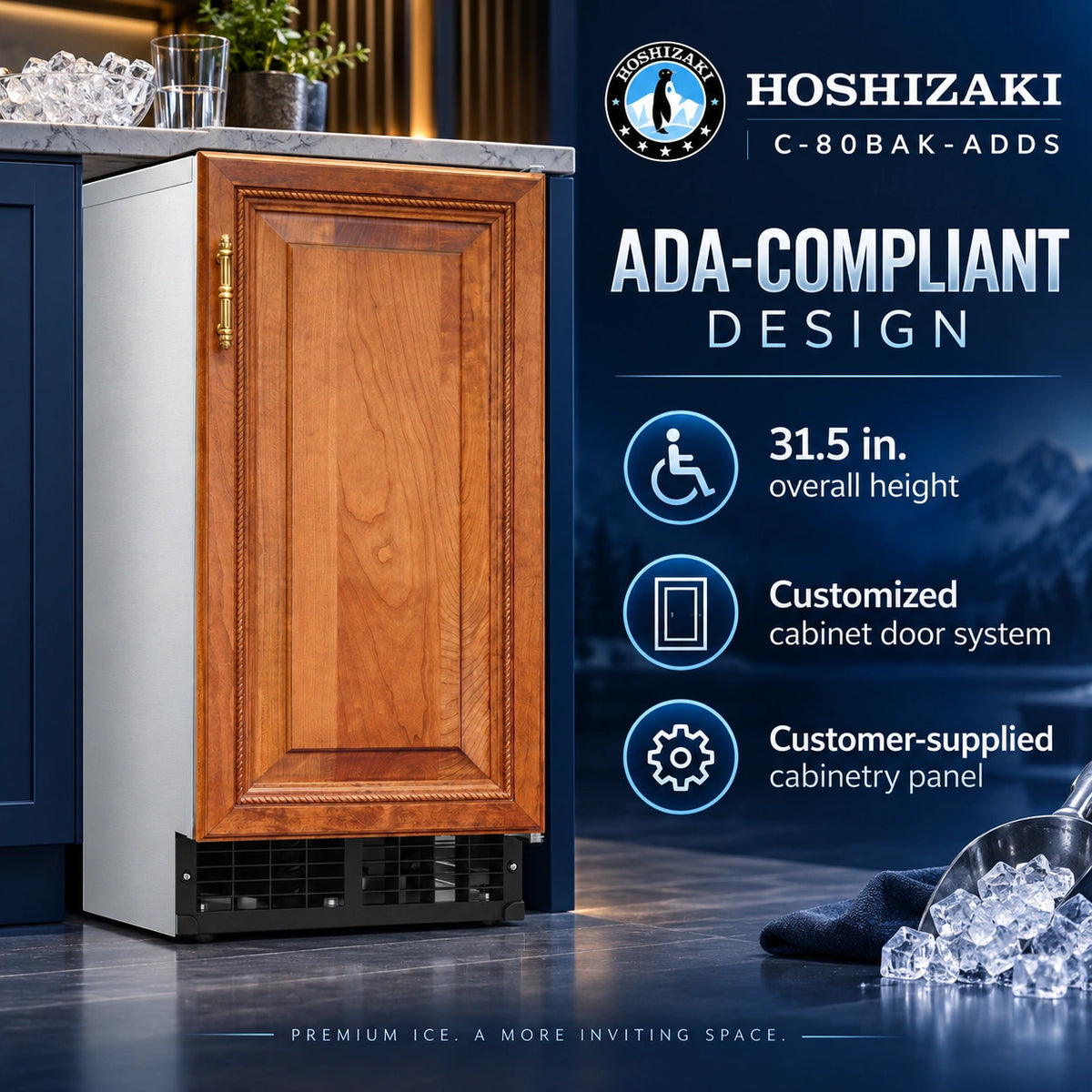

- ADA-compliant 31-1/2-inch-high configuration
- Customized cabinet door system; customer supplies cabinetry
- R290 hydrocarbon refrigerant
Best For
Hospitality suites, wet bars, office beverage spaces and compact counter installations that need cubelet ice with a cabinetry-matched appearance.
Full Specifications
| Specification | Detail |
|---|---|
| Brand | Hoshizaki |
| Model | C-80BAK-ADDS |
| Equipment type | Undercounter ice maker with built-in bin |
| Ice type | Cubelet Ice |
| Cooling | Air-cooled |
| Production at 70°F air / 50°F water | 92 lb/24 hr |
| Production at 90°F air / 70°F water | 65 lb/24 hr |
| Storage | 27 lb built-in bin |
| Dimensions (W × D × H) | 14-7/8 × 22-5/8 × 31-1/2 in. (excluding handle) |
| Electrical | 115V / 60Hz / 1 phase; 2.8A |
| Circuit / maximum fuse | 15A |
| Energy use at 90°F / 70°F | 8.5 kWh per 100 lb |
| Potable water use at 90°F / 70°F | 12 gal per 100 lb |
| Heat rejection | 1,400 BTU/hr |
| Refrigerant | R290; 1.9 oz. charge |
| Water inlet | 1/2-in. FPT; minimum 1/4-in. nominal ID supply tubing |
| Drain | 1/2-in. FPT; minimum 1/2-in. nominal ID drain piping |
| Ambient temperature | 45–100°F |
| Water temperature | 45–90°F |
| Water pressure | 10–113 PSIG |
| Net / shipping weight | 125 / 134 lb |
| Power cord | 6 ft; NEMA 5-15 |
Warranty
- 2 years parts and labor on the entire machine
- 1 year parts and labor on the optional HS-5061 drain pump assembly
Manufacturer coverage applies in the United States, Canada, Puerto Rico and U.S. territories, subject to Hoshizaki's warranty terms.
Installation and Maintenance Notes
- Leave space at the rear for water and drain connections and at least 15 in. in front for service. Install on a firm, level foundation away from ovens, grills and other high-heat equipment.
- Connect to a potable cold-water supply and suitable drain. Follow the manufacturer's installation instructions and applicable local codes.
- An optional HS-5061 drain pump assembly is available when the installation requires pumped drainage.
- Keep ventilation paths clear and follow the specified cleaning and sanitizing schedule. Automatic control and flushing features do not eliminate routine maintenance.
