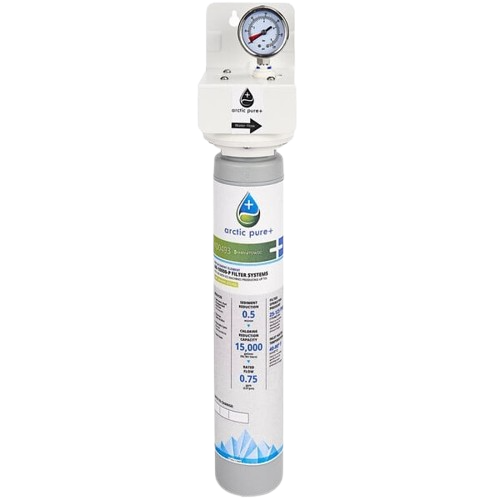

Manitowoc AR-10000-P ArcticPure Plus Ice Machine Water Filtration System - 0.75 GPM, 15,000 Gallons, 0.5 Micron Description
Manitowoc AR-10000-P - Compact Filtration for Everyday Ice Service
For a café, bar or restaurant using an ice machine rated up to 600 lb/day, the Manitowoc AR-10000-P ArcticPure Plus water filtration system brings fine filtration and scale control together in one wall-mounted assembly. Its 15,000-gallon rated capacity and 0.75 GPM maximum service flow match smaller commercial ice-production installations without a multi-cartridge manifold.
The system uses 0.5-micron carbon-block filtration to reduce dirt and fine particles while reducing chlorine taste and odor. Manitowoc specifies an average 95% chlorine reduction. The silver-impregnated carbon media incorporates antimicrobial protection, while SLOW PHOS slowly soluble polyphosphate helps inhibit scale formation and corrosion in the ice-making water circuit.
The complete assembly includes the filter head, shroud, mounting hardware, mounting assembly and one cartridge. It measures 4.13 inches wide by 4.48 inches deep by 19.7 inches high. A pressure gauge provides a convenient service reference, and the quick-change cartridge arrangement allows routine filter changes without dismantling the mounting assembly.
IAPMO R&T certification covers the applicable NSF/ANSI and Canadian drinking-water-system standards; cyst-reduction performance applies at or below the rated flow. This is treatment for a potable cold-water supply, not a means of making microbiologically unsafe water drinkable. The gallon rating is a tested capacity, while the six-month maintenance interval still applies.
Key Features
- 15,000-gallon rated treatment capacity
- 0.75 GPM maximum service flow
- 0.5-micron particle reduction
- Activated-carbon reduction of chlorine taste and odor
- SLOW PHOS scale inhibition
- Pressure gauge and sanitary quick-change cartridge
- Complete head, shroud, mounting hardware and one cartridge included
Best For
Commercial kitchens, bars and hospitality operations using a compatible cube, flake or nugget ice machine in the 0-600 lb/day sizing range, with water demand within the 0.75 GPM service rating.

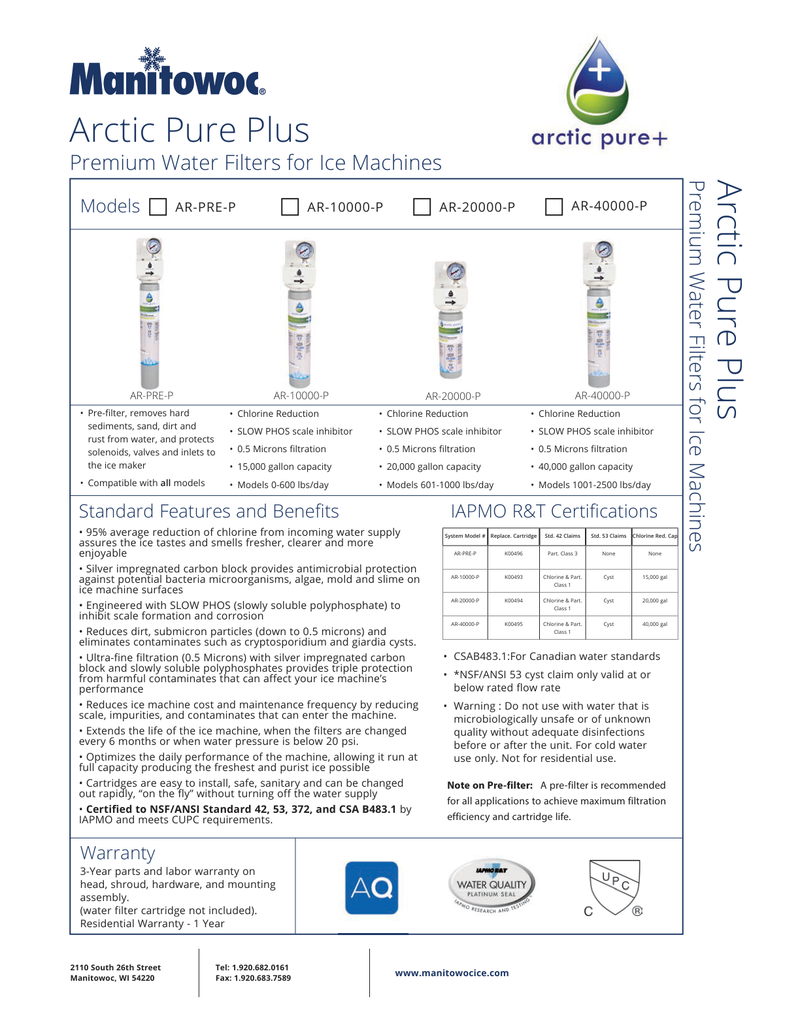

Full Specifications
| Specification | Details |
|---|---|
| Brand | Manitowoc |
| Model | AR-10000-P |
| Product type | Primary ice machine water filtration system |
| Rated capacity | 15,000 gallons |
| Maximum service flow | 0.75 GPM |
| Filtration rating | 0.5 micron |
| Ice machine sizing range | 0-600 lb/day; machine production is not filter output |
| Dimensions (W x D x H) | 4.13 x 4.48 x 19.7 in. |
| Operating water pressure | 35-125 psi |
| Operating water temperature | 35-100°F (installation manual Rev 02) |
| Water connections | 3/8 in. Parker quick-connect |
| Service clearance | 2.5 in. below cartridge |
| Cartridge references | K00493 / K00537 |
| Cartridge count | One |
| Installation orientation | Vertical, cartridge downward |
| Routine cartridge service | Every 6 months; sooner if water conditions restrict flow |
| Certification | IAPMO R&T; NSF/ANSI 42, 53 and 372; CSA B483.1; UPC/cUPC |
Warranty
3 years parts and labor on the filter head, shroud, hardware and mounting assembly for commercial use. Filter cartridges, O-rings and normal maintenance are excluded.
Installation and Maintenance Notes
- Mount vertically with the cartridge hanging downward and leave 2.5 inches below it for service.
- Use a potable cold-water connection and flush the new cartridge for 10 minutes before normal use.
- An ArcticPure Plus AR-PRE-P pre-filter may be fitted upstream to reduce sediment loading; size the complete treatment path for the required flow.
- Use the ArcticPure Plus cartridge family; standard ArcticPure cartridges are not interchangeable.
- Protect the assembly from freezing and change cartridges at least every 6 months.
