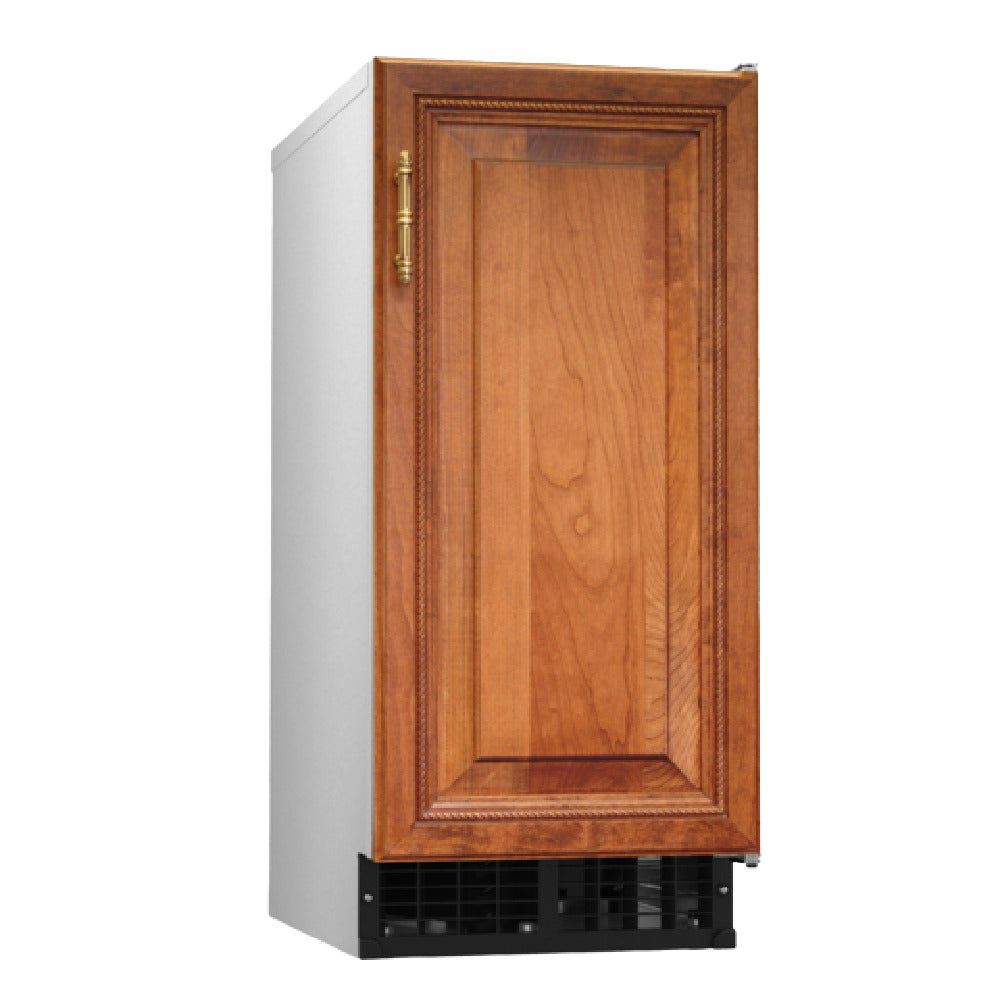

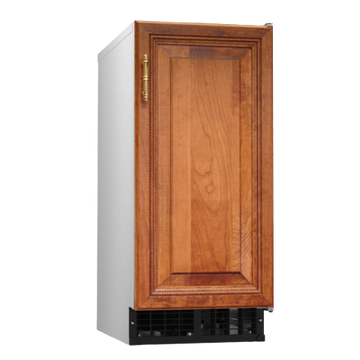

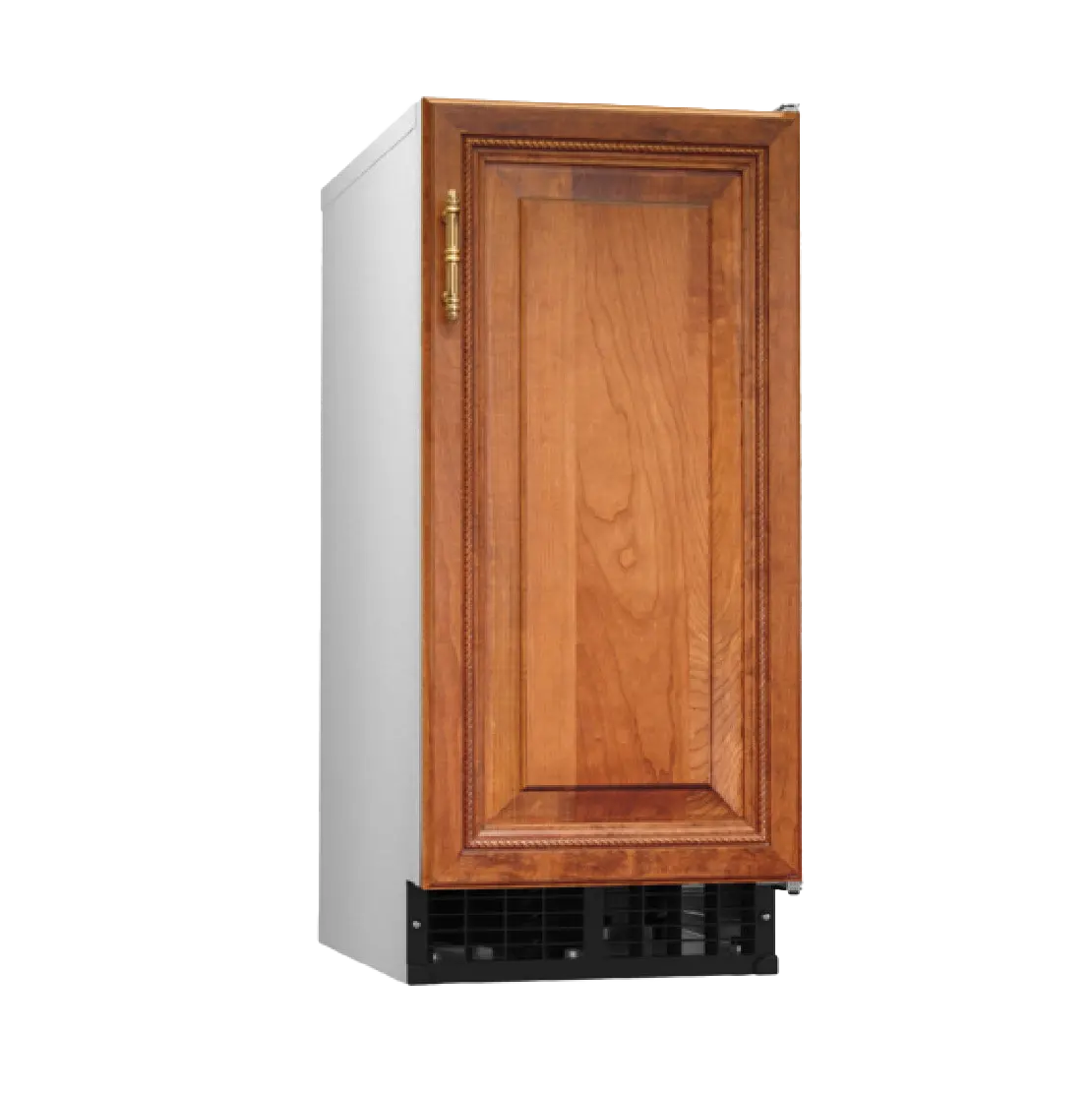

Hoshizaki AM-50BAK-ADDS Custom Panel Undercounter Top Hat Cube Ice Maker - Built-In Style with Premium Ice

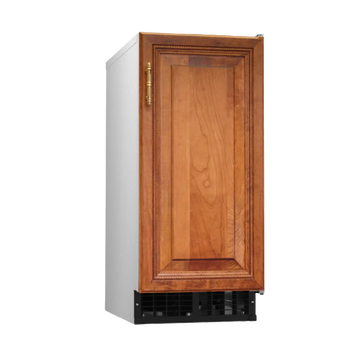

The Hoshizaki AM-50BAK-ADDS custom panel undercounter top hat cube ice maker brings specialty ice production into coordinated cabinetry. Designed for ADA-conscious installations and custom-front applications, it produces up to 54 lb of top hat ice per day and stores up to 27 lb in its built-in bin. The narrow 14-7/8-inch body and 31-1/2-inch cabinet height make it a sophisticated option for executive kitchens, club bars, hospitality suites, and premium residential-style commercial spaces.

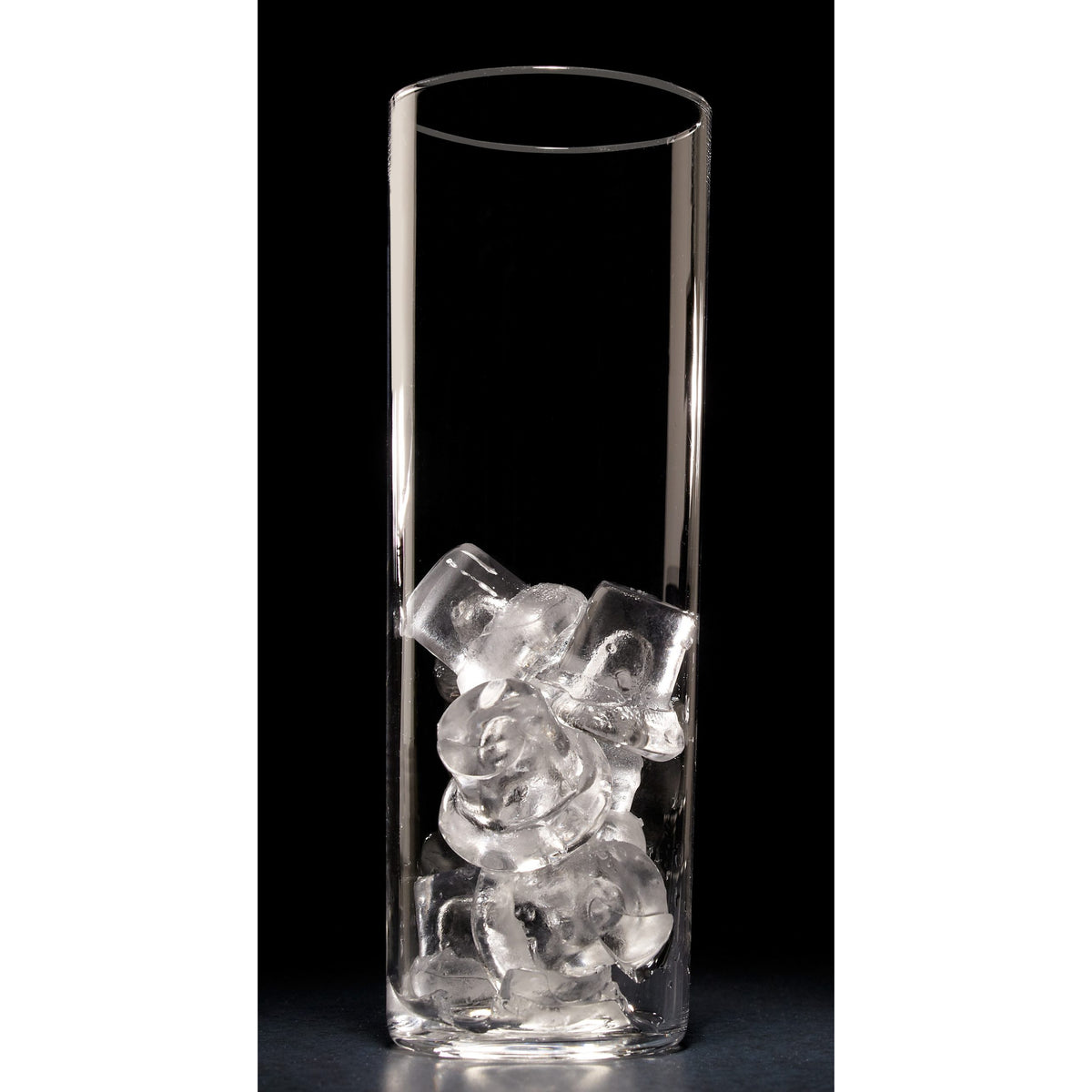

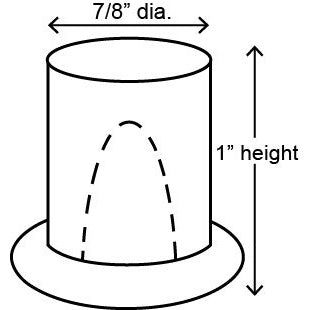

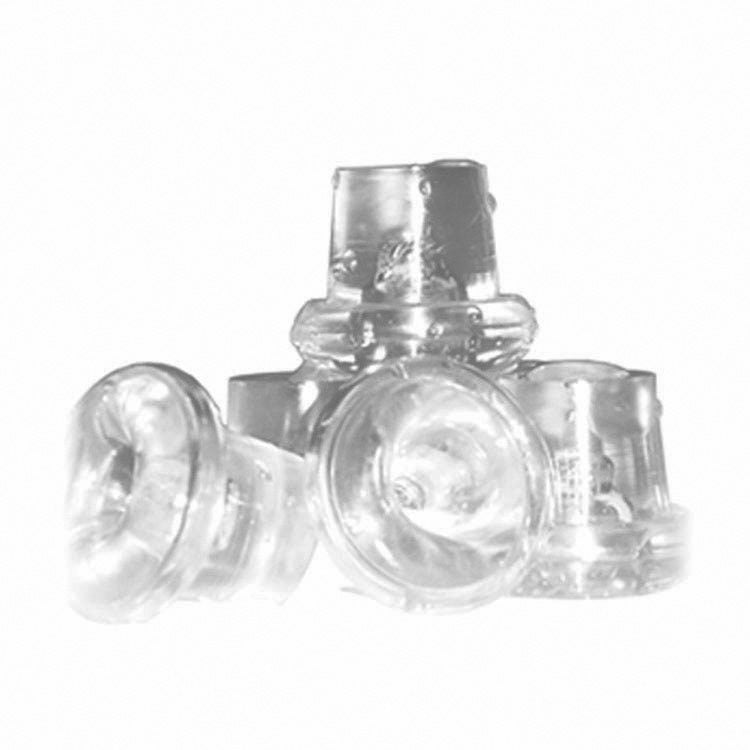

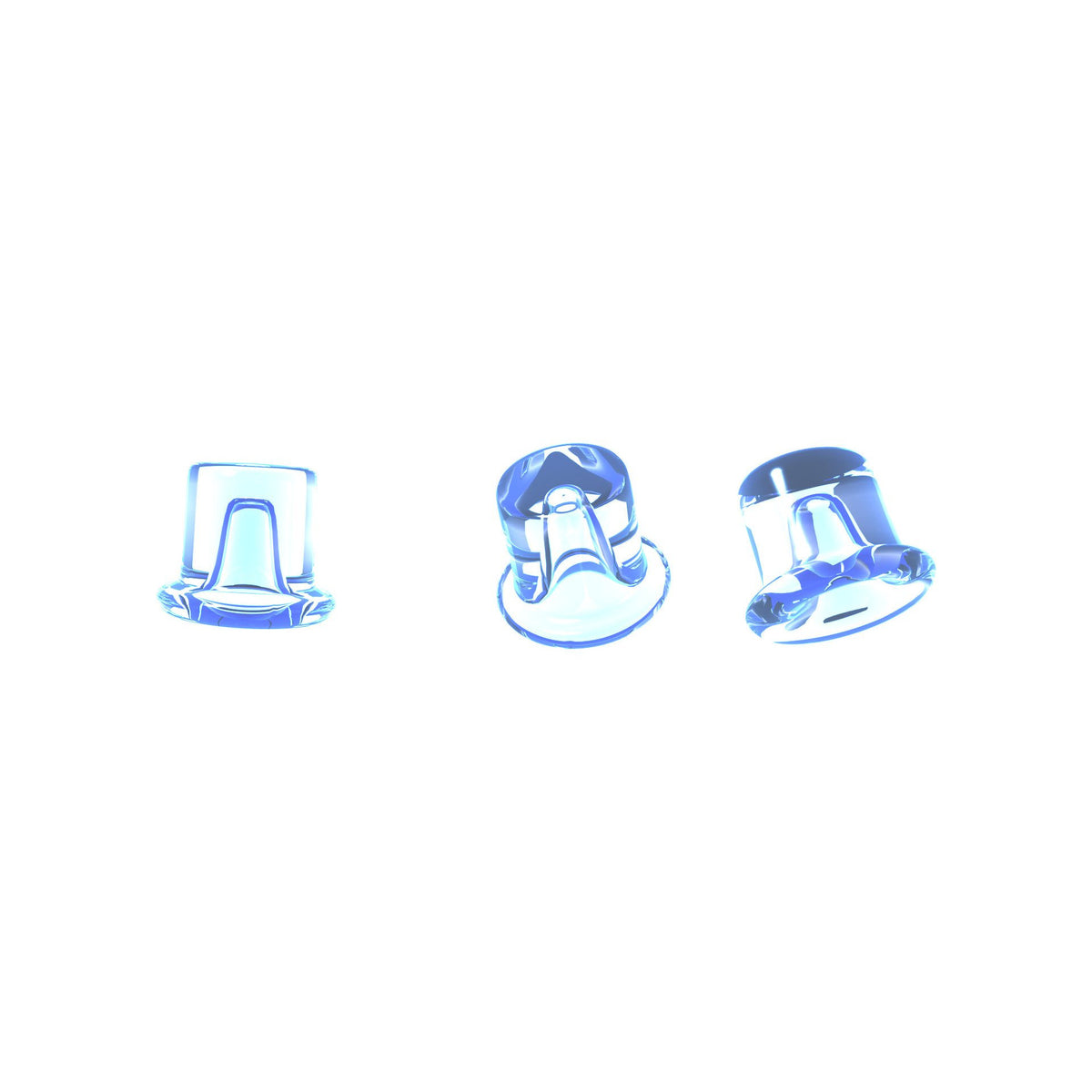

Hoshizaki top hat ice is approximately 1 inch high by 7/8 inch in diameter. Its dense, rounded form melts slowly and gives cocktails, spirits, table water, and premium beverages a polished presentation. The self-contained system places the ice maker and storage bin in a single cabinet, keeping fresh ice near the point of service without requiring a separate bin.
Front-in/front-out airflow helps the air-cooled machine operate in undercounter surroundings, while stainless steel construction provides a durable commercial foundation behind the decorative front. The removable air filter, accessible power switch, fewer-moving-parts design, and disassemblable water circuit simplify routine care and sanitation. The door can be configured for the intended installation using the appropriate factory hardware.
The AM-50BAK-ADDS uses R290 natural refrigerant and is UL approved for outdoor use under the manufacturer's conditions. Maximum production is measured at favorable 70°F air and 50°F water conditions; at 90°F air and 70°F water, output is approximately 35 lb per day. Site planning should account for actual demand, climate, water temperature, clearances, supply pressure, drainage, and the separate custom-panel work.
Key Features

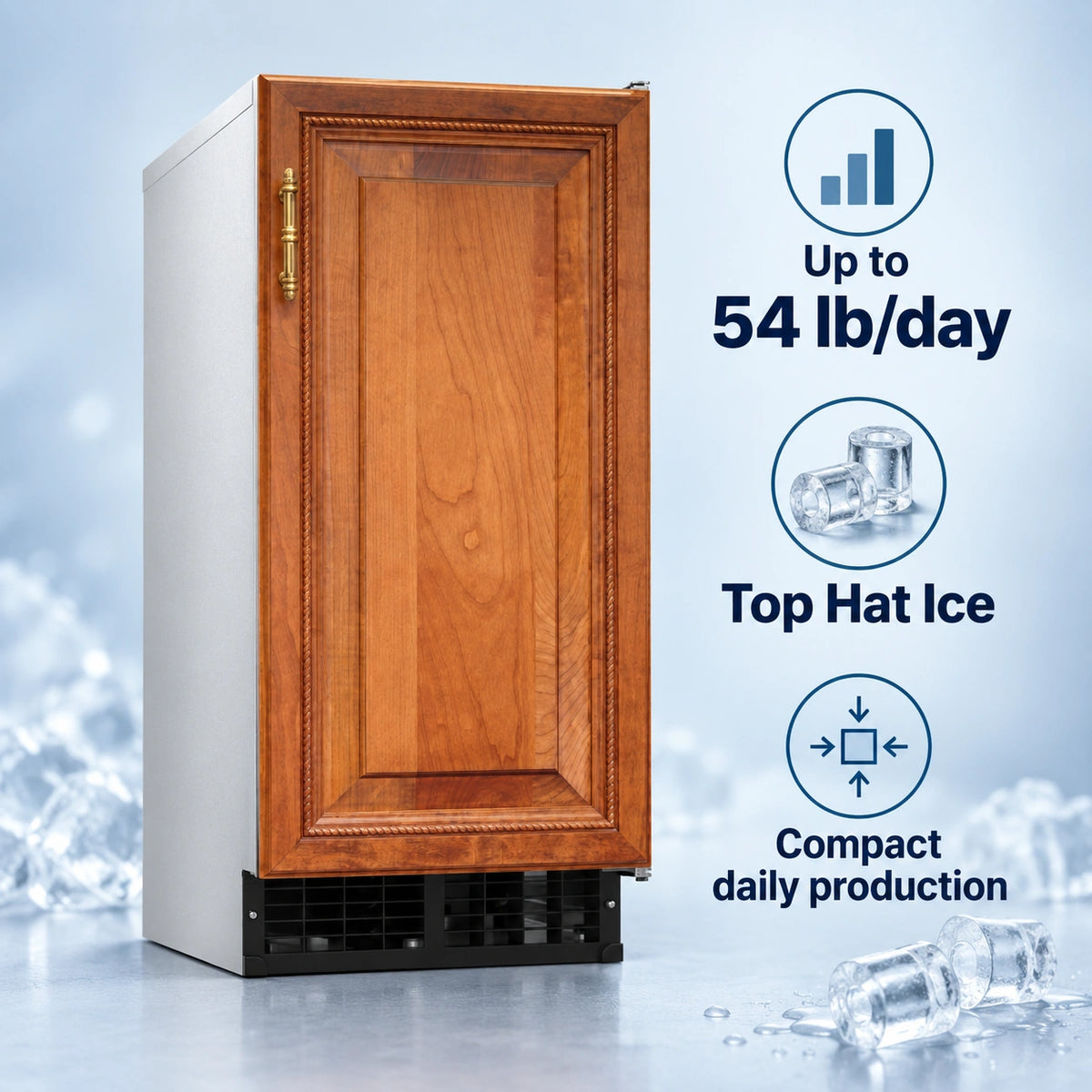

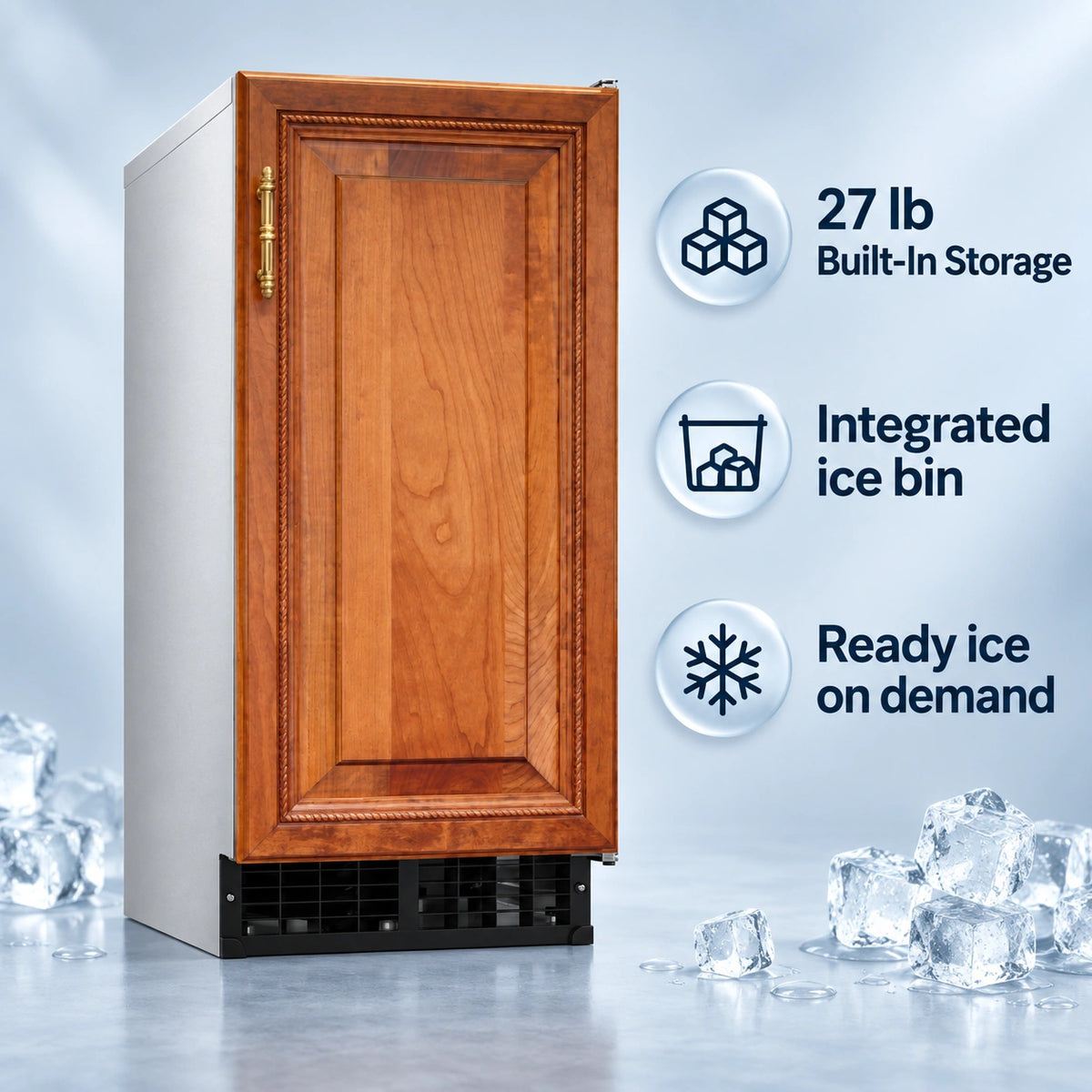

- Produces up to 54 lb/day and stores up to 27 lb

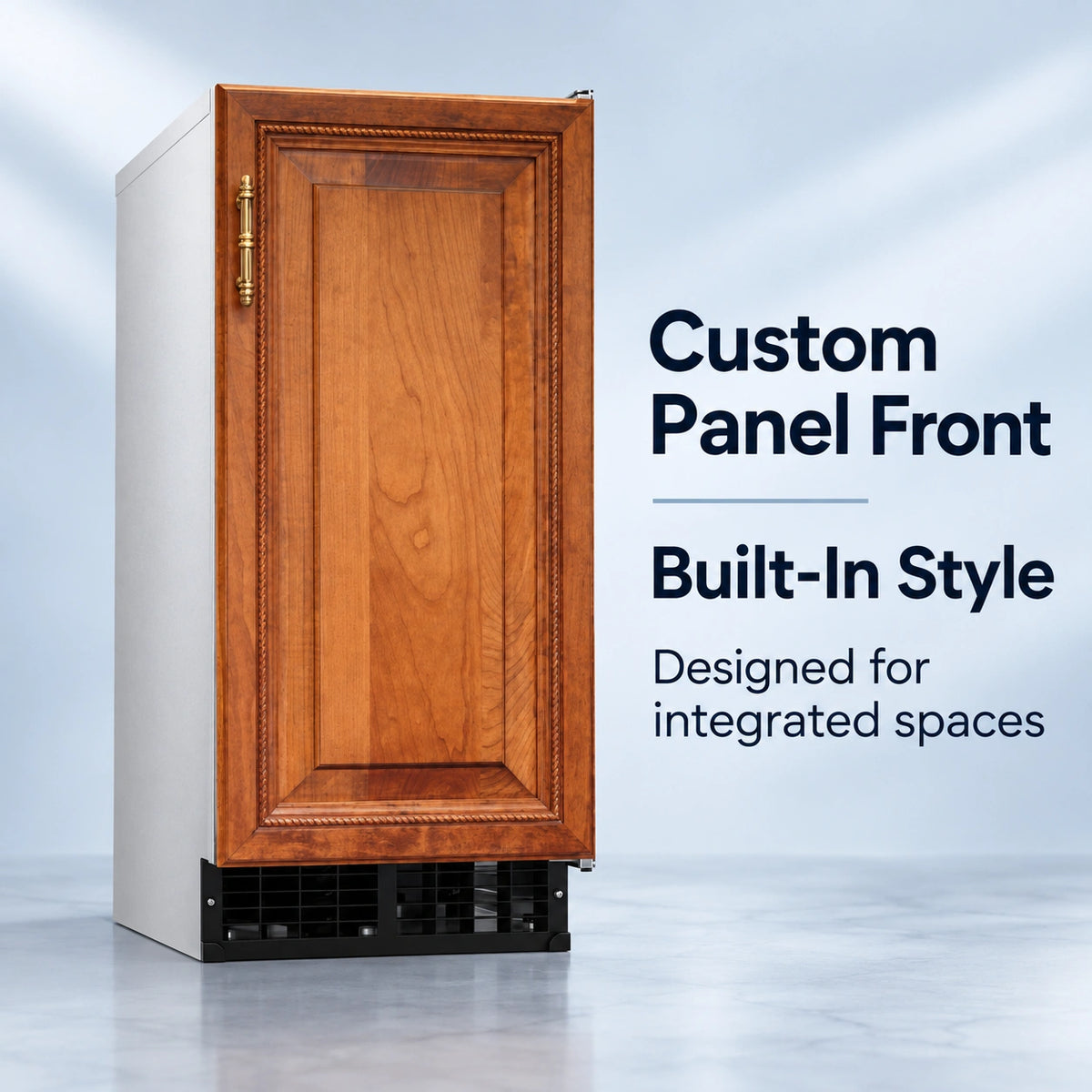

- Accepts a customer-supplied custom cabinet door/panel for integrated appearance
- ADA-oriented 31-1/2-inch cabinet height

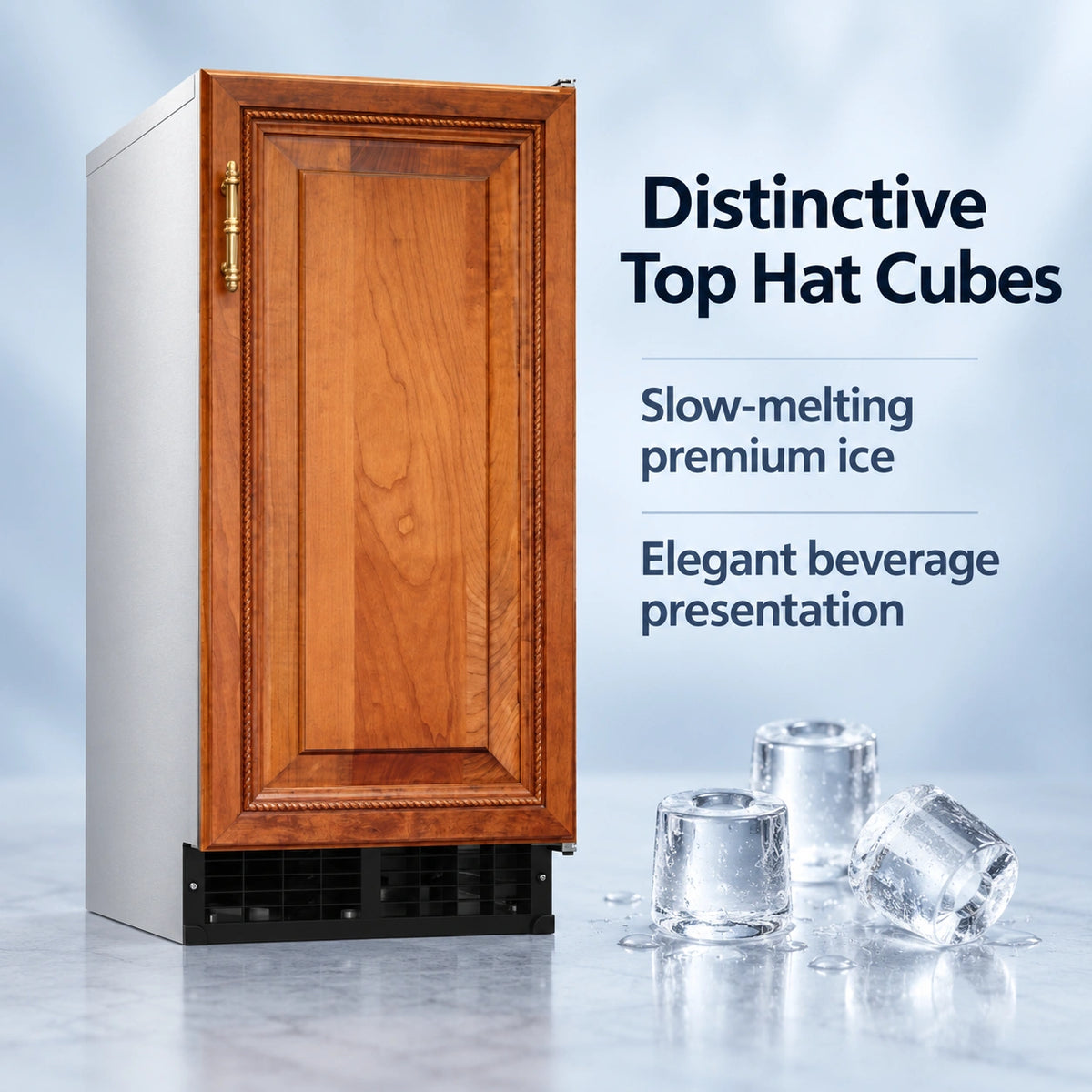

- Top hat cubes provide premium appearance and slower melting
- 14-7/8-inch-wide self-contained cabinet
- Front-in/front-out airflow
- Durable stainless steel construction behind the custom front
- Removable, cleanable air filter and accessible power switch
- Disassemblable water circuit for sanitation access
- R290 natural refrigerant
- Ice scoop included
Best For
Designer bars, executive kitchens, luxury hospitality spaces, private clubs, conference suites, and other custom-cabinet installations that need compact premium ice production with a coordinated built-in appearance.

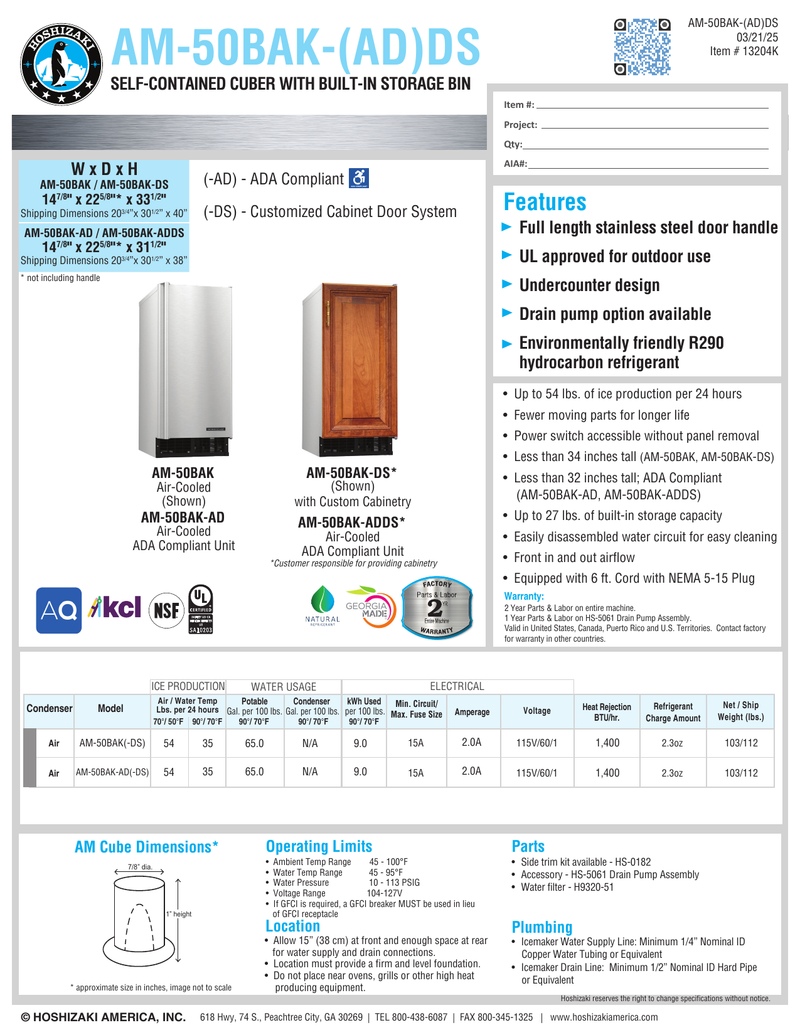

Full Specifications
| Brand | Hoshizaki |
|---|---|
| Model | AM-50BAK-ADDS |
| Type | ADA-compliant custom-panel undercounter ice maker with built-in bin |
| Ice Type | Top hat cube, approximately 1 inch H x 7/8 inch diameter |
| Cooling | Air-cooled; front-in/front-out airflow |
| Maximum Production | Up to 54 lb/24 hr at 70°F air / 50°F water |
| AHRI Production | Approximately 35 lb/24 hr at 90°F air / 70°F water |
| Built-in Storage | 27 lb |
| Dimensions (W x D x H) | 14-7/8 x 22-5/8 x 31-1/2 inches, excluding custom front/handle |
| Net / Shipping Weight | 103 lb / 112 lb |
| Electrical | 115V / 60Hz / 1 phase; 2.0A; 15A maximum circuit; NEMA 5-15 plug; 6 ft cord |
| Refrigerant | R290, 2.3 oz |
| Energy / Water Use | 9.0 kWh and 65 gal potable water per 100 lb at 90°F air / 70°F water |
| Heat Rejection | 1,400 BTU/hr |
| Water Inlet / Drain | 1/2-inch FPT inlet and 1/2-inch FPT drain |
| Operating Range | 45-100°F air; 45-95°F water; 10-113 PSIG; 104-127V |
Warranty
- Entire machine: 2 years parts and labor
- Optional HS-5061 drain pump: 1 year parts and labor
Installation and Maintenance Notes
- Custom decorative panel/door is not included. Coordinate fabrication and mounting with the current Hoshizaki instructions.
- HS-0229 is the designated door-reversal kit referenced for the door system.
- Confirm ADA requirements for the completed installation, not just the appliance body.
- Allow front service clearance and rear connection space; install level and away from heat sources.
- Optional HS-5061 drain pump and H9320-51 water filter are available.
