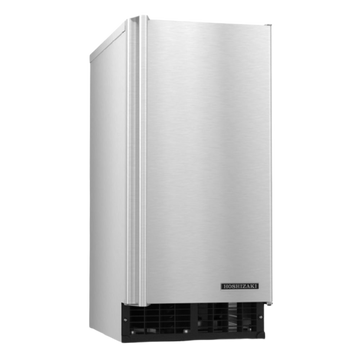

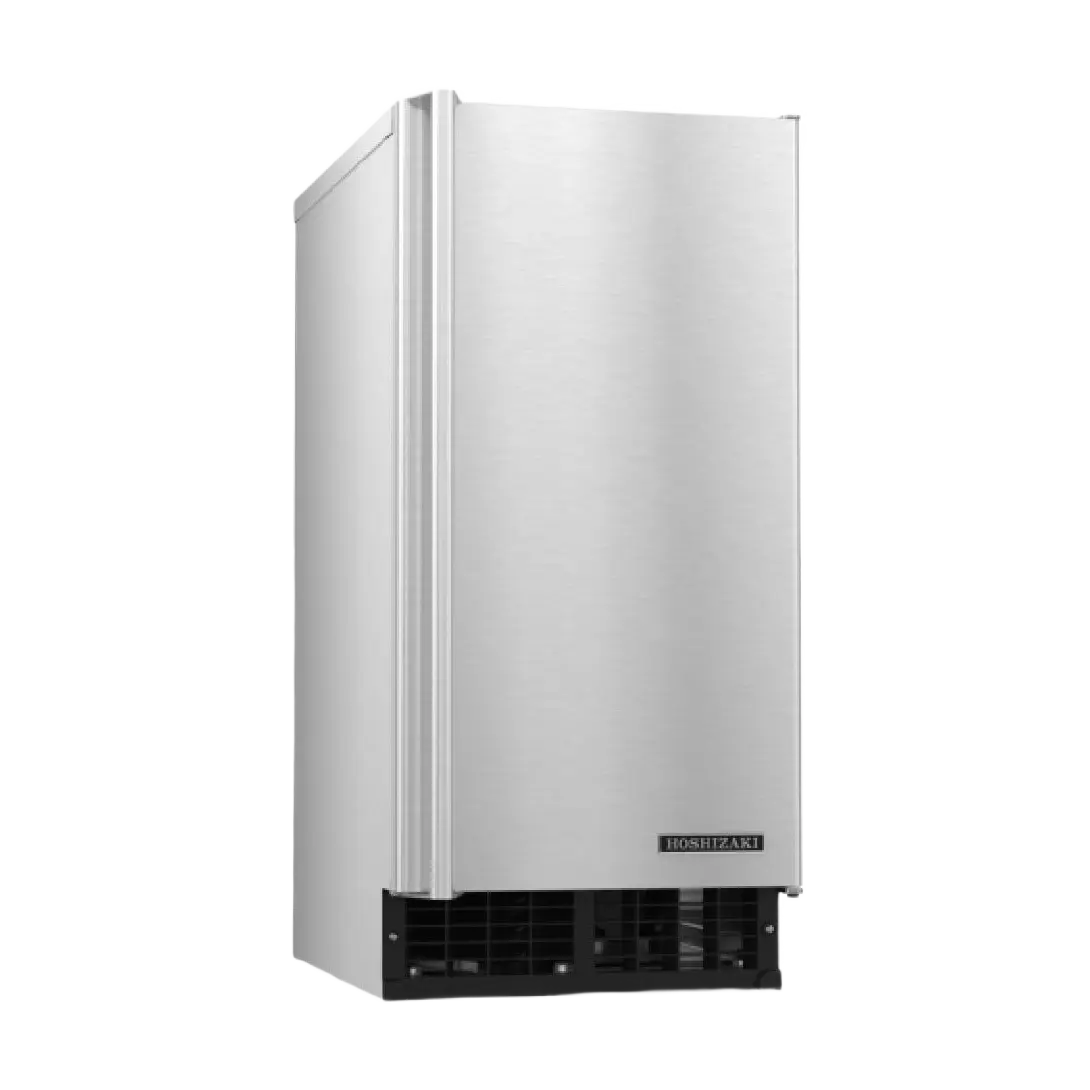

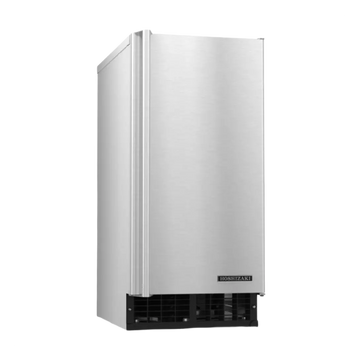

Hoshizaki AM-50BAK-AD ADA Undercounter Top Hat Cube Ice Maker - Premium Ice in a Lower-Profile Cabinet
The Hoshizaki AM-50BAK-AD ADA undercounter top hat cube ice maker combines elegant specialty ice with a lower-profile cabinet designed for ADA-sensitive installations. It can produce up to 54 lb of ice in 24 hours and holds up to 27 lb in the integrated storage bin. At 14-7/8 inches wide and 31-1/2 inches high, the self-contained machine fits into compact beverage areas where accessibility, appearance, and dependable ice availability all matter.

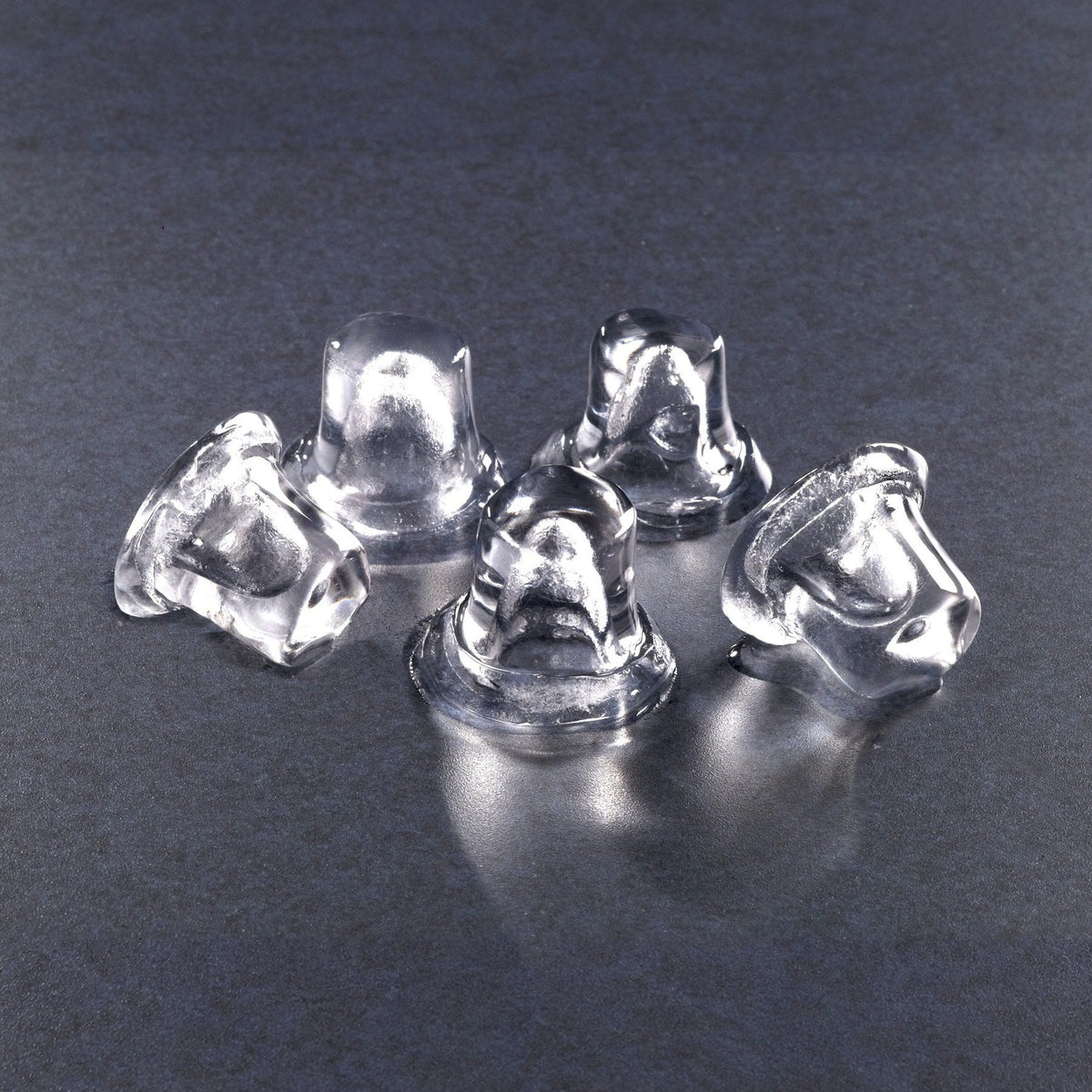

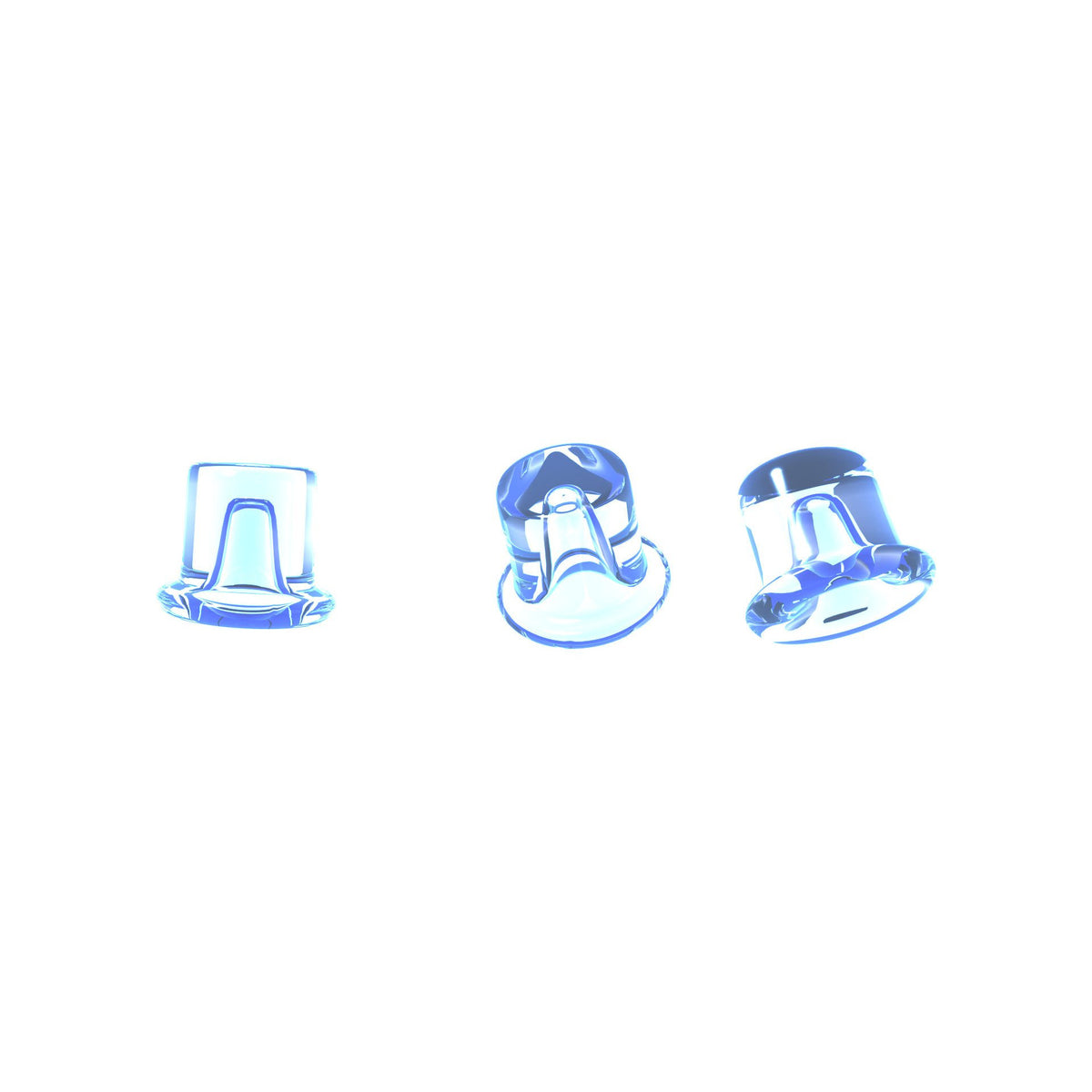

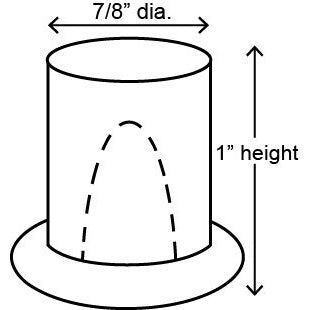

Each top hat cube is approximately 1 inch high by 7/8 inch in diameter. Its solid, rounded form creates an upscale presentation and melts slowly, making it a strong choice for cocktails, spirits, premium soft drinks, conference-room service, and hospitality settings where operators want to reduce rapid dilution.

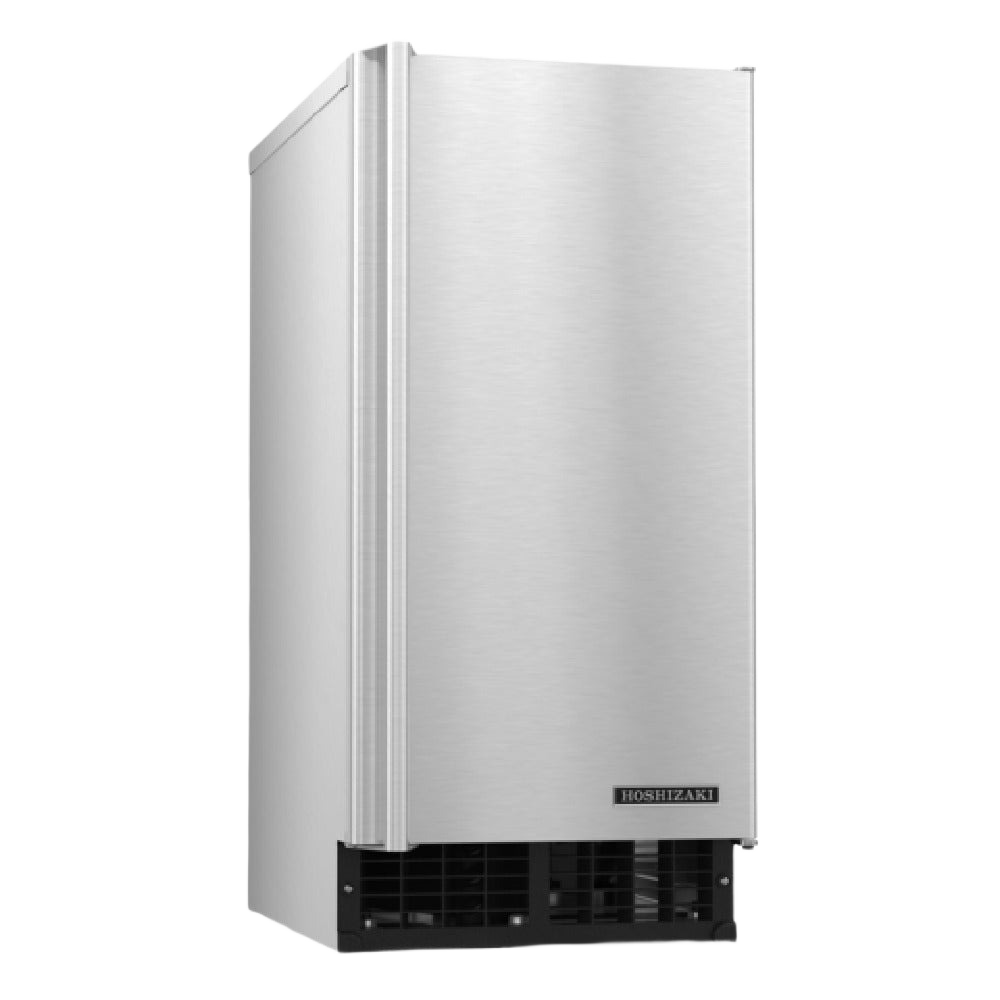

The stainless steel cabinet uses front-in/front-out airflow for practical undercounter integration. A removable, cleanable air filter supports condenser care, while an accessible power switch and a water circuit that can be disassembled make routine maintenance more manageable. The freezing system is engineered with fewer moving parts, supporting consistent commercial service in a small footprint.
This air-cooled model uses R290 natural refrigerant and is UL approved for outdoor use when installed in accordance with Hoshizaki requirements. Its rated output falls to approximately 35 lb per day at 90°F air and 70°F water, so installation conditions should be considered when sizing the machine. Proper drainage, water quality, clearances, and electrical supply are essential for reliable ice production.
Key Features

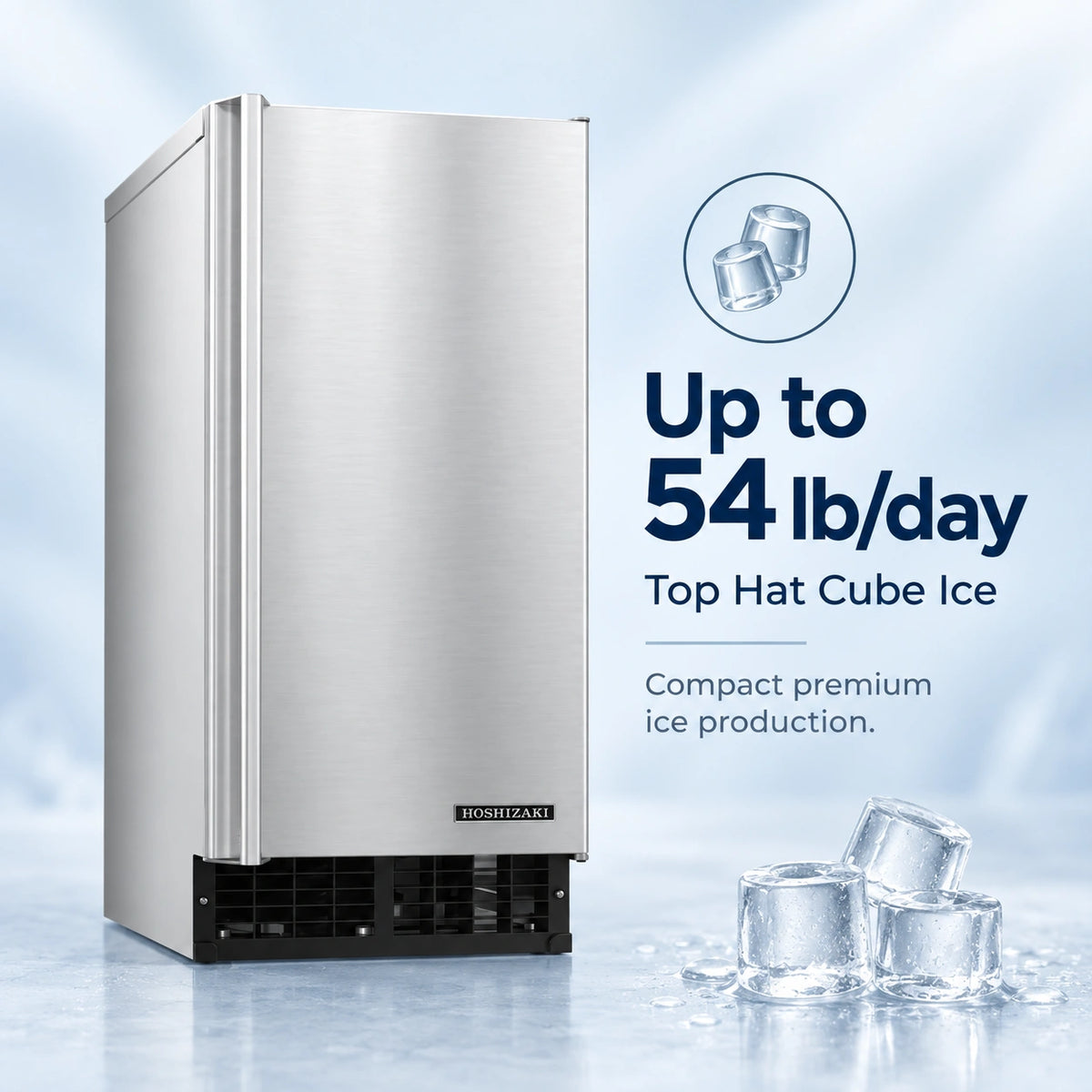

- Produces up to 54 lb/day of top hat cube ice
- Stores up to 27 lb in the built-in bin

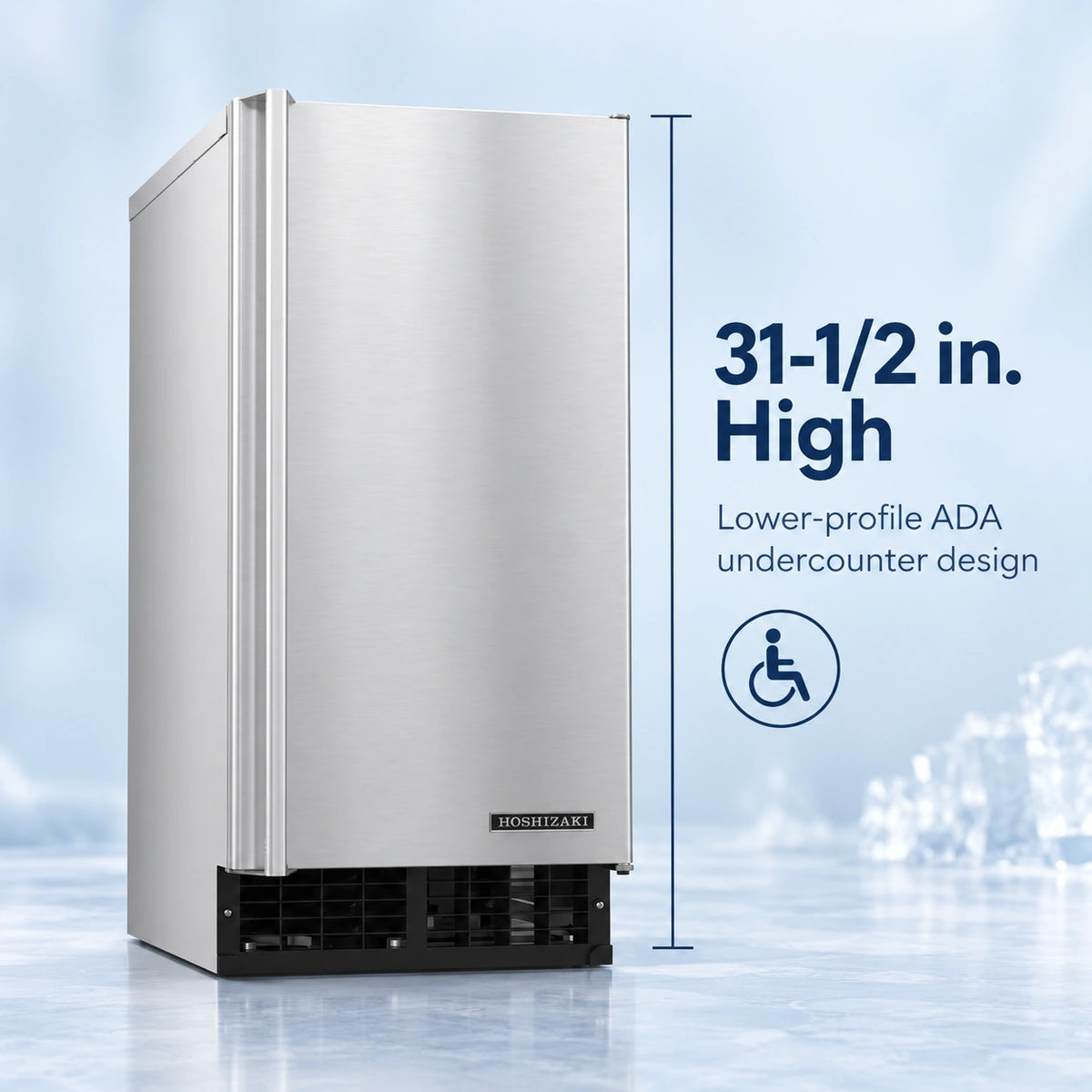

- 31-1/2-inch cabinet height supports ADA-compliant counter applications

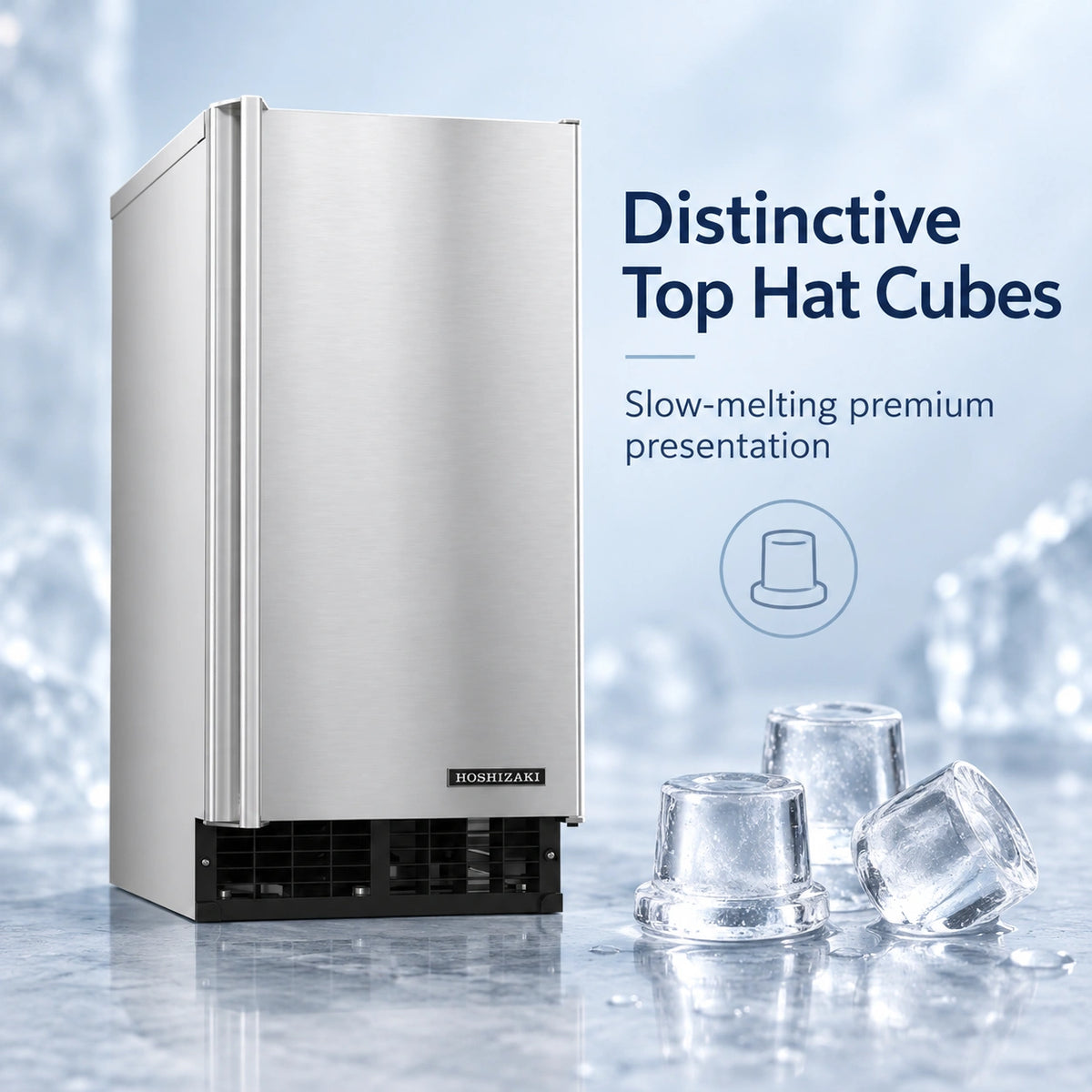

- Distinctive top hat cubes for slower melting and premium presentation
- Narrow 14-7/8-inch stainless steel cabinet
- Front ventilation for undercounter placement
- Removable, cleanable air filter

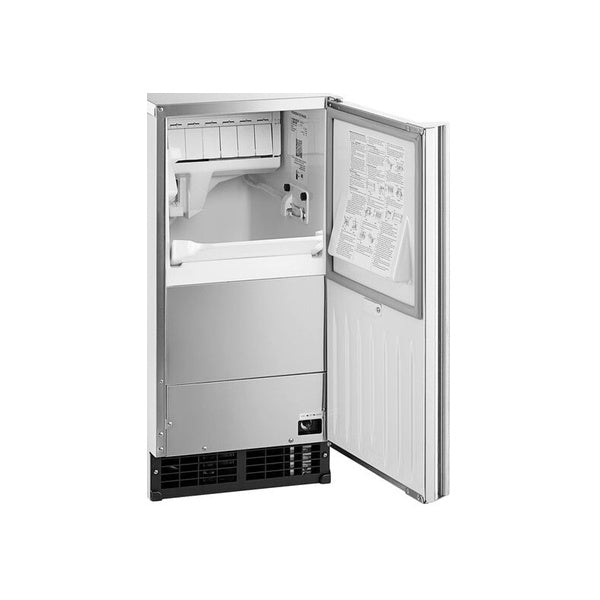

- Accessible power switch and disassemblable water circuit
- R290 natural refrigerant
- UL approved for outdoor use under specified installation conditions
- Ice scoop included
Best For
ADA-conscious bars, offices, hospitality suites, club lounges, conference centers, and premium beverage stations that need attractive slow-melting ice from a lower undercounter unit.

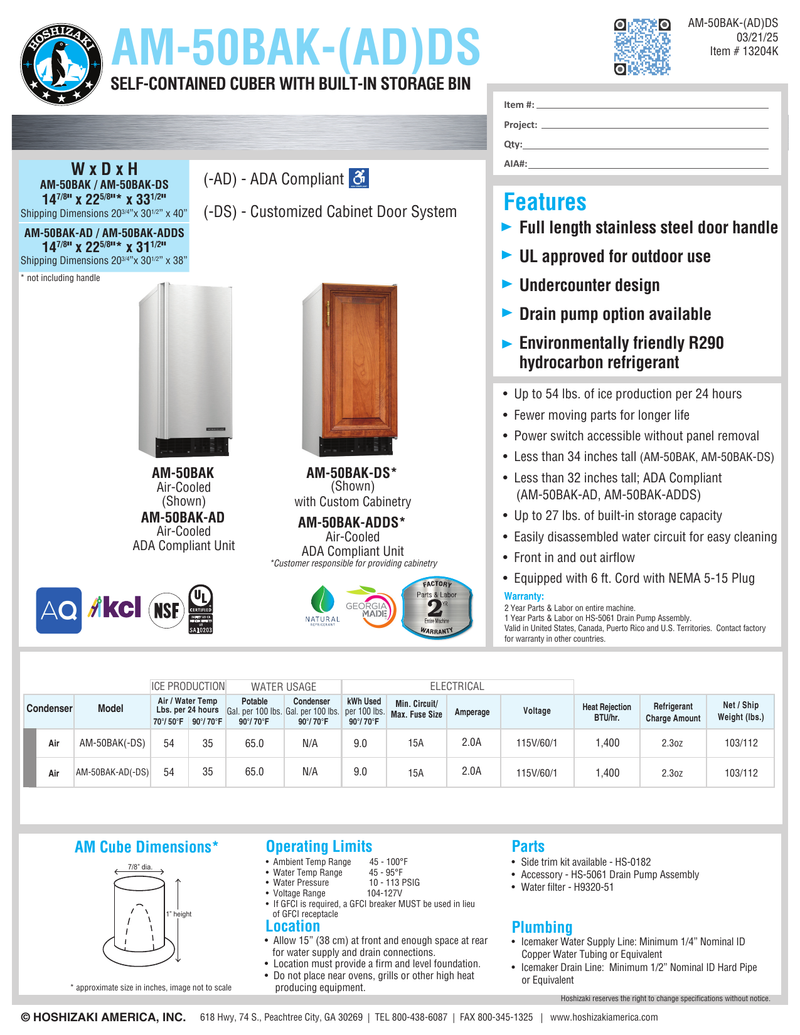

Full Specifications
| Brand | Hoshizaki |
|---|---|
| Model | AM-50BAK-AD |
| Type | ADA-compliant self-contained undercounter ice maker |
| Ice Type | Top hat cube, approximately 1 inch H x 7/8 inch diameter |
| Cooling | Air-cooled; front-in/front-out airflow |
| Maximum Production | Up to 54 lb/24 hr at 70°F air / 50°F water |
| AHRI Production | Approximately 35 lb/24 hr at 90°F air / 70°F water |
| Built-in Storage | 27 lb |
| Dimensions (W x D x H) | 14-7/8 x 22-5/8 x 31-1/2 inches, excluding handle |
| Net / Shipping Weight | 103 lb / 112 lb |
| Electrical | 115V / 60Hz / 1 phase; 2.0A; 15A maximum circuit; NEMA 5-15 plug; 6 ft cord |
| Refrigerant | R290, 2.3 oz |
| Energy Use | 9.0 kWh per 100 lb at 90°F air / 70°F water |
| Potable Water Use | 65 gal per 100 lb at 90°F air / 70°F water |
| Heat Rejection | 1,400 BTU/hr |
| Water Inlet / Drain | 1/2-inch FPT inlet and 1/2-inch FPT drain |
| Operating Range | 45-100°F air; 45-95°F water; 10-113 PSIG; 104-127V |
Warranty
- Entire machine: 2 years parts and labor
- Optional HS-5061 drain pump: 1 year parts and labor
Installation and Maintenance Notes
- Confirm the complete counter and floor layout meets the project's applicable accessibility requirements; appliance height alone does not establish total-site compliance.
- Allow about 15 inches of front clearance and adequate rear room for connections.
- Optional accessories include HS-0182 side trim kit, HS-5061 drain pump, and H9320-51 filter system.
- Use a firm, level foundation and avoid installation next to heat-producing equipment.
