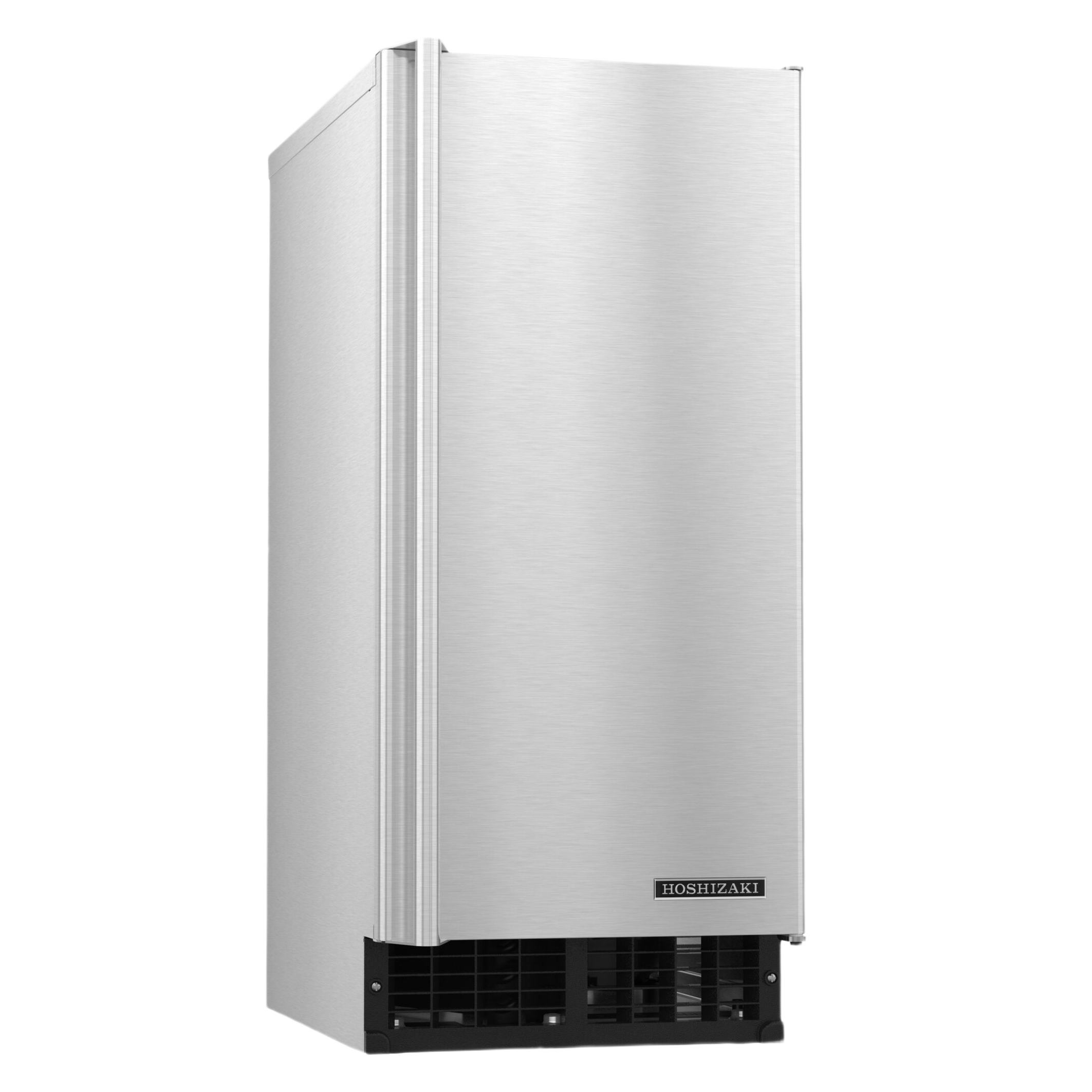

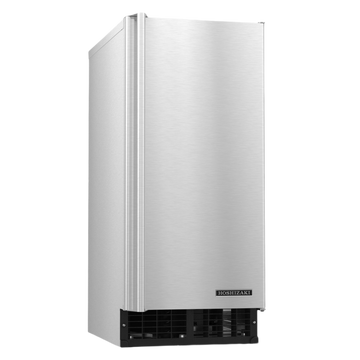

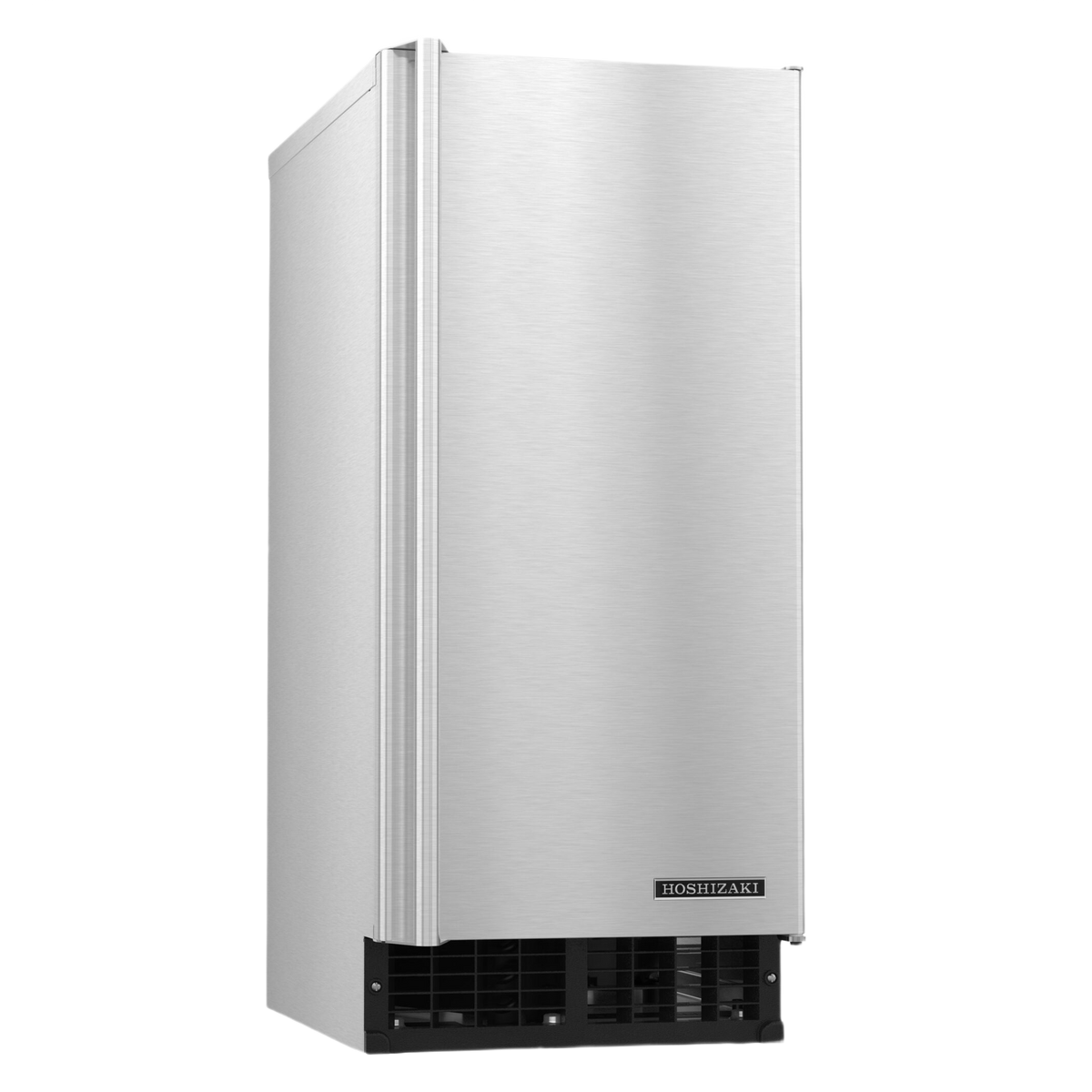

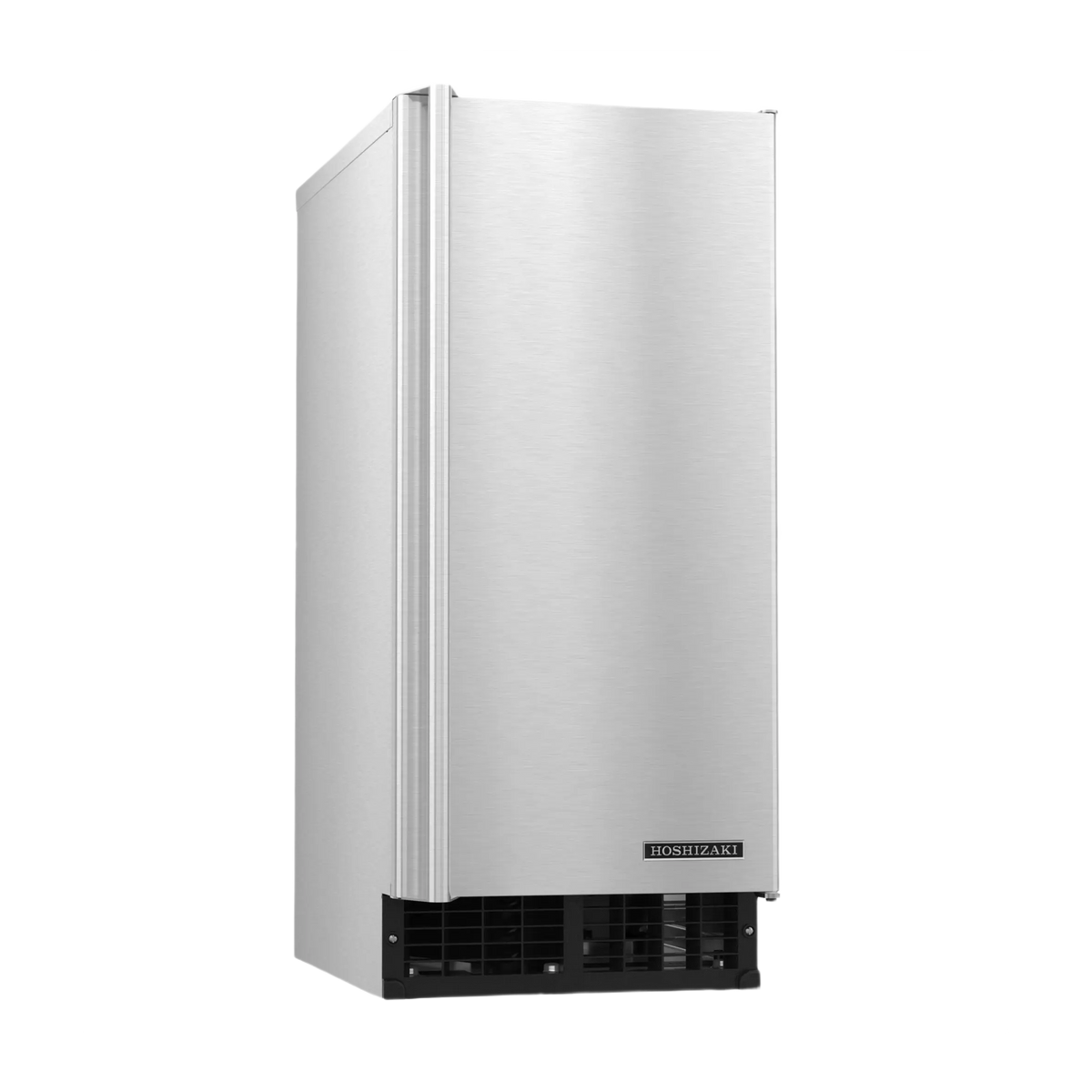

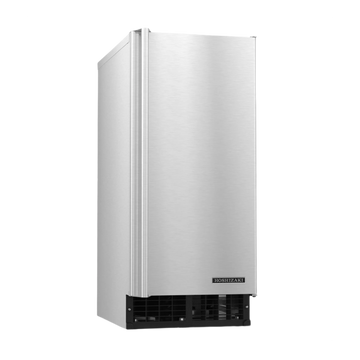

Hoshizaki AM-50BAK Undercounter Top Hat Cube Ice Maker - Compact Premium Ice for Bars, Offices, and Hospitality
The Hoshizaki AM-50BAK undercounter top hat cube ice maker gives hospitality and beverage-service operators a compact source of distinctive, slow-melting ice. It produces up to 54 lb of ice per 24 hours and stores as much as 27 lb in its built-in bin, combining production and storage in one narrow 14-7/8-inch cabinet. Its self-contained, air-cooled design is well suited to bars, executive offices, conference rooms, hotel suites, private clubs, and other locations where presentation matters but floor space is limited.
Hoshizaki's top hat cube is approximately 1 inch high by 7/8 inch in diameter. The solid, rounded profile presents beautifully in premium beverages and melts more slowly than small conventional cubes, helping drinks stay cold with less rapid dilution. This makes the AM-50BAK particularly useful for cocktails, spirits, table water, and upscale guest service.

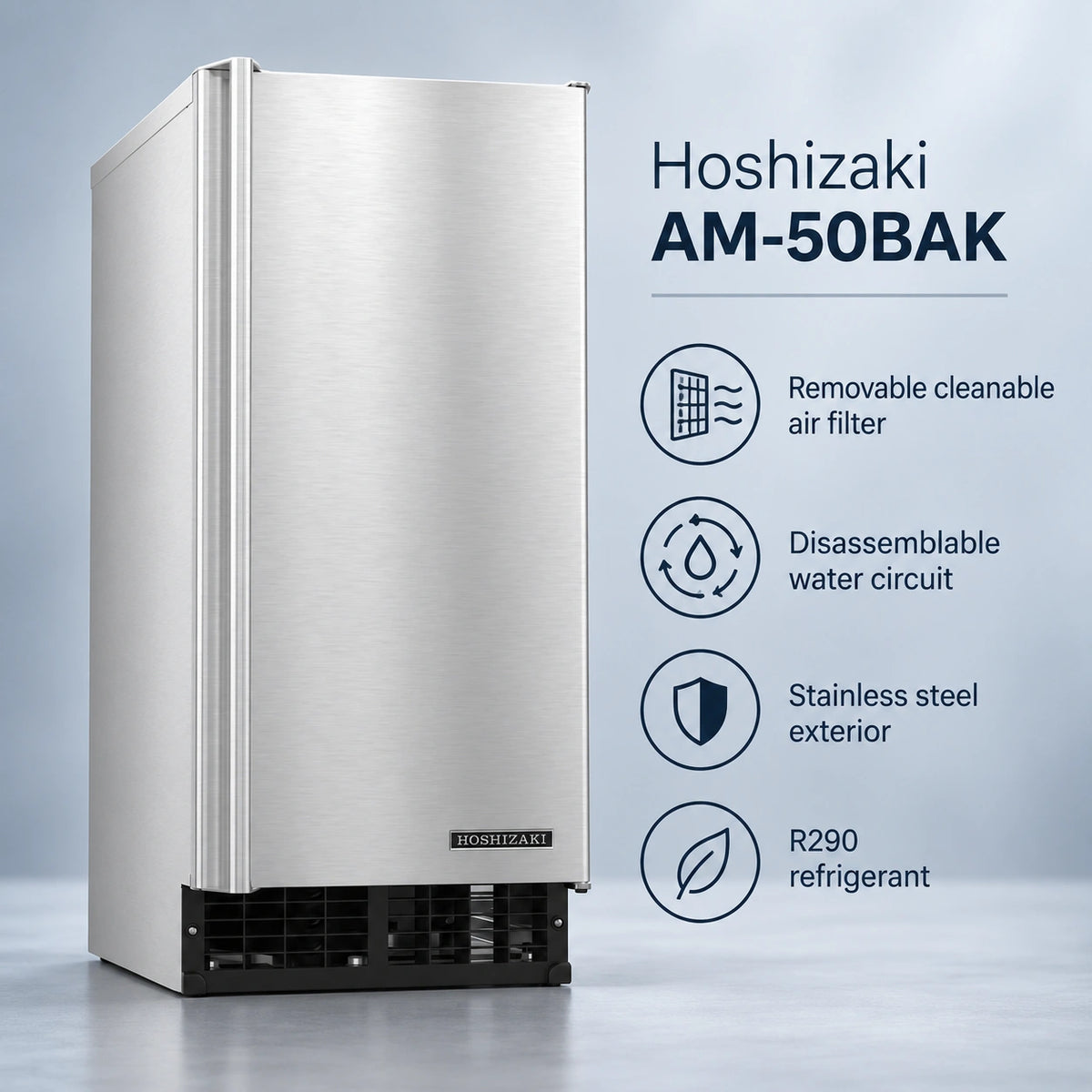

The cabinet uses durable stainless steel and a front-in/front-out airflow path, allowing the machine to work beneath a counter while keeping routine service access practical. A removable, cleanable air filter helps protect the condenser, the accessible power switch simplifies operation, and the water circuit can be disassembled for thorough cleaning. Hoshizaki also minimizes moving parts in the freezing system to support dependable long-term operation.
The AM-50BAK uses low-charge R290 natural refrigerant and is approved for outdoor use under applicable UL conditions. At standard AHRI test conditions of 90°F air and 70°F water, it produces approximately 35 lb per day; actual output varies with ambient and incoming-water temperature. For dependable performance, the site must provide the specified water pressure, drainage, ventilation, electrical supply, and service clearance.
Key Features

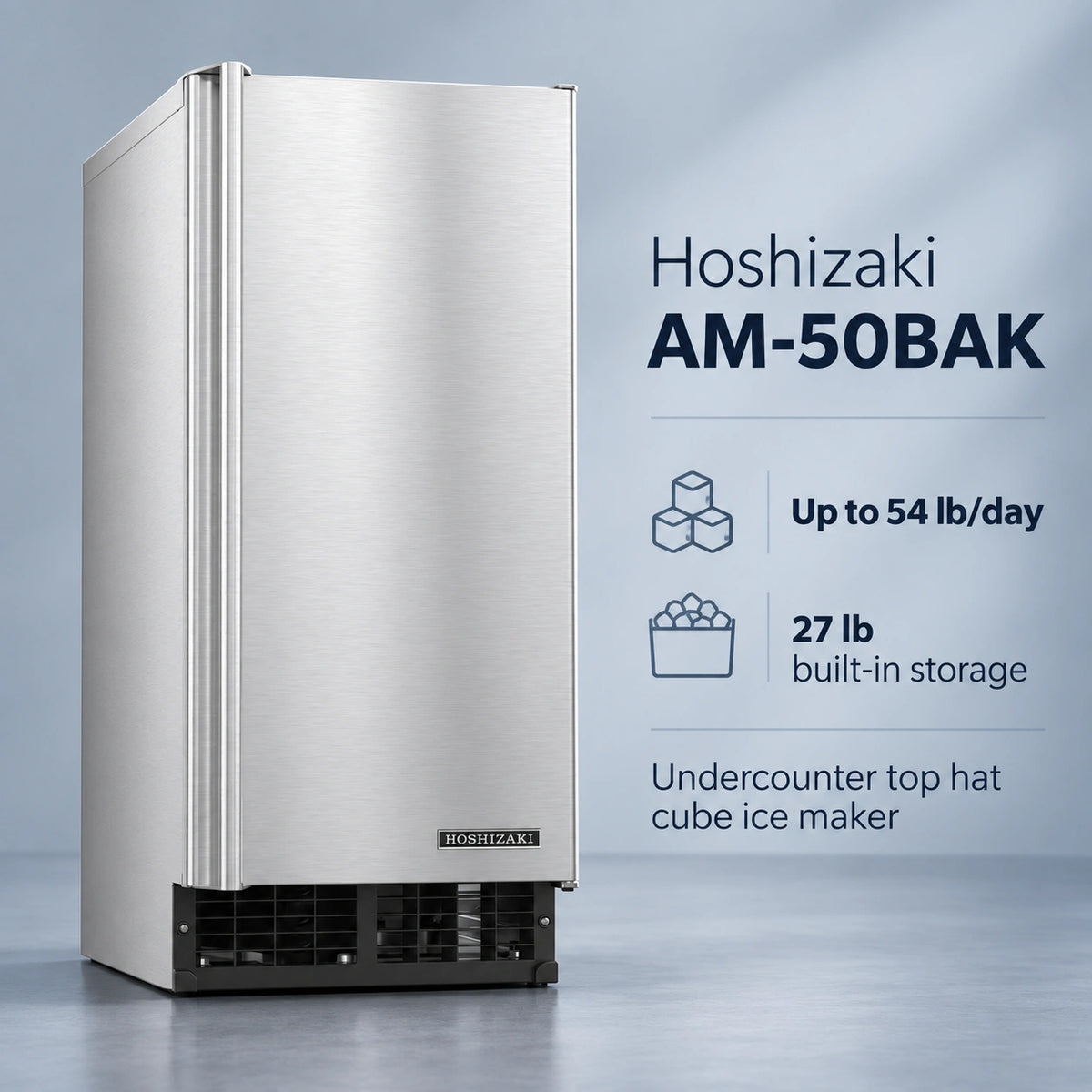

- Produces up to 54 lb of top hat cube ice per day
- Built-in bin stores up to 27 lb of ice

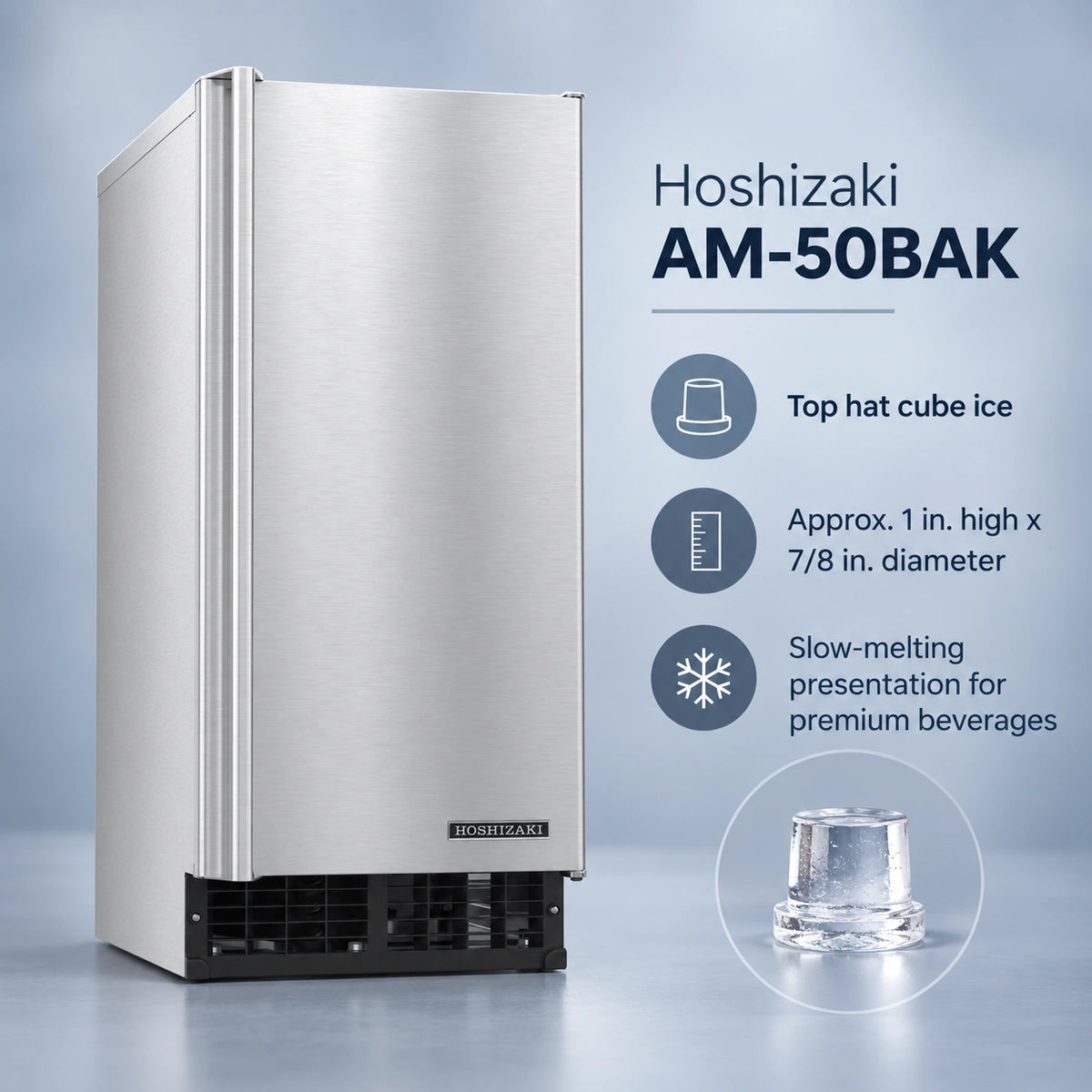

- Distinctive top hat cubes measure approximately 1 inch high by 7/8 inch diameter

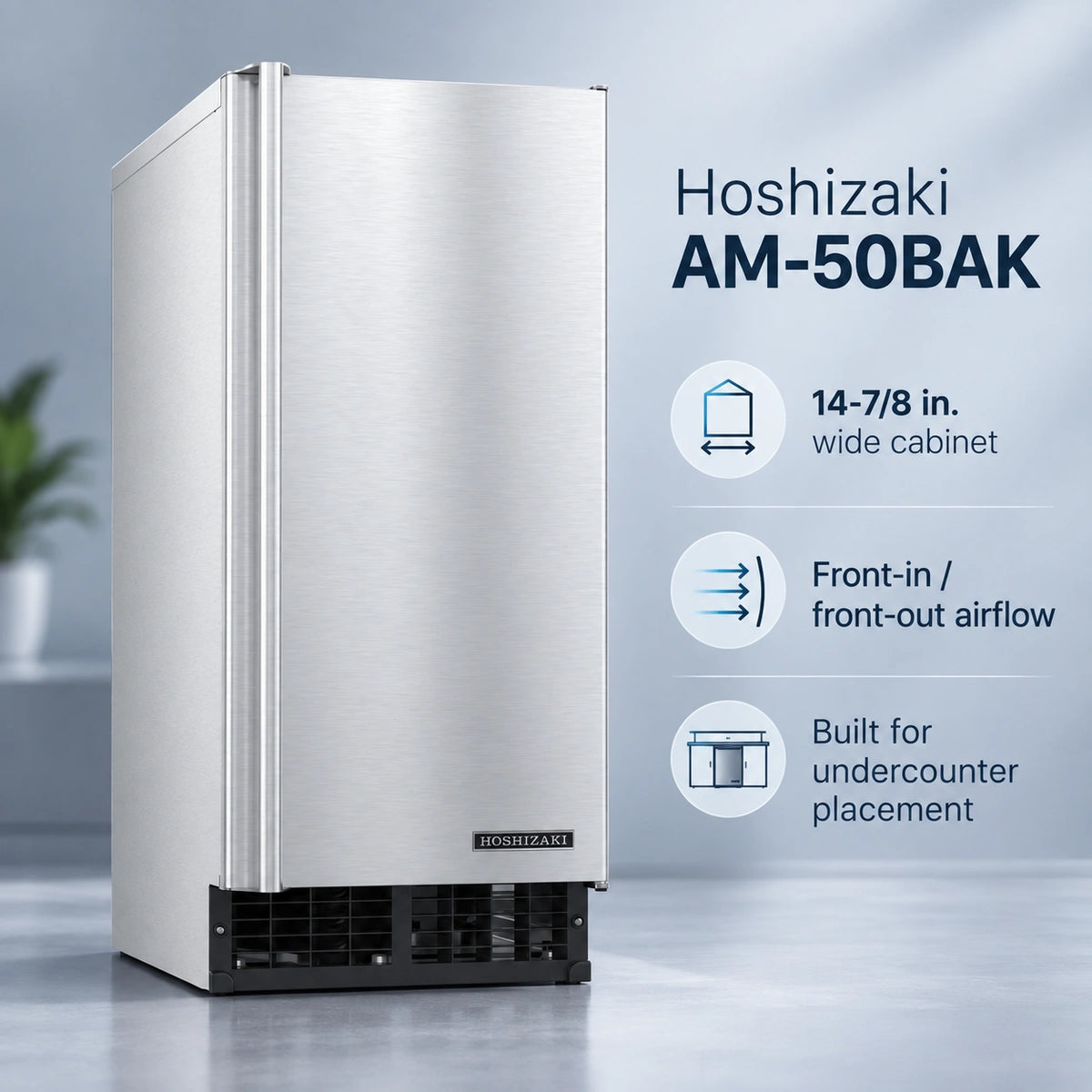

- 14-7/8-inch-wide undercounter cabinet conserves floor and counter space
- Front-in/front-out airflow supports undercounter placement
- Stainless steel exterior for commercial durability
- Removable, cleanable air filter and accessible power switch
- Disassemblable water circuit supports more complete sanitation
- R290 natural refrigerant
- UL approved for outdoor use when installed according to the manufacturer's requirements
- Ice scoop included
Best For
Cocktail bars, private clubs, executive offices, conference rooms, hospitality suites, boutique hotels, and premium beverage stations that want elegant, slow-melting ice from a narrow self-contained machine.

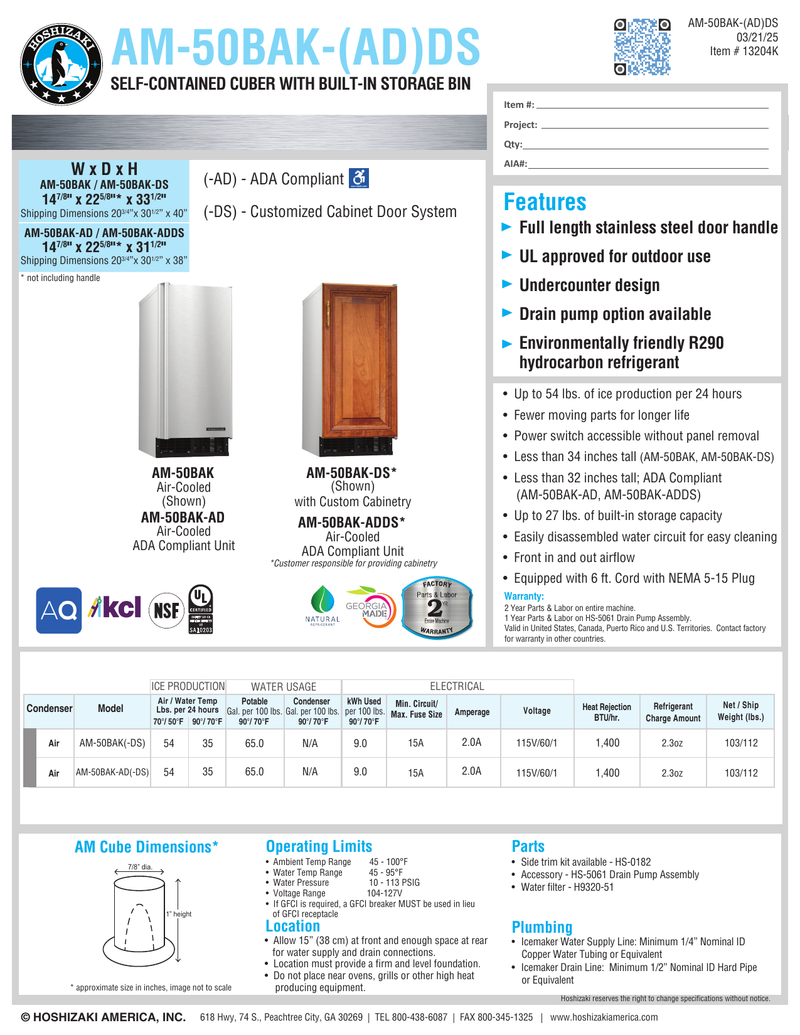

Full Specifications
| Brand | Hoshizaki |
|---|---|
| Model | AM-50BAK |
| Type | Self-contained undercounter ice maker with built-in bin |
| Ice Type | Top hat cube, approximately 1 inch H x 7/8 inch diameter |
| Cooling | Air-cooled; front-in/front-out airflow |
| Maximum Production | Up to 54 lb/24 hr at 70°F air / 50°F water |
| AHRI Production | Approximately 35 lb/24 hr at 90°F air / 70°F water |
| Built-in Storage | 27 lb |
| Dimensions (W x D x H) | 14-7/8 x 22-5/8 x 33-1/2 inches, excluding handle |
| Net / Shipping Weight | 103 lb / 112 lb |
| Electrical | 115V / 60Hz / 1 phase; 2.0A; 15A maximum circuit; NEMA 5-15 plug; 6 ft cord |
| Refrigerant | R290, 2.3 oz |
| Energy Use | 9.0 kWh per 100 lb at 90°F air / 70°F water |
| Potable Water Use | 65 gal per 100 lb at 90°F air / 70°F water |
| Heat Rejection | 1,400 BTU/hr |
| Water Inlet | 1/2-inch FPT; minimum 1/4-inch supply line |
| Drain | 1/2-inch FPT; minimum 1/2-inch hard pipe |
| Operating Range | 45-100°F air; 45-95°F water; 10-113 PSIG water pressure; 104-127V |
Warranty
- Entire machine: 2 years parts and labor
- Optional HS-5061 drain pump: 1 year parts and labor
Installation and Maintenance Notes
- Provide approximately 15 inches of front service clearance and adequate rear space for water and drain connections.
- Install on a firm, level foundation and keep the unit away from heat-producing equipment.
- Optional accessories include HS-0182 side trim kit, HS-5061 drain pump, and H9320-51 water filtration system.
- Production depends on ambient and inlet-water conditions; the 54 lb/day figure is the maximum rating, not the AHRI-condition output.
